Summary of Contents for Minuteman TRS17

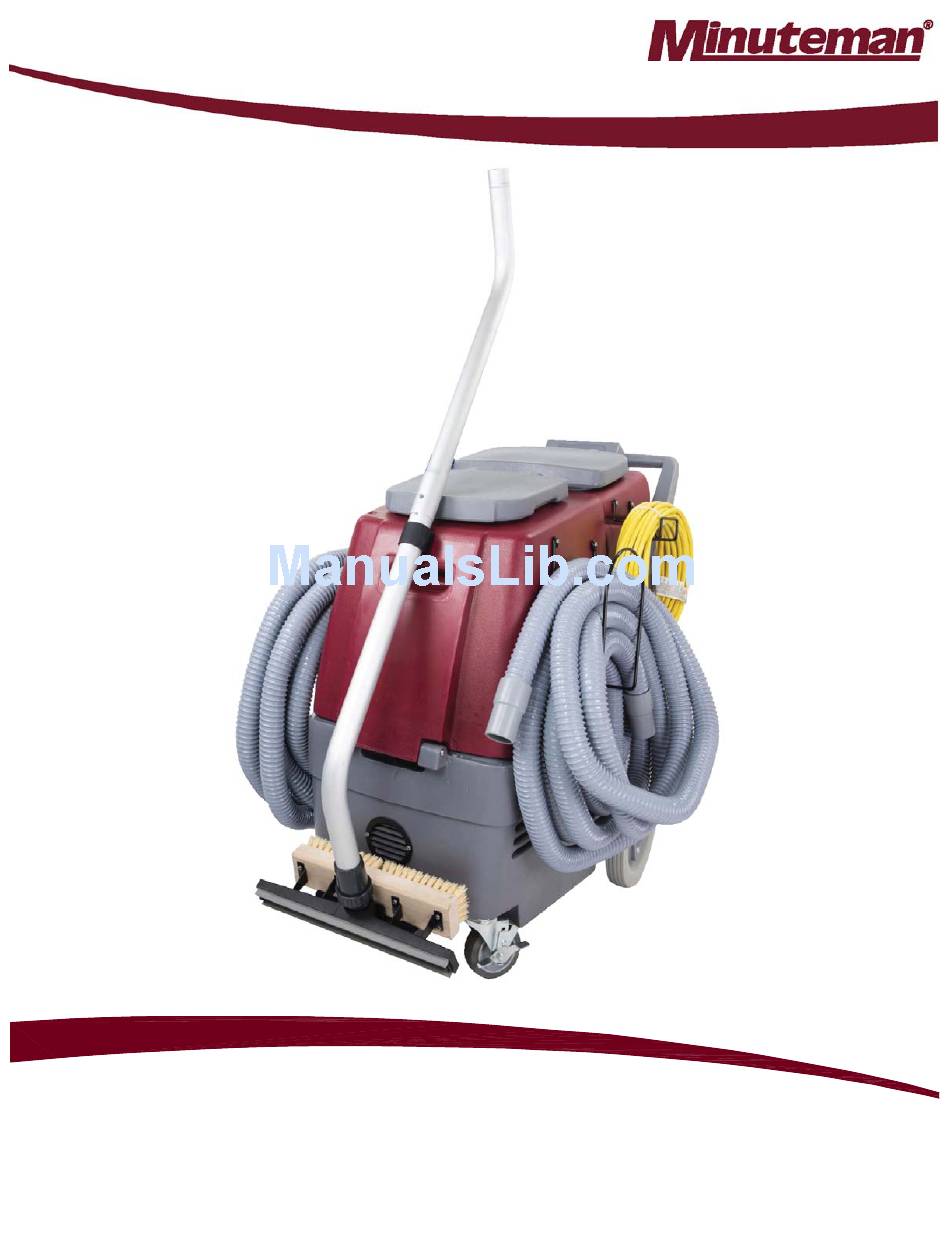

- Page 1 Parts and Instruction Manual TRS17 Total Recovery System...
-
Page 2: Specifications
600 psi/.85 GPM – 480 psi nozzle 120” Polyethylene ¼” aluminum 10” non-marking 4” locking 39”H x 37”L x 22”W 108 lbs. 14.5 amps 25’ Swivel wand with squeegee/brush head Included 25’ x 1.5” Diameter Parts and Instruction Manual - TRS17 Total Recovery System... -
Page 3: Table Of Contents
UPPER ASSEMBLY BOM (page 2) ....................20 LOWER ASSEMBLY ........................... 21 LOWER ASSEMBLY BOM (page 1) ....................22 LOWER ASSEMBLY BOM (page 2) ....................23 LOWER ASSEMBLY BOM (page 3) ....................24 Warranty ............................. 26 Parts and Instruction Manual - TRS17 Total Recovery System... -
Page 4: Inspection
MINUTEMAN’s liability ceases when the carrier picks up the shipment. However, our customer service staff will be happy to furnish any information needed in connection with the claim and will attempt to expedite a resolution. -
Page 5: Safety Instructions
This equipment is not designed to handle or use combustible/volatile substances such as gasoline or kerosene, in, on, or near the machine. The use of such materials will cause extreme hazardous condition. Parts and Instruction Manual - TRS17 Total Recovery System Page 5... - Page 6 Do not expose machine to freezing temperatures. All repairs must be done by an authorized MINUTEMAN repair station. Do not use replacement parts other than original MINUTEMAN parts. Do not allow your spray stream to remain in one fixed location as surface damage may occur.
-
Page 7: Gfci
There is a loose or faulty electrical connection some- where in your equipment. Take the unit to an authorized repair location for servicing. Parts and Instruction Manual - TRS17 Total Recovery System Page 7... - Page 8 If a GFCI continues to trip after resetting, it indicates an unsafe operating condition is present and it is best to take it to an authorized repair location for servicing. Contact MINUTEMAN for assistance in locating an authorized repair location.
-
Page 9: Grounding
Extension cords connected to this machine should be 12 gauge, three-wire cords with three-prong plugs and outlets. DO NOT use extension cords more than 25 feet (7.6 m) long Figure 1 Parts and Instruction Manual - TRS17 Total Recovery System Page 9... -
Page 10: Maintenance
Check and clean vacuum filter Weekly: Check for obstructions in vacuum pathways Quarterly: Check pump, plumbing and fittings for leaks Check power cords and hoses for tears Check and clean solution filter Parts and Instruction Manual - TRS17 Total Recovery System Page 10... - Page 11 Do not unplug by pulling cord. To unplug, grasp the plug, not the cord. Do not handle plug or appliance with wet hands. This equipment should be stored indoors and not exposed to rain. Parts and Instruction Manual - TRS17 Total Recovery System Page 11...
-
Page 12: Machine Overview
16. Solution line Q.D.- Pressurized connection for solution line 17. Recovery tank dump valve- Pull up to open 18. Switch box- one switch marked “PUMP” and one switch marked “VACUUM”. Switches light up when powered on. Parts and Instruction Manual - TRS17 Total Recovery System Page 12... - Page 13 Parts and Instruction Manual - TRS17 Total Recovery System Page 13...
-
Page 14: Operation
OPERATION Assembling the accessory racks: Opening the machine: Parts and Instruction Manual - TRS17 Total Recovery System Page 14... - Page 15 “LOW” pressure setting, pop the collar of the gun out. 9. In either “HIGH” or “LOW” pressure, apply chemical to the walls and fixtures starting from the lowest point to the highest. Parts and Instruction Manual - TRS17 Total Recovery System Page 15...
- Page 16 Blowing fluid off countertops and walls onto the floor Drying faucets and other fixtures Blowing off dust NOTE: Do not leave the blower hose on during normal extraction as it will reduce suction. Parts and Instruction Manual - TRS17 Total Recovery System Page 16...
- Page 17 NOTES Parts and Instruction Manual - TRS17 Total Recovery System Page 17...
-
Page 18: Upper Assembly
UPPER ASSEMBLY Parts and Instruction Manual - TRS17 Total Recovery System Page 18... -
Page 19: Upper Assembly Bom
C11540 WASHER, 5/16" C12021 WASHER, FLAT, 9/16 ID, SS C12039 FENDER WASHER, 1/4" ID, 1" OD C12110 HEX BOLT, 3/8-16 X 1 3/4 C14017 SCREW, 10-32 X 1/2", TRUSS Parts and Instruction Manual - TRS17 Total Recovery System Page 19... -
Page 20: Upper Assembly Bom
PVC PIPE, 1 1/2" X 2.25", SCH40 K00711 DRAIN VALVE K00741 ADAPTER, MALE, 1 1/2", SCH40 K11185 90 DEGREE ELBOW, SCH40, MPT, SF K11965 RETURN BEND, 1 1/2" S11179 NON-SKID TAPE S13706-A STRAP, WAND, VELCRO Parts and Instruction Manual - TRS17 Total Recovery System Page 20... -
Page 21: Lower Assembly
LOWER ASSEMBLY Parts and Instruction Manual - TRS17 Total Recovery System Page 21... -
Page 22: Lower Assembly Bom
STRAIN RELIEF, PIGTAIL B11821 STRAIN RELIEF B11832 STRAIN RELIEF NUT B13695 POWERCORD, 14GA, 50FT C00233 1/4" ID FLAT WASHER USS SAE C00234 WASHER, FENDER, 1/4", SS C00261 HEX NUT, 1/4-20 Parts and Instruction Manual - TRS17 Total Recovery System Page 22... -
Page 23: Lower Assembly Bom
INTERCOOLER, SINGLE PORT F11789-1-MM BASE F11790-1-MM COVER PLATE, HEATER PORT F13820 LOUVER, 3", BLACK G02517-1 MOTOR, VACUUM G03518-L CASTER, LOCKING, 4" G11767 WHEEL, 10" X 1.75" G13380 VALVE, PRESSURE RELIEF Parts and Instruction Manual - TRS17 Total Recovery System Page 23... -
Page 24: Lower Assembly Bom
HOSE ASSEMBLY, .25MP X .25MP, 35" J00580 HIGH PRESSURE/TEMP HOSE 1/4" X 35" J12932 CRIMP, 1/4" X 1/4" MPT, SWIVEL K00662-50 SPACER, .5" X .5" K00665-1 1-1/2" HOSE ADAPTER K13843 ADAPTER, 1.5" PVC, SCH40 Parts and Instruction Manual - TRS17 Total Recovery System Page 24... - Page 25 5. Part #00618-5A 35ft Blower hose. Connects to Exhaust port on CR2 (#13 on page 4) 6. Part #9000AC-1 High Pressure gun. Connects to hose #3 on this page. Parts and Instruction Manual - TRS17 Total Recovery System Page 25...
-
Page 26: Warranty
Warranty... - Page 28 “Excellence Meets Clean” Minuteman is a Full Line Manufacturer of Sweepers and Scrubbers, for Industrial Facilities. 14N845 U.S. Route 20, Pingree Grove, IL 60140 USA Phone (800) 323-9420 - www.minutemanintl.com A Member of the Hako Group 988754 Rev * 08/16...
