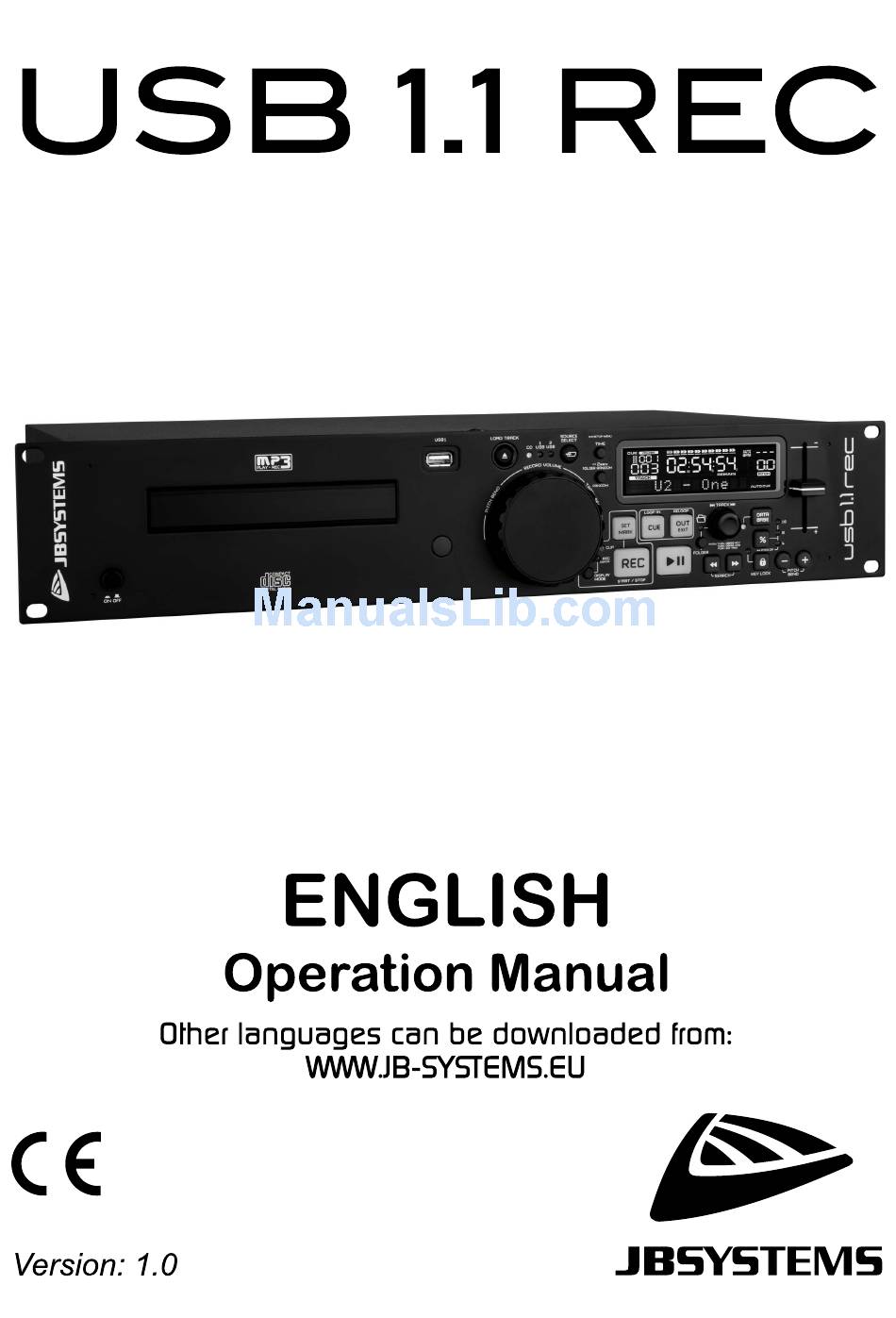

JBSYSTEMS Light USB 1.1 REC Operation Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the USB 1.1 REC and is the answer not in the manual?

Questions and answers

Summary of Contents for JBSYSTEMS Light USB 1.1 REC

Page 3: Before Use
• To protect the environment, please try to recycle the packing material as much as possible. Check that the carton contains the following items: • USB1.1 REC player • Operating instructions • Pair of cinch cords • IR-Remote controller • 1 power cord JB SYSTEMS 1/15 USB 1.1 REC ®...
Page 4 ENGLISH OPERATION MANUAL JB SYSTEMS 2/15 USB 1.1 REC ®...
Page 5: Safety Instructions
• Due to safety reasons it is prohibited to make unauthorized modifications to the unit. • CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. The battery shall never be exposed to excessive heat such as sunshine, fire, … JB SYSTEMS 3/15 USB 1.1 REC ®...
Page 6: Controls And Functions
Use an optional cinch cable to connect the audio input of the recorder to the line output on your recording source (mixer, other CD-player,…) • For long audio lines or professional applications you can also use the balanced XLR-outputs. • Connect the mains cable. CONTROLS AND FUNCTIONS JB SYSTEMS 4/15 USB 1.1 REC ®...
Page 7 The button blinks as long as the player is set to pause. 15. [FOLDER] button: changes the function of the [TRACK] knob (16) while the search key is set to “Std” (standard track/folder search without Track-Indexer database). JB SYSTEMS 5/15 USB 1.1 REC ®...
Page 8 • Play tracks only from 1 directory: first choose [search-key = Std] (folders/tracks). Now you have to select a directory, then press the [RANDOM] button for +/-2seconds until [RANDOM] starts blinking in the display. The [USB1.1 REC] now plays only tracks from the selected directory. JB SYSTEMS 6/15 USB 1.1 REC ®...
Page 9: Lcd Display
PLAYBACK mode: display shows information relative to the track that is currently played. 30. [Clip] LED : blinks when the level from the recording signal is too high (distorted). In that case please lower the input level using the JOG WHEEL (28). LCD DISPLAY JB SYSTEMS 7/15 USB 1.1 REC ®...
Page 10 16. [PITCH] DISPLAY: shows the actual percentage of speed change, selected with the PITCH slider (21). 17. [KEYLOCK]: is shown when the pitch lock function (Master Tempo) is active. 18. [BPM] DISPLAY: shows the output of automatic beat-counter, measured in beats per minute. JB SYSTEMS 8/15 USB 1.1 REC ®...
Page 11: Ir Remote Controller
 [Dis. = 0.5s  12.0s]: waiting time in seconds.  [Run = 50ms  2000ms]: 50ms = fast speed / 2000ms = slow speed o [Mode = 2]: text line scrolls only one time, then stops. JB SYSTEMS 9/15 USB 1.1 REC ®...
Page 12: Firmware Upgrading
• If the display asks you to turn off the unit: turn the unit off, wait 3seconds and turn it back on. • Check if the software version corresponds to the version marked in the readme file that came with the update. JB SYSTEMS 10/15 USB 1.1 REC ®...
Page 13 Vista. To overcome this problem, right-click the Track-Indexer program icon and choose “Run as administrator” in the popup menu. Windows will respond with the window shown on the right: just click “Allow”. JB SYSTEMS 11/15 USB 1.1 REC ®...
Page 14: How To Use
When source select is set to CD, the CD player automatically shuts off the transport and laser after about 5~120 minutes (selectable in the setup menu), while in pause or cue mode. This extends the life of your JB SYSTEMS 12/15 USB 1.1 REC ®...
Page 15 While a track is playing, press the [CUE] button (11) to program the start point of the loop. Now press the [OUT] button (12) to program the endpoint of the loop. Then press the [PLAY]-button (14) to start the loop. JB SYSTEMS 13/15 USB 1.1 REC ®...
Page 16: Specifications
CBR (Constant Bitrate), VBR (Variable Bitrate) or Xing MP3 FORMATS RECORDING: MPEG1 Layer3 (ISO/IEC11172-3): stereo sampled at: 44,1kHz Bitrates: 64 – 320 Kbps Bitrate mode: CBR (Constant Bitrate) Weight: 4,35kg 482mm (W) X 270.5mm (D) X 88.8mm (H) Dimensions: JB SYSTEMS 14/15 USB 1.1 REC ®...
Page 17 ENGLISH OPERATION MANUAL Every information is subject to change without prior notice You can download the latest version of this user manual on our website: www.jb-systems.eu JB SYSTEMS 15/15 USB 1.1 REC ®...
