promethean AV322 Quick Reference Manual

Hide thumbs Also See for AV322:

Need help?

Do you have a question about the AV322 and is the answer not in the manual?

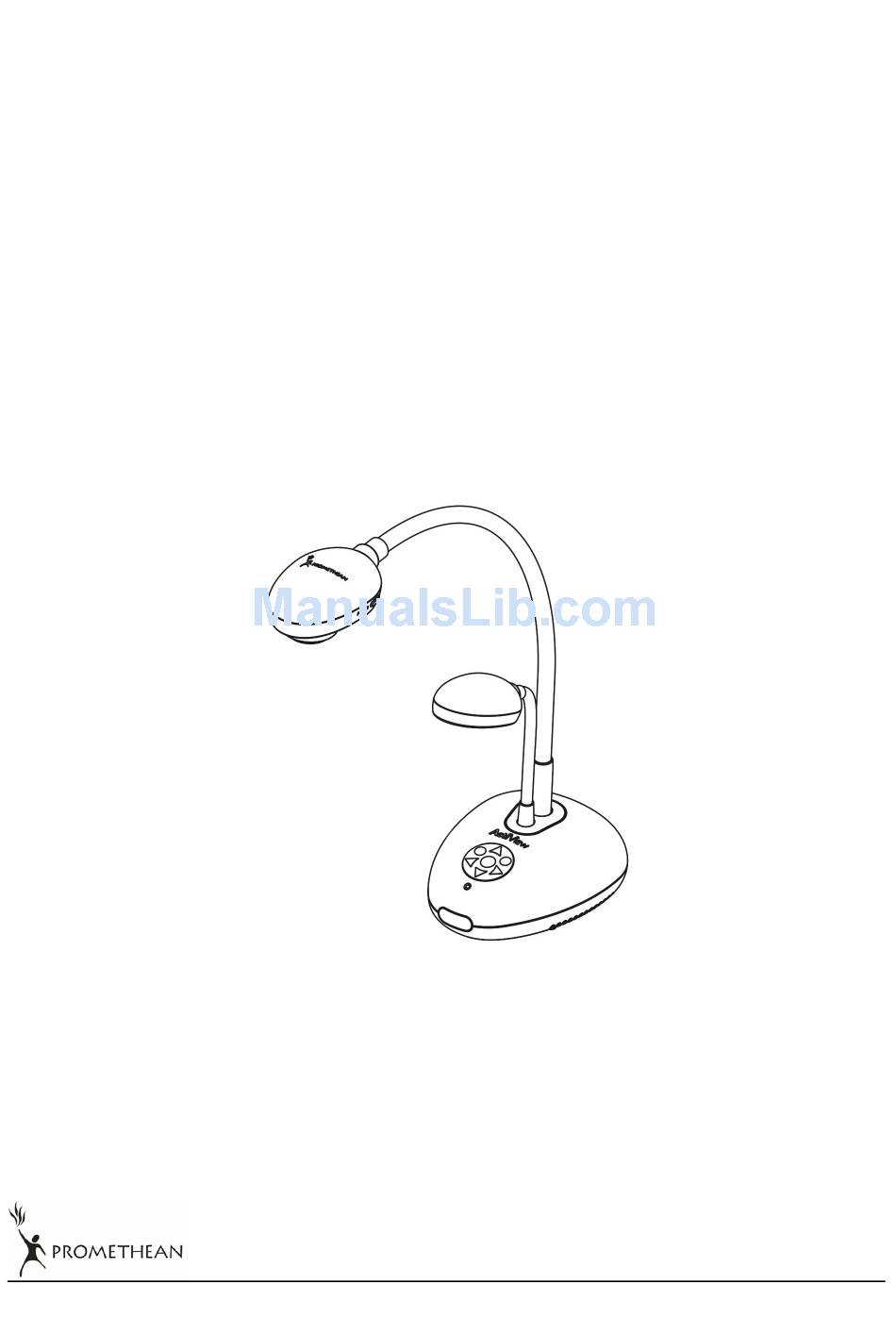

Page 1 AV322 Visual Presenter Quick Reference Guide English...
Page 2 1. Package Contents AV322 Quick Reference Guide User Manual (For other languages, please refer to the CD-Rom or visit website) ActiView Quick Remote Control Reference Guide USB Cable C-Video Cable VGA Cable Microscope Adapter Accessory Pouch Presenter Protector Bag Power Cord (USA)
Page 3 2. System Diagram Projector Monitor Television English...
Page 4 3. Product Overview 1. Gooseneck 2. Lamp 3. Control panel 4. LED indicator 5. Remote sensor 6. Lens 7. DIP switch (Bottom) English...
Page 5 4.2 Step 2: Connecting projector with other hardware devices 4.2.1 Connecting to a Projector or Monitor Connect the VGA cable to the VGA OUT port on the AV322 and to the VGA IN port on the projector or monitor. 4.2.2 Connecting to a TV 1.
Page 6 4.2.3 Connecting to a Computer Connecting to a computer through USB Connect the USB cable to the USB port on the AV322 and the USB port on the computer. Next, install the supplied ActiView program. Connecting to a computer through VGA IN Connect the VGA cable to the VGA IN port on the AV322 and the VGA OUT port on the computer.
Page 7 Connecting to a computer through RS-232 Connect the RS-232 adapter (Optional) to the RS-232 port on the AV322 and the RS-232 port on the computer. 5. Start Using the AV322 5.1 Powering on the AV322 Control Panel Remote Control When using the remote control, aim at the remote sensor at the AV322 and press the power button.
