- Page 1 JACK 5.8 User manual English Version 4.0 06/2016...
- Page 2 A word of thanks Thank you for choosing stageClix! This unit has been de- signed with the professional musician in mind. All units are made with only the best-quality components and are produced using RoHS-compliant materials. This means they do not contain any harmful substances, like lead or mercury.
-
Page 3: Table Of Contents
Contents What’s in the box? Using stageClix for the first time Controlling the receiver Changing channels Other settings Controlling the transmitter Signal quality Technical details Warranty 10. Conformities... -
Page 4: What's In The Box

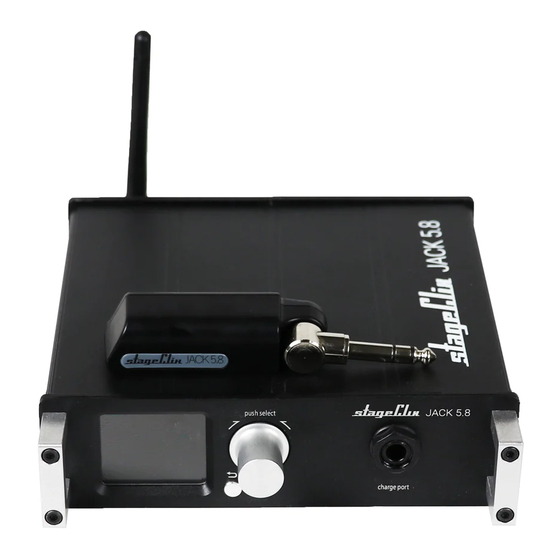

1. What’s in the box? Transmitter Receiver Power adapter Patch cable 5.8 Ghz antenna... -
Page 5: Using Stageclix For The First Time
2. Using stageClix for the first time 1. Attach the antenna to the back of the receiver by turning the nut clockwise. (Do not use tools, and do not over-tighten) 2. Plug the supplied mains adapter into a 110-230V power supply, and the DC plug into the rear-panel DC socket. -
Page 6: Controlling The Receiver
3. Controling the receiver Receiver controls control knob back/cancel button Display items active channel signal strength battery status go to settings settings info VU meter... - Page 7 You can change settings on the receiver by using the control knob. Rotate to change, and push to confirm your action. You can go back or cancel at any time by pressing the back/cancel button. To enter changes, start by pressing the control knob once. This will highlight the channel number, and a short help text will be displayed.
-
Page 8: Changing Channels
4. Channels If you are going to be using more than one stageClix unit simultaneously in the same venue, you will need to be able to switch between channels. To do this, follow the procedure below, which will also help you resolve any compatibility/ interference issues with other equipment: Press the control knob to activate channels. -
Page 9: Other Settings
5. Other settings In the settings menu, you can change the following: Brightness - Adjust the brightness of the display during normal operation. (When the receiver is used, the display will switch to full brightness.) Invert display - Choose between a white and a black background. -
Page 10: Controlling The Transmitter
6. Controlling the transmitter The transmitter can be switched on and off using the button. transmitter button When you unplug the transmitter from the receiver, it will automatically switch off. To reactivate the transmitter, press the button. Plug the transmitter into the receiver to charge it and synchronize the channel settings. -
Page 11: Signal Quality
7. Signal quality • If possible, install the receiver in an elevated posi- tion, such as on top of an amplifier. • Avoid broadband interference sources like WiFi ac- cess points or WiFi-enabled laptops, and switching power supplies. • For maximum range, keep the antenna away from other cables and ensure it is pointing upwards if possible. -
Page 12: Technical Details
8. Technical details Receiver • Full aluminium enclosure • Rackmount-ready • Power supply: 9V 1A • Receiving frequency: 5.8 GHz band (5.725 GHz - 5.850 GHz) • Receiver sensitivity: -82dBm • Bitstream audio DAC Transmitter • High-quality (industrial) lithium polymer battery: 950mAh •... -
Page 13: Warranty
9. Warranty The stageClix product you have purchased is covered by a warranty for a term of 24 months, commencing on the date of purchase. Please retain your sales receipt as proof of purchase. We shall satisfy our warranty obligations by remedying any mate- rial or manufacturing faults free of charge at our discretion, either by repair or by exchanging individual parts or the entire appliance. -
Page 14: Conformities
This unit is compliant with the Restriction of Hazardous Substances (RoHS) Directive. Handle and dispose of the transmitter and receiver with care. • To replace the batteries, contact stageClix or an authorised stage- Clix dealer. • Incompatible batteries or charging using any device other than the stageClix receiver can cause serious injuries or damage to your stageClix product. - Page 15 Ensure maximum battery and charger life • Avoid charging the transmitter for more than a week, as continu- ous charging may shorten battery life. • Over time, unused batteries will discharge. Do not allow the batteries to fully discharge over time, since this can cause them damage.
- Page 16 The Netherlands stageClix is a trademark of QDES Works BV. QDES Works BV shall in no event be liable for damages arising from use of this product.
