4 /8/16 CH NETWORK VIDEO RECORDER

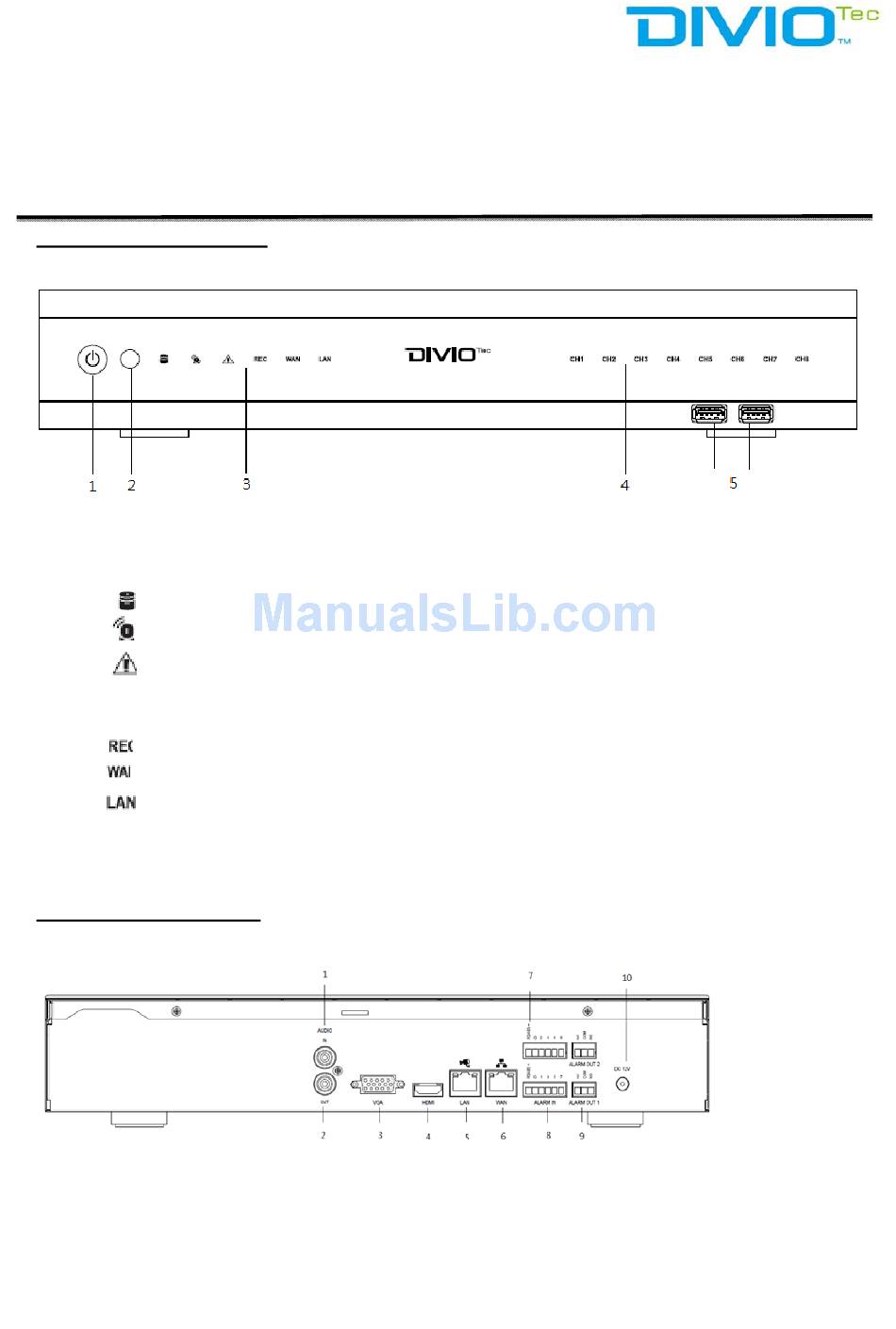

4/8CH NVR Front Panel
The front panel includes:
1. Power button: Power On/Off NVR.
2. IR receiver: Receiver for IR remote.
3. Status indicators:
: HDD Indicator turns on when system is accessing hard disk
: Alarm indicator turns on when alarm is detected.
:: Exception indicator turns on when system exception alert is detected, such as disk full, disk
error, no disk, network disconnect, illegal login, disk over temperature, fan fail, network fail,
power loss and IP conflict.
: Rec indicator turns on when NVR is recording.
: WAN indicator turns on when NVR is connecting to WAN port.
: LAN indicator turns on when NVR is connecting to LAN port.
4. CH1~CH8 : Indicators turn on when the video is connected to the system.
5. USB port : USB port for connecting devices, such as USB mouse or USB flash device.
4/8CH NVR Rear Panel
The rear panel connectors include:
1. Audio In: Connect the microphone or camera audio output to the audio input connector.
2. Audio Out: Connect a speaker or other audio output device to the audio output connector.
3. VGA: Connect a VGA monitor to the VGA output connector.
4. HDMI: Connect a HDMI monitor to the HDMI output connector.
5. LAN: Connect hub with IP cameras via RJ-45 network cable.
Quick Installation Guide
1
Advertisement
Summary of Contents for Divio 4CH NVR
-
Page 1: Quick Installation Guide
4 /8/16 CH NETWORK VIDEO RECORDER Quick Installation Guide 4/8CH NVR Front Panel The front panel includes: 1. Power button: Power On/Off NVR. 2. IR receiver: Receiver for IR remote. 3. Status indicators: : HDD Indicator turns on when system is accessing hard disk : Alarm indicator turns on when alarm is detected. - Page 2 6. WAN: Connect NVR to Internet via a RJ-45 network cable. 7. RS485 socket: For RS485 PTZ control. 8. Alarm In: Connect to 4 or 8 alarm inputs to the alarm input connectors. 9. Alarm Out: N.C or N.O type alarm signal out. 10.
- Page 3 1024x768 up to 1920x1080) 2. Connect the audio signal to the AUDIO IN RCA input. 3. Connect the AUDIO OUT RCA output to the monitor or an audio speaker. 4. Connect up to 8 ALARM IN inputs through the supplied terminal blocks. 5.
- Page 4 1. Power: Plug the power cord into the power socket. 2. Alarm Out: N.C or N.O type alarm signal out. 3. Alarm In: Connect to 16 alarm inputs to the alarm input connectors. 4. RS485 socket: For RS485 PTZ control. 5.
- Page 5 Step 2. Fix the harddisk on to the harddisk mounting bracket and fix the screws on to the screw holes as indicated in the diagram. Each set of harddisk brackets can mount 2 harddisks. ...
- Page 6 Step 5. Connect the hard disk power cable and SATA cable on to each hard disk. Reassemble the top cover and fix the screws back once all the hard disks are well installed. 6 ...
- Page 7 16CH NVR Connections: rimary connection: 1. Connect the IP cameras to the LAN port through the hub. Power up the IP camera before powering the NVR. 2. Connect at least one proper monitor to the HDMI or VGA output. (Supporting display mode from 1024x768 up to 1920x1080) 3.
- Page 8 First-time use - Full Auto Install Mode When the first time connect IP cameras to the NVR, the NVR will pop up install wizard window. NVR provides Plug and Play feature if user installs NVR in “Full Auto Install” mode. Click “Full Auto Install” and then the NVR will automatically configure IP address of a camera connected by LAN.
-
Page 9: Rear Panel Connection
Rear Panel Connection 9 ... - Page 10 10 ...
