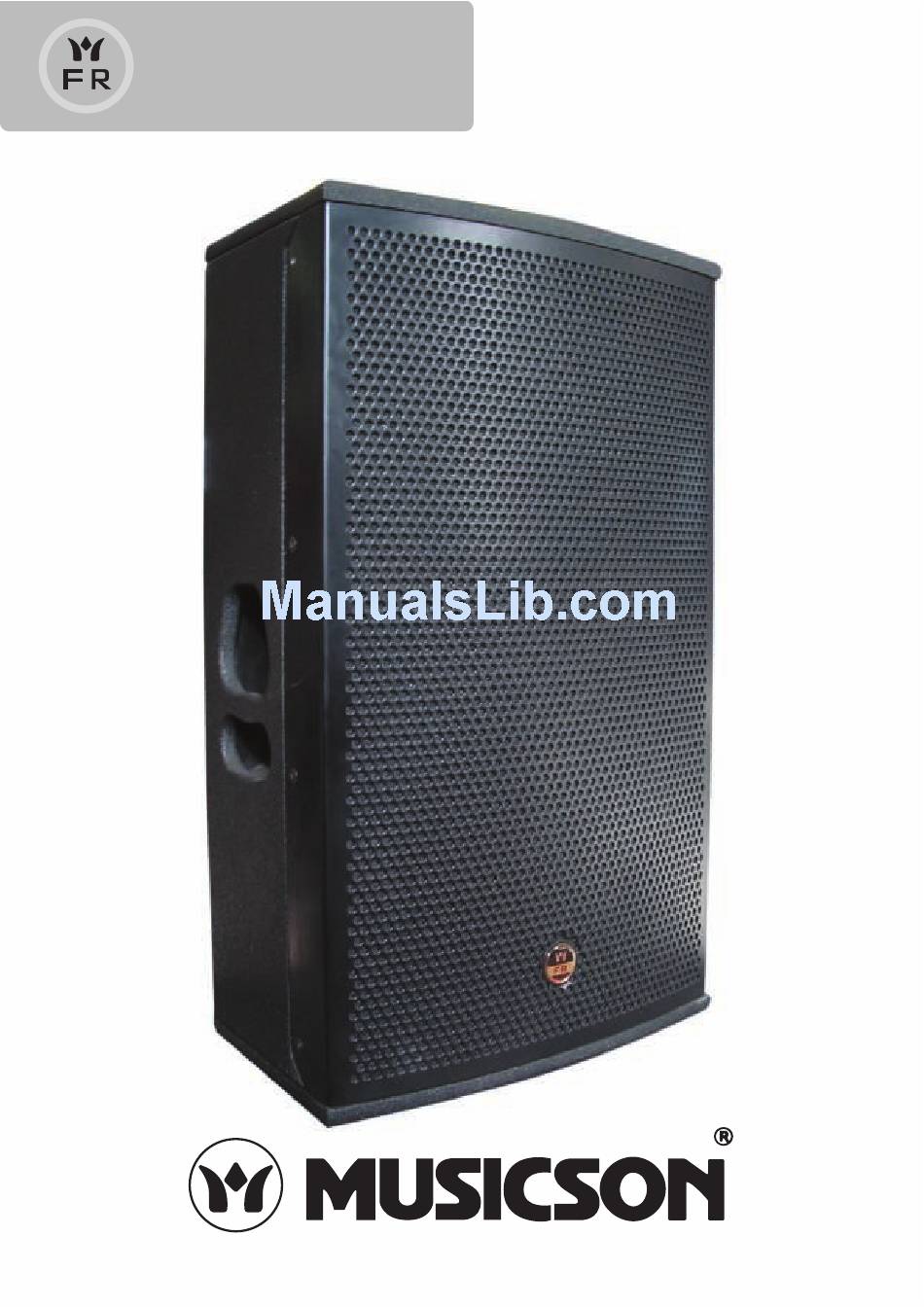

- Page 1 FR-208A FR - line FR-310A USER MANUAL F R-512 A FR- 615A...
- Page 2 For this new line, MUSICSON has developed a complet range of hardware accesories that allows the placement of the speakers almost anywhere, making easier any installation: 35mm diameter stands, wall brackets and two or three speakers cluster adaptor.
-
Page 3: Important Notes
IMPORTANT NOTES This sign aler ts on impor tant operating instructions This sign alerts of dangerous voltages and risk of electric shock Handle with care. High pressure sound levels can induce hearing lost. To give you an idea of the diferent levels of amplitude, read the following chart. If you experience any symptom related to this audition loss please consult an audiologist. - Page 4 Speakers inside FR series can transform a considerable amount of energy that can be transmited as movement; keep special attention where you place the loudspeakers in order to avoid falling damages. Use only accesories designed by the manufacturer. Selfpowered models of the FR line have a three pole mains connector with locking system.
- Page 5 The XLR-3 in and out connectors have the following conection code. pin 1 ---- GROUND pin 2 ---- HOT (+) pin 3 ---- COLD (-) In order to achieve de best sound quality and avoid problems, please ensure that the correct tension (voltage & frequency) is applied to the unit. Nominal tension for the FR series is between 220-240 volts and 50-60 Hz.
- Page 6 WAVEGUIDE All models of the FR line are equipped with a 90 degrees rotatable horn for the high filter way that allows placement of the speaker either in vertical or horizontal position. Follow this steps to rotate the horn: -unscrew grid and horn -Redirect the horn according to your needings -screw horn and grid Pay attention not to loose the screws.
-
Page 7: Specifications
SPECIFICATIONS Frequency range (-10dB) 65 Hz - 18,5 KHz 55 Hz - 18,5 KHz Coverage (-6dB) 70 x 40 (90º rotatable horn) 70 x 40 (90º rotatable horn) Sensitivity 95 dB 97 dB max continuous SPL 118 dB 121 dB max Peak SPL 124 dB 127 dB... -
Page 8: Troubleshooting
TROUBLESHOOTING Power does not turn on 1.-Power connector plugged 1.-make sure you hear the "click". incorrectly. 2.-burnt fuse 2.-Replace with same type. If it continues burning take the unit to the technical service. 3.-Power cord in bad condition 3.-Check the integrity of the cable and connectors. - Page 9 DIMENSIONS All measurements of frequency response were taken using MLS and registered with a precission microphone on axis at one meter distance. FR line...
- Page 10 35mm hat and M8 inserts. As optional complements, you can acquire wall support brackets, eyebolts sets, stand supports and twin adapters for FR - 208 (or FR-208A). You can also install a multi speaker frame that respects correct dispersion when rigged.
