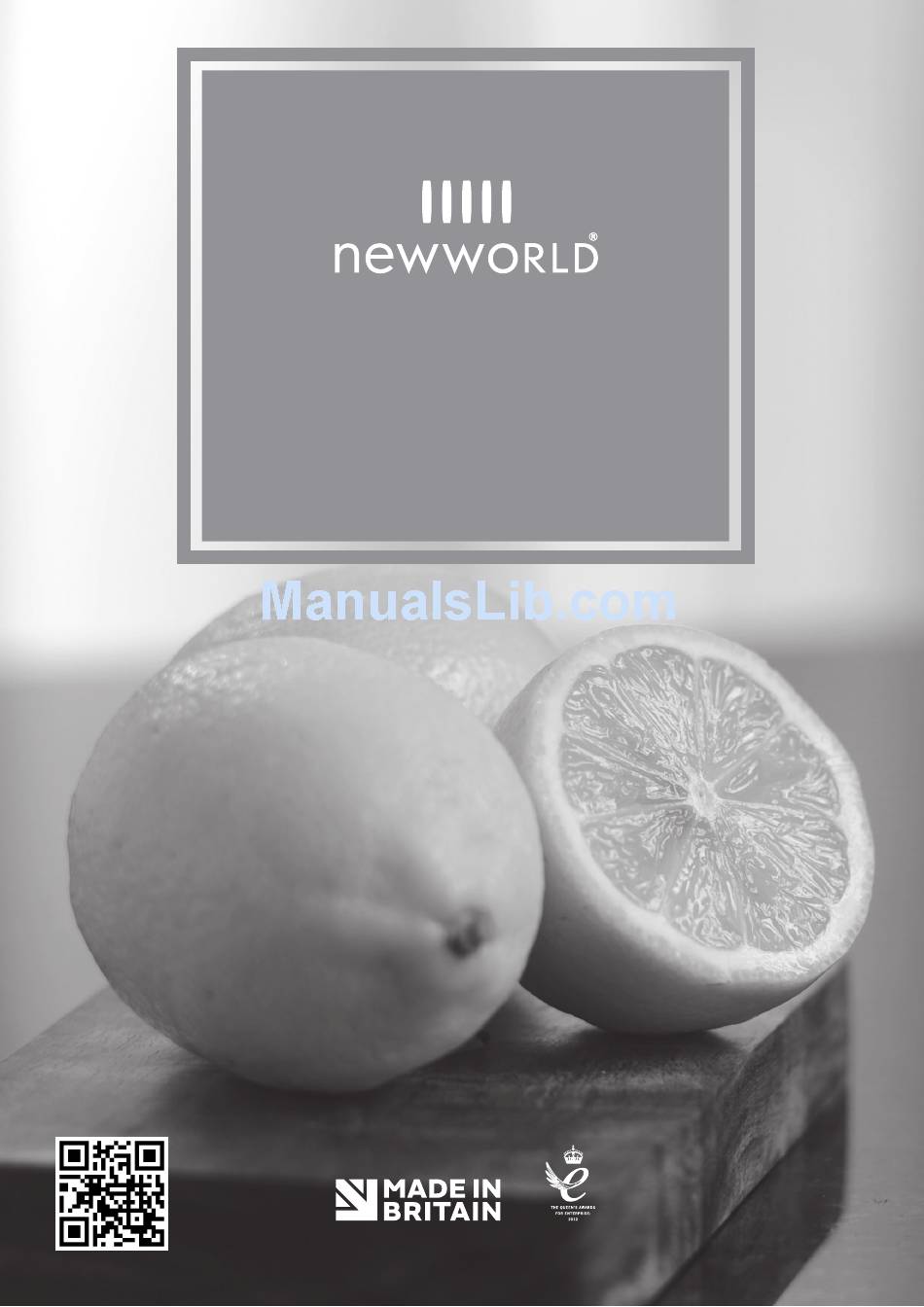

- Page 1 User Guide A commitment to: New World DF Range Part Number: 083607500 Date: 27/07/16...
- Page 2 Alternatively general, spares and service information is available from our website at: www.newworld.co.uk Calls are charged at the basic rate, please check with your telephone service provider for exact charges Your new appliance comes with our 12-month guarantee, protecting you against electrical and mechanical breakdown.
- Page 3 INTRODUCTION Thank you for buying this British-built appliance from us. This user guide book is designed to help you through each step of owning your new product. Please read it carefully before you start using your appliance, as we have endeavored to answer as many questions as possible, and provide you with as much support as we can.
-
Page 4: Safety Warning
SAFETY WARNING • During use the appliance becomes hot. Care should be taken to avoid touching heating elements. • The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. - Page 5 should be kept away. CAUTION • This appliance must not be installed behind a decorative door in order to avoid overheating. • The cooking process has to be supervised. A short term cooking process has to be supervised continuously. • The use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed.
-
Page 6: Using Your Appliance
USING YOUR APPLIANCE Getting to know your product Note: Your appliance layout may differ depending on the model. Medium Small Medium Right hand rear Left hand rear Centre rear Large Small Medium Left hand left Centre front Right hand front Control Panel Oven Grill... -
Page 7: Appliance Functions
Appliance functions Note: Your oven may not have all of the functions shown here. We recommend for best cooking results, please preheat your oven for 15 minutes and 3-5 minutes for grilling. Do not try to slow cook using any of the other oven functions. Intense Baking Defrost Base Heat with fan... - Page 8 Oven/Grill Ovens Grill When using the main ovens, the red thermostat indicator will come on until the selected temperature is reached. When the grill is switched on, the cooling fans comes on to keep the fascia and control knobs cool during cooking/grilling.
-
Page 9: Pan Placement
• Hold the control knob in for up to 15 seconds then release. For the wok (if fitted), please allow the burner to warm up for a few minutes. • Once lit, turn the control knob to the required setting. If the burner fails to ignite within this time, release the control knob and wait 1 minute before attempting to re-ignite. -
Page 10: Using The Touch Controls
Please be aware that only the main oven is controlled by the programmer. Clock / Programmer Note: Your clock / programmer may not have all these functions Minus Menu Plus Minute minder Manual mode Volume level Cooking time / Duration 7-segment display End of cooking time Max. -
Page 11: Setting The Time Of Day
Setting the time of day By pressing menu, scroll through the functions until you reach ‘time of day’. Press the plus or minus buttons to set a time Setting the minute minder The maximum cooking time that can be set is 99 minutes. Press the plus or minus buttons to set a time Once set, the minute minder will start to countdown in steps of seconds. - Page 12 To modify or cancel the minute minder Return to the minute minder function and use either the plus or minus buttons to adjust the time. By setting the time to ‘0.00’, this will cancel the countdown. Setting the cooking time (the duration of time the oven will operate for) The maximum cooking time that can be set is 23 hours and 59 minutes.
- Page 13 Setting the end of cooking time (to set a time for the oven to turn off) The display shows the current ‘time of day’ plus the ‘end of cooking time’ symbol. The latest ‘end of cooking time’ is limited to the current ‘time of day’ plus the maximum time that can be set (23 hours and 59 minutes).
-
Page 14: Setting The Volume
Setting the volume Press the menu button until “LX” (X = 1, 2 or 3) flashes on the display. Use the plus or minus buttons to select a tone. Note: Default tone is L3 Activating / deactivating Key lock Press and hold the plus button for 3-5 seconds Once the Key lock is active, the buttons will be inactive. - Page 15 Removing Shelf Runners Telescopic positions Telescopic positions (if fitted) (if fitted) Standard shelves Slightly raise the shelf and insert in the chosen shelf position Ensure the shelf is fully pushed back towards the back of the oven, until the shelf stopper is reached.
-
Page 16: Changing The Light Bulb
Removing Telescopic shelves (if fitted) Grasp and lift shelf Lift shelf from the retaining tabs. Front of appliance Before removing the shelves completely, please make sure that the shelf is unclipped from the retaining tabs. Changing the light bulb Not all appliances have the same number and type of bulbs. Before you replace your bulb, check to see what type you have. - Page 17 If desired, the wok ring should be located on top of the pan supports. The locating cutouts on the bot- tom of the wok ring engage with the four fingers of the pan supports around the centre burner location. Ensure the wok ring is located correctly, is fully engaged with the pan support fingers and is not able to rotate or slide across the pan supports before use.
-
Page 18: Cleaning Your Appliance
CLEANING YOUR APPLIANCE Do’s Note: Always switch off your appliance and allow it to cool down before you clean any part of it. Note: Please take extra care when cleaning over the symbols on the control panel, as this can lead to them fading. - Page 19 Please keep this handbook for future reference, or for anyone else who may use the appliance.
-
Page 20: Technical Data
Please see data badge for your specified gas type. Can be convert- ed from natural gas to LPG. Never attempt to convert an appliance unless the data badge states you can. Gas pressure settings G20 Natural gas @ 20 mbar G30 Butane @ 28-30mbar G31 Propane @ 37mbar...
