Summary of Contents for Kruger&Matz TT-602

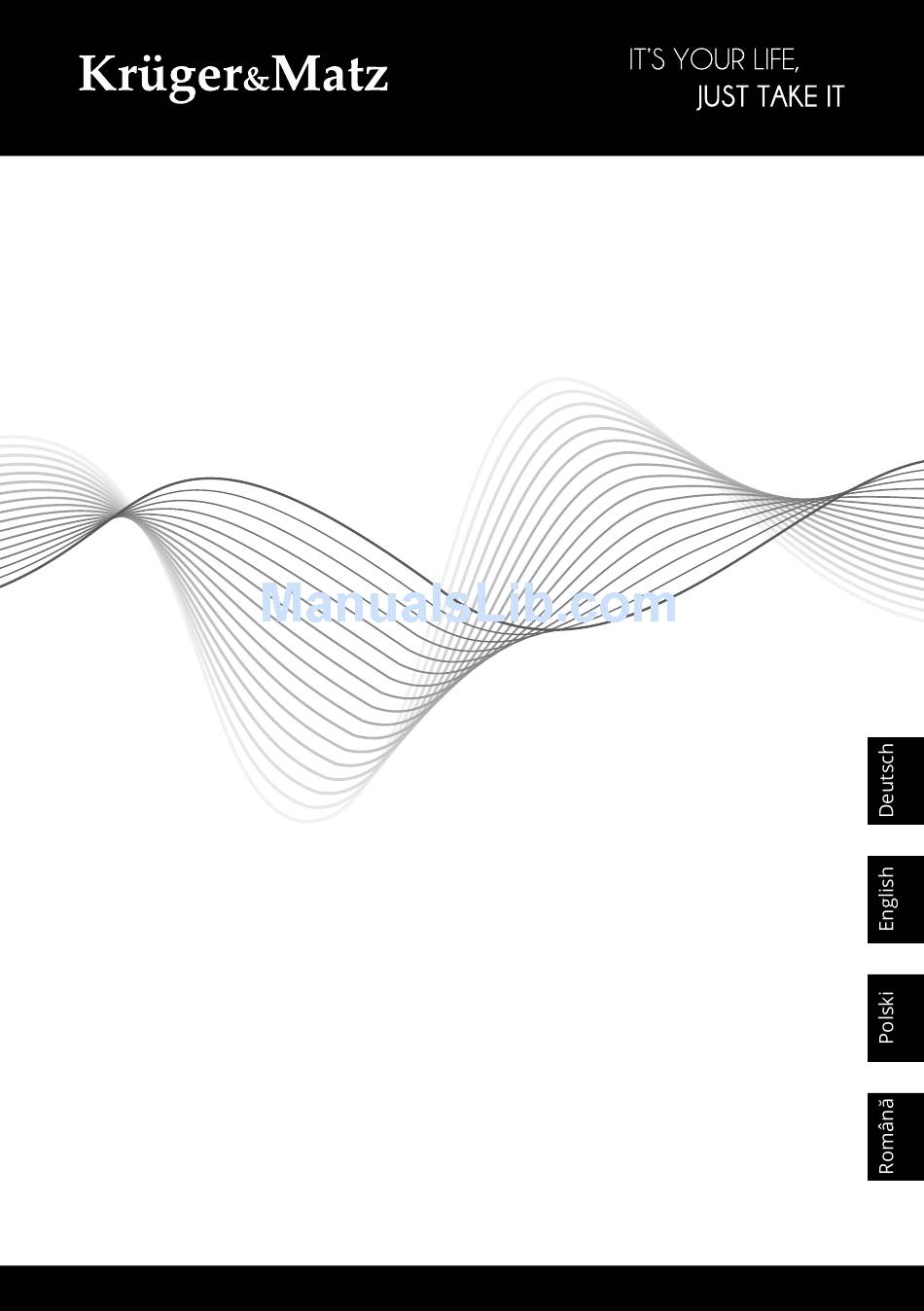

  • Page 1 Turntable TT-602 KM0517 BEDIENUNGSANLEITUNG OWNER’S MANUAL INSTRUKCJA OBSŁUGI MANUAL DE UTILIZARE...
  • Page 3 Bedienungsanleitung SICHERHEITSANLEITUNGEN Lesen Sie diese Bedienungsanleitung vor Inbetriebnahme sorgfältig durch, und bewahren diese auf zum späteren Nachschlagen. Der Hersteller übernimmt keine Haftung für Schäden, verursacht durch unsachgemäße Bedienung und Benutzung des Gerätes. • Schützen Sie das Produkt vor Wasser und Feuchtigkeit. •...
  • Page 4 Bedienungsanleitung PRODUKTBESCHREIBUNG: 1. Taste Start/Stopp Tonarmheber Drücken Sie diese Taste um den Plattenspieler zu starten- oder anzuhalten. 2. Plattenteller Hinweis: der Plattenteller ist mit einer Rutschmatte ausgestattet. Dieses erleichtert das bewegen der Platte für Kratzeffekte. 3. 33/45 U/Min Geschwindigkeits-Auswahltaste 4. Tonkopf Kassette hier installieren.
  • Page 5 Bedienungsanleitung • Weiß (L+) Linker Kanal + • Blau (L -) Linker Kanal – • Rot (R+) Rechter Kanal + • Grün (R-) Rechter Kanal – 5. Tonkopf Sicherungsmutter Befestigen Sie den Tonkopf, indem Sie diesen in das vordere Ende des Tonarms einsetzen und dann die Sicherungsmutter im Uhrzeigersinn drehen.
  • Page 6 Bedienungsanleitung 5. Wählen Sie Audio I/O Tab oben links • Bei Wiedergabe (Playback), Gerät (Device), wählen Sie die gewünschte Soundkarte • Unter Aufnahme (Recording), Gerät (Device), wählen Sie USB AUDIO CODEC • Unter Aufnahme (Recording), Kanäle (Channels), wählen Sie 2 (Stereo) •...
  • Page 7: Fehlerbehebung

    Bedienungsanleitung 2. Aufnehmen • Spielen Sie auf dem USB Plattenspieler die Melodie, oder Album die Sie aufnehmen möchten • Klick auf der roten Aufnahmetaste um die Aufnahme zu starten. • Tonarm auf USB-Plattenspieler am Album und Spur die Sie aufnehmen möchten herunterlassen.
  • Page 8: Technische Daten

    Bedienungsanleitung Kann nur MONO • Dieses geschieht meistens mit VISTA. Bitte wählen Sie in den Windows aufnehmen Einstellungen, Aufnahmequelle als “stereo” nicht “Mono” oder “Mikrofone” Plattenspieler Ton knistert • Sicherstellen, dass dieser Plattenspieler an einem Hochpegel-Eingang des Verstärkers angeschlossen ist. Hochpegel-Eingänge sind: CD, AUX, TAPE.
  • Page 9: Safety Information

    Owner’s manual SAFETY INFORMATION Read this instruction manual carefully before use, and keep it for future reference. Producer does not claim liability for inappropriate use and handling. • Protect the product from water and humidity. • The product should be located away from heat sources such as radiators, heat vents, or other devices that produce heat.
  • Page 10: Product Description

    Owner’s manual PRODUCT DESCRIPTION 1. Start/stop switch Rotate this switch to start or stop the platter. 2. Platter Note: the platter is equipped with a slip mat. This makes it easier to manipulate the record for scratch performances. 3. 33 / 45rpm speed selection switch 4.
  • Page 11: Audacity Software Overview

    Owner’s manual • White (L+) Left channel + • Blue (L -) Left channel – • Red (R+) Right channel+ • Green (R-) Right channel – 5. Headshell locking nut Attach the head shell by inserting it into the front end of the tone arm and then turn the locking nut clockwise.
  • Page 12 Owner’s manual 5. Select Audlo I/O tab at the top left • Under playback, Device, select desired sound card • Under Recording, Device, select USB AUDIO CODEC • Under Recording, Channels, select2 (stereo) • Check the box marked Play other tracks while recording new one •...
  • Page 13: Troubleshooting

    Owner’s manual 2. How to record • Set your USB turntable up to play the song or album you want to record • Click on the red Record button to start the recording. • Lower tone arm on USB Turntable onto album and track you want to record. •...
  • Page 14: Specifications

    Owner’s manual can only record MONO • mostly this occurs with VISTA. please select in Windows config recording source as „stereo” not „mono” or „microphone” Player sound is crackling • make sure this player is connected to a high-level-input of your amplifier.
  • Page 15 Instrukcja obsługi Kwestie bezpieczeństwa Przed użyciem należy dokładnie zapoznać się z treścią instrukcji obsługi oraz zachować ją w celu późniejszego wykorzystania. Producent nie ponosi odpowiedzialności za nieprawidłowe użycie produktu. • Urządzenie należy chronić przed wodą i wilgocią. • Nie należy przechowywać tego urządzenia w pobliżu źródeł ciepła takich jak grzejniki lub inne urządzenia wytwarzające ciepło.
  • Page 16: Opis Produktu

    Instrukcja obsługi OPIS PRODUKTU 1. Przełącznik Start/Stop Aby rozpocząć lub zakończyć pracę płyty gramofonowej, należy obrócić ten przełącznik. 2. Talerz 3. Przełącznik prędkości: 33/45 obrotów na minutę 4. Wkładka Podczas instalacji, przymocuj nakładkę ochronną na igłę gramofonową, aby uchronić ją przed uszkodzeniem Przymocuj przewody sygnałowe zgodnie z opisem poniżej: •...
  • Page 17 Instrukcja obsługi • Niebieski (L-) Lewy kanał ujemny - • Czerwony (R+) Prawy kanał dodatni + • Zielony (R-) Prawy kanał ujemny - 5. Nakrętka blokująca Zamontuj główkę do czołowej części ramienia gramofonu i przekręć nakrętkę blokującą zgodnie z ruchem wskazówek zegara. 6.
  • Page 18 Instrukcja obsługi 5. Należy wybrać zakładkę Audio I/O w lewym górnym rogu • Następnie, w polu Playback (odtwarzanie), wybrać odpowiednią kartę dźwiękową • W polu Recording (nagrywanie), wybrać kodek audio USB • W polu Recording (nagrywanie), Channels (kanały), wybrać 2 (Stereo) •...
  • Page 19 Instrukcja obsługi 2. Nagrywanie • Należy ustawić talerz obrotowy gramofonu tak, aby odtwarzał wybraną piosenkę/ album. • Następnie, nacisnąć czerwony przycisk Record , aby rozpocząć nagrywanie. • Opuścić ramię gramofonu • Nacisnąć niebieski przycisk Pause , aby wstrzymać nagrywanie. Nacisnąć ponownie, aby wznowić...
  • Page 20 Instrukcja obsługi • Ramię w kształcie litery S • W zestawie oprogramowanie Audacity • interfejs USB służący do digitalizacji/zapisania zawartości winyli na komputerze • Port USB 2.1 (Windows XP, 7, 8, 10; Mac OS X)  • Wyjścia RCA liniowe z wbudowanym przedwzmacniaczem • Metalowa obudowa •...
  • Page 21: Instructiuni Privind Siguranta

    Manual de utilizare INSTRUCTIUNI PRIVIND SIGURANTA Va rugam sa cititi cu atentie manualul inainte de a utiliza aparatul si pastrati manualul pentru consultari ulterioare. Distribuitorul nu isi asuma nici o responsabilitate pentru posibilele daune cauzate de o utilizare necorespunzatoare a aparatului. •...
  • Page 22: Descriere Produs

    Manual de utilizare DESCRIERE PRODUS 1. Brat pick-up cu functie de pornire/oprire Apasati acest buton pentru a porni/opri platanul. 2. Platan Nota: platanul este echipat cu un covoras anti-alunecare, pentru o usoara manipluare a discurilor de vinil pentru efecte de tip scratch. 3.
  • Page 23 Manual de utilizare • Alb (L+) canal stanga + • Albastru (L -) canal stanga – • Rosu (R+) canal dreapta + • Verde (R-) canal dreapta – 5. Blocare protectie cap pick-up Atasati protectia prin introducerea prin partea frontala a bratului si apoi prin rotirea dispozitivului in sens orar pentru blocarea acestuia.
  • Page 24 Manual de utilizare 5. Selectati Audio I/O din partea stanga - sus • Pe playback, Device, selectati cardul de sunet dorit • Pe Recording, Device, selectati USB AUDIO CODEC • Pe Recording, Channels, selectati 2 (stereo) • Bifati pozitia marcata cu “Play other tracks while recording new one” •...
  • Page 25 Manual de utilizare 2. Cum se inregistreaza • Setati pick-up-ul USB sa redea un cantec sau un album pe care doriti sa-l inregistrati. • Apasati butonul rosu RECORD pentru a incepe înregistrare. • Coborati bratul pick-up-ului pe discul de vinil Lower tone arm on USB Turntable onto album si urmariti piesa pe care doriti sa o inregistrati.
  • Page 26 Manual de utilizare • Consum: 5.5 W • Brat de sunet in forma de S • Software Audacity  • Iesire USB - se conectează direct la calculator • Port USB 2.1 (Windows XP, 7, 8, 10; Mac OS X)  • Preamplificator de linie incorporat cu iesiri RCA •...
