Summary of Contents for YOOSEE SMART 720P

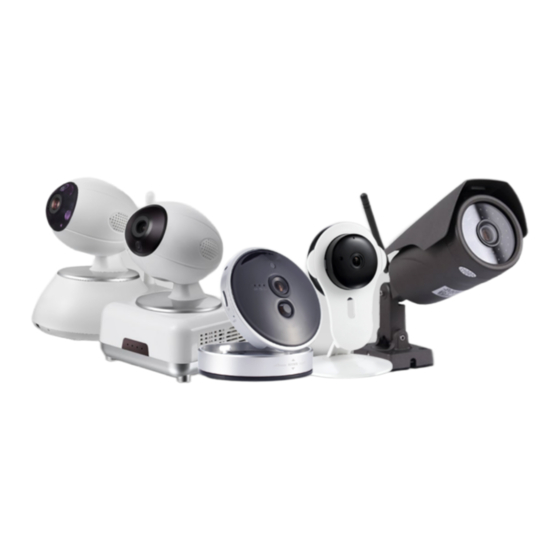

- Page 1 SMART 720P/1080P WIRELESS IP CAMERAS Instruction Manual After Sales Support techsupport@123anfang.com www.yooseecamera.com V 1.2...
-
Page 2: Product Overview
Product Overview Introduction Congratulations on the purchase of your eRobot Wireless IP Cameras. This product is designed to make remote video surveillance become more easier. Leveraging the HD CMOS image sensors and advanced image signal processor, eRobot cameras can deliver 720p/1080p video with high image quality. - Page 3 Yoosee & the supplier take no responsibility for data charges Logging into your Yoosee Account If this is your first time using Yoosee you will need to create an account. Select ‘Register’ at the bottom of the Yoosee login screen and follow the steps to create a new account.
- Page 4 App Operations Main Screen Device: Listed the connected devices. Message: Alarm logs Image: Screenshot captured by the camera More: Edit account information, modify App login password, and logout. Camera's Setting Device info: Check the version of your camera's firmware Time settings: Set the date and time of your IP camera Media setting: Change between 50Hz and 60Hz video format, and reverse the camera...
- Page 5 App Operations Camera Viewer Number of Viewers: A maximum of 5 viewers can view the same camera feed Expand View: Change from portrait to full screen landscape viewing mode Previous Snapshots: Scroll through and quickly access your previous snapshots Speaker: Sound or Mute Intercom: Touch intercom icon to speak with your camera Snapshot: Press to capture a screenshot and save it...
- Page 6 GW_IPC from the available network list. Connecting this WiFi SSID, and input the default password '12345678'. 3. Launching the Yoosee App, enter device AP mode, press the large image icon to launch the camera viewer. 4. From camera's settings, choose 'Switch to networking mode' to switch to normal Internet mode, the camera will reboot.
- Page 7 App Operations Alarm mailbox In addition to receiving push notifications, users can also receive the email (attached with captured pictures) alerts once an alarm occurs. To receive the email, users should go to 'Alarm setting', 'Alarm mailbox' to bound the email account. Once it's done, the camera will access your SMTP server to send emails.
- Page 8 CMSClient Operations CMSClient (Windows Software) Preview: View up to 64 cameras at one time Playback: Allows you to search for previous recordings Log: Check what events have occurred on each camera Config: Configure the CMS Software video storage location and start-up options Lock: To prevent changes to settings, active recordings and window views, use the lock button.
- Page 9 Linking CMSClient with your Yoosee account allows you to log in from a remote location, or separate network. Follow these steps to log in and view your camera - If you do not have a Yoosee account, follow the steps in the Yoosee section to create one - Select ‘Remote login’...
- Page 10 CMSClient Operations Config Camera The CMSClient software permits users to config smart IP cameras remotely. Selecting the camera you want to config, right click mouse, then choose 'IPC Config'. Now, you will see Network and Recording tabs. As default, IP camera abtains local IP address automatically. However, intend to get a static IP address, you can manually assign an local IP address to the camera.
-
Page 11: Recording Video
CMSClient Operations Recording Video The CMSClient software permits users to config smart IP cameras remotely. Selecting the camera you want to config, right click mouse, then choose 'IPC Config'. Now, you will see Network and Recording tabs. 1. To commence recording, select the button at the top right corner of the camera viewing window. - Page 12 ‘Connect all of device automatically’ options to ‘Open’ to activate these features Alarm Trigger Settings If connected to your Yoosee app, alarms can also be received by the CMSClient software 1. Select ‘Config’ from the main menu 2. Within the ‘Alarm trigger’ tab, change the ‘Pop video’ option to your desired time. This is the time that a video will be shown full screen if the alarm is activated 3.
- Page 13 FAQs Question Solution Ensure that the power adaptor is connected to your IP Camera, and that the power is turned on. Check that the IR LED night mode detection is working by covering Why isn’t my camera working? the camera lens with your hand and waiting for a ‘click’ sound, indicating the camera has changed between day and night modes.
