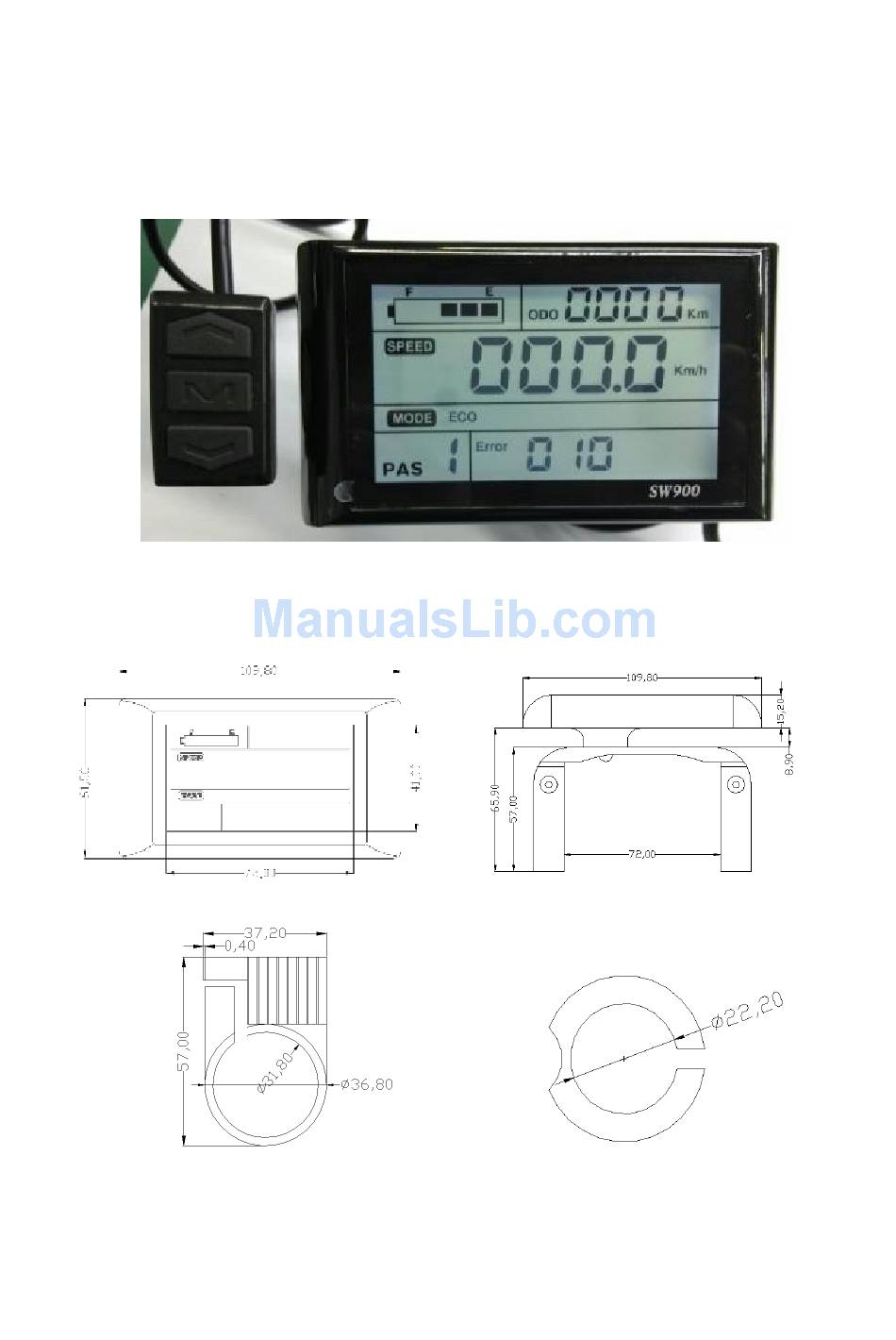

LCD-SW900 INSTRUCTIONS

1. Shell's Size and Material

The shell's material is ABS. LCD screen is made of imported high hardness acrylic, and the

hardness is equal to the tempered glass.

Front View

Side View

Side View of the Holder

Optional size: 22.2mm, 25.4mm

Table of Contents

Need help?

Do you have a question about the LCD-SW900 and is the answer not in the manual?

Questions and answers

Summary of Contents for SAILI MOTOR LCD-SW900

Page 1 LCD-SW900 INSTRUCTIONS 1. Shell’s Size and Material The shell’s material is ABS. LCD screen is made of imported high hardness acrylic, and the hardness is equal to the tempered glass. Front View Side View Side View of the Holder Optional size: 22.2mm, 25.4mm...
Page 2 2. Working Voltage and Mode of Connection 2.1 Working Voltage: DC24V 36V 48V (set by the meter), other voltage could be customized. 2.2 Mode of Connection: Standard Connectors Line Sequence: Red Line (D+): Power Positive Black Line (GND): Power Negative Blue Line (DS): Controller’s electric door lock Brown Line (DD+): Lighting control’s Positive ( If the controller’s software and hardware support the lighting control, do not need connect this line)
Page 3 4.1 Headlight 4.2 Power status 4.3 Multi-functions Total Distance(ODO), Single Trip Distance(TRIP), Error Code(Error), Wattage(WATT), Maintenance(Maintain), DST TO GO(Unused temporarily) 4.4 E-Bike Mode Economic mode(ECO), Standard mode(STD), Powerful model(POWER), Hand speed-control model(SPEEDHANDLE), Walk assisted model(WALK) 4.5 Speed display Maximum speed(MAX), Average speed(AVG) MPH, KM/H are both optional.
Page 4 Normal Status Save Brakes PAS problem(a riding mark) not implemented 6KM/H cruising Real-time cruising Battery is undervoltage Motor’s problem Throttle’s problem Controller’s problem Communication Receiving problem Communication Sending problem BMS Communication problem Headlight problem 4.7 PAS grades PAS Status (0-9 grades), Cruise mark 4.8 Parameters setting P01 Background luminance.
Page 5 P09 Zero start & Non-zero Start. 0 is Zero Start, 1 is Non-zero Start P10 Driving mode. 0 is driven by PAS. Throttle is useless at this time. 1 is driven by Throttle. PAS is useless at this time. 2 is driven by PAS & Throttle. Throttle is useless at Zero Start status. P11 PAS sensitivity.
Page 6 5.3.2 Shift the speed display Long press , to shift the way of speed display 5.3.3 ON/OFF 6KM/H cruising, ON/OFF Headlight, Reset ODO When e-bike stops, long press to enter 6KM/H cruising mode. Stop pressing to exit the cruise mode; Long press to turn ON/OFF Headlight;...
