RED RAVEN RED DRAGON 4.5K Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
RED RAVEN
OPERATION GUIDE
RED RAVEN
RED DRAGON 4.5K
|
V6.3
RED.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RED DRAGON 4.5K and is the answer not in the manual?

Questions and answers

Summary of Contents for RED RAVEN RED DRAGON 4.5K

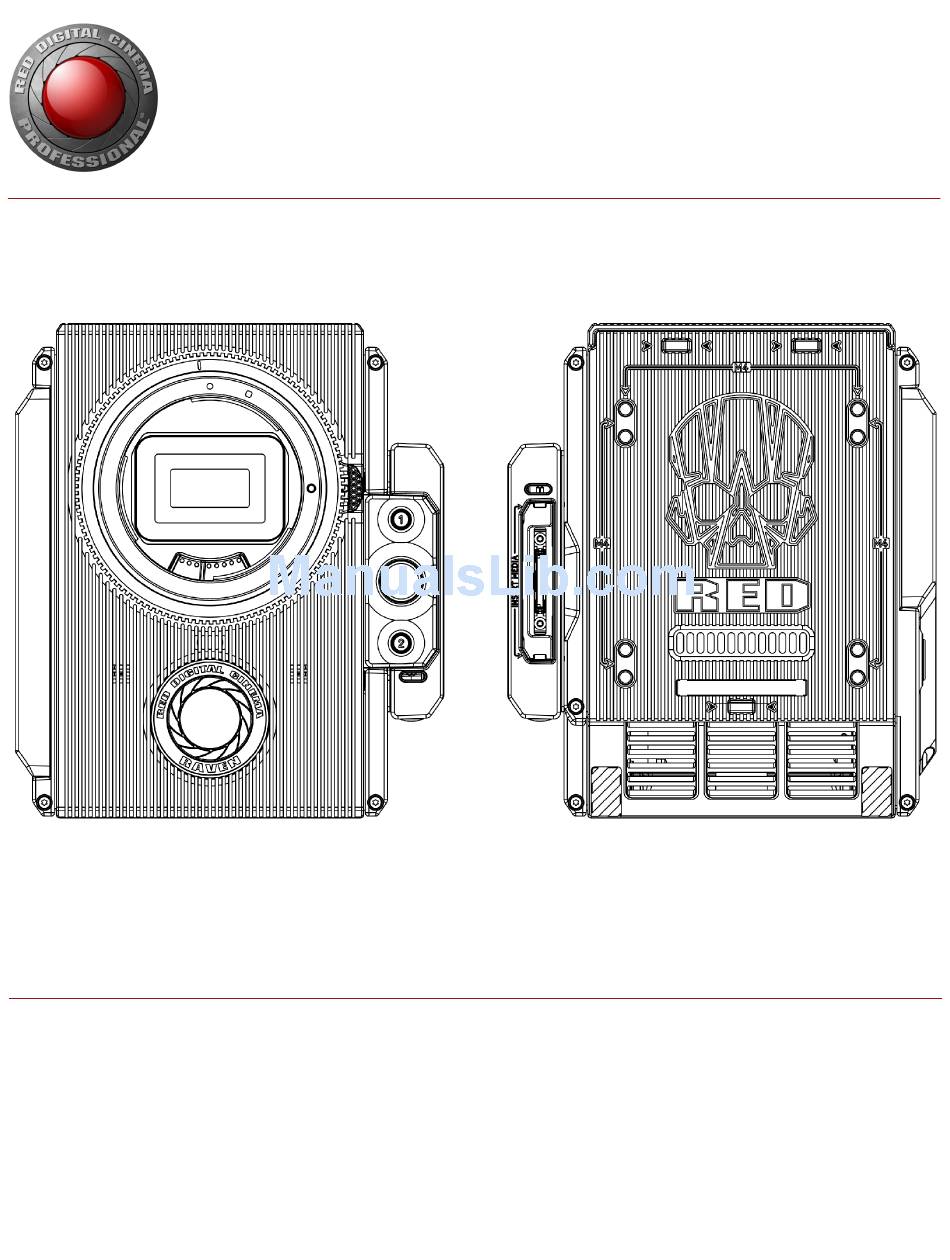

  • Page 1 RED RAVEN OPERATION GUIDE RED RAVEN RED DRAGON 4.5K V6.3 RED.COM...

  • Page 2: Table Of Contents

    RED RAVEN OPERATION GUIDE TABLE OF CONTENTS Access the Advanced Menus Table of Contents Disclaimer Settings Menu Copyright Notice Media Menu Trademark Disclaimer Playback Menu Compliance Statements Power Menu Safety Instructions HDRX Menu Battery Storage and Handling Focus Menu Shipping Disclaimer Exposure Assist Menu 1 RED Product Introduction Presets Menu Read Before You Shoot...

  • Page 3: 5 5 - 0 1 2 7 _V 6 .3 , R Ev - M

    RED RAVEN OPERATION GUIDE A Technical Specifications RED RAVEN Technical Specifications B Mechanical Drawings RED RAVEN BRAIN C Input/Output Connectors DSMC2 Base Expander DSMC2 V-Lock I/O Expander DSMC2 REDVOLT Expander DSMC2 Jetpack Expander DSMC2 Jetpack-SDI Expander Record/Monitor Out Ports Communication Ports Audio Ports Power Ports...

  • Page 4: Disclaimer

    RED RAVEN OPERATION GUIDE DISCLAIMER COMPLIANCE STATEMENTS ® has made every effort to provide clear and accurate INDUSTRIAL CANADA EMISSION COMPLIANCE STATEMENTS information in this document, which is provided solely for the user’s This device complies with Industry Canada license- exempt RSS information.
  • Page 5 RED RAVEN OPERATION GUIDE EUROPEAN UNION COMPLIANCE STATEMENTS The device shall be used in such a manner that the potential for human contact is minimized RED declares that the This equipment complies with FCC radiation exposure limits set forth radio equipment for an uncontrolled environment. This equipment should be installed described this and operated with a minimum distance of 20 cm between the radiator...

  • Page 6: Safety Instructions

    RED RAVEN OPERATION GUIDE USAGE RESTRICTIONS FOR PRODUCTS THAT INCORPORATE SAFETY INSTRUCTIONS REDLINK DO NOT use the camera or accessories near water. Avoid Products that fall into this category are denoted exposing your camera to moisture. The unit is not waterproof, so by inclusion of the Class 2 identifier symbol contact with water could cause permanent damage to the unit as (exclamation mark in a circle) accompanying...
  • Page 7 RED RAVEN OPERATION GUIDE DO NOT operate or store near any heat sources such as radiators, heat registers, stoves, or any other apparatus that produce heat. Store in a protected, level and ventilated place. WARNING: DO NOT expose the battery to Avoid exposure to temperature extremes, damp, severe vibration, excessive heat.

  • Page 8: Battery Storage And Handling

    RED RAVEN OPERATION GUIDE BATTERY STORAGE AND HANDLING DO NOT transport or store the battery together with metal objects such as jewelry, hairpins, etc. as they may generate heat if they come into contact with the battery. WARNING: Failure to read, understand, and DO NOT discard the battery into fire or heat.

  • Page 9: Shipping Disclaimer

    RED RAVEN OPERATION GUIDE SHIPPING DISCLAIMER Shipment of Lithium Ion cells and batteries is subject to national and international shipping requirements. A Class 9 Certified shipper is required to transport these products within the United States. REDVOLT, REDVOLT XL, and RED BRICK batteries are considered Dangerous Goods.

  • Page 10: Red Product Introduction

    RED PRODUCT INTRODUCTION Figure: RED RAVEN Camera and Accessories ® The RED RAVEN camera is part of the second-generation Digital Still and Motion Camera (DSMC2™) system. The ® DSMC2 family, a subset of the DSMC family, includes WEAPON , EPIC-W™, SCARLET-W, and RAVEN. RAVEN ®...

  • Page 11: Shoot For Video And Stills

    RED RAVEN OPERATION GUIDE RAW data is recorded independently of any RGB domain color processing such as ISO, White Balance, or other RGB color space settings. Instead, color parameters are saved as reference metadata; that is, color is not burned into the recorded RAW data.

  • Page 12: Hdrx And Magic Motion

    RED RAVEN OPERATION GUIDE HDRX AND MAGIC MOTION HDRX ® HDRX extends dynamic range up to six (6) stops by simultaneously capturing two (2) images of identical resolution and frame rate. The first image is a normally exposed track (A-track), while the second is an underexposed track (X- track) with an exposure value that reflects the additional stops of highlight protection.

  • Page 13: Camera System Components

    RED RAVEN OPERATION GUIDE CAMERA SYSTEM COMPONENTS NOTE: Modules and expanders are NOT HOT SWAPPABLE, meaning you cannot remove or install these items while the camera is turned on. Before installing or removing these items, you MUST turn off the camera. Failure to do so may result in damage to the item or camera that is not covered under warranty.
  • Page 14 RED RAVEN OPERATION GUIDE ® The RED Tactical Hand Controller (T.H.C.) cannot pair directly to the camera. To use the T.H.C. with the camera, the T.H.C. needs to be connected to the W.M.D. (either wired or wirelessly). For more information about the T.H.C., see RED 3-Axis System Operation Guide at www.red.com/downloads.
  • Page 15 RED RAVEN OPERATION GUIDE BRAIN CONNECTORS, FOCUS HOOK Figure: RED RAVEN BRAIN Ports and Features This section describes the ports and features on the BRAIN. NOTE: For more information on how to install the focus hook, go to "Install the Focus Hook" on page 44. # PORT/ITEM DESCRIPTION 1 Primary...
  • Page 16 RED RAVEN OPERATION GUIDE MEDIA BAY CONTROLS Figure: RED RAVEN Media Bay Controls CONTROL DESCRIPTION User Key 1 Programmable key User Key 1 + 2 Press: Eject Media REC button Programmable key Full Press: Record Toggle Half Press: AF Start User Key 2 Programmable key User Key 1 + 2 Press: Eject Media For more information, see the DSMC Media Operation...
  • Page 17 RED RAVEN OPERATION GUIDE MEDIA BAY LEDS Figure: RED RAVEN Media Bay LEDs This section describes the LED functions for the media bay. # LED COLOR/FLASHING DESCRIPTION 1 Media Status LED (Back of media No media mounted bay) Green Preview; media mounted with > 10% of media space available Amber Record finalizing or playback mode...

  • Page 18: Red Mini-Mag System

    RED RAVEN OPERATION GUIDE RED MINI-MAG SYSTEM Figure: RED MINI-MAG (120GB) NOTE: For more information, see the DSMC Media Operation Guide, available at www.red.com/downloads. ® ® RED MINI-MAG SSDs deliver fast and reliable recording options for your camera. A RED STATION enables you to connect media to your computer for offloading and editing.

  • Page 19: Expanders

    RED RAVEN OPERATION GUIDE EXPANDERS NOTE: Only one (1) expander module can be used at a time. RED offers the following DSMC2 expanders: Item Part Number DSMC2 Base Expander 720-0033 DSMC2 REDVOLT Expander 720-0040 DSMC2 Jetpack Expander 720-0039 DSMC2 Jetpack-SDI Expander 720-0048 DSMC2 V-Lock I/O Expander 720-0045 DSMC2 BASE EXPANDER...
  • Page 20 RED RAVEN OPERATION GUIDE DSMC2 REDVOLT EXPANDER Figure: DSMC2 REDVOLT Expander Designed for advanced configurations, the DSMC2 REDVOLT Expander mounts directly to the camera and offers an expansive array of I/O connectors and functionality available for the camera system. The DSMC2 REDVOLT Expander features ports for power in (DC IN), Genlock (BNC), Timecode (LEMO), GIG-E, and more.
  • Page 21 RED RAVEN OPERATION GUIDE DSMC2 JETPACK EXPANDER Figure: DSMC2 Jetpack Expander The DSMC2 Jetpack Expander is specifically designed for aerial, gimbal, handheld, and other lightweight/remote configurations. This expander features standard connectors for power (DC-IN), CTRL, and SYNC for all of your Timecode and Genlock needs. In addition, the DSMC2 Jetpack Expander offers custom- tailored support and connectors for HDMI and USB power out—perfect for housings and low-profile setups.
  • Page 22 RED RAVEN OPERATION GUIDE DSMC2 JETPACK-SDI EXPANDER Figure: DSMC2 Jetpack-SDI Expander The DSMC2 Jetpack-SDI Expander is designed for aerial, gimbal, handheld, and other lightweight/remote applications that require 3G-SDI output. Featuring connections for power (DC IN), SDI (3G-SDI), Gigabit Ethernet (GIG-E), AUX power, SYNC, and CTRL, the DSMC2 Jetpack-SDI Expander provides a low-profile expander solution. The 3G-SDI connection provides support for providing a signal to a remote monitoring solution, while the Gigabit Ethernet connection offers increased bandwidth for streaming high-quality footage.The DSMC2 Jetpack-SDI Expander is ideal for housings and low-profile configurations that require 3G-SDI outputs or computer tethering.
  • Page 23 RED RAVEN OPERATION GUIDE DSMC2 V-LOCK I/O EXPANDER Figure: DSMC2 V-Lock I/O Expander The DSMC2 V-Lock I/O Expander offers a variety of Input/Output connections, as well as an industry standard V-Lock mount to power your DSMC2 camera using RED BRICK batteries. The DSMC2 V-Lock I/O Expander also features a selector switch that enables the BRAIN to automatically boot when power is provided via the DC IN connector on the expander.
  • Page 24 RED RAVEN OPERATION GUIDE THIRD-PARTY BATTERY COMPATIBILITY To be compatible with the DSMC2 V-Lock I/O Expander, third-party batteries must meet these requirements: Maximum width: approximately 100.6 mm Minimum radius of the side edge of the V-mount (rear mounting surface): approximately 9.70 mm The following third-party batteries have been fit-tested by RED and are mechanically compatible with the DSMC2 V- Lock I/O Expander (additional batteries may be compatible, but have not been tested): ®...

  • Page 25: Power Modules

    RED RAVEN OPERATION GUIDE POWER MODULES RED offers the following DSMC2 power modules: Item Part Number DSMC2 REDVOLT XL Module 740-0034 NOTE: If a power module is attached to the DSMC2 REDVOLT Expander, the power out connectors on the module are enabled only if power is connected to the module (via DC IN or a battery). DSMC2 REDVOLT XL MODULE Figure: DSMC2 REDVOLT XL Module The DSMC2 REDVOLT XL Module mounts seamlessly to the back of the camera—and select other I/O expanders—to...

  • Page 26: Red Batteries And Chargers

    RED RAVEN OPERATION GUIDE RED BATTERIES AND CHARGERS Figure: REDVOLT XL (left) and REDVOLT (right) RED offers the following batteries and chargers: Item Part Number REDVOLT XL 740-0021 REDVOLT Charger (Quad) 740-0015 For more information, see the DSMC Power Operation Guide, available at www.red.com/downloads. C O PYR I G HT ©...

  • Page 27: Displays And Electronic Viewfinders

    RED RAVEN OPERATION GUIDE DISPLAYS AND ELECTRONIC VIEWFINDERS RED offers the following displays and electronic viewfinders (EVFs): NOTE: RED offers multiple mounting solutions for each camera type. Item Resolution Tilt Swivel Part Number (Approximate) (Approximate) DSMC2 RED Touch 7.0" LCD (Woven CF) 1920 x 1136 Total: 180°...
  • Page 28 RED RAVEN OPERATION GUIDE RED LCDS Figure: DSMC2 RED Touch 7.0" LCD RED displays provide important camera parameters on the graphical user interface (GUI) and offer a variety of monitor viewing options. RED touchscreen displays enable you to use gestures to navigate menus and adjust camera parameters.
  • Page 29 RED RAVEN OPERATION GUIDE BOMB EVFS Figure: BOMB EVF (OLED) The BOMB EVF (LCOS) and BOMB EVF (OLED) deliver specialized viewing solutions for the camera. The BOMB EVF (LCOS) is a high-definition, lightweight, and low-profile viewfinder. The BOMB EVF (OLED) uses OLED technology, providing deeper blacks and more color accurate images.
  • Page 30 RED RAVEN OPERATION GUIDE DSMC2 RED EVF The DSMC2 RED EVF (OLED) is a high definition electronic viewfinder designed as the ideal single-viewer monitoring solution. Featuring the latest OLED technology, this EVF provides an unmatched personal viewing experience with a 1080p OLED micro-display, and improved color accuracy with 30-bit RGB color represenation. View and monitor your RED footage as it is intended with truer colors and deeper blacks in a larger field of view.
  • Page 31 RED RAVEN OPERATION GUIDE DSMC2 RED EVF FEATURES Figure: DSMC2 RED EVF # Feature Description 1 DSMC2 RED EVF The DSMC2 RED EVF Mount Mount 2 EVF connector Custom digital video and power interconnection between the EVF and other RED devices; Pinout not published; compatible with standard RED EVF/LCD LEMO cables 3 Key 1 Programmable key Magnify: Toggle...

  • Page 32: Lemo Adaptors

    RED RAVEN OPERATION GUIDE LEMO ADAPTORS This section describes the DSMC2 LEMO Adaptor A and the DSMC2 LEMO Adaptor B. These adaptors enable you to use EPIC/SCARLET displays with your DSMC2 camera and use DSMC2 displays with your EPIC/SCARLET camera. For more information on available displays, go to "Displays and Electronic Viewfinders"...

  • Page 33: Camera Control Modules

    RED RAVEN OPERATION GUIDE CAMERA CONTROL MODULES This section describes the camera control modules. These devices provide a wide array of programmable buttons, controls, and other features to interact with the camera. RED offers the following controls: Item Part Number DSMC2 Sidekick (Forged CF) 720-0041 DSMC2 Sidekick (Woven CF) 720-0036...
  • Page 34 RED RAVEN OPERATION GUIDE DSMC2 SIDE HANDLE Figure: DSMC2 Side Handle Designed for shooters who prefer a compact handheld configuration, the DSMC2 Side Handle offers the most ergonomic handle option—attaching directly to the side of the camera BRAIN. The DSMC2 Side Handle features a molded rubber grip and puts primary camera controls right at your fingertips. The Focus Control Wheel (front) offers direct control over lens focus, while the Iris Control Wheel (side) supports iris functions.

  • Page 35: Rails, Mounts, Tactical Gear, And Cables

    RED RAVEN OPERATION GUIDE DSMC2 TOP HANDLE Figure: DSMC2 Top Handle Ergonomic and intuitive, the DSMC2 Top Handle was engineered entirely around the most important action for any shooter—the record button. This intelligent top handle puts a new Record Start/Stop button at your fingertips, using built-in integrated circuitry.

  • Page 36: Basic Operations

    RED RAVEN OPERATION GUIDE BASIC OPERATIONS POWER OPERATIONS This section describes the basic power operations of the camera system. For more information, see the DSMC Power Operation Guide, available at www.red.com/downloads. NOTE: Modules and expanders are NOT HOT SWAPPABLE, meaning you cannot remove or install these items while the camera is turned on.

  • Page 37: Turn On The Camera

    RED RAVEN OPERATION GUIDE APPROVED EXTERNAL DC POWER The camera accepts input voltages of 11.5 V to 17 V DC, and can draw a maximum current of 9 A. The camera can be powered continuously by connecting one (1) of the following to an attached module or expander: DSMC AC Power Adaptor RED BRICK Charger: Offers two (2) ways to connect to your camera: Use a RED ONE DC Power Cable (P/N 790-0060) and 2B-to-1B Power Adaptor Cable (P/N 790-0138).
  • Page 38 RED RAVEN OPERATION GUIDE AUTO BOOT ON POWER The DSMC2 Jetpack Expander, DSMC2 Jetpack-SDI Expander, DSMC2 REDVOLT Expander, and the DSMC2 V-Lock I/O Expander feature a selector switch that enables the camera to automatically boot when power is provided via the DC IN connector on the expander. The Auto Boot on Power switch (identified by a white star) is located on top of the expander.

  • Page 39: Configure Your Camera

    RED RAVEN OPERATION GUIDE CONFIGURE YOUR CAMERA This section describes common options for configuring your camera system. DSMC2 SIDEKICK: INSTALL/REMOVE INSTALL THE DSMC2 SIDEKICK This section applies to the following items: DSMC2 Sidekick (Forged CF) DSMC2 Sidekick (Woven CF) DSMC2 Sidekick (Magnesium) NOTE: Each DSMC2 Sidekick is compatible with all DSMC2 cameras.
  • Page 40 RED RAVEN OPERATION GUIDE INSTALL THE DSMC2 SIDE HANDLE WARNING: Before installing or removing this item, you MUST turn off the camera. REQUIRED TOOLS: T10 TORX driver (if a Sidekick Cover or DSMC2 Sidekick is installed), M2.5 hex key  1. Turn off the camera.  2.
  • Page 41 RED RAVEN OPERATION GUIDE DSMC2 EXPANDER: INSTALL/REMOVE INSTALL A DSMC2 EXPANDER This section applies to the following items: DSMC2 Base Expander DSMC2 V-Lock I/O Expander DSMC2 REDVOLT Expander DSMC2 Jetpack Expander DSMC2 Jetpack-SDI Expander WARNING: Before installing or removing this item, you MUST turn off the camera. WARNING: When installing and removing a DSMC2 REDVOLT Expander, ensure that a REDVOLT battery is NOT installed in the expander.
  • Page 42 RED RAVEN OPERATION GUIDE DSMC2 REDVOLT XL MODULE: INSTALL/REMOVE INSTALL THE DSMC2 REDVOLT XL MODULE The DSMC2 REDVOLT XL Module mounts to the rear of the following items: BRAIN DSMC2 Base Expander DSMC2 REDVOLT Expander WARNING: Before installing or removing this item, you MUST turn off the camera. REQUIRED TOOLS: T20 TORX driver  1.
  • Page 43 RED RAVEN OPERATION GUIDE DSMC2 TOP HANDLE AND DSMC2 OUTRIGGER HANDLE: INSTALL/REMOVE INSTALL THE DSMC2 TOP HANDLE OR DSMC2 OUTRIGGER HANDLE WARNING: Before installing or removing this item, you MUST turn off the camera. REQUIRED TOOLS: 3/16" hex key  1. Turn off the camera.  2.
  • Page 44 RED RAVEN OPERATION GUIDE INSTALL THE FOCUS HOOK For more information on the focus hook storage location and mounting point, go to "BRAIN" on page 13. REQUIRED TOOLS: 1.5 mm hex key, slotted screwdriver  1. Remove the M3x0.5 x 3 mm set screw from the focus hook mounting point on the media bay using a 1.5 mm hex key.

  • Page 45: Use A Tripod Or Monopod

    RED RAVEN OPERATION GUIDE USE A TRIPOD OR MONOPOD This section describes the camera mounting points and mounting equipment for use with a tripod or monopod. The camera is equipped with two (2) 3/8-16 mounting holes and one (1) 1/4-20 mounting hole on the bottom of the camera. These mounting points are designed for use with a variety of mounting plates and hardware, to support tripods and other support systems.

  • Page 46: Video Monitor Outputs

    RED RAVEN OPERATION GUIDE VIDEO MONITOR OUTPUTS ® NOTE: HD- SDI and HDMI ports are only available on select DSMC2 expanders. For more information, go to "Input/Output Connectors" on page 193. The monitoring path converts RAW sensor data to a white balanced 12-bit depth 1920 x 1080 pixel RGB 4:4:4 video signal.

  • Page 47: Record

    RED RAVEN OPERATION GUIDE RECORD Perform one of the following actions to begin recording: Press PWR/REC on the camera. Press REC on the media bay. Press START/STOP on the DSMC2 Top Handle or DSMC2 Outrigger Handle. Double-tap the right 25% on an attached touchscreen display (when enabled). NOTE: To enable Double- Tap Right 25% to Record, go to Menu >...
  • Page 48 RED RAVEN OPERATION GUIDE EXTERNAL RECORD NOTE: HD- SDI and HDMI ports are only available on select DSMC2 expanders. For more information, go to "Input/Output Connectors" on page 193. You can record to an external recorder without recording to an SSD. To record to an external device only, follow the instructions below:  1.

  • Page 49: Basic Menus And Controls

    RED RAVEN OPERATION GUIDE BASIC MENUS AND CONTROLS GUI MENU INTRODUCTION This section describes the structure and layout of the graphical user interface (GUI) that overlays the video monitor signal. Advanced GUI menu controls enable convenient access to menus, overlays, and other critical camera information.

  • Page 50: Upper Status Row (Basic Menu)

    RED RAVEN OPERATION GUIDE UPPER STATUS ROW (BASIC MENU) The Upper Status Row displays basic project parameters. The currently selected parameter in the Upper Status Row is underlined with a red bar. The Upper Status Row is also known as the Basic Menu. Figure: Upper Status Row The Upper Status Row includes the following GUI elements: # ITEM...
  • Page 51 RED RAVEN OPERATION GUIDE ACCESS ADVANCED MENUS For every Upper Status Row item, you can select the Advanced... button to access the related menu in the Advanced Menus. For example, select Advanced... in the Frame Rate menu to open Menu > Settings > Project > Frame Rate. For more information about Advanced Menus, go "Advanced Menus"...
  • Page 52 RED RAVEN OPERATION GUIDE FEATURE: EDIT LIST Select the Edit List... button in the Upper Status Row menus to change the values that display for each setting. For example, if you open the Frame Rate menu and select Edit List..., the camera lets you add or remove values. Figure: Select "Edit List..."...
  • Page 53 RED RAVEN OPERATION GUIDE REDCODE Select the target REDCODE compression ratio for your project. If the camera is able to achieve the target compression ratio, the compression ratio displays in white. If the camera is unable to achieve the target compression ratio, the compression ratio displays in yellow. The current compression ratio is automatically recalculated when changes are made to the project resolution, aspect ®...

  • Page 54: Live Action Area

    RED RAVEN OPERATION GUIDE LIVE ACTION AREA The Live Action Area contains the recorded image area plus Surround View look around area, plus overlays for Frame Guides, Safe Action/Safe Title, Clip Name, and Timecode values. The color of each overlay can be customized to maximize the contrast between the guide(s) and scene being captured.
  • Page 55 RED RAVEN OPERATION GUIDE LENS INFORMATION This section describes the lens information displays when a supported lens is attached. CANON LENSES The camera displays the focal length and focal distance when an electronically supported lens is attached. When AF is set to Manual or Confirm mode, the focal distance displays as a pair of Near–Far distances. When in AF mode, an estimated focus distance displays.

  • Page 56: Lower Status Row

    RED RAVEN OPERATION GUIDE LOWER STATUS ROW The Lower Status Row provides access to key system information and camera values. Figure: Lower Status Row The Lower Status Row in Motion mode provides key system information and camera values, including: # ITEM SUB-ITEM/DESCRIPTION FOR MORE INFORMATION, GO TO...
  • Page 57 RED RAVEN OPERATION GUIDE # ITEM SUB-ITEM/DESCRIPTION FOR MORE INFORMATION, GO TO... 3 System Tap to access the System Status menu "System Status" on Status page 124 Indicators Temperature: Camera sensor and core temperature, respectively "Sensor Calibration" on page 119 Cal: T/E "CAL: T/E Indicator" on page 60 HDRX: Displays when HDRX mode is on "HDRX Menu"...

  • Page 58: Camera Mode

    RED RAVEN OPERATION GUIDE CAMERA MODE The Camera Mode allows you to seamlessly toggle between Motion mode, Stills mode, and Playback. To select a camera mode, select the Camera Mode icon in the Lower Status Bar, swipe up, and select a camera mode. NOTE: Setting adjustments made in Stills mode do not affect the settings in Motion mode, and vice versa.
  • Page 59 RED RAVEN OPERATION GUIDE HISTOGRAM This section describes the elements that comprise the Histogram section in the Lower Status Row. This section of the GUI helps ensure that recorded footage is properly exposed. Tap the Histogram in the Lower Status Row to access the Tools menu. For more information, go to "Tools"...
  • Page 60 RED RAVEN OPERATION GUIDE SYSTEM STATUS INDICATORS This section describes the colors and behavior of the System Status indicators in the Lower Status Row. Tap the System Status indicators in the Lower Status Row to access the System Status menu. For more information, go to "System Status"...

  • Page 61: Power Status

    RED RAVEN OPERATION GUIDE LAN INDICATOR NOTE: The GIG- E port is only available on the DSMC2™ REDVOLT Expander. For more information, go to "Input/Output Connectors" on page 193. The LAN indicator shows the current status of an external LAN connection through the Gig-E port. Grey: External control of the camera is not enabled.

  • Page 62: Navigation Controls

    RED RAVEN OPERATION GUIDE NAVIGATION CONTROLS This section describes basic controls for navigating the camera menus. TOUCHSCREEN NAVIGATION RED Touch displays offer intuitive menu control and four (4) programmable buttons. Figure: DSMC2 RED Touch 7.0" LCD RED TOUCH BUTTON DESCRIPTION User Key 1 Toggle 1:1 Magnify on/off Up Button Increase display brightness...
  • Page 63 RED RAVEN OPERATION GUIDE Navigate the menus using a touchscreen by using the following gestures: Tap: Tap has many functions: Tap to select a Basic Menu, submenu, or button. If a menu is open, tap anywhere outside the menu to save any changes and close the menu. Tap the right or left regions of the touchscreen to access the programmable soft keys.
  • Page 64 RED RAVEN OPERATION GUIDE SWIPE-UP MENU The Swipe-Up Menu is available in the Lower Status Row on RED Touch displays and provides Swipe-Up Shortcuts for Motion mode, Stills mode, and Playback. For example, select the Camera Mode icon in the Lower Status Bar, swipe up, and select a Camera Mode. Figure: Swipe Up to Select a Camera Mode Figure: Stills Mode # SWIPE-UP SHORTCUT...
  • Page 65 RED RAVEN OPERATION GUIDE # SWIPE-UP SHORTCUT DESCRIPTION 6 Auto Exposure Set Exp Comp, Speed, Metering, Priority, and Mode 7 Record Mode Select Multi-Shot or Motion + Stills 1. For more information about Stills mode and Motion mode, go to "Camera Mode" on page 58.
  • Page 66 RED RAVEN OPERATION GUIDE NAVIGATION GROUP Figure: Navigation Group (DSMC2 Sidekick Pictured) The Navigation Group is the primary control interface on the DSMC2 Sidekick and DSMC2 Side Handle. # NAVIGATION GROUP ELEMENT DESCRIPTION 1 Scroll Wheel Select and adjust the value of a selected setting 2 ENTER key Press ENTER to confirm a setting or access the selected menu 3 Directional Keys (D-Pad)

  • Page 67: Operation Modes

    RED RAVEN OPERATION GUIDE DSMC2 SIDEKICK This section describes the controls and display of the DSMC2 Sidekick. Figure: DSMC2 Sidekick # CONTROL/ITEM DESCRIPTION 1 User Keys (A–D) A: Cycle Auto-Focus Mode B: Auto White Balance C: Toggle 1:1 Magnify D: Toggle Exposure Mode 2 MENU Button Access menus or exit currently selected menu 3 Navigation Group...
  • Page 68 RED RAVEN OPERATION GUIDE KEY LOCK/UNLOCK Lock the keys on the DSMC2 Sidekick to prevent inadvertent button presses and menu changes. Lock: Press A + D simultaneously. Unlock: Press A + D simultaneously. Alternatively, press and hold ENTER while keys are locked. DSMC2 SIDEKICK DISPLAY The DSMC2 Sidekick OLED display provides basic camera parameters during operation.
  • Page 69 RED RAVEN OPERATION GUIDE DSMC2 SIDE HANDLE This section describes the controls and display of the DSMC2 Side Handle. Figure: DSMC2 Side Handle # CONTROL/ITEM DESCRIPTION 1 Focus Control Wheel Clockwise (Away from camera): Increase focus distance Counter-Clockwise (Toward camera): Decrease focus distance 2 Focus/Record Button Half-press for auto-focus;...
  • Page 70 RED RAVEN OPERATION GUIDE # CONTROL/ITEM DESCRIPTION 9 Grip Ergonomic molded rubber grip 1. The Focus Control Wheel is NOT programmable; it cannot be mapped to another function. NOTE: Some DSMC2 Side Handle keys are programmable. For more information, go to "Default Key Functions" on page 226.

  • Page 71: Advanced Menus

    RED RAVEN OPERATION GUIDE ADVANCED MENUS ADVANCED MENUS OVERVIEW The Advanced Menus include: Advanced Description For more information, go Menu to... Settings Camera settings including: Display, Look, Project, Audio, Recording, "Settings Menu" on the next Setup, and Maintenance page Media SSD operations including: format, eject, and more "Media Menu"...

  • Page 72: Settings Menu

    RED RAVEN OPERATION GUIDE SETTINGS MENU The Settings menu includes: Display, Look, Project, Audio, Recording, Setup, and Maintenance. Figure: Settings Menu DISPLAY The Display menu includes: Tools, Zebra, Monitor Control, Modes, Guides, and Test Signal. TOOLS The Tools menu provides access to false color and display modes. For more information, see the Exposure with RED Cameras: False Color &...
  • Page 73 RED RAVEN OPERATION GUIDE EXPOSURE Displays color overlay on top of a desaturated image that allows you to check for proper exposure. When enabled, the “E√” indicator displays in the Lower Status Row. The Exposure meter colors indicate the following information: Purple: Underexposed; indicates sensor exposure levels that may be noisy if gained up in post production. Green: IRE 41–48;...

  • Page 74: Display Modes

    RED RAVEN OPERATION GUIDE GIO SCOPE Displays a color overlay on top of a desaturated image, identifying the 16 stops of light within the full dynamic range ® of the RED DRAGON sensor. When enabled, the “G√” indicator displays in the Lower Status Row. The Gio Scope indicators are based on RAW data.
  • Page 75 RED RAVEN OPERATION GUIDE HORIZON Displays an overlay that provides a reference to the position of the horizon. The Horizon overlay consists of two (2) short side-bars that are always horizontally centered on the monitor, and a single longer horizon-line that adjusts to the horizon based on the orientation of the camera.
  • Page 76 RED RAVEN OPERATION GUIDE MONITOR CONTROL Use the Monitor Control menu to configure monitor and overlay settings, control surface priorities, brightness, and gestures. MONITOR Select the monitor to configure from the drop-down menu at the top of the menu. The other settings on the menu are applicable to the selected monitor.
  • Page 77 RED RAVEN OPERATION GUIDE FLIP/MIRROR NOTE: In the Monitor Control menu, this setting is ONLY available on the DSMC2 RED Touch 4.7" LCD, DSMC2 RED Touch 7.0" LCD, RED Touch 7.0" LCD, and RED Pro Touch 7.0" LCD. This setting is available for all displays in the Video menu.
  • Page 78 RED RAVEN OPERATION GUIDE OVERLAY ACTIONS Create...: Create a new custom overlay using a blank overlay template in the Overlay Editor. Clone...: Create a new custom overlay using the selected camera overlay as a template in the Overlay Editor. Edit...: Edit the selected camera overlay in the Overlay Editor. Delete: Delete the selected camera overlay.
  • Page 79 RED RAVEN OPERATION GUIDE PRIORITY Figure: Overlays The camera can only have one (1) control monitor for interacting with camera settings. The Priority tab determines the order in which a monitor becomes the control monitor. If you plan on removing or adding monitors during a shoot, set up the priority list ahead of time.
  • Page 80 RED RAVEN OPERATION GUIDE ADVANCED Provides access to additional monitor settings. Figure: Advanced Monitor Control GESTURES Pinch to Magnify: Move two (2) fingers apart or together to toggle 1:1 Magnify. For more information, go to "Magnify" on page 74. Double-Tap Right 25% to Record: Double-tap the right 25% of the video area on the LCD to toggle record. Double-Tap Left 25% to Start AF: Double-tap the left 25% of the video area on the LCD to start autofocus when compatible lenses are used.
  • Page 81 RED RAVEN OPERATION GUIDE ALLOW OPEN GATE Open Gate allows the camera to preview images at a refresh rate that is twice the project time base. For example, if the project time base is 23.98 FPS or 24.00 FPS, enabling Open Gate causes the LCD or EVF to have a refresh rate of 48 Hz (50 Hz).
  • Page 82 RED RAVEN OPERATION GUIDE VU METER Input: Displays levels of audio inputs (pre-mixer). (Default) Output: Displays levels of audio outputs (post-mixer). HISTOGRAM RGB: Displays red, green, and blue channels on histogram. (Default) Luma: Displays luma channel on histogram. MEDIA Percentage: Displays media space remaining as a percentage. (Default) Time Remaining: Displays media space remaining as time in hours and minutes (HHH:MM).
  • Page 83 RED RAVEN OPERATION GUIDE MODE Off: Disable all guides. Full: Guide has the same aspect ratio as the record format. 4:3, 16:9, 1.85:1, 1.9:1, 2.4:1: Guide has the selected aspect ratio. User: Select an aspect ratio from the drop-down menu that displays when you select this option. Absolute: Guide is defined by absolute pixel dimensions rather than aspect ratio and scale.

  • Page 84: Test Signal

    RED RAVEN OPERATION GUIDE TEST SIGNAL Use the Test Signal menu to replace the video monitor outputs with one of the following video test patterns: Chip Chart SMPTE Bars Luma To enable a test signal, select the test signal box. To exit, tap the touchscreen or press the Enter or Menu button. If needed, enable an Audio Tone.
  • Page 85 RED RAVEN OPERATION GUIDE FLUT Floating Point Lookup Table (FLUT) is an exposure control exclusive to RED. FLUT works like a traditional ISO setting, but can be fine-tuned in post production to any level of exposure precision. FLUT automatically protects highlights and shadows, even when changed substantially. The FLUT setting is expressed in terms of relative exposure value (EV), where each unit represents a 1-stop change in midtone exposure level.
  • Page 86 RED RAVEN OPERATION GUIDE  3. Graded, RLF, ACES : Select a graded gamma space from the Graded Gamma Space drop-down menu.  4. Set up the Monitor Configuration. For more information, go to "Monitor Config (Monitor Configuration)" on the next page. Figure: Select Video Source LOOK CONFIG (LOOK CONFIGURATION) Use the Look Config menu to set up Look A.
  • Page 87 RED RAVEN OPERATION GUIDE MONITOR CONFIG (MONITOR CONFIGURATION) Use the Monitor Config menu to apply looks and curves to the monitor output.  1. Select the monitor to configure from the drop-down menu at the top of the menu.  2. Select a look from the Look drop-down menu. Looks are set up in the Look Config menu. For more information, go to "Look Config (Look Configuration)"...

  • Page 88: Color Temperature

    RED RAVEN OPERATION GUIDE COLOR TEMPERATURE Select a color temperature. The range is 1700 to 10,000 KELVIN, and the default is 5600 KELVIN. TINT Color temperature calculations assume a pure light source that may not be true in the specific scene the camera is imaging.

  • Page 89: Frame Rate

    RED RAVEN OPERATION GUIDE PROJECT The Project menu includes: Frame Rate, Exposure, Timecode, Slate, Format, and Sensor. FRAME RATE RECORDING FRAME RATE Select the recording frame rate (also referred to as the capture frame rate). The recording frame rate is the number of frames per second (fps) that are recorded.
  • Page 90 RED RAVEN OPERATION GUIDE EXPOSURE Select the exposure (shutter speed) of each frame. You can change exposure while recording. Decreasing shutter speed increases the amount of time that light hits the sensor, which increases exposure and motion blur of moving objects. Increasing shutter speed decreases the amount of time that light hits the sensor, which decreases exposure and motion blur of moving objects.
  • Page 91 RED RAVEN OPERATION GUIDE TIMECODE NOTE: Using timecode requires ports that are only available on select DSMC2 expanders. For more information, go to "Input/Output Connectors" on page 193. For more information about timecode, go to "Timecode, Genlock, Multi-Camera Setup" on page 152. TIMECODE MODE DESCRIPTION SOURCE User...
  • Page 92 When you lower the resolution on a camera, only a portion of the sensor is used. The camera does not downscale from full format when recording RAW. RED RAVEN FORMATS ® The table below describes the formats for each of the RED RAVEN RESOLUTION DIMENSIONS (PIXELS) DIMENSIONS (MM)
  • Page 93 RED RAVEN OPERATION GUIDE RESOLUTION DIMENSIONS (PIXELS) DIMENSIONS (MM) WIDTH HEIGHT WIDTH HEIGHT DIAGONAL 2K 2.4:1 (WS) 2048 10.24 4.32 11.11 2K 16:9 (HD) 1920 1080 9.60 5.40 11.01 2K 3:2 1920 1280 9.60 6.40 11.54 C O PYR I G HT © 2 0 1 7 R ED.C O M , I NC 9 5 5 - 0 1 2 7 _V 6 .3 , R EV - M |  ...
  • Page 94 RED RAVEN OPERATION GUIDE SENSOR (FLIP/MIRROR SCAN DIRECTION) The Flip/Mirror Scan Direction feature rotates the image 180°, both on the monitor and in the recorded R3D file. Normally, the sensor scans the image from the top to the bottom. When the Flip/Mirror Scan Direction feature is enabled, the sensor scan direction reverses, and the sensor scans the image from the bottom to the top.
  • Page 95 RED RAVEN OPERATION GUIDE RECORDING The Recording menu includes: Mode, Codec, Frame Processing, Pre-Record, and Indicator. MODE You can select the following recording modes: Continuous Record, Internal Timelapse Timer, Frame Trigger, REDCODE Burst, Speed Ramp Mode, Multi-Shot, and Motion + Stills. NOTE: Audio is recorded only in Continuous Record and Motion + Stills modes. STORAGE You can select the following storage locations: Local: Stores footage directly to an SSD...
  • Page 96 RED RAVEN OPERATION GUIDE FRAME TRIGGER NOTE: This mode is not available in Stills mode. NOTE: Audio is not recorded in Frame Trigger mode. In Frame Trigger mode, the camera records the specified number of frames for each external trigger. This mode limits the REDCODE based on sustainable record rates.
  • Page 97 RED RAVEN OPERATION GUIDE REDCODE BURST NOTE: This mode is not available in Stills mode. NOTE: Audio is not recorded in REDCODE Burst mode. In REDCODE Burst mode, the camera can record at a lower compression (REDCODE) for the specified amount of frames.
  • Page 98 RED RAVEN OPERATION GUIDE MULTI-SHOT NOTE: The camera does not sync timecode in Multi-Shot mode. NOTE: This mode is available in Motion mode, but is only recommended in Stills mode. NOTE: Audio is not recorded in Multi-Shot mode. Multi-Shot mode removes restrictions on Recording Frame Rate and REDCODE, allowing you to shoot at a high resolution, high frame rate, and low compression.
  • Page 99 RED RAVEN OPERATION GUIDE  5. Close the menu.  6. For more information on using the different sub-modes, go to: "Basic Multi-Shot Mode" on the previous page "Advanced Multi-Shot Mode" on the previous page MOTION + STILLS NOTE: This mode is available in Motion mode, but is only recommended in Stills mode. Motion + Stills mode is identical to Continuous Record, except that when you initiate recording by pressing the PWR/REC key on the camera, all other Record keys mark frames for the duration of the clip.
  • Page 100 RED RAVEN OPERATION GUIDE APPLE PRORES INFORMATION By default, the camera records all videos and stills in the REDCODE RAW file format. You also have the option to record Apple ProRes files. This section provides general information about recording Apple ProRes files with the camera: NOTE: Each camera offers different Apple ProRes codecs, and different frame rates for those codecs.
  • Page 101 RED RAVEN OPERATION GUIDE FILE STRUCTURE OF RECORDED APPLE PRORES FILES When recording REDCODE RAW + QuickTime, this is the file structure of the recorded files on the RED MINI-MAG: .RDM Folder .RDC Folder .mov .R3D .rtn (RED Thumbnail file) NOTE: The camera creates mulitple .mov files, similar to how the camera creates multiple R3D files. Figure: File Structure: REDCODE RAW + QuickTime When recording QuickTime only, this is the file structure of the recorded files on the RED MINI-MAG: .RDM Folder...
  • Page 102 RED RAVEN OPERATION GUIDE AVID DNXHD AND AVID DNXHR INFORMATION By default, the camera records all videos and stills in the REDCODE RAW file format (records R3D files). You also have the option to record to Avid DNxHD and Avid DNxHR (records .mxf files). This section provides general information about recording Avid DNxHD/HR with the camera: NOTE: Each camera offers different Avid codecs, and different frame rates for those codecs.
  • Page 103 RED RAVEN OPERATION GUIDE FILE STRUCTURE OF RECORDED AVID CODEC FILES When recording R3D + Avid DNxHD/HR, this is the file structure of the recorded files on the RED MINI-MAG: .RDM Folder .RDC Folder .R3D .mxf (audio file, marked with an “A”) .mxf (video file, marked with a “V”) .rtn (RED Thumbnail file) NOTE: The camera creates mulitple .mxf files, similar to how the camera creates multiple R3D files.
  • Page 104 RED RAVEN OPERATION GUIDE SELECT RECORD FILE FORMAT NOTE: For more information on which codecs your camera offers, go to "Technical Specifications" on page 184. To select what file formats to record to, follow the instructions below.  1. Go to Menu > Settings > Recording > Codec.  2.
  • Page 105 RED RAVEN OPERATION GUIDE FRAME PROCESSING NOTE: Note: Frame processing is not supported in Speed Ramp Mode. For more information, go to "Speed Ramp Mode" on page 96. Frame processing allows for the combination of multiple captured frames into one recorded frame. The combination occurs before the resulting frame is encoded.
  • Page 106 RED RAVEN OPERATION GUIDE NOTE: To use Pre-Record only for specific situations, map Pre-Record to a key (Menu > Settings > Setup > Keys > Record: Start Pre-Record). For more information, go to "Keys" on the next page. INDICATOR Enable Sounds: Select this check box to enable sounds. Then select sounds for the following actions: Record Start Record Stop Mark Still Frame...

  • Page 107: Key Mapping

    RED RAVEN OPERATION GUIDE SETUP The Setup menu includes: Keys, Date/Time, Communication, GPIO/Sync, Fan Control, Lens, and Motor Control. KEYS Map keys to often-used actions to easily control the camera. For a full list of the default key mappings, go to "Default Key Functions"...
  • Page 108 RED RAVEN OPERATION GUIDE COMMUNICATION NOTE: CTRL and GIG- E ports are only available on select DSMC2 expanders. For more information, go to "Input/Output Connectors" on page 193. Use the Communication menu to allow one (1) or more cameras to communicate with each other or external devices. You can use the serial port or a direct Ethernet cable to connect two (2) cameras, or one (1) camera and one (1) external device.
  • Page 109 RED RAVEN OPERATION GUIDE SERIAL NOTE: CTRL and GIG- E ports are only available on select DSMC2 expanders. For more information, go to "Input/Output Connectors" on page 193. The camera can communicate to external devices via the CTRL and the GIG- E connectors (camera- to- camera communication is possible only via GIG-E).
  • Page 110 RED RAVEN OPERATION GUIDE  3. Select Ad-Hoc from the Mode drop-down menu.  4. Select a wireless channel from the Channel drop-down menu. The default is Ch1, and you can select one out of 11 channels.  5. Select a security option from the Encryption drop-down menu: NONE: The connection will be unsecured.
  • Page 111 RED RAVEN OPERATION GUIDE CONNECT WIRELESSLY TO A DEVICE VIA INFRASTRUCTURE MODE In Infrastructure mode, the camera and your device both connect to an access point, and communicate through that wireless network. The camera can connect to access points that are not encrypted, use WPA encryption, or use WPA2 encryption.
  • Page 112 RED RAVEN OPERATION GUIDE  8. If you select an encrypted network, follow the instructions below to enter the passphrase for the network:  A. Select a security option from the Encryption drop-down menu.  B. Tap or select the Passphrase text box.  C. Type the passphrase to access the network.  D.
  • Page 113 RED RAVEN OPERATION GUIDE GPIO SYNC NOTE: Using general purpose inputs/outputs and sync requires a DSMC2 expander. For more information, go to "Input/Output Connectors" on page 193. SYNC Use the Sync menu to set up genlock and Motion Control (MoCo). For more information, go to "Timecode, Genlock, Multi-Camera Setup"...
  • Page 114 RED RAVEN OPERATION GUIDE FAN AND TEMPERATURE MANAGEMENT The camera is controlled by complex thermal algorithms to ensure that the sensor and camera operate at safe temperatures. Each fan control mode affects the sensor temperature, sensor warm-up time, fan speed, and resulting fan noise.
  • Page 115 RED RAVEN OPERATION GUIDE MANUAL Select a speed for the fans in both record and standby modes. The fans self-adjust to maintain the selected speeds. The default Maximum Record Speed is 75% and the default Maximum Preview Speed is 75%. The range for both Maximum Record Speed and Maximum Preview Speed is 25–100%.
  • Page 116 RED RAVEN OPERATION GUIDE LENS LENS TAB The options below display when a supported lens is installed. Aperture: Enter the aperture value. The range and default depend on the lens. Focus: Use the slider to change the focal distance. Manually changing the focal distance on the lens itself does not cause the slider to move.
  • Page 117 RED RAVEN OPERATION GUIDE LENS INFO TAB The Info tab displays the attached lens mount and lens information. LENS METADATA TAB If a supported lens is attached, the camera autopopulates some Lens Metadata fields. You can also manually edit the Lens Metadata fields to describe the attached lens. The information is stored in the clip metadata. The Lens Metadata fields are: Lens Name Lens Serial Number...
  • Page 118 RED RAVEN OPERATION GUIDE MAINTENANCE The Maintenance menu includes: Save Log, Upgrade, Calibrate, Self Test, Reset Defaults, Rediscover, System Status, and OLPF. SAVE A LOG FILE A log file is a detailed text file of the processes and operations performed by the camera. If you contact RED for support, you may be asked to send a log file.
  • Page 119 RED RAVEN OPERATION GUIDE CALIBRATE The Calibrate menu includes: Sensor, Gyro/Acc, and Lens. SENSOR CALIBRATION Sensor calibration, also known as black shading, is a process during which the camera optimizes image quality by ensuring that pixel sensitivity remains consistent throughout the sensor. Black shading generates a calibration map based on system and environment settings.
  • Page 120 RED RAVEN OPERATION GUIDE CALIBRATE SENSOR: MANUAL CAPTURE The camera offers two (2) ways to calibrate the sensor: Manual Capture and Auto Capture. This section describes how to calibrate the sensor with Manual Capture. For more information on Auto Capture, go to "Calibrate Sensor: Auto Capture"...
  • Page 121 RED RAVEN OPERATION GUIDE CALIBRATE SENSOR: AUTO CAPTURE The camera offers two (2) ways to calibrate the sensor: Manual Capture and Auto Capture. This section describes how to calibrate the sensor with Auto Capture. For more information on Manual Capture, go to "Calibrate Sensor: Manual Capture"...
  • Page 122 RED RAVEN OPERATION GUIDE CALIBRATION MAP NAMING CONVENTIONS Each calibration map has a unique name that uses the format described in the table below: NAME DESCRIPTION EXAMPLE Exposure Current exposure; to set exposure, go to Menu > Setting > Projects > Exposure Sensor Sensor temperature (Celsius);...
  • Page 123 RED RAVEN OPERATION GUIDE GYROSCOPE AND ACCELEROMETER CALIBRATION The internal three-axis gyroscope and three-axis accelerometer need to be calibrated for the Horizon overlay to function properly. The Gyro/Acc calibration file is stored in the flash memory of the camera, so you DO NOT need to recalibrate after restoring the camera or upgrading firmware.

  • Page 124: System Status

    RED RAVEN OPERATION GUIDE RESTORE SYSTEM Reset Defaults offers two (2) types of restores: Reset Defaults and Wipe Camera. RESET DEFAULTS Reset Defaults changes all settings to the factory default values. To perform a Reset Defaults, follow the instructions below:  1. Go to Menu > Settings > Maintenance > Restore System.  2.
  • Page 125 Runtime: The number of hours that the camera has been turned on. OLPF RED RAVEN includes an integrated OLPF. To view your OLPF type, go to Menu > Settings > Maintenance > OLPF. The OLPF that is installed in your camera displays in the OLPF Type field.

  • Page 126: Media Menu

    RED RAVEN OPERATION GUIDE MEDIA MENU The Media Menu allows you to format and eject an SSD and to view and load clips on the SSD. more information about using media, DSMC Media Operation Guide available www.red.com/downloads. DEVICE Format and eject (unmount) the SSD. To see information about the SSD in the camera, select More Info..

  • Page 127: Playback Menu

    RED RAVEN OPERATION GUIDE PLAYBACK MENU To view clips from the SSD: Go to Menu > Playback. Press the Record/Playback toggle in the lower left corner of the touchscreen. NOTE: The camera uses RGB color space in Playback mode by default, regardless of settings in Record mode. To playback clips in RAW mode, go to Menu >...

  • Page 128: Playback Controls

    RED RAVEN OPERATION GUIDE PLAYBACK CONTROLS Figure: Playback Controls Figure: Playback Controls C O PYR I G HT © 2 0 1 7 R ED.C O M , I NC 9 5 5 - 0 1 2 7 _V 6 .3 , R EV - M |   1 2 8...
  • Page 129 RED RAVEN OPERATION GUIDE Figure: Playback Controls Figure: Playback Controls The table below describes the Playback controls. CONTROL DESCRIPTION Clips View clips as thumbnails Load Loads the previous clip in the playlist. Previous Clip Frame-by- Moves through the clip frame-by-frame in reverse. Frame Reverse C O PYR I G HT ©...
  • Page 130 RED RAVEN OPERATION GUIDE CONTROL DESCRIPTION Reverse Plays clip in reverse, and toggles between play and pause. Play/Pause toggle Play/Pause Toggles between play and pause. toggle Frame-by- Moves through the clip frame-by-frame. Frame Forward Load Next Loads the next clip in the playlist. Clip Play Displays the following subset of options: Play Once, Loop, Loop Playlist, and Playback Speed.
  • Page 131 RED RAVEN OPERATION GUIDE CONTROL DESCRIPTION 21 Next Goes to the next marked frame, which displays as a red line in the Playback Status Bar. Disabled Marker when there are no marked frames. C O PYR I G HT © 2 0 1 7 R ED.C O M , I NC 9 5 5 - 0 1 2 7 _V 6 .3 , R EV - M |  ...

  • Page 132: Power Menu

    RED RAVEN OPERATION GUIDE POWER MENU The Power menu displays the power status of all attached power sources and allows you to turn off the camera. NOTE: For more information about powering the camera, see the DSMC Power Operation Guide , available at www.red.com/downloads.

  • Page 133: Hdrx Menu

    RED RAVEN OPERATION GUIDE HDRX MENU NOTE: HDRX mode cannot be modified when test signals are enabled. NOTE: You cannot change the exposure when HDRX is enabled. HDRX RESTRICTIONS You cannot use HDRX mode when: A Sensor Sync Mode (Genlock or MoCo) is enabled. Speed Ramp mode is enabled.

  • Page 134: Focus Menu

    RED RAVEN OPERATION GUIDE FOCUS MENU The Focus menu includes: Mode and Rack. MODE TAB The Mode Tab is used to enable and select Focus parameters, including Mode, Zone, Size, and Enhanced A/F. Figure: Mode Tab MODE Select one (1) of the following from the Mode drop-down menu: Manual: When selected, all focus operations are manual.
  • Page 135 RED RAVEN OPERATION GUIDE Subject is dark or distant. Inadequate contrast between the subject and background. Scene has reflective highlights. Subject is backlit. Inadequate surface contrast/detail inside the window. NOTE: Note: Use Edge mode for assistance in these conditions. For more information, go to "Edge"...
  • Page 136 RED RAVEN OPERATION GUIDE  6. Select the monitor dedicated to using the Enhanced A/F feature from the Monitor drop-down menu: BRAIN HDMI BRAIN HD-SDI The selected monitor is in Clean mode (no overlay) with a set resolution of 720p and update frequency of 60 Hz. The target does not display on the selected monitor.
  • Page 137 RED RAVEN OPERATION GUIDE RACK FOCUS Use the Rack tab to configure up to four (4) focus points and execute rack focus between them. SET UP RACK FOCUS  1. Ensure that a supported lens is attached to the camera.  2. Go to Menu > Focus > Mode.  3.
  • Page 138 RED RAVEN OPERATION GUIDE  8. To set the focal distance for each point, do any of the following: If the focal distance is N/A, select a rack point. The camera uses an autofocus algorithm to calculate the focal distance. Select a rack point, manually change the focal distance, and select Set. Select a rack point, and select Refocus.
  • Page 139 RED RAVEN OPERATION GUIDE Figure: Set Rack Point Location  10. Select another rack point by performing any of the following actions: Select another rack point on the touchscreen. Press the key mapped to AF: Start to cycle to the next rack point in order (A, B, C, and D). For example, if rack point A is selected when you trigger the AF: Start action, the focus racks from point A to point B.

  • Page 140: Exposure Assist Menu

    RED RAVEN OPERATION GUIDE EXPOSURE ASSIST MENU The Exposure Assist menu provides access to settings for the Auto Exposure (AE) feature. The AE feature maintains a constant image brightness, even if the actual scene brightness changes. The AE feature is different than traditional AE, in that RED AE only controls the amount of light that hits the sensor, either by adjusting aperture or exposure.

  • Page 141: Metering Mode

    RED RAVEN OPERATION GUIDE EXP COMP AND EV SHIFT Use the Exp Comp (Exposure Compensation) slider and the EV Shift setting to adjust the brightness of the image. The default setting of zero (0) attempts to match the average brightness on an 18% grey-target. When AE is enabled, the target and current measured brightness for the selected metering area display in the histogram as a grey and white line, respectively.

  • Page 142: Presets Menu

    RED RAVEN OPERATION GUIDE PRESETS MENU The camera has three (3) types of presets: Camera Presets: These store and recall camera setup information, such as in-camera Looks, key mappings, I/O configurations, and more. The camera has a number of factory-installed presets. Looks: These allow you to save the specific color, image, white balance, and detail settings to be used for other projects.
  • Page 143 RED RAVEN OPERATION GUIDE  6. Select the following: : Add selected setting to the preset. All: Add all settings to the preset. X: Remove selected setting from the preset.  7. Select Create. The preset is saved and stored in the camera. LOOKS A Look is made up of the following settings: Color, Gain, FLUT, Sharpness, Curves, Video, Color Temperature, and LGG (Lift, Gamma, Gain).
  • Page 144 RED RAVEN OPERATION GUIDE AUTO PRESETS On Startup: The selected preset is applied every time the camera is turned on. On Enter Preview: The selected preset is applied every time the camera enters Preview mode, including at startup and when exiting Playback mode. On Enter Playback: The selected preset is applied every time the camera enters Playback mode.

  • Page 145: Record And Monitor Audio

    RED RAVEN OPERATION GUIDE RECORD AND MONITOR AUDIO AUDIO OVERVIEW The BRAIN has two (2) integrated dual channel digital stereo microphones that record uncompressed audio at 24-bit 48 kHz. These microphones offer you the ability to capture scratch-track audio. The DSMC2 Base Expander, DSMC2 V-Lock I/O Expander, and DSMC2 REDVOLT Expander each feature a built-in headphone jack, so you can hear the audio during playback via headphones.

  • Page 146: Control

    RED RAVEN OPERATION GUIDE CONTROL To adjust the input, pre-amplifier, and headphone settings, select Control. CHANNEL 1/2 AND CHANNEL 3/4 To set up Channel 1/2 and 3/4, go to Menu > Settings > Audio > Control. Figure: Channel Setup SOURCE The audio source options only display when the expanders are attached. SOURCE NAME CHANNEL PAIRS EXPANDER...
  • Page 147 RED RAVEN OPERATION GUIDE PRE-AMP GAIN The pre-amplifier range and default value depend on the attached expander. To adjust amplification levels, follow the instructions below:  1. Go to Menu > Settings > Audio > Control > Pre-Amp Gain.  2. Move the Pre-Amp (pre-amplifier) sliders up and down to adjust the amplification levels.  3.
  • Page 148 RED RAVEN OPERATION GUIDE HEADPHONE VOLUME The volume range for Left and Right is –6 dB to 14 dB. The default is 10 dB. To adjust headphone volume, follow the steps below:  1. Go to Menu > Settings > Audio > Control > Headphone Volume.  2.

  • Page 149: Mix

    RED RAVEN OPERATION GUIDE The camera features a digital audio mixer that controls the volume and stereo settings for each input channel. The mixer affects audio monitoring (such as headphones) and audio recorded to external devices. The mixer DOES NOT affect audio embedded in the R3D file. To access mix settings, go to Menu > Settings > Audio > Mix. The range for each channel is 0% to 100%.

  • Page 150: Audio Meter (Vu Meter)

    RED RAVEN OPERATION GUIDE AUDIO METER (VU METER) The Audio Meter displays at the bottom-right corner of the viewfinder, and displays either the incoming audio channels (default), or the outgoing audio (Headphone Mix, Audio Out Mix, and Monitor Mix). For more information, go to "VU Meter"...

  • Page 151: Audio During Playback

    RED RAVEN OPERATION GUIDE AUDIO DURING PLAYBACK The camera plays all recorded channels during playback (via headphones or HDMI and HD- SDI monitors), and automatically unmutes any muted audio outputs. To access audio settings during playback, go to Menu > Settings > Audio and select the following tabs: Control C O PYR I G HT ©...

  • Page 152: Timecode, Genlock, Multi-Camera Setup

    RED RAVEN OPERATION GUIDE TIMECODE, GENLOCK, MULTI-CAMERA SETUP This chapter describes timecode, genlock, and multi-camera operations such as 3D and array setup. NOTE: Timecode and genlock require a DSMC2™ Base Expander, DSMC2 V-Lock I/O Expander, DSMC2 Jetpack Expander, DSMC2 Jetpack-SDI Expander, or DSMC2 REDVOLT Expander. For more information, go to "Input/Output Connectors"...
  • Page 153 RED RAVEN OPERATION GUIDE SET UP INTERNAL TIMECODE To set up and adjust timecode generated by the camera, follow the instructions below:  1. Go to Menu > Settings > Project > Timecode.  2. Select the desired Timecode Display mode.  3. Set Source to User Provided.  4.
  • Page 154 RED RAVEN OPERATION GUIDE INPUT EXTERNAL TIMECODE NOTE: This procedure requires a DSMC2 Base Expander, DSMC2 V-Lock I/O Expander, DSMC2 Jetpack Expander, DSMC2 Jetpack- SDI Expander, or DSMC2 REDVOLT Expander. For more information, go to "Input/Output Connectors" on page 193. To input timecode generated by an external device, follow the instructions below:  1.

  • Page 155: Genlock

    RED RAVEN OPERATION GUIDE GENLOCK NOTE: Using genlock requires a DSMC2 Base Expander, DSMC2 V-Lock I/O Expander, DSMC2 Jetpack Expander, DSMC2 Jetpack- SDI Expander, or DSMC2 REDVOLT Expander. For more information, go to "Input/Output Connectors" on page 193. Generator locking (genlock) is a tri-level signal used to synchronize video and audio systems. Genlock is based on SMPTE 296M and 274M.
  • Page 156 RED RAVEN OPERATION GUIDE  4. Select the desired monitor output frequency from the Frequency drop-down menu. Select Auto to automatically match the HD-SDI output to the current Project Time Base. Monitor Sync is achieved automatically when a genlock signal is provided that is compatible with the current monitor output frequency.
  • Page 157 RED RAVEN OPERATION GUIDE SENSOR SYNC NOTE: Using genlock requires a DSMC2 Base Expander, DSMC2 V-Lock I/O Expander, DSMC2 Jetpack Expander, DSMC2 Jetpack- SDI Expander, or DSMC2 REDVOLT Expander. For more information, go to to "Input/Output Connectors" on page 193. ® NOTE: HDRX is not available when Genlock Sensor Sync is enabled.
  • Page 158 RED RAVEN OPERATION GUIDE To set up and enable Sensor Sync Mode, follow the instructions below:  1. Connect the genlock device to the camera: DSMC2 Base Expander, DSMC2 V-Lock I/O Expander, DSMC2 Jetpack Expander, or DSMC2 Jetpack- SDI Expander: Connect the SYNC port (00B) on the expander to the device (green BNC) using a 3BNC-to-00 LEMO Sync Cable.

  • Page 159: Master/Slave Operation

    RED RAVEN OPERATION GUIDE MASTER/SLAVE OPERATION NOTE: Master/Slave operation, including stereo/3D and camera arrays, requires a GIG-E port, which is available on the DSMC2 REDVOLT Expander and DSMC2 Jetpack-SDI Expander. For more information, go to "GIG-E (Ethernet)" on page 210. NOTE: The Master camera controls metadata and basic camera parameters of the Slave cameras. Any other setting changes required by the Slave cameras must be made before recording.
  • Page 160 RED RAVEN OPERATION GUIDE SET UP MASTER/SLAVE OPERATION NOTE: Master/Slave operation requires a GIG-E port, which is available on the DSMC2 REDVOLT Expander and DSMC2 Jetpack-SDI Expander. For more information, go to "GIG-E (Ethernet)" on page 210.  1. Connect the cameras using the Master/Slave Gig-E Cable:  A.
  • Page 161 RED RAVEN OPERATION GUIDE  3. On the Slave camera(s), follow the instructions below:  A. Go to Menu > Settings > Setup > Communication.  B. Type a name for the camera (Example: CAM B, RIGHT, SLAVE, etc) in the Camera ID field.  C. For Target, select None. Figure: Slave Settings  D.
  • Page 162 RED RAVEN OPERATION GUIDE SET REEL NUMBER, CAMERA ID, AND CAMERA POSITION NOTE: Camera ID and Camera Position settings can also be found at Menu > Settings > Project > Slate > Camera. To prepare media and slate settings for a Master/Slave or Stereo/3D production, follow the instructions below:  1.
  • Page 163 RED RAVEN OPERATION GUIDE MULTI-CAMERA CLIP NAMING CONVENTIONS This section describes automatic camera-generated clip naming conventions based on slate settings. Cameras use the Reel No, Cam ID, and Cam Pos settings to generate a custom clip name. For example, if you have two (2) cameras in Master/Slave configuration and format media on both cameras with the following settings: Camera Reel Number...

  • Page 164: Set Up Stereo/3D Configuration

    RED RAVEN OPERATION GUIDE SET UP STEREO/3D CONFIGURATION NOTE: Master/Slave operation requires a GIG-E port, which is available on the DSMC2 REDVOLT Expander and DSMC2 Jetpack-SDI Expander. For more information, go to "GIG-E (Ethernet)" on page 210. This section describes basic procedures for connecting two (2) cameras in a Master/Slave configuration for 3D operation.

  • Page 165: Camera Array

    RED RAVEN OPERATION GUIDE CAMERA ARRAY SET UP A CAMERA ARRAY NOTE: Master/Slave operation requires a GIG-E port, which is available on the DSMC2 REDVOLT Expander and DSMC2 Jetpack-SDI Expander. For more information, go to "GIG-E (Ethernet)" on page 210. NOTE: For genlock to function correctly, the cameras must be on the same firmware version, and must be using the same project time base and recording frame rate.

  • Page 166: Set Up Motion Control (Moco)

    RED RAVEN OPERATION GUIDE SET UP MOTION CONTROL (MOCO) NOTE: Motion Control requires a DSMC2 Base Expander. For more information, go to "Input/Output Connectors" on page 193. NOTE: When using MoCo, set the frame rate to be at least two times (2x) the fastest trigger rate used. When using MoCo, REDCODE is calculated based on fps/2.

  • Page 167: Compatible Timecode Devices

    RED RAVEN OPERATION GUIDE  5. Select Sync In from the GPI Function drop-down menu. Figure: MoCo BRAIN GPIO Settings  6. Select Sync Out from the GPO Function drop-down menu. (Optional)  7. Supply a pulse from the Motion Control device to sync the shutter to the rising edge of the sync input. NOTE: For more information, refer to the manufacturer’s instructions for the Motion Control device.

  • Page 168: Compatible Genlock Devices

    RED RAVEN OPERATION GUIDE COMPATIBLE GENLOCK DEVICES The following genlock devices are compatible with the camera. Additional genlock devices may be compatible, but ® have not yet been tested by RED ® GEN10 HD/SD/AES Sync Generator with Universal Power Supply Ambient ACL 202CT Ambient ACL 203 Ambient ACL 204 Denecke SB-T...

  • Page 169: Upgrade Camera Firmware

    RED RAVEN OPERATION GUIDE UPGRADE CAMERA FIRMWARE Your camera functionality may be upgraded by installing the latest firmware. Make a habit of frequently visiting Downloads www.red.com/downloads to check for new versions of camera firmware, updated operation guides, and post production software. VERIFY CURRENT CAMERA FIRMWARE To see the firmware version that is currently installed on your camera, go to Menu >...
  • Page 170 RED RAVEN OPERATION GUIDE  12. Go to Menu > Settings > Maintenance > System Status > Camera Info and verify that the firmware version listed matches the firmware version that you downloaded.  13. Reformat the SSD before recording. C O PYR I G HT © 2 0 1 7 R ED.C O M , I NC 9 5 5 - 0 1 2 7 _V 6 .3 , R EV - M |  ...

  • Page 171: Camera System Maintenance

    RED RAVEN OPERATION GUIDE CAMERA SYSTEM MAINTENANCE ® All RED products are designed for rugged durability, but precision instruments demand proper care. Follow the instructions in this chapter to clean, maintain, and store RED devices. WARNING: DO NOT rinse or immerse the camera or other accessories in water. Keep dry at all times. WARNING: DO NOT use soaps, detergents, ammonia, acetone, alkaline cleaners, abrasive cleaning compounds, or solvents.

  • Page 172: Clean Evf Screen

    RED RAVEN OPERATION GUIDE CLEAN EVF SCREEN NOTE: This section describes only how to clean the screen on the DSMC2™ RED EVF, and not how to clean the entire device. This section explains how to clean the screen on the DSMC2 RED EVF. The screen is accessed by removing the DSMC2 RED EVF Modular Optical Block.

  • Page 173: Water Damage

    RED RAVEN OPERATION GUIDE APPROVED LCD SCREEN CLEANERS Use only the following products to clean LCD screens: Ionized rubber air bulb Pancro Professional Lens Cleaner (or equivalent) Photographic Solutions PEC*PADs (or equivalent) RED Microfiber Bag NOTE: Before cleaning the screen with swabs or wipes and a cleaning solution, ALWAYS use an ionized rubber air bulb to remove any solid particles.

  • Page 174: Troubleshoot Your Camera

    RED RAVEN OPERATION GUIDE TROUBLESHOOT YOUR CAMERA PERFORM A STRESS TEST Perform a stress test before important projects to ensure the reliability and stability of your gear. A stress test subjects your camera system and equipment to the increased stress of prolonged operation. If any components are developing issues, this test will help identify those problems before you have an equipment failure during a major shoot.

  • Page 175: General Troubleshooting

    RED RAVEN OPERATION GUIDE GENERAL TROUBLESHOOTING FIRMWARE DOES NOT UPGRADE SYMPTOM During an attempt to upgrade firmware, the PWR and REC LEDs flash red. After an attempt to upgrade firmware, the firmware version does not change. POTENTIAL RESOLUTIONS After downloading the firmware upgrade file, ensure that you unzip the file before saving it to the SSD. Ensure that the “force_upgrade”...
  • Page 176 RED RAVEN OPERATION GUIDE CANNOT SEE MENUS ON LCD TOUCHSCREEN SYMPTOM The LCD touchscreen does not display menus. POTENTIAL RESOLUTION Double-tap the LCD touchscreen to exit Clean mode. SCREEN FREEZES OR DOES NOT DISPLAY SYMPTOM The screen freezes or does not display. POTENTIAL RESOLUTION Perform a Hard Restore.
  • Page 177 RED RAVEN OPERATION GUIDE CANNOT USE TOUCHSCREEN OR DSMC2 SIDEKICK SYMPTOM Cannot control the camera via the touchscreen or the DSMC2™ Sidekick. POTENTIAL RESOLUTIONS Perform a Hard Restore. For more information, go to "Perform a Hard Restore" on the next page. ® If you are using an HD-SDI or HDMI monitor, enable menus on the monitors and control the camera via the DSMC2 Sidekick:...
  • Page 178 RED RAVEN OPERATION GUIDE PERFORM A HARD RESTORE A common way to resolve camera firmware issues is to perform a Hard Restore. A Hard Restore functions like a System Restore in that it changes all settings to the factory default values. To perform a Hard Restore, follow the instructions below:  1.
  • Page 179 RED RAVEN OPERATION GUIDE TIMECODE OR GENLOCK DOES NOT FUNCTION SYMPTOM The SYNC, GEN, and/or TC light is red, yellow, or greyed out. POTENTIAL RESOLUTIONS Ensure your timecode or genlock device is compatible. For more information, go to "Compatible Timecode Devices" on page 167 "Compatible Genlock Devices"...

  • Page 180: Error Messages

    RED RAVEN OPERATION GUIDE ERROR MESSAGES “CRITICAL FAILURE” OR “SERIOUS ERROR” MESSAGES SYMPTOM When you upgrade or turn on the camera, the display shows a message with the phrase “Critical Failure” or “Serious Error”. POTENTIAL RESOLUTIONS Update the camera firmware to the latest release build available for download at www.red.com/downloads.
  • Page 181 RED RAVEN OPERATION GUIDE ERROR 0X00000020 SYMPTOM The display shows a message with the phrase “Error 0x00000020. Please save log and send to RED support.” POTENTIAL RESOLUTIONS Perform a secure format of the SSD. For more information, see the DSMC Media Operation Guide, available at www.red.com/downloads.
  • Page 182 RED RAVEN OPERATION GUIDE PROXY BUFFER OVERFLOW WARNING SYMPTOM The error message "Proxy Buffer Overflow" displays. POTENTIAL RESOLUTIONS Update the camera firmware to the latest release build available for download at www.red.com/downloads. Select a different recording file format and/or resolution from the Codec menu. For more information, go to "Select Record File Format"...

  • Page 183: Media Bay And Red Mini-Mag Issues

    RED RAVEN OPERATION GUIDE MEDIA BAY AND RED MINI-MAG ISSUES SYMPTOMS LEDs on media bay do not illuminate when expected. RED MINI-MAG does not mount to camera. POTENTIAL RESOLUTIONS Ensure RED MINI-MAG is fully inserted in the media bay. Perform a system restore. Reformat the RED MINI-MAG on the computer.

  • Page 184: A Technical Specifications

    (Range from 2:1 up to Guide www.red.com/downloads 22:1) REDCODE RAW Go to "RED RAVEN Formats" on page 92 for a full list Acquisition Formats ® Apple ProRes 422 HQ, 422 and 422 LT at 2K (2048 × 1080) up to 60 fps ®...
  • Page 185 RED RAVEN OPERATION GUIDE RED RAVEN TECHNICAL SPECIFICATIONS SPECIFICATION DESCRIPTION Operating Temperature 0˚C to 40˚C (32˚F to 104˚F) Storage Temperature –20˚C to 50˚C (–4˚F to 122˚F) Relative Humidity 0% to 85% non-condensing Audio Integrated dual channel digital stereo microphones, uncompressed, 24-bit 48KHz Optional 2 additional channels with DSMC2™...

  • Page 186: B Mechanical Drawings

    RED RAVEN OPERATION GUIDE MECHANICAL DRAWINGS RED RAVEN BRAIN NOTE: Dimensions are shown in mm. The optical axis height of the camera is 95.90 mm. C O PYR I G HT © 2 0 1 7 R ED.C O M , I NC...

  • Page 187: Front View

    RED RAVEN OPERATION GUIDE FRONT VIEW Figure: RAVEN Front View C O PYR I G HT © 2 0 1 7 R ED.C O M , I NC 9 5 5 - 0 1 2 7 _V 6 .3 , R EV - M |   1 8 7...

  • Page 188: Back View

    RED RAVEN OPERATION GUIDE BACK VIEW Figure: RAVEN Back View C O PYR I G HT © 2 0 1 7 R ED.C O M , I NC 9 5 5 - 0 1 2 7 _V 6 .3 , R EV - M |   1 8 8...
  • Page 189 RED RAVEN OPERATION GUIDE SIDE VIEW (RIGHT) Figure: RAVEN Side View (Right) C O PYR I G HT © 2 0 1 7 R ED.C O M , I NC 9 5 5 - 0 1 2 7 _V 6 .3 , R EV - M |   1 8 9...
  • Page 190 RED RAVEN OPERATION GUIDE SIDE VIEW (LEFT) Figure: RAVEN Side View (Left) C O PYR I G HT © 2 0 1 7 R ED.C O M , I NC 9 5 5 - 0 1 2 7 _V 6 .3 , R EV - M |   1 9 0...

  • Page 191: Top View

    RED RAVEN OPERATION GUIDE TOP VIEW Figure: RAVEN Top View C O PYR I G HT © 2 0 1 7 R ED.C O M , I NC 9 5 5 - 0 1 2 7 _V 6 .3 , R EV - M |   1 9 1...

  • Page 192: Bottom View

    RED RAVEN OPERATION GUIDE BOTTOM VIEW Figure: RAVEN Bottom View C O PYR I G HT © 2 0 1 7 R ED.C O M , I NC 9 5 5 - 0 1 2 7 _V 6 .3 , R EV - M |   1 9 2...

  • Page 193: C Input/Output Connectors

    RED RAVEN OPERATION GUIDE INPUT/OUTPUT CONNECTORS This appendix provides pinout information for the input/output connectors on the following expanders: DSMC2™ Base Expander DSMC2 V-Lock I/O Expander DSMC2 REDVOLT Expander DSMC2 Jetpack Expander DSMC2 Jetpack-SDI Expander NOTE: When connecting a cable to a connector, align the key and red marker on the cable connector with the corresponding key and marker on the device connection.

  • Page 194: Dsmc2 Base Expander

    RED RAVEN OPERATION GUIDE DSMC2 BASE EXPANDER Figure: DSMC2 Base Expander # CONNECTOR CONNECTOR FOR MORE INFORMATION, GO TO... TYPE 1 Stereo 3.5mm stereo "Stereo Microphone" on page 211 Microphone 2 Headphone Jack 3.5mm stereo "Headphone" on page 212 3 SYNC 4-pin 00B LEMO "SYNC (Video Sync In) with SYNC Trigger Button Circuit"...

  • Page 195: Dsmc2 V-Lock I/O Expander

    RED RAVEN OPERATION GUIDE DSMC2 V-LOCK I/O EXPANDER Figure: DSMC2 V-Lock I/O Expander # CONNECTOR CONNECTOR TYPE FOR MORE INFORMATION, GO TO... 1 AUX Power P-Tap 2-pin Female "AUX Power (P-Tap)" on page 219 2 Stereo 3.5mm stereo "Stereo Microphone" on page 211 Microphone 3 Headphone 3.5mm stereo "Headphone"...

  • Page 196: Dsmc2 Redvolt Expander

    RED RAVEN OPERATION GUIDE DSMC2 REDVOLT EXPANDER Figure: DSMC2 REDVOLT Expander CONNECTOR CONNECTOR TYPE FOR MORE INFORMATION, GO TO... AUX PWR 4-pin 0B LEMO "AUX Power (4-Pin LEMO)" on page 217 SDI 1 and 2 "3G-SDI (HD-SDI) Out" on page 199 HDMI HDMI 1.2, Type A "HDMI Out"...

  • Page 197: Dsmc2 Jetpack Expander

    RED RAVEN OPERATION GUIDE DSMC2 JETPACK EXPANDER Figure: DSMC2 Jetpack Expander # CONNECTOR CONNECTOR TYPE FOR MORE INFORMATION, GO TO... 1 CTRL 4-pin 00B LEMO "CTRL (RS232 Control)" on page 205 2 HDMI HDMI 1.2, Type A "HDMI Out" on page 200 3 DC IN 6-pin 1B LEMO "DC IN (Power Input)"...

  • Page 198: Dsmc2 Jetpack-Sdi Expander

    RED RAVEN OPERATION GUIDE DSMC2 JETPACK-SDI EXPANDER Figure: DSMC2 Jetpack-SDI Expander # CONNECTOR CONNECTOR FOR MORE INFORMATION, GO TO... TYPE 1 CTRL 4-pin 00B LEMO "CTRL (RS232 Control)" on page 205 2 AUX 2-pin 0B LEMO "AUX Power 2-Pin LEMO, 1.5A" on page 216 3 GIG-E 9-pin 0B LEMO "GIG-E (Ethernet)"...

  • Page 199: Record/Monitor Out Ports

    RED RAVEN OPERATION GUIDE RECORD/MONITOR OUT PORTS 3G-SDI (HD-SDI) OUT The following expanders feature an HD-SDI connector: DSMC2 Base Expander DSMC2 V-Lock I/O Expander DSMC2 REDVOLT Expander (labeled as “SDI-1” and “SDI-2”) DSMC2 Jetpack-SDI Expander (labeled as “SDI”) A standard 75 ohm BNC connector provides the following output: Broadcast specification 3G-SDI (HD-SDI) video output (default mode is Clean) Two (2) channels of embedded audio Time of Day and Edge timecode...

  • Page 200: Hdmi Out

    RED RAVEN OPERATION GUIDE HDMI OUT The following expanders feature an HDMI 1.2 (Type A) connector: DSMC2 Base Expander DSMC2 V-Lock I/O Expander DSMC2 Jetpack Expander DSMC2 REDVOLT Expander NOTE: For more information about HDMI wireless transmitter support, go to "HDMI Wireless Transmitters" below.

  • Page 201: Communication Ports

    RED RAVEN OPERATION GUIDE COMMUNICATION PORTS SYNC (VIDEO SYNC IN) WITH SYNC TRIGGER BUTTON CIRCUIT The DSMC2 Base Expander features a SYNC connector with a SYNC Trigger Button Circuit. The 4-pin 00B LEMO SYNC connector accepts timecode, genlock, and General Purpose Input (GPI) signals. Figure: Front Face of the SYNC (Video Sync) Connector (Looking at the Camera) 4-PIN 00B LEMO SYNC CONNECTOR SIGNAL...
  • Page 202 RED RAVEN OPERATION GUIDE SYNC TRIGGER BUTTON CIRCUIT The SYNC connector has a 3.3 V Schmitt trigger (5 V tolerant). The trigger is not a switch closure circuit, so it requires that the trigger source supplies current. Both edges of the input signal may be used as a trigger. NOTE: The SYNC trigger button circuit only applies to the DSMC2 Base Expander.
  • Page 203 RED RAVEN OPERATION GUIDE SYNC (VIDEO SYNC IN) WITH CONTACT CLOSURE STYLE TRIGGER INPUT The following expanders feature a SYNC connector with contact closure style trigger input: DSMC2 Jetpack Expander DSMC2 Jetpack-SDI Expander DSMC2 V-Lock I/O Expander The 4-pin 00B LEMO SYNC connector accepts timecode, genlock, and General Purpose Input (GPI) signals. To operate the GPI contact closure style trigger, short Pin 2 (GPI) to Pin 1 (ground).
  • Page 204 RED RAVEN OPERATION GUIDE CONTACT CLOSURE STYLE TRIGGER BUTTON CIRCUIT (SYNC) The diagram below shows the contact closure style trigger button circuit on the SYNC connector. Figure: Contact Closure Style Trigger Button Circuit Diagram (SYNC) COMPATIBLE CABLES 790-0154: 3BNC-to-00 LEMO Sync Cable 790-0187: 4-Pin 00 LEMO-to-Flying Lead 790-0415: RED Start/Stop Cable (14-Pin LEMO to SYNC, CTRL, BNC) 790-0428: RED Start/Stop Cable (14-Pin to 00B SYNC)
  • Page 205 RED RAVEN OPERATION GUIDE CTRL (RS232 CONTROL) The following expanders feature a CTRL connector: DSMC2 Base Expander DSMC2 V-Lock I/O Expander DSMC2 Jetpack Expander DSMC2 Jetpack-SDI Expander DSMC2 REDVOLT Expander The 4-pin 00B LEMO CTRL connector supports RS232 remote control for 3D camera communication and third-party metadata ingest applications.
  • Page 206 RED RAVEN OPERATION GUIDE SERIAL (RS232 CONTROL) The DSMC2 REDVOLT Expander features a SERIAL connector. The 7-pin 0B LEMO SERIAL connector supports RS232 RX, RS232 TX, and a General Purpose Input (GPI) trigger (active-low switch closure). The connector also offers auxiliary power out, with a maximum sustained current draw of 1.5A. To operate the GPI contact closure style trigger, short Pin 7 (GPI) to Pin 6 (ground).
  • Page 207 RED RAVEN OPERATION GUIDE COMPATIBLE CABLES For GPI applications, you can use this cable: 790-0553: RED 7-Pin 0B LEMO-to-Flying Lead Serial Port Cable (6') For non-GPI applications, you can use this 6-pin cable: 790-0444: REDLINK®-to-T.H.C. Connector Cable 3' C O PYR I G HT © 2 0 1 7 R ED.C O M , I NC 9 5 5 - 0 1 2 7 _V 6 .3 , R EV - M |  ...
  • Page 208 RED RAVEN OPERATION GUIDE GENLOCK The DSMC2 REDVOLT Expander features a Genlock (GEN) connector. The 75 ohm BNC connector accepts incoming sync and genlock signals. 75 OHM BNC CONNECTOR SIGNAL DESCRIPTION DIRECTION Center SYNC SMPTE ST 274 RS 170A Tri-Level Sync Shield/Screen GROUND Camera ground COMPATIBLE CABLE...
  • Page 209 RED RAVEN OPERATION GUIDE TIMECODE The DSMC2 REDVOLT Expander features a Timecode (TC) connector. The LEMO EAG.0B.305.CLN connector supports SMPTE timecode input and output. Pins 2 and 3 can be used together to receive a balance SMPTE 12M serial timecode input. Pin 2 can be used by itself (leave pin 3 open) to receive a single-ended SMPTE 12M serial timecode input.
  • Page 210 RED RAVEN OPERATION GUIDE GIG-E (ETHERNET) The following expanders feature a GIG-E connector. DSMC2 Jetpack-SDI Expander DSMC2 REDVOLT Expander The GIG-E 9-pin 0B LEMO connector provides a 1000BASE-T (IEEE 802.3ab) gigabit Ethernet connection for remote camera setup, master/slave camera communication, and external metadata ingest. Since the GIG-E connector does not support slower speeds (10BASE-T and 100BASE-T), ensure that any device you connect to supports 1000BASE- Figure: Front Face of the GIG-E Connector (Looking at the Camera) 9-PIN 0B LEMO GIG-E CONNECTOR...

  • Page 211: Audio Ports

    RED RAVEN OPERATION GUIDE AUDIO PORTS STEREO MICROPHONE The following expanders feature a stereo microphone jack: DSMC2 Base Expander DSMC2 V-Lock I/O Expander The 3.5mm stereo microphone provides two (2) channels of audio for recording. HEADPHONE JACK SIGNAL DESCRIPTION DIRECTION LEFT Left channel audio RING RIGHT Right channel audio...
  • Page 212 RED RAVEN OPERATION GUIDE HEADPHONE The following expanders feature a headphone jack: DSMC2 Base Expander DSMC2 V-Lock I/O Expander DSMC2 REDVOLT Expander The 3.5mm stereo jack provides two (2) channels of audio for monitoring. For maximum quality, use high impedance headphones. HEADPHONE JACK SIGNAL DESCRIPTION DIRECTION...

  • Page 213: Power Ports

    RED RAVEN OPERATION GUIDE POWER PORTS DC IN (POWER INPUT) The following expanders feature a DC IN connector: DSMC2 Base Expander DSMC2 V-Lock I/O Expander DSMC2 Jetpack Expander DSMC2 Jetpack-SDI Expander DSMC2 REDVOLT Expander The 6-pin 1B LEMO connector accepts DC input power from 11.5 V DC to 17 V DC. A built-in power conditioner protects against reverse- polarity connections, electrostatic discharge (ESD), undervoltage, overvoltage, and overcurrent.
  • Page 214 RED RAVEN OPERATION GUIDE COMPATIBLE CABLES 790-0138: RED 2B-to-1B LEMO Power Adaptor Cable 790-0164: XLR Power Cable (10') 790-0165: XLR Power Cable (30") C O PYR I G HT © 2 0 1 7 R ED.C O M , I NC 9 5 5 - 0 1 2 7 _V 6 .3 , R EV - M |   2 1 4...
  • Page 215 RED RAVEN OPERATION GUIDE AUX POWER 2-PIN LEMO, 3.0A The DSMC2 REDVOLT Expander features an auxiliary power out connector (3.0A). The 2-pin 0B LEMO connector (LEMO EEG.0B.302.CLL) supplies unregulated (+) 11.5 to 17 VDC battery pass-through power. The maximum sustained current draw is 3.0A. Figure: Front Face of AUX PWR Connector (Looking at the Camera) LEMO EEG.0B.302.CLL CONNECTOR SIGNAL...
  • Page 216 RED RAVEN OPERATION GUIDE AUX POWER 2-PIN LEMO, 1.5A The DSMC2 Jetpack-SDI Expander features an auxiliary power out connector (1.5A). The 2-pin 0B LEMO connector (LEMO EEG.0B.302.CLL) supplies unregulated (+) 11.5 to 17 VDC battery pass-through power. The maximum sustained current draw is 1.5A. Figure: Front Face of AUX PWR Connector (Looking at the Camera) LEMO EEG.0B.302.CLL CONNECTOR SIGNAL...
  • Page 217 RED RAVEN OPERATION GUIDE AUX POWER (4-PIN LEMO) The DSMC2 REDVOLT Expander features an auxiliary power out connector. The LEMO EAG.0B.304.CLN connector supplies unregulated (+) 11.5 to 17 VDC battery pass-through power. The maximum sustained current draw is 1.5A. Figure: Front Face of AUX PWR Connector (Looking at the Camera) LEMO EAG.0B.304.CLN CONNECTOR SIGNAL DESCRIPTION...
  • Page 218 RED RAVEN OPERATION GUIDE USB POWER The following expanders feature a USB 2.0 (Type A) power out connector: DSMC2 Jetpack Expander DSMC2 V-Lock I/O Expander DSMC2 REDVOLT Expander The USB power out connector supplies 5 V of power. The maximum sustained current draw is 1.5A. You can use the USB power out connector to provide power to an attached HDMI wireless transmitter.
  • Page 219 RED RAVEN OPERATION GUIDE AUX POWER (P-TAP) The DSMC2 V-Lock I/O Expander features an AUX power out connector. The AUX power out connector features an industry-standard P-Tap connector and supplies conditioned VBATT at a maximum of 3.0A of power. Figure: P-Tap Connector (Looking at Camera) 2-PIN DTAP CONNECTOR SIGNAL DESCRIPTION...

  • Page 220: D Lens Mounts

    RED RAVEN OPERATION GUIDE LENS MOUNTS LENSES This section describes lenses and lens operations for the camera system. WARNING: All lenses are hot swappable. LENS WEIGHT AND LENS SUPPORT Use a lens support system when mounting heavy or long lenses to your camera. When mounting a heavy or long lens, ensure that the full weight of the lens is never directly on the camera or lens mount.
  • Page 221 RED RAVEN OPERATION GUIDE DSMC CANON MOUNT SUPPORTED LENSES The DSMC Canon Mount electronically supports the following lenses: COMPATIBLE LENS TYPE FOCAL LENGTH Canon EF Canon EF 8-15mm f/4L Fisheye USM Canon EF 11-24mm f/4L USM Canon EF 14mm f/2.8L II USM Canon EF 15mm f/2.8 Fisheye Canon EF 15-85mm f/3.5 IS USM Canon EF 16-35mm f/2.8L II...
  • Page 222 RED RAVEN OPERATION GUIDE COMPATIBLE LENS TYPE FOCAL LENGTH Canon EF Canon EF 70-200mm f/2.8L USM Canon EF 70-200mm f/4L Canon EF 70-200mm f/4L with 1.4x Extender Canon EF 70-200mm f/4L with 2x Extender Canon EF 70-300mm f/4.5-5.6 DO IS USM Canon EF 70-300mm f/4-5.6L IS Canon EF 70-300mm f/4-5.6L IS USM Canon EF 85mm f/1.2L II Canon EF 85mm f/1.8 USM...
  • Page 223 RED RAVEN OPERATION GUIDE COMPATIBLE LENS TYPE FOCAL LENGTH Canon EF 300mm f/4L IS Canon EF 300mm f/4.0 L IS with 1.4x Extender Canon EF 300mm f/4.0 L IS with 2.0x Extender Canon EF 400mm f/2.8 Canon EF 400mm f/2.8 IS II USM Canon EF 400mm f/2.8L IS Canon EF 400mm f/2.8L IS with 1.4x Extender Canon EF 400mm f/2.8L IS with 2x Extender...
  • Page 224 RED RAVEN OPERATION GUIDE COMPATIBLE LENS TYPE FOCAL LENGTH Canon EF-S Canon EF-S 10-18mm F/4.5 STM IS Canon EF-S 10-22mm f/3.5-4.5 USM Canon EF-S 15-85mm f/3.5-5.6 IS USM Canon EF-S 17-55mm f/2.8 IS USM Canon EF-S 18-55mm f/3.5 IS Canon EF-S 18-55mm f/3.5 IS II Canon EF-S 18-135mm f/3.5 IS STM Canon EF-S 18-200mm f/3.5-5.6 IS Canon EF-S 24mm f/2.8 STM...
  • Page 225 RED RAVEN OPERATION GUIDE COMPATIBLE LENS TYPE FOCAL LENGTH Tamron SP Tamron SP 10-24mm f/3.5 Tamron SP 10-24mm f/3.5-4.5 Di II Tamron SP 15-30mm f/2.8 Di VC USD Tamron SP 24-70mm f/2.8 Di VC USD Tamron SP 28-75mm f/2.8 XR Di LD Aspherical IF Macro Tamron SP 70-200mm f/2.8 Di VC USD Tamron SP 150-600mm f/5 USD Di Tamron SP 200-500mm f/5 Di LD IF...

  • Page 226: E Default Key Functions

    RED RAVEN OPERATION GUIDE DEFAULT KEY FUNCTIONS DEFAULT KEYS ITEM FUNCTION ® Camera BRAIN Record Full Press Record: Toggle GPI In High Record: Start GPI In Low Record: Stop Media Bay (Side SSD) Record Full Press Record: Toggle/Multi-Shot Start Record Full Release Record: Multi-Shot Stop Record Half Press AF: Start...
  • Page 227 RED RAVEN OPERATION GUIDE ITEM FUNCTION DSMC2™ Sidekick User A Press AF Mode: Cycle User B Press WB: Auto Calc User C Press Magnify: Toggle User D Press Exposure Check: Toggle User A+D Press SM: Toggle Key Lock Nav Menu Press Navigation: Menu Nav North Press Navigation: Up Nav South Press...
  • Page 228 RED RAVEN OPERATION GUIDE ITEM FUNCTION DSMC2 Side Handle User A Press AF Mode: Cycle   User B Press WB: Auto Calc   User C Press Magnify: Toggle   User D Press Exposure Check: Toggle   Nav Menu Press Navigation: Menu    ...

  • Page 229: F Menu Map

    MENU ® The menu map is applicable to RED RAVEN C O PYR I G HT © 2 0 1 7 R ED.C O M , I NC 9 5 5 - 0 1 2 7 _V 6 .3 , R EV - M |   2 2 9...
  • Page 230 RED RAVEN OPERATION GUIDE MENU SETTINGS MEDIA PLAYBACK POWER HDRX FOCUS EXPOSURE PRESETS ASSIST } Device } Playback Screen } Power In } Mode } Mode } Camera Presets } Clips } Power Save } Factor } Rack } Mode } Looks } Shutdown } Monitor Track } Auto Presets...

This manual is also suitable for:

Red dragon v6.3

Table of Contents
