Summary of Contents for Homefront HFCP1000

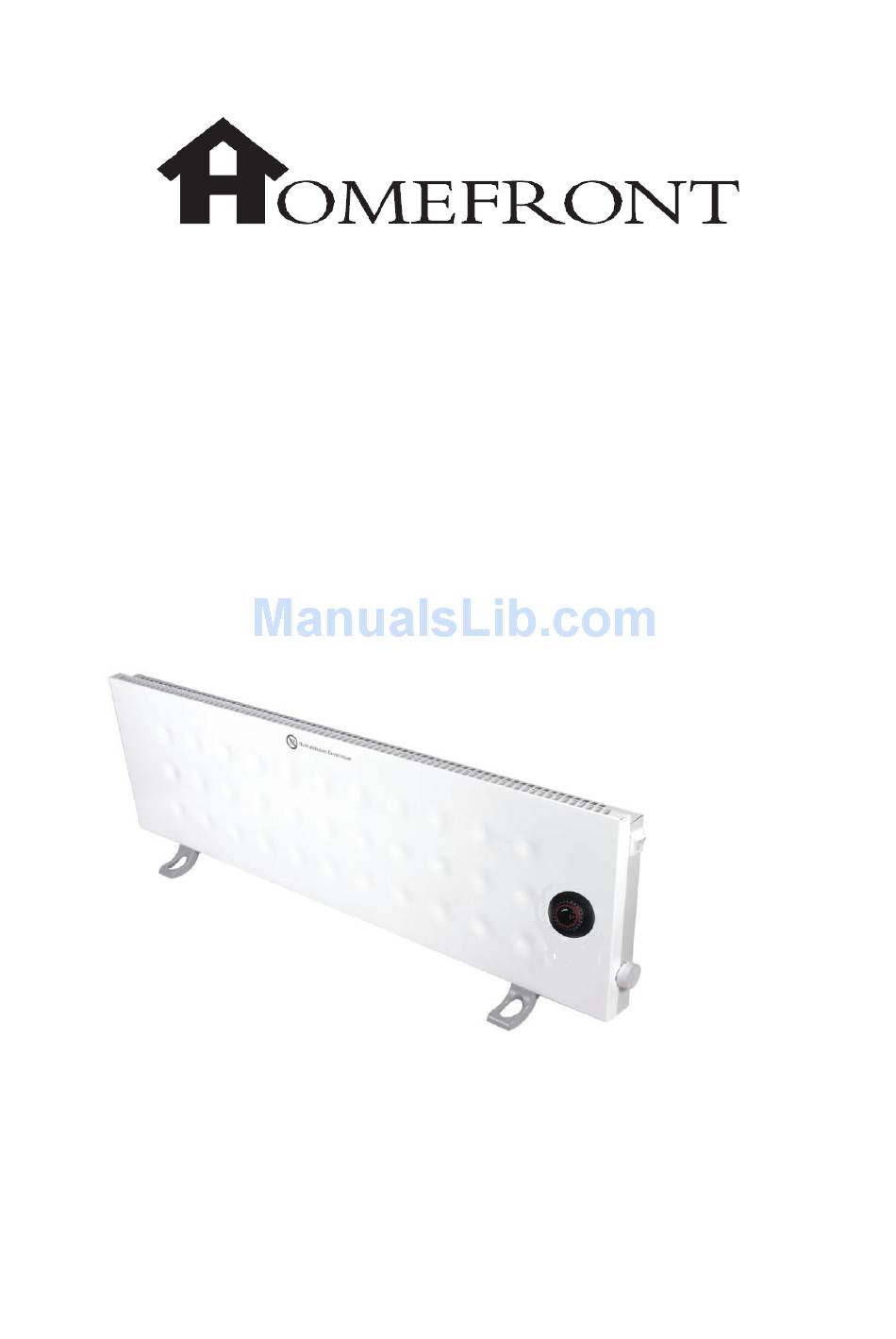

- Page 1 2 in 1 CONVECTOR PANEL HEATER Floor and Wall-mounted Model: HFCP1000 / HFCP1500 / HFCP2000 Instruction Booklet: Please read these instructions carefully and retain for future reference...
-
Page 2: Safety Precautions For Your Heater
Contents Safety Instructions Specifications Assembly for floor Wall installation Operation Cleaning Heater Safety Precautions for your heater READ ALL INSTRUCTIONS BEFORE USING THIS HEATER WARNING-DANGER OF BURNS SAFETY PRECAUTIONS FOR YOUR HEATER. •To provide continued protection against risk of electric shock, connect to properly grounded outlets only. -
Page 3: Additional Precautions
parts. All servicing should be performed by qualified personnel only. Additional Precautions • Read carefully and save all the instructions provided with heater. • Always turn the power off at the power outlet before you insert or remove a plug. Remove by grasping the plug - do not pull on the cord. -
Page 4: Specifications
Specifications Model HFCP1000 HFCP1500 HFCP2000 Power 900-1000W 1350-1500W 1800-2000W Voltage: 220V-240V,AC / 50Hz Assembly for floor Before using the heater as a floor type, attach the feet to the unit. Attach feet to the base of the heater using the 4 tapping screws provided, taking care to ensure that they are located correctly in the bottom ends of the heater.(Fig.1) - Page 5 Fig.2 Fig.3 2. Draw two horizontal lines on the wall, 255mm distance between the two lines. 3. Drill two holes at the end of each horizontal line, drill four holes for the plastic inserts (included). Distance for the two holes for upper horizontal line should be L1, the same as that of the slots on the back of the heater.
- Page 6 Fig.4 5. Insert two screws to the upper plastic inserts, leave the head of the screws protruding 8mm. (Fig. 4) 6. Install two spacers in the bottom of the heater. (Fig 5) Fig.5 7. Slip the two hooks over the screw head and slide into the slot, then tighten screws to the hooks.
-
Page 7: Operation
8. Hang up the heater on the wall by aligning the slots onto the hooks. 9. Insert screws thru holes in spacers at bottom of the heater and fasten to the wall. (Fig.7) Fig. 7 Operation NOTE: When you first turn on your heater it may emit a slight odor, this is normal. This odor will dissipate after the heater has been on a short time. -
Page 8: Setting The Timer
Declaration of Conformity We ACL Group (Intl.) Ltd, England DN6 8LZ declare that the Homefront Panel Heater has been manufactured according to our full quality assurance procedures. The declaration is to certify that it conforms to CE, EMC, LVD and RoHS directives:... -
Page 9: Environmental Protection
Here at ACL we are confident that you will be pleased with your purchase of the Homefront Panel Heater. However if within 12 months from the date of purchase you experience any problems due to defects in materials or manufacture, please contact us directly on 0844 8000031 for technical advice.
