Summary of Contents for Smartec STC 2008

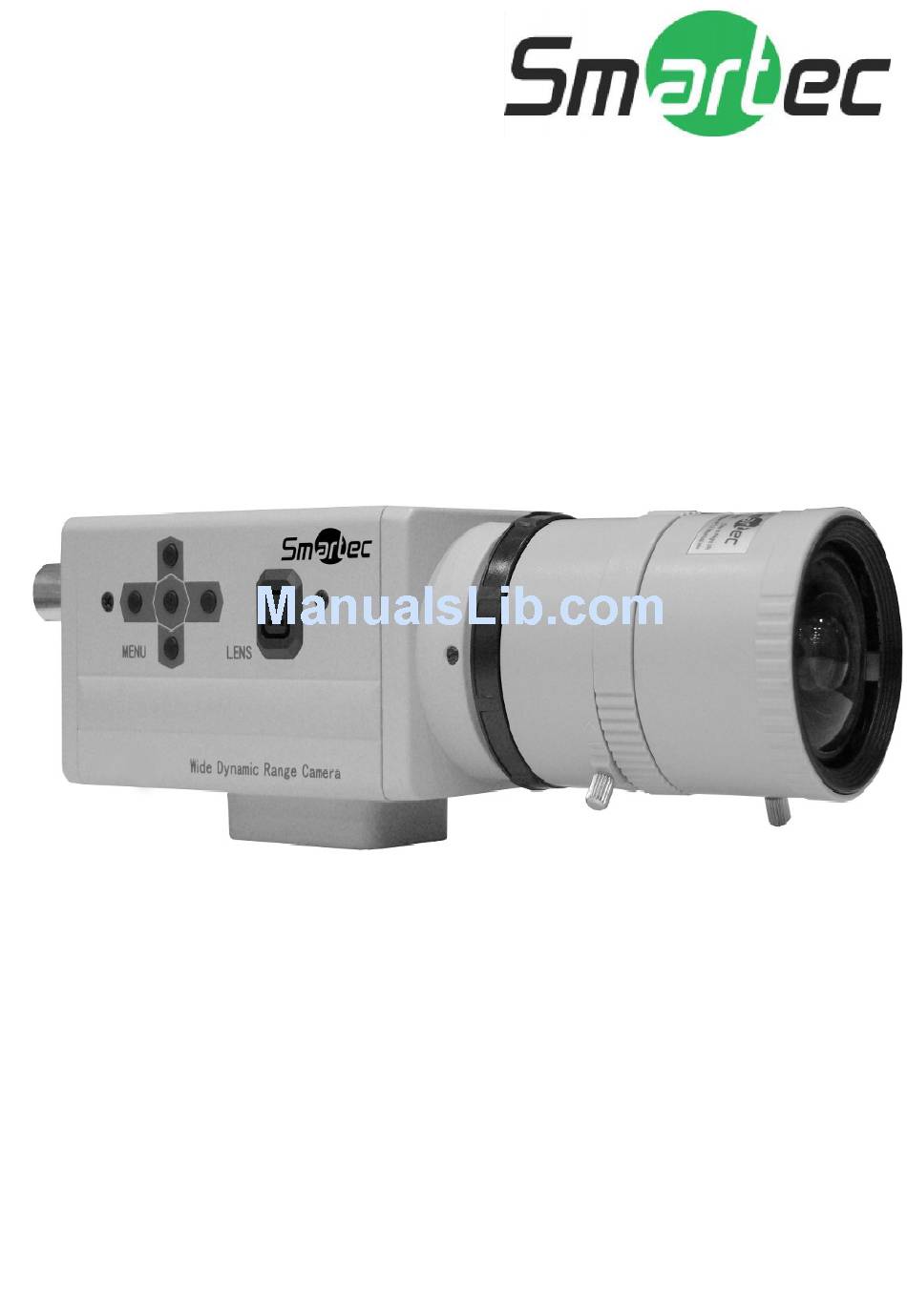

- Page 1 WIDE DYNAMIC RANGE CAMERA Smartec-STC 2008 USER’S MANUAL www.smartec-security.eu...
-
Page 2: Cases For Indemnity (Limited Warranty)
Thank you very much for your wise choice of the Smartec Camera. Please carefully read this Instruction Manual to keep your camera at full capacity. CASES FOR INDEMNITY (LIMITED WARRANTY) We shall be exempted from taking responsibility and held harmless for damage or losses incurred by the user in the following cases. - Page 3 l This product can be used under diverse operating conditions. Determination of applicability of equipment or devices concerned shall be determined after analysis or testing as necessary by the designer of such equipment or devices, or personnel related to the specifications. Such designer or personnel shall assure the performance and safety of the equipment or devices.
- Page 4 l Auto Iris Connector l Mirror Reversing l Auto White Balance l Backlight Compensation l CS mount l Power source : DC12V Configuration (1) The camera body (2) Accessories Instruction manual Bracket for tripod Name of parts and their functions 8 6 .5 D igital P ixel Syst em ‡...
-
Page 5: Operation
Refer to the Operation chapter. E. Auto iris lens connector The connector is specifically used to connect the auto iris lens. For the DC type auto iris lens. 1.CONTROL 2.CONTROL 3.DRIVE 4.DRIVE Operation This camera can be user-set for picture quality, sync control, etc. The SETUP MENU comes in a tree format. -
Page 6: Specifications
Specifications Model Name STC-2008/1 Signal System NTSC/PAL (It switches by OSD) Image Sensor 1/3 type WDR digital image sensor Horizontal resolution 520 TV lines S/N ratio 50dB Minimum illumination 0.03 lx (F1.4, AGC ON, Slow shutter ON) Video output VBS:1.0V(p-p)/75Ω Y:1.0V(p-p)/75Ω... -
Page 7: Osd Menu
1: The list on the LEFT shows this screen’s options. 2: If an option has several choices, they will appear on the RIGHT. 3: Across the bottom is the command row. Typical OSD Screen Smartec Main Menu PRESETS <NORMAL.. > MEDIUM... -
Page 8: For Example
ID SETUP.. Notice that MORE.. is followed by two periods, indicating that you will be presented with a new page. The SmarTec MORE OPTIONS page gives you access to many more special functions of the SmarTec camera and the revolutionary PIXIM digital pixel system. -
Page 9: Menu Items
SAVE. l If the worst should happen (you SAVE settings that you dislike), you can always recover older user settings, one of two settings profiles previously configured, or, in the worst case scenario, restore the original factory settings. These options are found in MORE.. / SAVE/RESTORE page. Exiting the menu As noted previously, there are two ways to exit the OSD menu: l CANCEL is available on the bottom menu bar of most menu pages. - Page 10 Enter key does NOT exit the OSD menu. About the Basic Selections The SmarTec Main Menu provides all the most important camera functions on one simple to use page. The following is a brief description of each. (For more details, continue to the MORE menu options documentation.)
- Page 11 ID SETUP – Takes you to the camera ID setup page. Here you can turn the ID on and off, change the ID text, and change the position of the camera ID on screen. MORE Smartec CAMERA OPTIONS The PIXIM digital pixel system provides a wealth of features to help you get the best possible picture.
- Page 12 EXPOSURE l AGC – Automatic Gain Control l MANUAL GAIN – provides a slider to manually adjust gain l AE PREFs – Auto Exposure will choose either highlights or shadows within the image to make it’s calculations l SHUTTER LIMIT – Off, Custom, or shutters between X2 and X32. Each choice has additional features under your control.
- Page 13 model. l AUTO-FFF – Fluorescent Flicker Free settings can be enabled. This control is recommended for advanced users only, as it will directly affect many other settings previously made. l ID SETUP – Enable or disable the camera ID display, change the ID text and on screen position.
