American Pro Neo Paint 9 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Products
http://www.americanpro-audio.com
User Manual
KEEP THIS MANUAL FOR FUTURE NEEDS
Thank you for your patronage. We are confident that our excellent products and service can satisfy
you. For your own safety, please read this user manual carefully before installing the device.
In order to install , operate, and maintain the lighting safety and correctly. We suggest that the
installation and operation should be done by the verified technician and follow the instruction

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Neo Paint 9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for American Pro Neo Paint 9

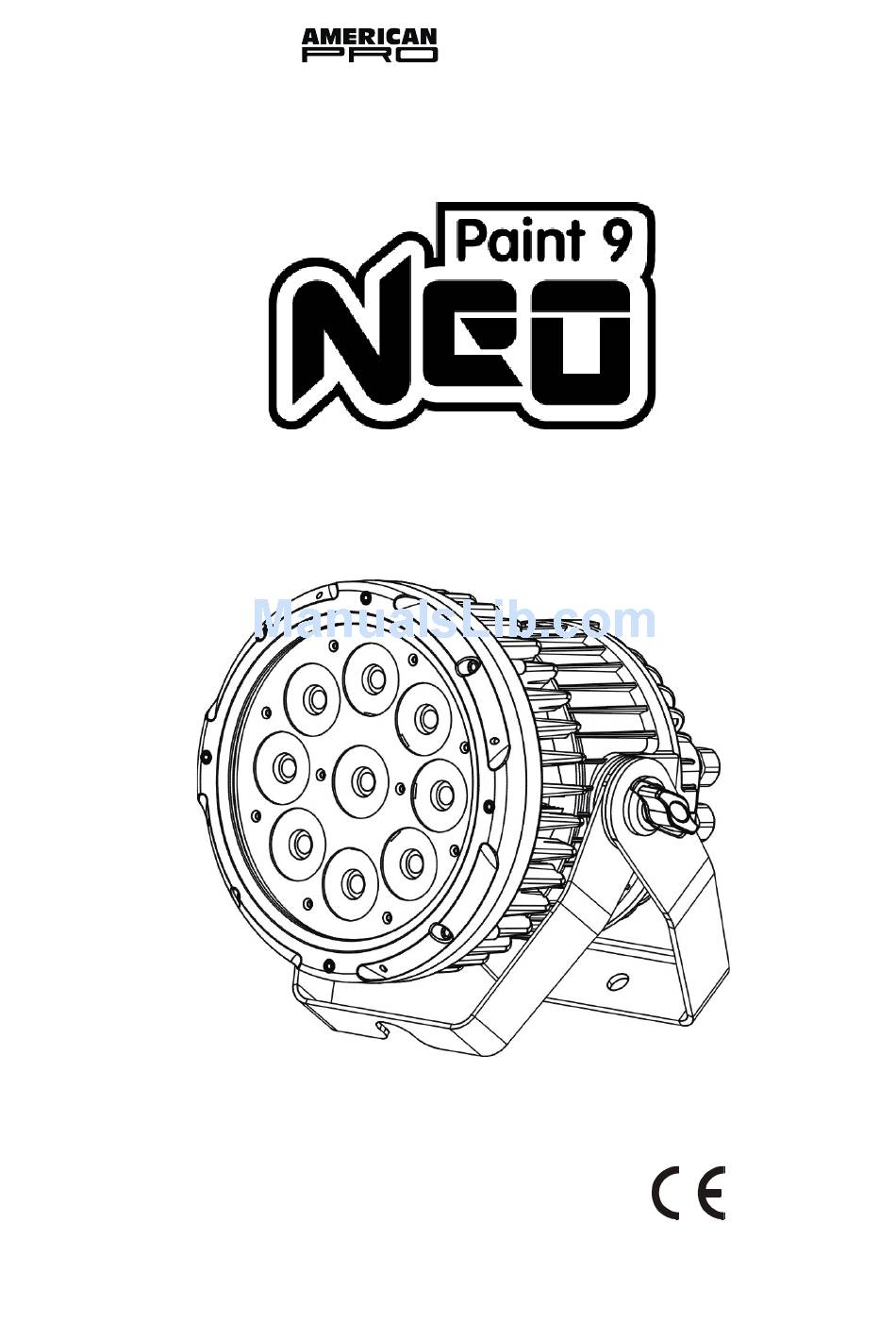

  • Page 1 Products http://www.americanpro-audio.com User Manual KEEP THIS MANUAL FOR FUTURE NEEDS Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install , operate, and maintain the lighting safety and correctly.
  • Page 2 strictly. CAUTION! Unplug mains lead before opening the housing. Every person involved with the installation, operation and maintenance of this device has to: -be qualified -follow carefully the instructions of this manual INTRODUCTION: Thank you for having chosen this professional LED lighting. You will see you have acquired a powerful and versatile device.

  • Page 3: Fixture Overview

    2. FIXTURE OVERVIEW 1) LEDS 2) Display 3) Power output 4) DMX output 5) Menu-button 6) Up-button 7) Down-button 8) Enter- button 9) Floor-stand 10) Power input 11) DMX-input 3. SAFETY INSTRUCTIONS 3.1) Important safety warns This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.

  • Page 4: General Guidelines

    No move at operating mode. Make sure that the available voltage is not higher than stated at the end of this manual. Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case, replacement of the cable must be done by an authorized dealer.

  • Page 5: Installation Instructions

    If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to short-circuit, burns, electric shock, lamp explosion, crash, etc. 4.

  • Page 6: Layout Drawings

    Fixed the clamp on the bracket by tighten up the M12 screw on the bracket to the Ф13 hole in the middle of the bracket. Pass the safety rope through the connecting hole under the side panel, hanging on the fixed bracket or other fixed station, and can also be floor-mounted(or on any other flat surface) without fixing, remaining steady no matter what the angle of the head.
  • Page 7 Layout Drawings: XM745-V1.0-NR...

  • Page 8: Dmx-512 Control Connection

    Mounting points Be sure this fixture is kept at least 0.5m away from any flammable materials (decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails. Overhead mounting requires extensive experience, including amongst others calculating working load limits, a fine knowledge of the installation material being used, and periodic safety inspection of all installation material and the fixture.

  • Page 9: Dmx-512 Connection With Dmx Terminator

    Address 9 Address 5 Address 1 Please note: to ensure maximal stability, when the voltage is 120V, only six devices may be connected together in this manner! From the seventh device, please connect to power supply to get power for the second link; when the voltage is over 220V, only twelve devices may be connected together in this manner! From the thirteenth device, please connect to power supply to get power for the second link.

  • Page 10: Control Board

    In the case of the move head, which is a 4 channel fixture, you should set the starting address of the first unit to 1, the second unit to 5 (4 + 1), the third to 9(4 + 5), and so on. Note: The modes of DMX 512 data are shown via the display: DMX OK...
  • Page 11 FLIP ON/OFF Flip display D ON ON/OFF Delay shutting off LED display Key lock LOCK ON/OFF (Press the MODE/ESC button for 3 seconds to activate) <CHAN> 4CH/5CH/6CH/8CH/36CH DMX channel Mode <FAIL> OFF/HOLD/AUTO Status while there is no DMX <DFSE> ON/OFF Default setting Power on to preserve the MANL <POHO>...
  • Page 12 ——DMX address setting, Slave setting - DMX address setting With this function, you can adjust the desired DMX-address via the Control Board. 1. Select “VALU” by pressing [UP] or [DOWN] button. 2. Press [ENTER], adjust the DMX address by pressing [UP] or [DOWN] button. 3.
  • Page 13 ——Display the DMX-value, Reverse display, Shut off LED display - Display the DMX 512 value of each channel With this function you can display the DMX 512 value of each channel. 1. Select "VALU" by pressing [UP] or [DOWN] button. 2.
  • Page 14 1. Press [MENU] to enter the main menu (display flashing). 2. Press [UP] or [DOWN] button. to select “SET”. ——“CHAN” DMX channel MODE With this function you can choose DMX channel Mode 1. Select “CHAN” by pressing [UP] or [DOWN] button. 2.
  • Page 15 ——Main menu 1. Press [MENU] to enter the main menu (display flashing). 2. Press [UP] or [DOWN] button to select “TIME”. 3. Press [MODE/ESC] to enter the main menu (display flashing). 4. Press [UP] or [DOWN] button to select “TIME”. - Fixture running time With this function you can display the running time of the device.

  • Page 16: Instructions On Use

    -Auto Save With this function you can automatic save the number of steps in the Program Run. 1. Select “REC” by pressing [UP] or [DOWN] button. 2. Press [ENTER], the display shows “RE.XX”, “XX” stands for the number from 1 to 400. 3.
  • Page 17 DMX channel´s functions and their values (36 DMX channels): Mode/Channel Value Function Red LED -all arrays 0-255 Red ( 0-Black , 255-100% Red ) Green LED-all arrays 0-255 Green ( 0-Black , 255-100% Green ) Blue LED -all arrays : 0-255 Blue ( 0-Black , 255-100% Blue ) White LED...
  • Page 18 White LED -array 3: 0-255 White ( 0-Black , 255-100% White ) Red LED -array 4 0-255 Red ( 0-Black , 255-100% Red ) Green LED-array 4 0-255 Green ( 0-Black , 255-100% Green ) Blue LED -array 4 : 0-255 Blue ( 0-Black , 255-100% Blue ) White LED...
  • Page 19 Red LED -array 8 0-255 Red ( 0-Black , 255-100% Red ) Green LED-array 8 0-255 Green ( 0-Black , 255-100% Green ) Blue LED -array 8 : 0-255 Blue ( 0-Black , 255-100% Blue ) White LED -array 8 : 0-255 White ( 0-Black , 255-100% White ) Red LED -array 9...

  • Page 20: Cleaning And Maintenance

    131-160 Chase 5 161-190 Chase 6 191-220 Chase 7 221-255 Chase 8 Speed chase : 0-255 Value 0 to 255 10. The following to change the lens for the different angle 11. CLEANING AND MAINTENANCE The following points have to be considered during the inspection: 1) All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded.

  • Page 21: Technical Specifications

    1) Clean the inside and outside lens each week to avoid the weakness of the lights due to accumulation of dust. 2) Clean the fan each week. 3) A detailed electric check by approved electrical engineer each three month, make sure that the circuit contacts are in good condition, prevent the poor contact of circuit from overheating.
