Summary of Contents for Novacom NOVACOM Wireless Modem GNS-30CR
-
Page 1: User Guide

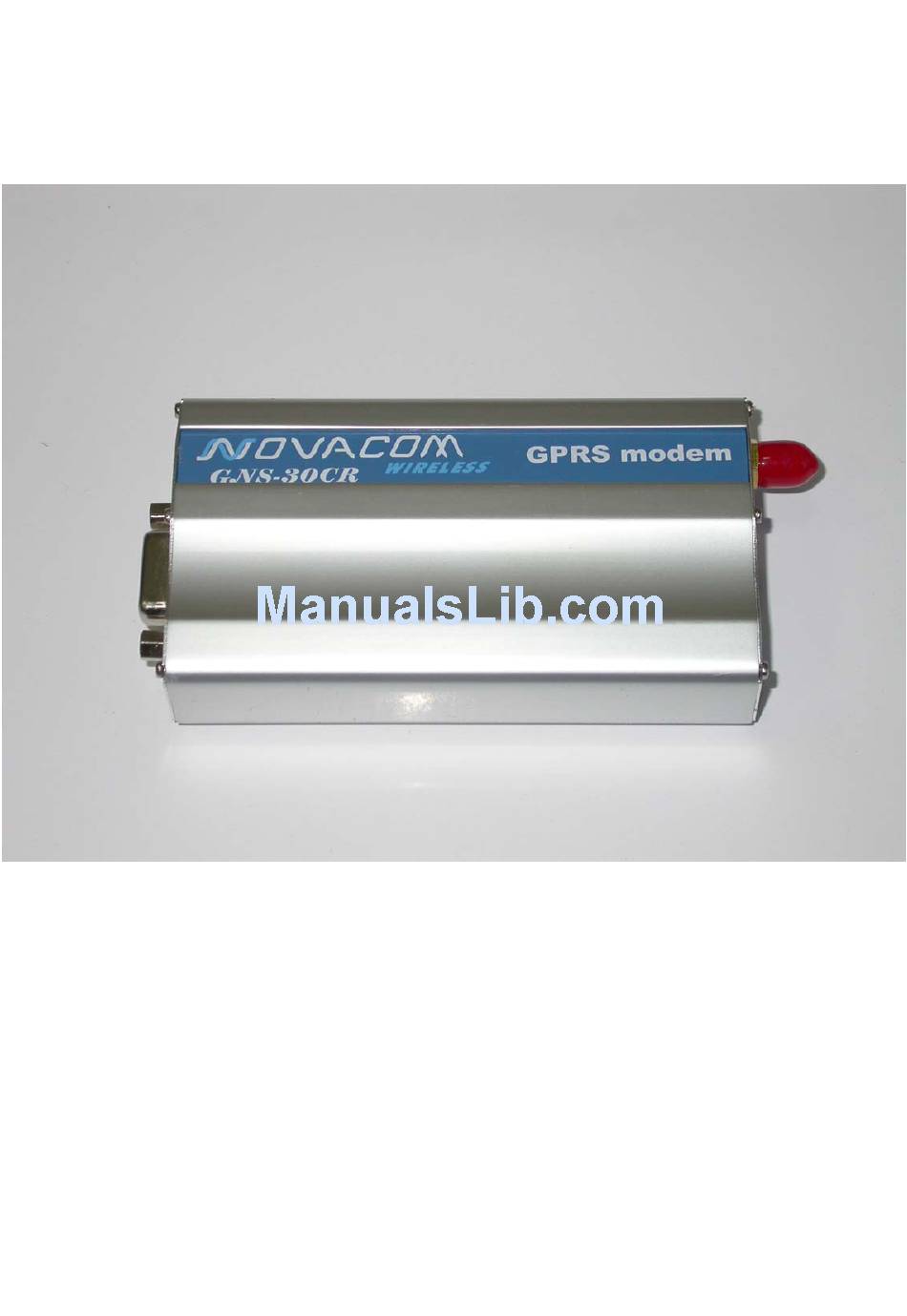

User Guide wireless NOVACOM GNS-30CR... -
Page 2: Safety Information
1. Safety information Radio device have limitations in the vicinity of electronic devices: • Switch the Modem off when you are in a hospital or near medical devices like pacemakers. The Modem may interfere with the operation of these devices. •... -
Page 3: Table Of Contents
2. Contents 1. Safety information ... 2 2. Contents... 3 3. Overview ... 4 3.1 Front View... 4 3.2 Rear View…………………………………………………………………………………...4 4. Product description ... 5 4.1 Highlights ... 6 4.2 Applications ... 7 5. Features ... 8 5.1 Product data ... 8 5.2 SMS ... -
Page 4: Overview
3. Overview 3.1 Front View 3.2 Rear View... -
Page 5: Product Description
4.Product description Modem makes integration as simple as possible, NOVACOM wireless primarily for users in the M2M market segment: a stand-alone device, the Modem is fitted with standard interfaces for a power supply, an antenna, a PC, and a handset, with its plug & play technology making it very easy to put into operation. -
Page 6: Highlights
4.1 Highlights • Support band: GNS-30CR: EGSM900/DCS1800/PCS1900 Data, voice, SMS and fax • Easy to integrate • Standard Industrial interfaces • LED display • Wide input voltage range • Highly compact, light and powerful • Integrated SIM card holder • SIM application toolkit •... -
Page 7: Applications
4.2 Applications • Security systems • Traffic system • Fleet management • Teleservice • Telematics • Telemetry • Remote monitoring • Remote control • Remote meter reading • Mobile office • Vending/POS... -
Page 8: Features
5. Features 5.1 Product data • Support band: GNS-30CR: EGSM900/DCS1800/PCS1900 Certified in accordance with GSM phase 2/2+ • Output performance: - Class4(2W) for GSM850/EGSM900 - Class1(1W) for DCS 1800/PCS 1900 • Control via AT commands • Input voltage range DC+6….. +30V •... -
Page 9: Sms
5.2 SMS • Point-to-point MT and MO • SMS cell broadcast • Text and PDU mode 5.3 Data • CSD up to 14.4kbps • USSD • Non-transparent mode • GPRS: max.85.6kbps (downlink) max.42.8kbps (uplink) • Coding scheme CS 1,2,3,4 • PPP-stack, TCP/IP protocol... -
Page 10: Fax
5.4 Fax • Group 3, classes 1 5.5 External interfaces • Connector for plug-in power supply unit • Handset audio interface (optional) • Mini-SIM card holder • Antenna connector SMA (female) • RS232 interface... -
Page 11: Installation
6. Installation 6.1 Package contents • NOVACOM wireless • NOVACOM wireless • Antenna • Power supply adapter • RS232 cable 6.2 Safety and installation information • The Modem should be installed and set up only by qualified personal. • Connect at fast 1.25 A fuse to the incoming line for the positive supply voltage to protect the Modem. -
Page 12: Plug-In Power Supply Units
7.1 Plug-in power supply units • The Modem receives its power supply in a wide voltage range (+6V…. +30V) via the power supply connectors, power interface: internal + / external –supply adaptor: Object Description Input Adaptor Input Output Adaptor Output Current Parameter 220V(100~240V) -
Page 13: Sim Card Holder
7.2 SIM card holder The connector is intended for 1.8V or 3V SIM cards in accordance with GSM 11.12 phase 2 to operate the Modem. The SIM card must be inserted in the card holder to put the Modem into operation. -
Page 14: Antenna Connector Sma (Female)
7.3 Antenna connector SMA (female) A quad band antenna (GSM850/EGSM900/DCS1800/PCS1900) can be connected to the RF interface. The connection is implemented as a 50 Ω SMA (female) coaxial jack. Pin assignments: Signal name Function Input RF Input/Output Output Frame connecting... -
Page 15: Rs232 Interface
7.4 RS232 interface The RS232 interface is the interface for the application software and the connection to the PC. The customer application communicates with the Modem by AT cellular commands. The RS232 interface is implemented as a 9-pin D-Sub socket with two screws fitting. Pin assignments: Signal Input/Output... - Page 16 Use and operation In order to control the Modem and Transfer data, the customer application (e.g. host computer) is connected via the RS232 cable. NOVACOM wireless GNS-30CR Modem must be connected via a Note: RS232-USB converter which baud rate can support at least 230400bps.
-
Page 17: Startup
8. Startup Before startup, the components required for your application must be connected. The SIM card must be inserted into SIM card holder. The Modem is ready for operation when supply voltage is applied and the ignition line is activated. If the recommended plug-in power supply unit is used, the ignition line is already connected to the supply voltage line, and the Modem is thus immediately switched to the active state. - Page 18 Operating states/LED The LED display the following states of the Modem: State in GSM network Note: Usually, the net work search takes only a few seconds till the Modem is registered, if the flashing every 0.85 seconds continues, this means that no SIM card is inserted, no PIN number is entered or no GPRS network is available.
-
Page 19: At Command Control
9. AT command control The Modem is controlled and programmed by means of AT commands. The AT commands structure corresponds to the SIM module used. For obtain the AT commands or more help, please contact our FAE.
