MANUAL INSTRUCTION

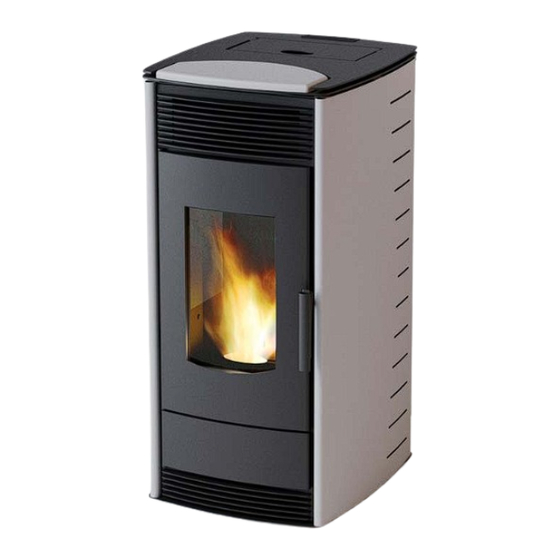

Central heating stove – MBS THERMO

PELLET

Table of Contents

Need help?

Do you have a question about the THERMO PELLET and is the answer not in the manual?

Questions and answers

Summary of Contents for MBS THERMO PELLET

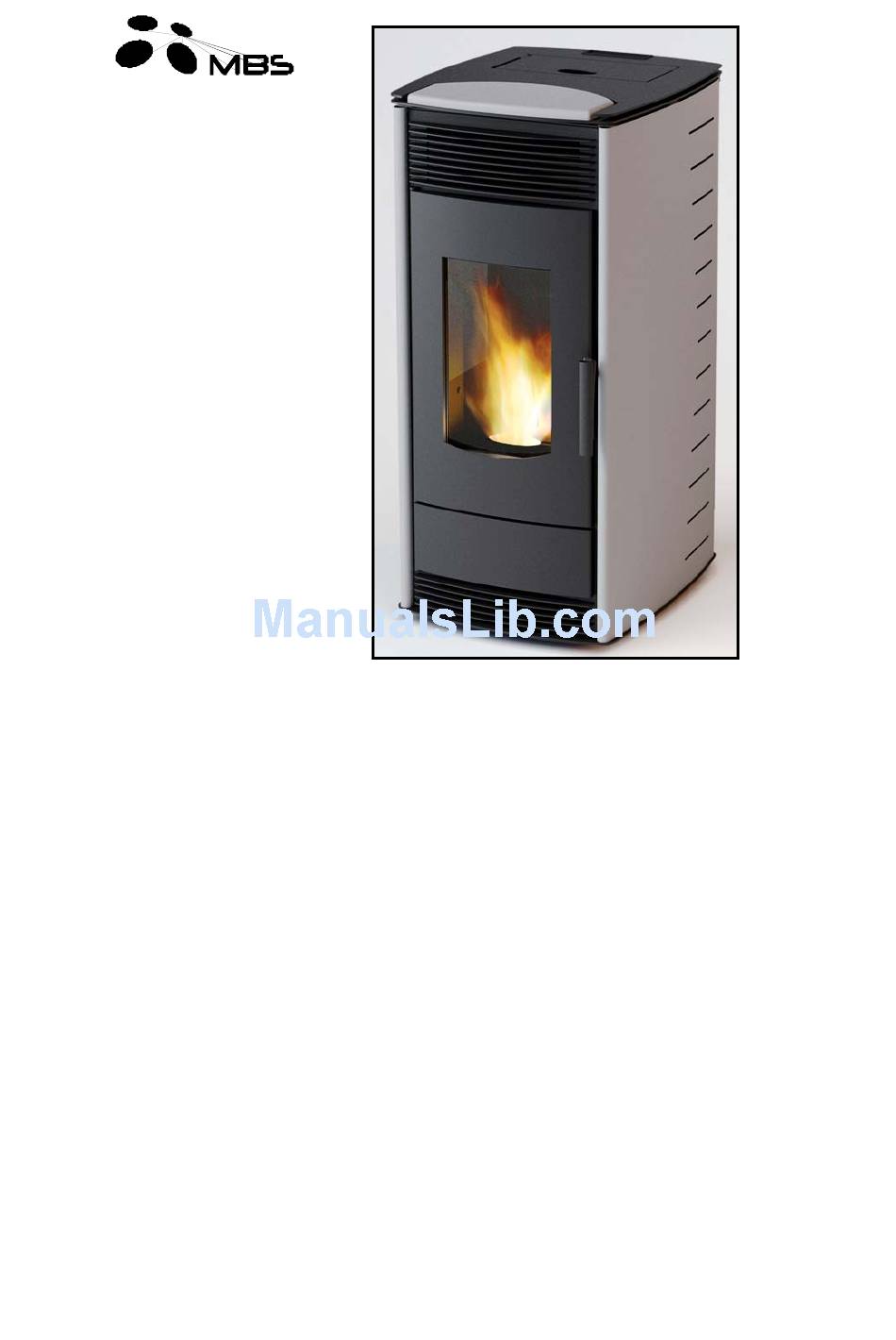

Page 1 MANUAL INSTRUCTION Central heating stove – MBS THERMO PELLET...
Page 3 Central heating stove - MBS Thermo Pellet DEAR CUSTOMER, We appreciate your trust dedicated to us and your determination to buy our product. You made a good choice, since this stove has technical characteristics which place it into top class, and you will be assured of it during exploitation.
Page 4: Table Of Contents
Central heating stove - MBS Thermo Pellet Contents: General comments................1 Pellet....................2 Package.....................2 Assembly of the stove................3 Operation....……..…………………......4 Cleaning and maintenance..…....………………………...4 Technical data..................5 Integral parts of the stove..............6 Handling....................7 • 1. Power..................8 • 2. Settings up of heating intensity (heating power)……………….10 •...
Page 5: General Comments
Central heating stove - MBS Thermo Pellet GENERAL COMMENTS Read and study contents of this instructions and observe the same during assembly and usage of the stove; Children and persons with reduced psycho-physical abilities should not handle the stove; Do not allow pets in the vicinity of the stove;...
Page 6: Pellet
Central heating stove - MBS Thermo Pellet PELLET Description Pellet is the product obtained by pressing sawdust and cuttings of dry, high-calory wood. During pressing, additional binders are not allowed. As clean product of biomass, pellets are CO neutral, i.e. do not contribute to effect of green house.
Page 7: Assembly Of The Stove
Central heating stove - MBS Thermo Pellet ASSEMBLY OF THE STOVE During assembly of the stove, observe regulations related to safety and environment. Provide room in which stove will be mounted with sufficient combustion air. Connect stove to the power 230V, 50Hz. Connection spot must be done pursuant to the requirements of electricity distributor and valid regulations.
Page 8 Central heating stove - MBS Thermo Pellet Weak swaying of flame is indicator of weak draft (fig. 1a). If chimney draft is weak, check accuracy of chimney. Chimney should be located in interior of the building, abnd if it is in external walls of building, we recommend insulation.
Page 9 Central heating stove - MBS Thermo Pellet 230V 50Hz ODVOD VODE DOVOD VODE Diagram 1. UJ – Managing unit OV – automatic exhaust valve (should be installed one more valve at the highest point of the heating system) T – Thermometer SM –...
Page 10: Operation
Central heating stove - MBS Thermo Pellet OPERATION During first operation, there is combustion of protective agents which used to be there during manufacture and storage of stove elements, and evaporation of color by which stove parts are protected against corrosion. Thus, please ventilate the room in terms of removal of undesired scents.
Page 11 Central heating stove - MBS Thermo Pellet Tubulators several times. Prior to operation, return closures to their places and secure them with screws and locknuts. Fig. 2a Fig. 2b...
Page 12: Technical Data
Central heating stove - MBS Thermo Pellet TECHNICAL DATA EN 14785 Dimensions H x W x D 1168 x 596 x 713 Chimney connection back side, Ø80mm Height from the floor to the axis of smoke exhaust connection 500** Voltage (50Hz)
Page 13 Central heating stove - MBS Thermo Pellet Integral parts: 1 - display 2 - pellet container door 3 - pellet container 4 - ceramic plate 5 - lateral side 6 - firebox door 7 - firebox door glass 8 - firebox door handle 9 - ashtray door 10 –...
Page 14: Handling
Central heating stove - MBS Thermo Pellet HANDLING Control panel enables communication with programmer using buttons. Display and indicators (on LCD display) inform operator of operation of stove. 7-12 08:10 16.5 C 18.5 LIGHTER WAIT Overview: Buttons: 1 - Increase of temperature and program functions of day, time...
Page 15: Power
Central heating stove - MBS Thermo Pellet 15 - water temperature indicator 16 – Operating information 1. Operation When stove is connected to electric power, turn current switch located on back side of stove to position I. Themn, on display, following messages will occur: time, room temperature, water temperature and OFF- stove not in operation (fig.
Page 16: Settings Up Of Heating Intensity (Heating Power)
Central heating stove - MBS Thermo Pellet Fig. 7. Fig. 8. When flame occurs in the firebox, lighter (igniter) is switched off and display indicates message FLAME LIGHT (fig. 9). Fig. 9. After obtaining stable flame, display indicates WORK (fig. 10). When stove enters...
Page 17: Setting Up Of Desired Temperature
Central heating stove - MBS Thermo Pellet Fig. 11. 3. Setting up of desired temperature Desired room temperature in which stove is located may be set by pressing button 2 after which display will indicate desired temperature as shown on fig. 12.
Page 18: Turning Off
Central heating stove - MBS Thermo Pellet Fig. 14. 5. Turning off Stove is to be turned off by pressing button 4 in sequence of 2 to 3 seconds. Passer ceases with work, ventilator of smoke gases is still turned on for about 10 min until temperature of exhaust gases is reduced below given value, while turning off the flame and reduce temperature of stove.
Page 19 Central heating stove - MBS Thermo Pellet programs. In order to program the stove, it is necessary to set up time and date na on display of control panel. In order to do it, it is necessary to access menu for setup of time and date.
Page 20 Central heating stove - MBS Thermo Pellet Fig. 19. Fig. 20. Fig. 21. Fig. 22.
Page 21: Programming
Central heating stove - MBS Thermo Pellet 7. Programming of the stove operation There are 3 sorts of programming: - Daily; - weekly; - weekend. In the following text you will find each single programming. 7.1. Daily programming Stove can be switched on and off two times via programs, with reference that it is necessary to take enough time between off and new on to get stove cold.
Page 22 Central heating stove - MBS Thermo Pellet Fig. 25. Fig. 26. Press button 4 then 5 and display will look like described on fig. 27. Fig. 27. Press 2 times button SET and display will look like described on fig. 28. Use 1 or 2 to set time of first turning on of the stove during the day.
Page 23 Central heating stove - MBS Thermo Pellet Fig. 28. Fig. 29. Fig. 30. By pressing SET, you will go to setup of other program. Use button 1 to set time of turning on (fig. 30). Press SET and set time of turning off (fig. 31). When setting up is finished, use 4 to return to main menu and display will show indicator that programming is finished.
Page 24: Weakly Programming
Central heating stove - MBS Thermo Pellet Fig. 31. 7.02 Weekly programming Week program has 4 programs (4 times of turning off and on). For each weekday, individually, you may combine these 4 programs i.e. whether one of them will be active or not (OFF or ON).
Page 25 Central heating stove - MBS Thermo Pellet Press SET and use 1 to set time of starting of the stove in the first program, and display will look like described on fig. 34, repeat same procedure an d set time of turning off in first program, fig.
Page 26 Central heating stove - MBS Thermo Pellet Press SET to transfer to setup of other program and its activation for each weekday individually (as for program 1). Do the same procedure for remaining two programs (program 3 and 4). Indicator that programming is active will be indicated on display.
Page 27: Weekend Programming
Central heating stove - MBS Thermo Pellet Fig. 40. Pressing SET and then 1 we set time of first turning on of the stove as described on fig. 40. By repeated pressing of SET and 1, we set time of turning off and display will indicate as on fig.
Page 28 Central heating stove - MBS Thermo Pellet During first turning on of the stove, switch O/I, on back side, or during circuit breakage, alarm may start as described on fig. 44. Fig. 44. Fig. 45. It is necessary to cancel alarm by pressing buton 4 for several seconds, then display will look like on fig.
Page 29 Fig. 46. Central heating stove - MBS Thermo Pellet In case if pellet is not fired on the very start, message ALARM NO FIRE will occur. This is most frequent occurrence at THE FIRST start of the stove when passer of pellets is empty.
Page 30 WARRANTY MBS declares that central heating stove MBS THERMO PELLET will work well if customer observes given instructions. We will provide spare parts and carry out service of the stove if obstruction during operation occur, and iof occurred within warranty period and will remove all problems within 45 days from the date of report.
