Summary of Contents for Nordmende BIG50S
-

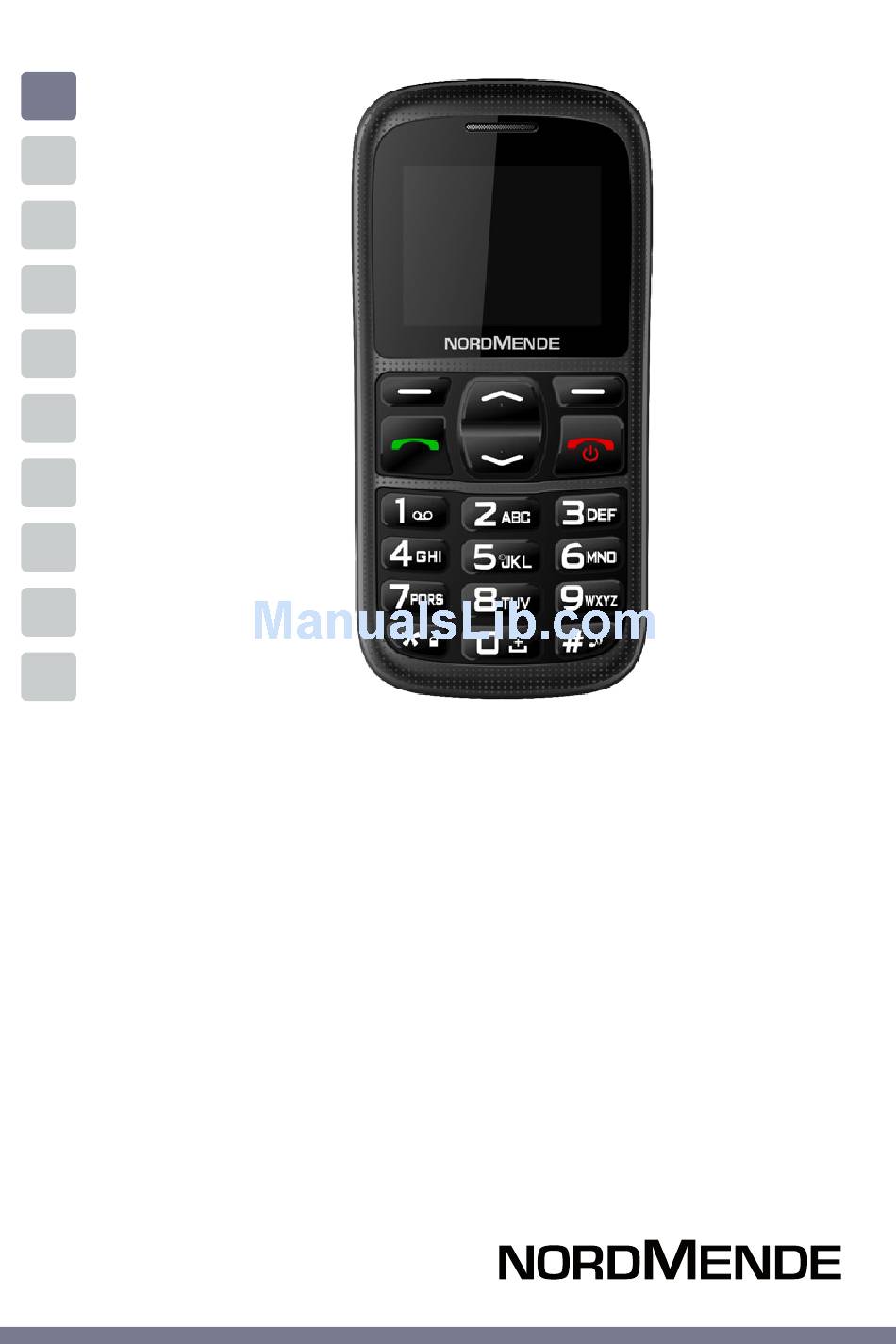

Page 1: User Manual
LARGE KEYPAD GSM MOBILE PHONE USER MANUAL BIG50S... -
Page 2: Table Of Contents
Contents Chapter 1 INSTALLING THE BATTERY AND SIM CARD ..4 Chapter 2 PHONEBOOK MANAGEMENT ......6 Adding a new contact ..........7 Making a phone call ............ 7 Making a phone call from the phonebook ..... 8 Chapter 3 MESSAGGING .......... - Page 3 Chapter 10 SETTINGS ............21 Phone settings ............. 22 Profiles ................23 Bluetooth (if available) ..........24 SOS setting ..............25 Security settings ............25 Network settings ............26 Restore factory settings ..........26 File manager ..............26 Speed dial ..............26 Services................
-
Page 4: Installing The Battery And Sim Card
CHAPTER 5 CHAPTER 1 Installing the battery and SIM card USER MANUAL | page 4... - Page 5 1. Remove the battery cover and the battery. 2. Insert the T-Flash card by carefully sliding into the holder (not mandatory). 3. Insert the SIM card by carefully sliding into the holder. Make sure the SIM card’s contacts are facing inwards. 4. Insert the battery, sliding it into the battery compartment. 5. Install the battery cover again NOTE ON MEMORY CONFIGURATION The phone internal memory (flash memory) is totally dedicated to the device management. For this reason, the free memory must not be used as it should be kept free for possible software updates, or the warranty will be lost.
-
Page 6: Chapter 2 Phonebook Management
CHAPTER 5 CHAPTER 2 Phonebook management Adding a new contact, making a phone call, making a phone call from the phonebook USER MANUAL | page 6... -
Page 7: Adding A New Contact
ADDING A NEW CONTACT 1. Press Menu enter into Phonebook and press OK. 2. Select Add new contact and press Options . 3. Press Select to choose To phone or To SIM. 4. Input Name and number. 5. Press Options to Save or Cancel the contact. 6. Press return to standby. Note: Long press to add the international prefix +. Always add + before the country code before making international call . MAKING A PHONE CALL 1. In standby mode, input the phone number including the area code; in case, delete with Clear. 2. Press to dial and press Abort to cancel calling. USER MANUAL | page 7... -
Page 8: Making A Phone Call From The Phonebook
CHAPTER 2 PHONEBOOK MANAGEMENT MAKING A PHONE CALL FROM THE PHONEBOOK 1. In standby mode, press any arrow button and then choose Phonebook to open the phonebook menu. 2. Use scroll to view the contacts or quick search by writing the contact name. 3. Press to call the selected contacts. USER MANUAL | page 8... -
Page 9: Chapter 3 Messagging
CHAPTER 5 CHAPTER 3 Messagging Writing and sending SMS, inbox, outbox, drafts, sent messages, SMS settings USER MANUAL | page 9... -
Page 10: Writing And Sending Sms
CHAPTER 3 MESSAGGING WRITING AND SENDING SMS 1. Press Menu, enter into Message and press OK. 2. Select Write message and press OK. 3. Input the message you want to send; press if you need to select a symbol; press to change input method. 4. Press Options to send message . INBOX 1. Press Menu, enter into Message and press OK . 2. Select Inbox and press OK. 3. Select a message from the list and press Options > Display to view the message. You can select others options as described below: Reply Input your message and send to the sender. Call sender Press Select to call sender. Forward Press Select to forward message to other contacts. Delete Press Select to delete the message. Delete all Delete all received messages. Save to phonebook Here you can save the sender’s phone number. -
Page 11: Outbox
OUTBOX This menu relates to the management of outgoing messages, which the phone is trying to send, but not yet sent. DRAFTS Here you can see the messages which you saved as draft. SENT MESSAGES 1. Press Menu, enter into Message and press OK . 2. Select Outbox and press OK . 3. Select a message from the list and press Options to View/ Resend/Edit/Delete/Delete all message. MS SETTINGS Here you can check the memory status, setup the SMS preferred storage or decide to save sent message. USER MANUAL | page 11... -
Page 12: Chapter 4 Call Center
CHAPTER 5 CHAPTER 4 Call center View call history, call settings USER MANUAL | page 12... -
Page 13: View Call History
All received, missed, outgoing calls are saved in call center. VIEW CALL HISTORY 1. Press Menu, enter into Call center and press OK. 2. Select Call history and press OK. 3. Here you can check call logs as below: Missed calls Dialed calls Received calls Delete call logs CALL SETTINGS 1. Press Menu enter into Call center and press OK. 2. Select Call settings and press OK. 3. Here you can Activate or deactivate the functions below: Call waiting Call divert Call barring 4. Under advanced settings you can setup the below functions: Auto redial Press OK to select the status On/Off. Call time reminder Press OK to select Off/Single/Periodic. Answer mode Press OK to select Any key answer or Auto answer in headset mode. USER MANUAL | page 13... -
Page 14: Chapter 5 Alarm
CHAPTER 5 CHAPTER 5 Alarm 1. Press Menu enter into Alarm and press OK. 2. Press Edit to select status on/off. Press & to change the status on/Off. 3. Enter the time directly by keypad. 4. Scroll to select repeat times and Alert type. 5. Press Save to activate the alarm, cancel it by press Back in case the settings are not correct. 6. To Edit the alarm, press Edit; to stop it, press Off. USER MANUAL | page 14... -
Page 15: Fm Radio
CHAPTER 5 CHAPTER 6 FM Radio 1. Press Menu, enter into FM Radio and press OK. 2. Press Options to view Channel list. 3. Select Manual input can input the channel you prefer. 4. Select Auto search can auto search your local radio channel. 5. Enter into settings to set up background play. USER MANUAL | page 15... -
Page 16: Chapter 7 Calendar
CHAPTER 5 CHAPTER 7 Calendar USER MANUAL | page 16... - Page 17 1. Press Menu, enter into Calendar and press OK. Today’s day and date is shown on the display. 2. Press Options to do following settings: View Show the event for the selected date. View all View all events. Add event A. Input subject for the event . B. Enter a start date and time for the event . C. Enter the end date and time for the event. D. Enter subject for the event. E. Activate Alarm and repeat times for the event . F. Enter location for the event . G. Save the event. Delete event Delete the selected event. Jump to date Enter the date and press OK. Go to weekly view Shown the events of the week according to selected date. USER MANUAL | page 17...
-
Page 18: Chapter 8 Calculator
CHAPTER 5 CHAPTER 8 Calculator 1. Press Menu, enter into Calculator, press OK. 2. Enter the first number and use to enter into the decimal point. 3. Use to select( + - * ÷) and press OK. Enter the next number and press OK. The result is shown on the screen. USER MANUAL | page 18... -
Page 19: Chapter 9 Multimedia
CHAPTER 5 CHAPTER 9 Multimedia Video player, audio player, sound recorder USER MANUAL | page 19... -
Page 20: Video Player
CHAPTER 9 MULTIMEDIA VIDEO PLAYER Enter here to play video files saved in your SD card. AUDIO PLAYER Enter here to play audio files saved in your SD card. SOUND RECORDER Make a new record 1. Press Menu enter into Multimedia, press OK to select sound recorder. 2. Select New record to make a new record. 3. Enter into List to view all records. 4. Enter into Settings to setup storage location and audio quality. USER MANUAL | page 20... -
Page 21: Chapter 10 Settings
CHAPTER 5 CHAPTER 10 Settings Phone settings, profiles, Bluetooth (if available), SOS setting, security settings, network settings, restore factory settings, file manager, speed dial, services USER MANUAL | page 21... -
Page 22: Phone Settings
CHAPTER 10 SETTINGS In this menu you can manage all the main settings, in order to better use your phone. PHONE SETTINGS 1. Press menu scroll to Settings. 2. Select Phone settings and press OK. Then you can setup the functions as described below. Time and date 1. Select Set home city and choose your local city. 2. Select Time and date and press OK. 3. Select Set time/date and press OK. Enter Time and date and press Save. Scheduled power on/off Here it is possible to preset the automatic turn on and off of the phone. Language 1. Select Language and press OK. -
Page 23: Profiles
Display 1. Select Display and enter into wallpaper. 2. Here you can select wallpaper form the phone and memory card. Flight Mode Here you can active or deactivate the flight mode. PROFILES 1. Press Menu and scroll to Settings. 2. Select User profiles and press OK. Then you will see four mode as below: General Silent Meeting Headset Outdoor Here you can choose your preferred Power on/off ringtones, incoming call ringtones etc. 1. Press Menu and scroll to Settings. 2. Select Profiles and press OK. Select General and press Option. 3. Select Customize and press Select . 4. Scroll to Alert type and press Options to select Ring only, Vibration Only, Vibration and ring or Vibration then ring. -
Page 24: Bluetooth (If Available)
CHAPTER 10 SETTINGS 6. Scroll to Ringtone volume and press Option, use to adjust volume and press OK to save. 7. Scroll to Message and press Option to select a preferred ringtone for message. 8. Scroll to Message volume and press Option, use to adjust volume, press OK to save. Use the same procedure to setup the other modes. BLUETOOTH (IF AVAILABLE) 1. Press Menu enter into Organizer, press OK to select bluetooth. 2. Function on/off: Select on/off to enable/disable bluetooth. 3. Visibility: Select on/off to make the phone visible /invisible to other devices. 4. My device: Check the device name and allow you to add new devices. 5. Search audio device: Search for the available audio device. 6. My name: Name for current device. USER MANUAL | page 24... -
Page 25: Sos Setting
SOS SETTING 1. Press Menu and enter into Settings . 2. Select SOS settings and press OK. 3. Scroll to Status and setup SOS status on/off. 4. Scroll to family Numbers to setup SOS number, here you can setup 5 numbers. 5. Scroll to SOS Sms on/off to choose whether to send SOS SMS or not. 6. Enter into SOS SMS to edit message. 7. Enter into warning tone to control the tone status on or off. SECURITY SETTING Here you can set some security settings for SIM card, phone and keypad. 1. Press Menu and go to Settings. 2. Scroll to security settings and press OK. Then you can see sub-menus below: A. SIM security Here you can setup PIN lock status on or off and change the PIN code. B. P hone security Here you can setup Phone lock status on/off and change the password (default password is “0000”). -
Page 26: Network Settings
CHAPTER 10 SETTINGS NETWORK SETTINGS Enter here to set up automatic or manual network selection. RESTORE FACTORY SETTINGS Press OK and input password (0000) to reset your phone to the default factory settings. FILE MANAGER Enter here to manage the file in your phone or in your SD card. SPEED DIAL The numerical keys 2-9 can be used for speed dial some pre-set numbers, simply pressing for a long time the relevant button. First of all, check that the Status is ON; then, select Set numbers and assign from the phonebook a number for any button. Numbers 10 and 11 refers to the buttons and SERVICES Here some service can be activated for the SIM card; please contact your SIM card mobile operator for more information. USER MANUAL | page 26... -
Page 27: Chapter 11 Safety And Attention
CHAPTER 5 CHAPTER 11 Safety and attention USER MANUAL | page 27... - Page 28 CHAPTER 11 SAFETY AND ATTENTION In order to use your mobile phone safely and efficiently, please read the following part before using: 1. Please be careful when you are near chemical plant, gas station and any explosive areas. Even if your mobile phone is in standby, it will send out some RF signals. Therefore, please power off your mobile phone if requested. 2. When you are driving, do not use your mobile phone. If you have to use it, please park your car before having your phone call. 3. Don’t use your mobile phone in the hospital not to disturb the normal operations of medical equipment, such as heart pacemakers, hearing aids, etc. You should observe all the relevant rules of the local hospital before using. 4. Please power off your mobile phone before the plane take off, not to disturb the aircraft’s electronic equipment. It is generally dangerous and illegal to use mobile phone on board of the aircrafts. 5. Please place your mobile phone and all accessories in places that cannot be reached by children. 6. Accessories and battery: please use the accessories and battery provided in the giftbox. If not, it might damage your phone and lead to danger. Please do not shortcut, tear down and adapt the battery. If the phone has excessive temperature, discolor, bulking, leak fluids or you can see other unusual phenomenon, please stop using and change the battery immediately in order not to affect your safety. Please place the old batteries in specific recycle spots. 7. Do not charge without the battery. Please power off the mobile phone before removing the battery not to lose the data inside the phone.
- Page 29 8. The phone is not waterproof. Please keep it dry. 9. Avoid using the phone in too high or too low temperature. 10. Not throw, fall and beat the phone so as not to damage the internal or external parts of your phone. 11. Authorized Service: the repair and maintenance of the phone can be done only by professional people. Please not tear off the phone on your own. USER MANUAL | page 29...
-
Page 30: Chapter 12 Technical Specifications
CHAPTER 5 CHAPTER 12 Technical specifications USER MANUAL | page 30... - Page 31 Technical specs Dimensions 1,8” Panel Main characteristics Color TFT screen Dimensions 108 x 54 x 13 mm Back cover color Black Others Camera Lithium Polymer Battery 700 mAh, 3,7 V Charger Input 100-230V~ 50-60 Hz, Output: 5V DC 500 mA Included User manual accessories Battery Earphones with mic Note: The phone use GSM band to connect to network. Please check with your carrier the phone compatibility with your SIM card. USER MANUAL | page 31...
-
Page 32: Chapter 13 Warnings
CHAPTER 5 CHAPTER 13 Warnings USER MANUAL | page 32... - Page 33 SAR Certification information (Specific Absorption Rate) The device is compliant to European Union (EU) standards that limit human exposure to radio frequency (RF) energy emitted by radio and telecommunications equipment. These standards prohibit the sale of mobile devices that exceed a maximum exposure level (known as SAR) of 2.0 W/kg. During testing, the maximum SAR recorded for this model was equal to 0.737 W / kg. During normal use, the actual SAR level can be much lower, as the device has been designed to emit only the RF energy necessary to transmit a signal to the nearest base station. By automatically emitting lower levels when possible, your device reduces your overall exposure to...
- Page 34 CHAPTER 13 WARNINGS INFORMATION ON DISPOSAL OF UNITS This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handled to the local collecting points or given back to retailer when you buy a new product, in a ratio of one to one (or one to zero if the external dimension is less than 25 cm) pursuant to European Directive 2012/19/EC in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional au- thorities. Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.
- Page 35 USER MANUAL | page 35...
- Page 36 LARGE KEYPAD GSM MOBILE PHONE BIG50S Hereby, Aldinet S.p.A, declares that this type of BIG50S, Brand Nordmende is in compliance with the essential requirements and other relevant provisions of Directive R&TTE 1999/5/EC. The Declaration of Conformity is available at: Aldinet S.p.A. Viale Colombo, 8 - 20090 Trezzano S/N (MI) Italy MADE IN CHINA BY Aldinet S.p.A. Viale Colombo, 8 - 20090 Trezzano S/N (MI) Italy NORDMENDE is a trademark of Technicolor or its affiliates used under license to ALDINET S.p.A.
