OPERATING INSTRUCTIONS
Models:
International models:
Single or Dual Thermostat Control
Stainless Steel Construction
Integrated grease Box and front drain gutter
Multiple toasting Rack positions (only on Griddle Toaster version)
Dedicated Toasting element (only on Griddle Toaster version)
These instructions cover the models of ROBAND
are slight variances between models, the installation, operation, care and maintenance procedure
is the same for all.
Manufactured By
ROBAND AUSTRALIA PTY LTD

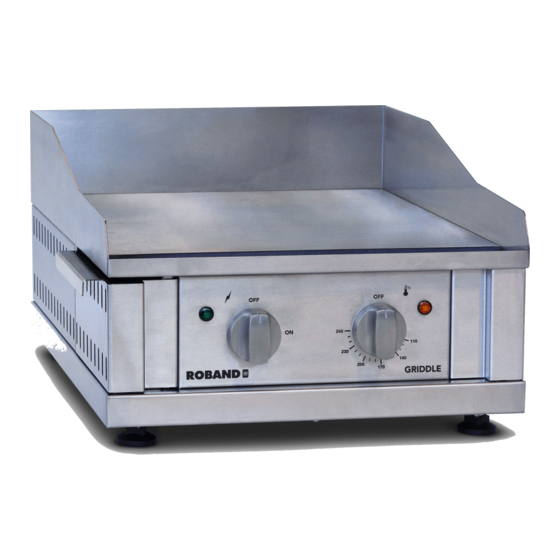

GRIDDLE / GRIDDLE TOASTER
G400 and GT400
G700 and GT700
Includes
Special Features:
Version 1
Version 1
...-Bxx, ...-Fxx, ...-Gxx, ...-Mxx
®
Griddle & Griddle Toasters only. Although there
2/09/2016
Advertisement
Table of Contents
Related Manuals for ROBAND G400
Summary of Contents for ROBAND G400
-
Page 1: Operating Instructions

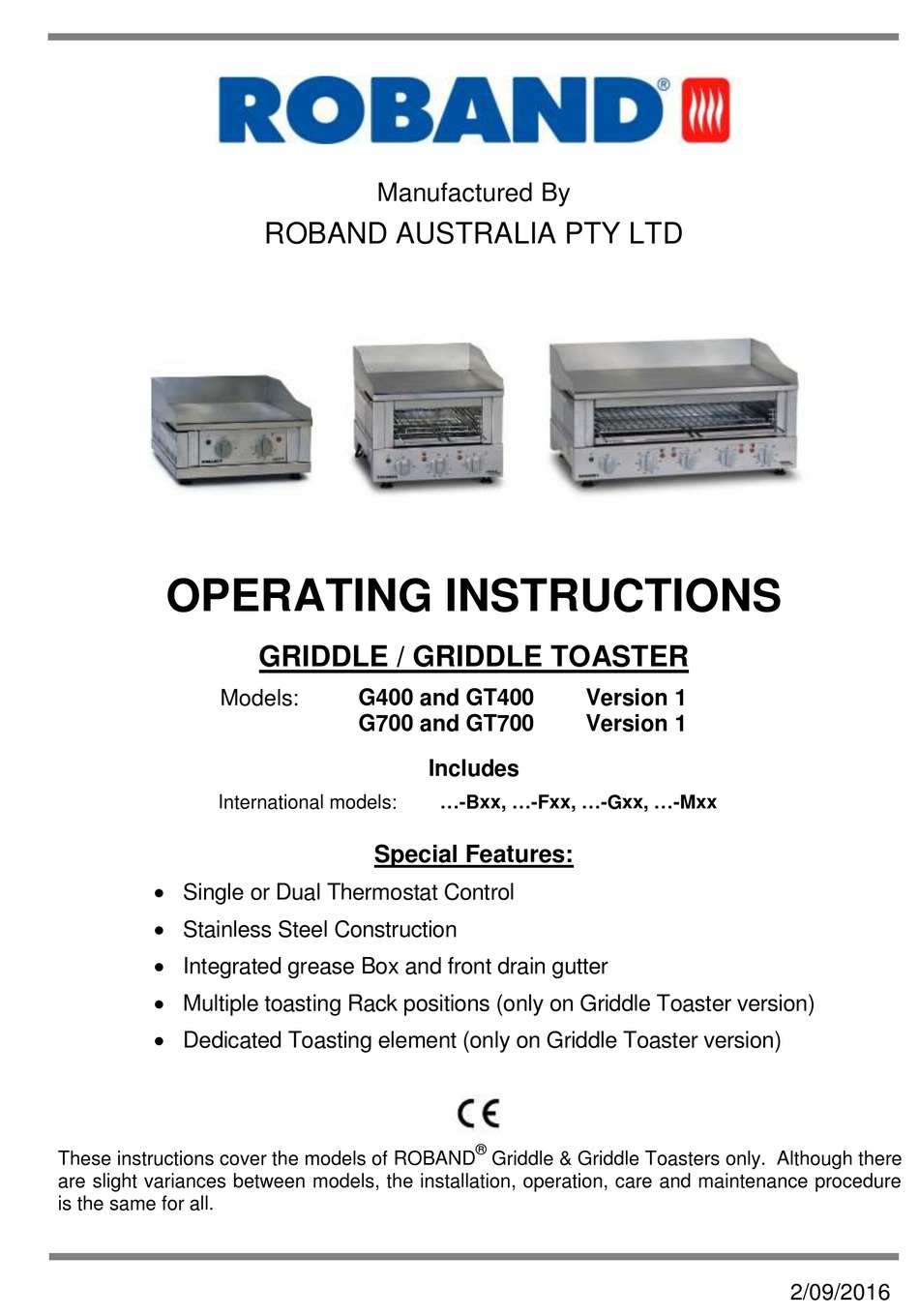

Multiple toasting Rack positions (only on Griddle Toaster version) Dedicated Toasting element (only on Griddle Toaster version) ® These instructions cover the models of ROBAND Griddle & Griddle Toasters only. Although there are slight variances between models, the installation, operation, care and maintenance procedure is the same for all. - Page 2 Soup/Rice Warmers, Robatherm Urns, ö ® Austheat Fryers, Dipo Induction & Autofry Machines. Roband also has its own line of ® commercial cookware and cutlery under the Robinox brand name. For a complete set of brochures please contact your nearest authorised dealer or contact Roband directly at our head office.
-
Page 3: Table Of Contents
TROUBLESHOOTING ................... 10 SPECIFICATIONS ....................11 CIRCUIT DIAGRAM – GT400 ................12 CIRCUIT DIAGRAM – GT700 ................12 CIRCUIT DIAGRAM – G400 .................. 13 CIRCUIT DIAGRAM – G700 .................. 13 GT400 EXPLODED VIEW ..................14 GT700 EXPLODED VIEW ..................15 G400 EXPLODED VIEW .................. -
Page 4: Introduction
Griddle, and ensure that any risk to unwary customers or staff is minimised with additional signage if necessary. Due to the obvious heat hazard Roband recommends that these units be kept out of reach of children. In the case of new personnel, training is to be provided in advance. These machines... -
Page 5: Packaging
PACKAGING All care is taken when packing and Roband ensures that every unit is functional and undamaged at the time of packaging. The Package of this Griddle should include: One Griddle Or Griddle Toaster (appropriate model) This manual Grease Box... -
Page 6: Installation
Do not place the Griddle above other equipment that may give off heat. POWER CONNECTION G400 & GT400 Plug the machine into a power outlet matching the plug type supplied. G700 & GT700 NOTE: GT700 and G700 models MUST be installed by a licenced electrician in accordance with Australian wiring Standards. - Page 7 If a single Phase 20A supply is to be used, connect the phase to L1 and a bridge must be inserted between L1 and L2 on the Terminal Block. We recommend the use of an RCD (Residual Current Device) rated at not less than 30mA for circuit protection when using these units.
-
Page 8: Operation
OPERATION INITIAL STARTUP To turn on the unit, turn the Power switch to the right (see below). Power Thermostat Energy Regulator CONTROLS DESCRIPTION The Power switch disconnects the mains power supply from the machine. The green pilot light above and to the left of the switch will illuminate whenever the unit is switched on, indicating that power is being supplied to the unit. - Page 9 SEASONING All Models: Before cooking for the first time the plates need to be seasoned as follows. Remove the paper from the plate and wipe off excess fat. Brush the plate liberally with frying oil and cover the surface with a layer of salt. ...
- Page 10 GT700 The GT700 is equipped with separate elements and controls for Left hand Side and Right Hand Side Operation. Each Half is controlled by its own thermostat or energy regulator. This means that each side and each function can be used simultaneously or individually as required and different temperature settings can be set for each.
-
Page 11: General Safety
SAFETY GENERAL SAFETY This machine contains no user-serviceable parts. Roband Australia, one of our agents, or a similarly qualified person(s) should carry out any and all repairs. Any repair person(s) should be instructed to read the Safety warnings within this manual before commencing work on these units. -
Page 12: Cleaning, Care & Maintenance
CLEANING, CARE & MAINTENANCE Attention to regular care and maintenance will ensure long and trouble free operation of your Griddle. Although scheduled servicing is not required we do recommend you adopt a program of regular maintenance to ensure that the Griddle is clean and functional and to avoid inadvertently damaging the unit. -
Page 13: Troubleshooting
Although every care is taken during manufacture to remove all sharp edges, care should be taken when cleaning to avoid injury. MAINTAINING APPEARANCE OF THE STAINLESS For protection and cleaning of “brushed” stainless steel surfaces, it is best to use a cleaner that will both remove grease and dirt while protecting the surface from future marks. -
Page 14: Specifications
SPECIFICATIONS Model G400 GT400 G700 GT700 Power Supply 230V 230V 400/230V 2P 400/230V 2P Power Frequency 50-60Hz Power Consumption 2120W 2980W 4240W 5900W Amps 9.2A 9.2A/P 12.8A/P Width mm Height mm Depth mm Weight kg Cooking Area mm 398x398 398x398... -
Page 15: Circuit Diagram - Gt400
CIRCUIT DIAGRAM – GT400 CIRCUIT DIAGRAM – GT700... -
Page 16: Circuit Diagram - G400
CIRCUIT DIAGRAM – G400 CIRCUIT DIAGRAM – G700 Note: This circuit diagram has been provided for reference and to assist qualified service and repair agents only. Under no circumstances should persons not suitably qualified attempt repairs to any electrical equipment. -
Page 17: Gt400 Exploded View
GT400 EXPLODED VIEW... -
Page 18: Gt700 Exploded View
GT700 EXPLODED VIEW... -
Page 19: G400 Exploded View
G400 EXPLODED VIEW... -
Page 20: G700 Exploded View
G700 EXPLODED VIEW... -
Page 21: Appendix A
RCD for approximately 30-60 minutes, after which time the elements should have dried out and the machine should function normally. If you are unable to locate a circuit without an RCD please contact your supplier or contact Roband or our Agent for alternative suggestions. -
Page 22: Ec Declaration Of Conformity
DECLARATION I hereby declare under our sole responsibility that the product mentioned above to which this declaration relates complies with the above-mentioned standard(s). Roband Australia has appointed Valera Ltd as our EU Authorised Representative of : 5-7 The Glade Business... -
Page 23: Warranty
Any repairs or replacement of defective goods or materials pursuant to this warranty, must be authorized by Roband Australia prior to any action being taken. The company reserves the right to reject a claim for warranty if it is not completely satisfied with the circumstances under which it occurred and any other costs incurred for false claims or faults due to incorrect usage etc. - Page 24 OTHER LEADING PRODUCTS AVAILABLE: Sycloid Toaster DRINK MIXERS HIGH PERFORMANCE DEEP FRYERS VITAMIX BLENDERS NOAW Slicers GRILLMAX TOASTERS Manufactured/Imported in Australia by: Authorised Distributor/Agent...
