Summary of Contents for ARPENKIN Mini0801S

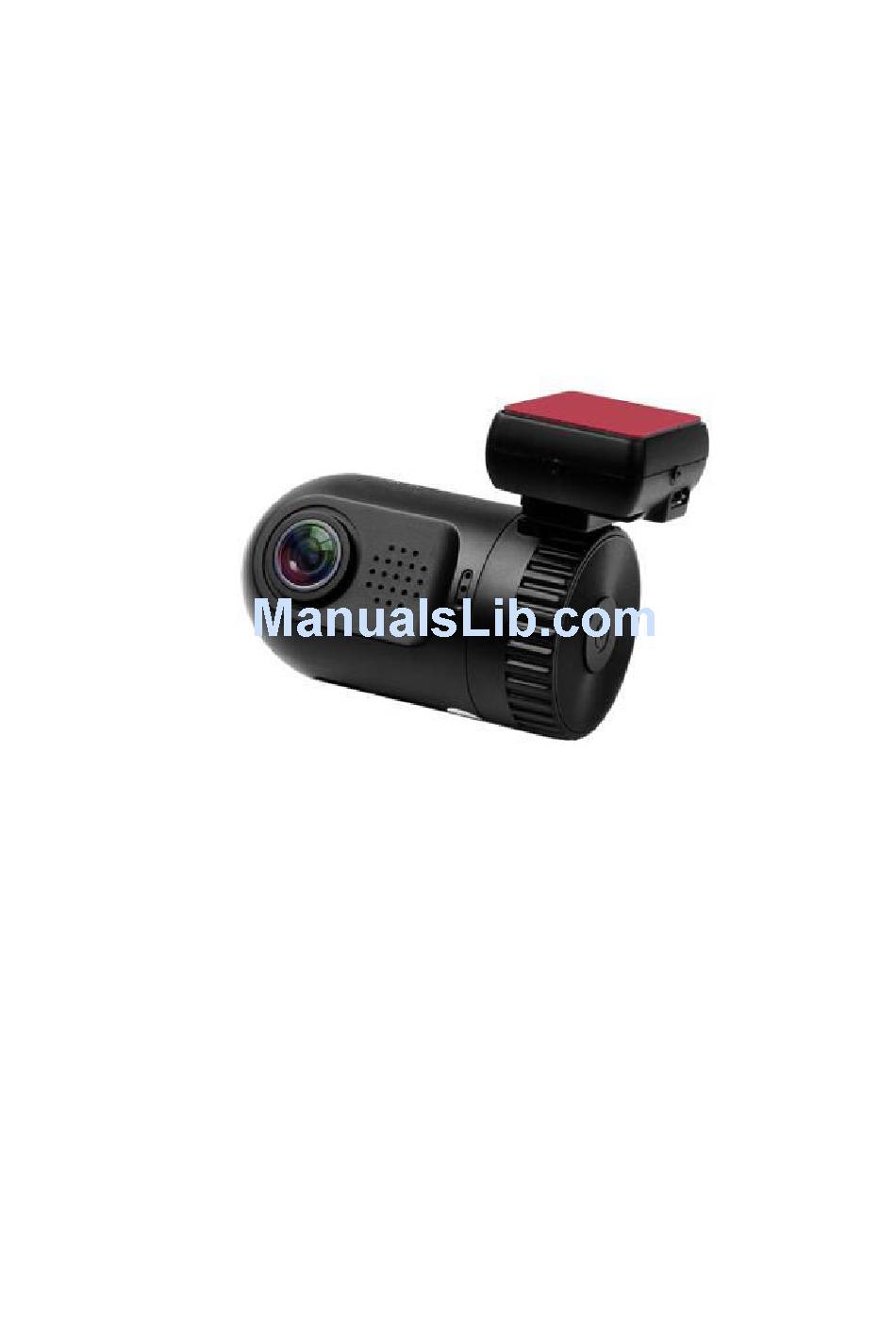

  • Page 1 Mini0801S Mini0805 User Manual...
  • Page 2 Please read this manual carefully before using this product. Please keep this manual for future reference. V1.0 PRECAUTIONS Please kindly take special note of the following before using your new Dash Camera. 1. Remove the protective film from the lens. 2.
  • Page 3 9.Car battery voltage protection for parking guard. If car battery voltage falls below 11.5V, camera cannot receive power from the car battery and camera will be turned off automatically, Parking Guard function will not work at the same time, to ensure the car engine will start normally. 10.Built-in super capacitor battery operates only for a short duration.
  • Page 4 temperatures will shorten the super capacitor life and/or degrade the plastic components. Note extreme temperatures can be achieved in parked cars in direct sunlight. Exposing the dash camera to strong sunlight when using Motion Detection mode may cause the camera to malfunction or become damaged as the temperature can be too high in your car in summer or during high temperature conditions.
  • Page 5 9. The camera will start to record automatically once the car engine is started. 10. Please set the time zone, date and time correctly before using camera. ACCESSORIES Before using this product, please make sure that your camera package consists of all the following items.
  • Page 6 4. Then place the GPS/GPU mount onto the static sticker, then if you need to remove the bracket, it is easy, just remove the static sticker from windscreen. CPL filter Reduce the reflection from shiny surface like vegetation, sweaty skin, water surface, glass, road, and let the natural color come through at the same time.
  • Page 7 1. Bracket, double side tape stick on here. (if have GPS function, GPS logger is inside the bracket) 2. Micro USB port 1 3. AV port 4. Up / Menu / Mute button 5. OK button 6. Down / Playback / SOS button 7.

  • Page 8: Specification

    11. HDMI port 12. Micro SD card slot 13.Rotating angle parts(90 degree) SPECIFICATION AIT8328P chipset also named MSC8328P (MSTAR) Mini0805P: OV4689 sensor Mini0801S: OV2710 sensor 1.5inch TFT LCD screen Resolution: Mini0805P 2304X1296 30fps 1920*1080 30fps 1920*1080 30fps HDR 1280*720 30fps...

  • Page 9: Operation

    Support parking guard (with hardwire kit, optional) OPERATION Read this chapter to learn how to operate the camera. Turn on / off camera This camera does not have an internal battery, it utilizes a super capacitor, so it must be continually connected with the power supply when using.
  • Page 10 Storage card preparation The camera supports micro SD card up to 64GB maximum. It is recommended to use high speed micro SD card to avoid storage problems. Please format the SD card before recording. It’s suggested to formate the card every two weeks to avoid file segments which may cause recording problem.
  • Page 11 the screen to save power at any time, short press any buttons again to turn on the screen. Or you can set it in the MENU. Videos and photos playback 1. Playback on camera When camera is in standby, long press DOWN button to enter photo mode; long press DOWN button again to enter videos / photos playback;...
  • Page 12 the camera, which can playback the video recording with GPS traces. You can also use a compatible media player to playback the MOV. video files directly, without the GPS trace. Please notice you need to connect USB cable with Micro USB port 1 in camera when playback on computer, don’t use the Micro USB port 2 in mount.
  • Page 13 Options: Resolution: Mini0805P 2304X1296 30fps 1920*1080 30fps 1920*1080 30fps HDR 1280*720 30fps 1280*720 60fps Resolution: Mini0801S 1920*1080 30fps 1920*1080 30fps HDR 1280*720 30fps 1280*720 60fps Photo Size Here you can set the photo size. Options: 14M / 12M / 8M / 5M / 3M / 2M Quality Here you can adjust the video quality;...
  • Page 14 continuous video without any segmentation, please set it to OFF, however be aware that the maximum video file size is 4GB and the camera will stop recording once the card is full. Options: 1 MIN / 3 MIN / 5 MIN / OFF Beep Sound Here you can set the beep sound of the button.
  • Page 15 If any impact over the threshold value is detected. The current recording file will be locked / protected to avoid being over-written. Here you can define the sensitivity threshold value. Options: High / Middle / Low / OFF Contrast & Sharpness Here you can adjust the video contrast &...
  • Page 16 GPS Stamp The camera can record your driving track and stamp the GPS data on video. Here you can define the GPS data stamping method. Please note there maybe electronic interference on GPS signal from camera, radar detector, wireless transmitter, hardwire kit, car charger, or other devices;...
  • Page 17 can press any button to turn on screen. Options: off / 10s / 20s / 30s Or you can short press POWER button to turn on/off screen. Time Zone Please set the local time zone correctly to get the correct time from GPS satellites. You may need to manually add or minus time zone value for daylight saving time, to display the correct time.
  • Page 18 Version Here you can find the current version of the firmware (DVR & MCU) in your camera. You may need this information when you are trying to upgrade the camera to a later firmware. Update process: 1. Format the micro SD card. 2.
  • Page 19 GPS (optional) How to use the built in GPS player in the firmware（Some model without GPS tracker function）: 1. Insert MicroSD card into camera; the system will copy the GPS player to your MicroSD card automatically. 2. Connect the USB port on the camera body to computer via USB cable, you can see the files as below, 3.1 Click “”PLAYER”...
  • Page 20 Choose green background “download “ 4. If your computer is already installed, just click and play the video 5.click to import files from camera, use to check more files. Player Icon:...
  • Page 21 Remarks: 1.we suggest copying the whole PLAYER file from MicroSD card to computer, and play the videos on , by this way, all the GPS information will be showed. 2. WindowsXP system and Macbook can not support this GPS player. 3.
  • Page 22 PARKING GUARD (optional) 1. When using Parking Guard Function, only use the hardwire kit to get power from the car battery. Input voltage is DC12-30V ,Output voltage is DC5V,1.0A Three wires : ACC , GND,VDD Note: This hard wire kit is not plug and use , if can not install ,please come to car shop for professional installation Please note that you can not use car charger for parking guard function.

  • Page 23: Power Source

    B: Time Lapse Choose Time Lapse, when car engine is stopped, there will be “ACC OFF” words on the camera screen, the camera will record 1 minute normal fps video, then will start loop recording in low FPS status (1 fps/second video) when parking. C: Normal Choose Normal, when car engine is stopped, there will be “...
  • Page 24 socket is it will occupy your cigar lighter socket and may create alignment difficulty for the long cable. 2. Camera can get power from car battery via hardwire kit. MOUNTING The camera is designed for easy & quick mounting to your windshield with the VHB sticker pad.

  • Page 25: Pc System Requirements

    Please don’t break off the mount bracket from windshield with a rigid crowbar, this may damage the mount bracket or your windshield. The recommended mounting location for camera is at the center of the windshield, just behind the rear view mirror. That is the most invisible location to hide the camera, and will not interrupt you when driving.
  • Page 26 format the micro SD card. ● No image display on TV screen Please confirm the HDMI cable is connected correctly, and the TV is set to the correct HDMI mode. ● Image is blurred Maybe the lens or windshield is not clean; please check if there is dust, fingerprint, or something else on the leans.
  • Page 27 ● Memory card can not be used Remove the memory card or use another memory card. Or format the memory card, before formatting; make sure to backup files first. ● Power indicator doesn’t work Please check the power line OK or not. ●...
  • Page 28 making any changes. In addition, the manufacturer reserves the right to change technical specification without informing you prior to making any changes. If the accessories listed differ from the ones included with the actual product, please accept the actual product as standard and correct.

This manual is also suitable for:
