Summary of Contents for SST Microphone Mini DM-05

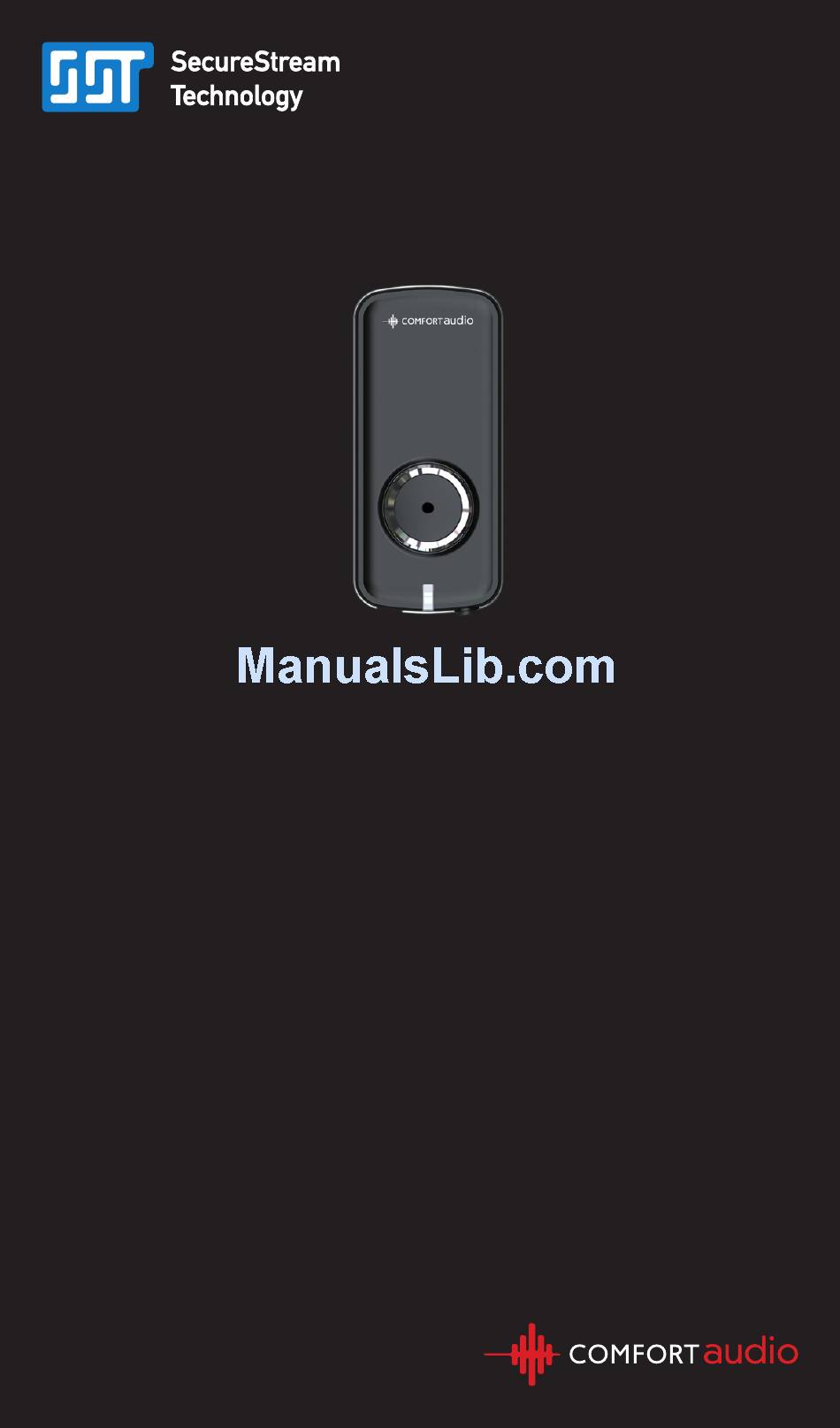

- Page 1 User Manual Microphone Mini DM-05 English Microphone Mini DM-05...
-
Page 2: Table Of Contents
User Manual Table of Contents Page Introduction to the Comfort Digisystem Presenting the Microphone Mini DM-05 Functions of the Microphone Mini DM-05 Getting Started First Time Use Settings Pairing More Functions Radio Range and Channels Attached Accessories Other original Accessories... -
Page 3: Introduction To The Comfort Digisystem
The microphone is extremely discreet and can be simply attached to clothes with a clip. The Microphone Mini DM-05 is equipped with a voice AGC (Automatic Gain Control) to maintain a comfortable sound level at all times. -
Page 4: Functions Of The Microphone Mini
Functions of the Microphone Mini DM-05 Charging socket On / Off Hole to secure neck pendant Clips Omnidirectional microphone Pairing button Function indicator Microphone Mini DM-05... -
Page 5: Getting Started
Getting Started Charging The Microphone Mini DM-05 is chargeable. Charge the DM-05 at least two hours before you use it for the first time. An empty battery is fully charged within two hours. During charging, the function indicator shows red. -
Page 6: First Time Use
Switch on the transmitter by pressing the On/Off button for around two seconds. Function indicator ON. The Microphone Mini DM-05 s a microphone for closer range. It works best within approx. 30 cm. Attach the DM-05 to your clothes using the clip. The... -
Page 7: Settings
If you release the pairing button when the function indicator Change code is red, mode is activated. Press the pairing button twice in quick succession to generate a random Microphone Mini DM-05... -
Page 8: Pairing
The channel and code are now reset to the factory settings. Pairing In contrast to other Comfort Digisystem transmitters, the Microphone Mini DM-05 does not have a display and must therefore be paired using the pairing button, see section Pairing (via pairing button) Pairing To use a receiver and transmitter together, they must be paired. - Page 9 (position I or II) and connected to an operating hearing aid. The selector is then quickly moved to position 0 and back to the operating position (I or II). The connector can now receive pairing info. If no info is Microphone Mini DM-05...
- Page 10 Microphone Mini DM-05...
-
Page 11: More Functions
When sending pairing information, the indicator flashes red five times. A constant green light indicates Change channel mode. A constant red light indicates Change code mode. An alternating red/green light indicates Factory reset mode. Microphone Mini DM-05... -
Page 12: Radio Range And Channels
4. A25 - 780.000 MHz* 5. A15 - 784.000 MHz 6. C25 - 790.400 MHz 7. C12 - 795.600 MHz 8. D45 - 802.000 MHz 9. D34 - 806.400 MHz 10. D15 - 814.000 MHz * Factory-set channel Microphone Mini DM-05... - Page 13 9. B15 - 857.200 MHz 10. B4 - 861.600 MHz * Factory-set channel In addition to these selectable channels, channels within the frequency range of each DM-05 model can be set by means of pairing with other Digisystem units. Microphone Mini DM-05...
-
Page 14: Attached Accessories
The car charger is designed for cars with a 12 volt (-) earthed electrical system. The charger has short-circuit and automatic overload protection. Disconnect the char- ger from the socket after use. Charging stand For other accessories, please visit our website, www.comfortaudio.com Microphone Mini DM-05... -
Page 15: Troubleshooting
There may also be equipment nearby causing interference. Change channel. No sound Check that the transmitter and receiver are set to the same channel. Loud hissing noise (no sound transfer) Check that the units are paired. Microphone Mini DM-05... -
Page 16: Service And Warranty
Contact your point of purchase once it is time to change the battery. You are always welcome to contact us at Comfort Audio if you have any questions. Technical Data Type of transmitter: SST - SecureStream Technology Range: Approx. 30 m Dimensions: 58 x 27 x 14 mm incl. clip... -
Page 17: Important Safety Instructions
13) Start listening at a low volume. 14) Too high a volume can seriously damage your Microphone Mini DM-05... - Page 18 21) You must not change the battery yourself; please contact your point of purchase. CAUTION! Danger of explosion if battery is incorrectly replaced. 23) The product shall not be exposed to excessive heat such as sunshine, fire or the like. Subject to change Microphone Mini DM-05...
- Page 19 Microphone Mini DM-05...
- Page 20 Manufactured by: Comfort Audio AB Box 154, SE-301 05 Halmstad, Sweden Tel. +46 (0)35 15 23 00 Fax +46 (0)35 15 23 23 info comfortaudio.com www.comfortaudio.com Microphone Mini DM-05...
