ALL-HS02530 Hotspot in a Printer

User Manual

ALL-HS02530
Hotspot in a Printer
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALL-HS02530 and is the answer not in the manual?

Questions and answers

Summary of Contents for Allnet ALL-HS02530

  • Page 1: User Manual

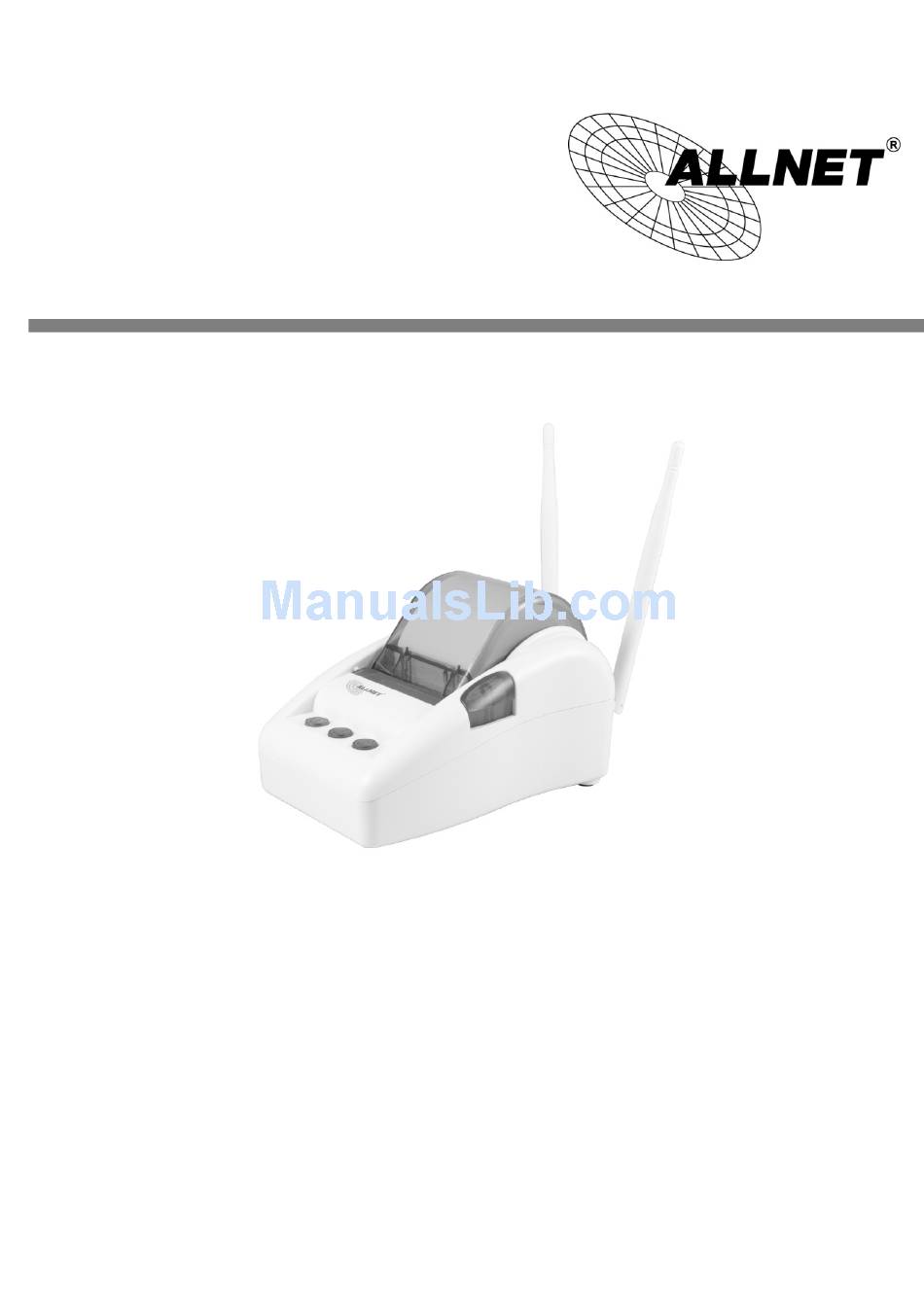

    ALL-HS02530 Hotspot in a Printer User Manual ALL-HS02530 Hotspot in a Printer...
  • Page 2 ALL-HS02530 Hotspot in a Printer Default-IP: 10.59.1.1 Username: admin Password: admin Disclaimer We shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. We reserve the right to change the product specification without notice.

  • Page 3: Table Of Contents

    ALL-HS02530 Hotspot in a Printer Contents Introduction ......................4 Package Contents ................... 5 Features ....................5 Precautions .................... 6 Outlook ....................6 1-4-1 Printing a test page ................ 8 1-4-2 How to load paper rolls..............9 Technical Specifications ............... 10 1-5-1 Hardware Specifications ..............
  • Page 4 ALL-HS02530 Hotspot in a Printer 3-2-5-2 WAN/LAN ................63 3-2-5-3 Server ................... 67 3-2-5-4 Customization ..............70 3-2-5-5 Portal Page ................79 3-2-5-6 Advertisement ..............80 3-2-5-7 Walled Garden ..............81 3-2-5-8 DDNS ..................82 3-2-5-9 Wireless ................85 System Status ..................88 3-3-1 System ..................

  • Page 5: Introduction

    It’s completely Plug’ Play with any browser. The ALL-HS02530 provides QR code service. You can install any QR code APP to your mobile device, and then scan QR code on the ticket to get access of the Internet! You...

  • Page 6: Package Contents

    ALL-HS02530 Hotspot in a Printer 1-1 Package Contents Please inspect your package. The following items should be included: ALL-HS02530 One ALL-HS02530 One Thermal papers (50 meter) One Power Adapter One Ethernet Cable (1.5 meter) One Quick Installation Guide Two Detachable Antenna...

  • Page 7: Precautions

    Never install the system in the wet locations. Use only the original fitting AC power adapter otherwise there is a danger of severe electrical shock. Avoid exposing the ALL-HS02530 to direct sunlight or another heat source. Choose a well-ventilated area to position your ALL-HS02530. 1-4 Outlook...
  • Page 8 11. Micro USB connector 12. WLAN LED (Green) 13. UPLINK LED(Yellow) 14. SMA connector 15. SMA connector WLAN LED: Off: The wireless is not ready. Green light: The ALL-HS02530 has established a valid wireless connection. Green Blinking: The wireless connection is active.

  • Page 9: Printing A Test Page

    Yellow Blinking: 10/100 Mbps traffic is traversing the port. Reset Button: The ALL-HS02530 has a reset button at the rear panel of the device. Use this function to reset the system back to factory defaults. PRESS THE BUTTON 30 SECONDS TO RESET.

  • Page 10: How To Load Paper Rolls

    ALL-HS02530 Hotspot in a Printer 1-4-2 How to load paper rolls Please follow the steps to correctly load paper rolls. Figure 1-4-4 Paper rolls loading...

  • Page 11: Technical Specifications

    ALL-HS02530 Hotspot in a Printer 1-5 Technical Specifications 1-5-1 Hardware Specifications Network Specification IEEE802.3 10BaseT Ethernet IEEE802.3u 100BaseTX Fast Ethernet IEEE802.11b/g/n Wireless LAN ANSI/IEEE 802.3 NWay auto-negotiation Wi-Fi Compatible Connectors One WAN Port (10BaseT/100BaseTX Auto cross-over) One Micro USB connector...

  • Page 12: Software Specifications

    ALL-HS02530 Hotspot in a Printer Operating Temperature: 0 to 50°C Storage Temperature: -10 to 60°C Operating Humidity: 20~80% non-condensing Storage Humidity: 20% to 90% non-condensing Certifications FCC part 15 Class B, CE , C-Tick , VCCI Dimension Size: 109×155×90 (W×D×H )mm...
  • Page 13 ALL-HS02530 Hotspot in a Printer IEEE802.11n Wireless LAN Supports 30 Simultaneous Users IP Plug and Play (iPnP) HTTP Proxy Support WEP64/128bit WPA-PSK (TKIP) WPA2-PSK(AES) WPA/WPA2 Mix mode SMTP Server Redirection DHCP Server(RFC 2131) DHCP Relay(RFC 1542) Static IP WAN Client...
  • Page 14 ALL-HS02530 Hotspot in a Printer SSL User Login page/ Configuration Page SSL Administration VPN Pass through (IPSec/PPTP) Customize SSL Certificate Pass Through IP/MAC/URL Address Restricted Destination Filtering IP/URL VPN (IPSec/PPTP) Pass through PPTP VPN Client WPA2 WPA/WPA2 Mix mode Management...

  • Page 15: Installation

    ALL-HS02530 Hotspot in a Printer 2 Installation 2-1 Connecting the Antennas The ALL-HS02530 provides two antenna connectors on the rear of the unit. 2-2 Installation Requirements Before installing the ALL-HS02530, make sure your network meets the following requirements. System Requirements...
  • Page 16 2. The gateway’s default subnet mask setting is “255.255.255.0”. The Dynamic IP settings for the PC We recommend that you leave your IP settings as automatically assigned. By default, the ALL-HS02530 is a DHCP server, and it will give your PC the necessary IP settings.

  • Page 17: Getting Start

    ALL-HS02530 Hotspot in a Printer 2-3 Getting Start ALL-HS02530 Connection 1. Connect the DC power adapter to the ALL-HS02530 and plug it into a power socket. 2. Connect ALL-HS02530 and xDSL modem with an Ethernet Cable. Figure 2-3-1 ALL-HS02530 Connection...
  • Page 18 ALL-HS02530 Hotspot in a Printer Configure TCP/IP of your computer For Windows user, 1. Click Start > Control Panel, click Switch to Classic View and double click on Network Connections. 2. Right click on the Local Area Connection and click Properties.

  • Page 19: Configuring The All-Hs02530

    Step 2: Start your browser, and then enter the factory default IP address 10.59.1.1 your browser’s location box. Press Enter. Figure 3-1-1 Web Browser Location Field (Factory Default) Step 3: The ALL-HS02530 configuration tools menu will appear. In the Username and admin admin Password field, type the factory default user name and password click Login.
  • Page 20 ALL-HS02530 Configuration Program, please press the reset button to load the device to manufacturer defaults. 4. If the ALL-HS02530 doesn’t send packet in 5 minutes (default), the ALL-HS02530 wills logout automatically. 5. Proxy needs to set disable first when administrator accesses admin UI.
  • Page 21 ALL-HS02530 Hotspot in a Printer Step 4: Internet Connection Setting Select the appropriate Internet connection type to connect to your ISP. Figure 3-1-5 Internet Connection Setting Screen DHCP Client The device can work as a DHCP client. This allows the device to obtain the IP address and other TCP/IP settings from your ISP.
  • Page 22 ALL-HS02530 Hotspot in a Printer Static IP Setting If Static IP Setting is selected, then this screen will appear. Enter the IP address information provided by your ISP. Figure 3-1-7 Internet Connection Setting Screen—Static IP Setting Item Default Description 0.0.0.0 IP Address Enter the IP address provided by your ISP.
  • Page 23 Enter the service name provided by your ISP. The service name can consist Service Name Empty of up to 64 alphanumeric characters and is case sensitive. Connect on Demand and Max Idle Time Connect on You can configure your ALL-HS02530 to cut your connection with your ISP Enable...
  • Page 24 10 Minutes Max Idle Time ALL-HS02530 to automatically re-establish your connection as soon as you attempt to access the Internet again. If you wish to activate Connect on Demand, click the radio button. If you want your Internet connection to remain, click the radio button of keep alive.
  • Page 25 ALL-HS02530 Hotspot in a Printer PPTP Client (Point-to-Point Tunneling Protocol) If PPTP Setting is selected, then this screen will appear. Please enter the IP address, Username and Password provided by your ISP. Figure 3-1-9 Internet Connection Setting Screen—PPPoE Setting Item...
  • Page 26 Connect on Demand and Max Idle Time Connect on Demand Enable You can configure your ALL-HS02530 to cut your connection with your ISP after a specified period of time (Max Idle Max Idle Time Time). If you have been disconnected due to inactivity, Connect on Demand...
  • Page 27 ALL-HS02530 Hotspot in a Printer Step 5: Wireless Setting Wireless Setting: This page allows you to Channel ID and 802.11 Mode for wireless connection. Figure 3-1-10 Wireless Setting Screen Item Default Description Channel Enter the channel ID for wireless connection.
  • Page 28 ALL-HS02530 Hotspot in a Printer Step 6: System Setting System Setting: ALL-HS02530 allows to change the administrator’s Username and Password, and an NTP server setting. Figure 3-1-11 System Setting Screen Item Default Description Username admin Enter the user name. The user name can consist of up to 80 alphanumeric characters and is case sensitive.

  • Page 29: Advanced Setup

    ALL-HS02530 Hotspot in a Printer 3-2 Advanced Setup The Advanced Setting enables you to configure advanced settings related to accessing the Internet, including, AUTHENTICATION AUTHENTICATION RADIUS BILLING BILLING ACCOUNTING CREDIT CARD MANAGEMENT SYSLOG SESSION TRACE BANDWIDTH SNMP SECURITY PASS THROUGH...

  • Page 30: Authentication

    ALL-HS02530 Hotspot in a Printer 3-2-1 AUTHENTICATION 3-2-1-1 Authentication Figure 3-2-2 Authentication Item Default Description Authentication Type No Authentication Option: No Authentication, Built-in Authentication or User Agreement. No Authentication Subscriber can direct access the Internet without enter username and password.
  • Page 31 ALL-HS02530 Hotspot in a Printer Copy and paste the following HTML Code into your home page to produce user agreement login page. Figure 3-2-3 Preview Redirect Login Page Code Item Default Description Current User Information Backup 1 Min(s) The system provides automatically backup account information and unused account to flash ROM.

  • Page 32: Radius

    Subscriber can direct access the Internet without enter username and password. Enable (RADIUS Authentication) ALL-HS02530 provides “RADIUS Authentication” for service provider to build up an Internet service with RADIUS server. If RADIUS Authentication is enabled, all subscribers’ authentication will send to RADIUS Server by RADIUS protocol (RFC 2865, 2866).
  • Page 33 ALL-HS02530 Hotspot in a Printer are from 0 to 65535. Accounting Port 1813 Enter the accounting port number; the accounting port number must match with the RADIUS server setting. The allowed numbers are from 0 to 65535. Share Secret Key...

  • Page 34: Billing

    ALL-HS02530 Hotspot in a Printer 3-2-2 BILLING 3-2-2-1 Billing The function is used to setup a billing profile. A billing profile is a description of how you want to charge your customer. Figure 3-2-5 Billing Setting Screen Item Default Description...
  • Page 35 ALL-HS02530 Hotspot in a Printer Accumulation Disable The subscriber can access Internet many times with one account. The system can keep and accumulate every single usage time until the pre-defined usage time run out. Idle Time Out 5 Min(s) The idle time out valid range is 1-1440. If the idle time out is set as 5 minutes, it means if the account doesn’t send packet in 5 minutes, the...
  • Page 36 ALL-HS02530 Hotspot in a Printer Figure 3-2-6 Accumulation and Time to Finish Figure 3-2-7 Pre-paid Procedure Diagram...

  • Page 37: Accounting

    ALL-HS02530 Hotspot in a Printer 3-2-2-2 Accounting This function allow service provider to generate the subscriber accounts. Figure 3-2-8 Accounting Setting Screen Item Default Description Expiration Un-used account will be deleted 24 hours Enter the number of hours/minutes/days. The field maximum after ~hours automatically value is 30 hours/minutes/days.
  • Page 38 ALL-HS02530 Hotspot in a Printer Figure 3-2-9 Account Process DiagramCan be replenished by subscriber=Enable Item Default Description Button A~C Define each button’s billing profile. Select one billing profile by clicking in the list box. Print to… Account Generator Printer Select a printer to print out your account.
  • Page 39 ALL-HS02530 Hotspot in a Printer Figure 3-2-11 Account Generator Printer (Time to Finish) Figure 3-2-12 Account Generator Printer (Accumulation) Note: Before configuring the accounting, you have to setting the billing profile of Web-based account generator panel.
  • Page 40 ALL-HS02530 Hotspot in a Printer Example: If press 7 times Discount Price Plan based on “Button Presses” is disabled. Figure 3-2-13 Example 1 Amount: 7 x $2.00= $14.00 Figure 3-2-14 Account Printout...
  • Page 41 ALL-HS02530 Hotspot in a Printer Discount Price Plan based on “Button Presses” is enabled. The Charge by level is disabled. Figure 3-2-15 Example 2 Amount: 7 x $ 1 = $ 7.00 Below is an example of the account printout.
  • Page 42 ALL-HS02530 Hotspot in a Printer Figure 3-2-16 Account Printout Discount Price Plan based on “Button Presses” is enabled. Charge by level is enabled. Figure 3-2-17 Example 3...
  • Page 43 ALL-HS02530 Hotspot in a Printer Amount: 2 x $2.00 + 4 x$ 1.50+1x$1= $11.00 Below is an example of the account printout. Figure 3-2-18 Account Printout Discount Price Plan based on “Button Presses”...
  • Page 44 ALL-HS02530 Hotspot in a Printer Figure 3-2-19 Discount Price Plan Setting Screen Item Default Description Charge by levels Enable Enables or disables the charge by levels function. 1-10 Level This field displays the level number of charge rate. Conditions When>=...

  • Page 45: Management

    Enables or disables the syslog server function. Syslog on LAN Server IP Address Empty Enter syslog server’s IP address. The ALL-HS02530 will send all of its logs to the specified syslog server. Server MAC Address Empty Enter the syslog server’s MAC address. The ALL-HS02530 will...
  • Page 46 ALL-HS02530 Hotspot in a Printer Item Default Description Syslog on WAN Server 1 IP Address Empty Enter IP address of first syslog server. Server 2 IP Address Empty Enter IP address of second syslog server. Send to Email Disable Enables or disables the send to e-mail function.
  • Page 47 ALL-HS02530 Hotspot in a Printer Log Categories Figure 3-2-21 Log Settings Screen Item Default Description System Device Information Every 10 minute(s) The range is 5~60 minutes. The log included system information would be sent according to specified interval time. Format： ： ： ：...
  • Page 48 ALL-HS02530 Hotspot in a Printer WAN_QUALITY=5; System Up Notice When system If device have been rebooted or restarted, the log would be rebooted or restarted sent. Format： ： ： ： PRODUCT=W ALL-HS02530 ;VER=2.00.00;LOGNAME=SUN; DATE=07Mar26;TIME=15:23:32; WANMAC=09-00-0e-00-00-01;LANMAC=09-00-0e-00-00-02; WLANMAC=09-00-0e-00-00-03; IP_ADDRESS=210.66.37.21; SYS_NAME=Cafehotspot;LOCATION=East;CITY=Taipei; COUNTRY=Taiwan; FIRMWARE=v1.01.02;MESSAGE=System_Up;...
  • Page 49 ALL-HS02530 Hotspot in a Printer Format: PRODUCT= ALL-HS02530;VER=2.00.00;LOGNAME=WAI; DATE=07Mar26;TIME=15:23:32; WANMAC=09-00-0e-00-00-01;LANMAC=09-00-0e-00-00-02; WLANMAC=09-00-0e-00-00-03; IP_ADDRESS=210.66.37.21; USER_NUM=15;SEQ=1-5;USER_MAC=02-34-3e-01-00; User User Login When user logged-in A log including users information will be sent when user logged–in Format: PRODUCT= ALL-HS02530;VER=2.00.00;LOGNAME=ULI;DATE=07Mar26; TIME=15:23:32;WANMAC=09-00-0e-00-00-01; LANMAC=09-00-0e-00-00-02; WLANMAC=09-00-0e-00-00-03; IP_ADDRESS=210.66.37.21;USER_NAME=asdfg12;USER_IP=10.59.1. USER_MAC=02-34-3e-01-00;INTERFACE=Ethernet; USER_TYPE=Dynamic; User Type = Dynamic / Super / User Agreement / Radius / No-Auth...
  • Page 50 ALL-HS02530 Hotspot in a Printer IP_ADDRESS=210.66.37.21;USER_NAME=asdfg12;USER_IP=10.59.1. USER_MAC=02-34-3e-01-00;INTERFACE=Ethernet; USER_TYPE=Dynamic;RXDATA=1234; TXDATA=1234; USED_TIME=24:00:00;LOGOUT_TYPE=Time_Up;TIME_LEFT=24:00:0 User Type = Dynamic / Super / User Agreement / Radius / No-Auth Current User List Every 10 minute(s) The range is Range 5~60 minutes. A log including logged-in users information will be sent according to specified interval...

  • Page 51: Session Trace

    ALL-HS02530 Hotspot in a Printer ACCOUNT_PRICE= USD20.00; ACCOUNT_USAGE_TIME=10:59:59; BILLING_INDEX=1;BILLING_UNIT=2; Account Type = TimeToFinish / Accumulation / PostPaid Account Price = Currencyxx.xx Currency = AUD | CHF | EUR | GBP | JPY | RIY | USD Billing Amount When received...
  • Page 52 ALL-HS02530 Hotspot in a Printer Figure 3-2-22 Session Trace Setting Screen Item Default Description TFTP Server Session Trace Disable Disables or enables session trace function. Primary TFTP Server IP Empty Enter the IP address of the primary TFTP server. Address...
  • Page 53 ALL-HS02530 Hotspot in a Printer Password Empty Enter the password for the SMTP server Email From Name Empty Enter the name you would like to appear in the “message from” field of your outgoing message. The maximum allowed characters length is 20.

  • Page 54: Bandwidth

    ALL-HS02530 Hotspot in a Printer 3-2-3-3 Bandwidth The function enables administrator to limit bandwidth usage on a per user basis (MAC address). That prevents users from consuming a disproportionately large amount of bandwidth so every user gets a fair share of the available bandwidth.

  • Page 55: Snmp

    ALL-HS02530 Hotspot in a Printer 3-2-3-4 SNMP The SNMP Agent Configuration screen enables you to access to your device via Simple Network Management Protocol. If you are not familiar with SNMP, please consult your Network Administrator or consult SNMP reference material. You must first enable SNMP on the SNMP Agent Configuration screen.

  • Page 56: Security

    ALL-HS02530 system. Because some network devices might be constructed under the ALL-HS02530. However these devices needn’t be checked and authorized. The ALL-HS02530 provides a pass through list and the administrator can control which devices can be pass through with authentication.
  • Page 57 Mask Empty Enter the subnet mask of you wants pass through. Pass Through List Display the pass through Information of ALL-HS02530. The index number of pass through address. Active Disable Click on check box, active or inactive the pass through address.

  • Page 58: Filtering

    ALL-HS02530 Hotspot in a Printer 3-2-4-2 Filtering Filtering allows the system administrator to have a list of restricted destinations, which is useful to block specified Internet websites or Intranet areas. Figure 3-2-26 Filtering Setting Screen Item Default Description Filtering Disable Enables or disables filtering function.
  • Page 59 ALL-HS02530 Hotspot in a Printer The index number of filtering address. Active Disable Click on check box, active or inactive the filtering address. Address List Display the filtering address(s). Delete Disable Select the check boxes and click ‘Delete’ to delete the filtering address(s).

  • Page 60: Secure Remote

    ALL-HS02530 Hotspot in a Printer 3-2-4-3 Secure Remote This feature allows you to create a secure connection to a remote site or back end system with VPN PPTP Client. If “Secure Remote” is enabled, the RADIUS packet/ syslog will be transferred to this secure connection.

  • Page 61: System

    ALL-HS02530 Hotspot in a Printer Click refresh button to delete all entries. 3-2-5 SYSTEM 3-2-5-1 System Define the ALL-HS02530 System configuration. Figure 3-2-28 System Setting Screen...
  • Page 62 Daylight Saving Time Disable Enables or disables Daylight Saving Time (DST). Month/Day Set the Daylight Saving Time (DST) on the ALL-HS02530. Adjust the begin time and end time. NAT (Network Address Translation) Enable Enables or disables NAT Address Translation function.
  • Page 63 Allow remote user to ping Enable This function allows remote user to ping the ALL-HS02530 the device through Internet. Ping is normally used to test the physical connection between two devices, to ensure that everything is working correctly.

  • Page 64: Wan/Lan

    ALL-HS02530 Hotspot in a Printer 3-2-5-2 WAN/LAN Figure 3-2-29 WAN/LAN Setting Screen...
  • Page 65 ALL-HS02530 Hotspot in a Printer...
  • Page 66 64 alphanumeric characters and is case sensitive. Connect on Demand Enable You can configure your ALL-HS02530 to cut your connection with your ISP after a specified period of time (Max Idle Time). If you have been Max Idle Time...
  • Page 67 ALL-HS02530 Hotspot in a Printer maximum value is 65535 minutes. Keep alive Disable This option keeps your PPPoE enabled Internet access connected indefinitely, even when it sits idle. The Redial Period maximum value is Redial Period 30 Seconds 65535 seconds.

  • Page 68: Server

    Web Server HTTP Port Enter the HTTP port number. The HTTP port allowed range is 80 or 8010 to 8060. For access the ALL-HS02530 system under NAT, please tab the “http://HTTP Port IP Address: Port Number”. HTTPS Port Enter the HTTPS port number. The HTTPS port allowed range is 443 or 4430 to 4440.
  • Page 69 DHCP Server IP Address Empty Enter the IP address of DHCP server. DHCP Server The ALL-HS02530 's DHCP server is turned on and running by default when you install it in your network. DHCP Pool Starting 10.59.1.2 Enter the DHCP Pool Starting IP address.
  • Page 70 ALL-HS02530 Hotspot in a Printer Static DHCP This function allows subscriber to assign IP address on the LAN to specific individual computers based on their MAC Address. Figure 3-2-31 Server Setting Screen Item Default Description IP Address Empty Enter the IP address that subscriber want to assign to the computer on LAN with the MAC address the subscriber will also specify.

  • Page 71: Customization

    ALL-HS02530 Hotspot in a Printer 3-2-5-4 Customization Login Page The ALL-HS02530 provides three different login page formats, including standard, redirect, advanced and frame format.
  • Page 72 ALL-HS02530 Hotspot in a Printer Figure 3-2-32 Customization Setting Screen Item Default Description Standard For some service providers, they may hope to have a customize subscriber’s login page to the users. This function helps them to realize the ideal. The page elements are including login page title, background color, subtitle etc.
  • Page 73 ALL-HS02530 Hotspot in a Printer Subtitle Hot Spot Internet Enter the subtitle name of subscriber login page. The Service maximum allowed characters length is 80. Footnote Disable Allow the administrator to input the footnote such like “Pleas Contact to our Customer Service Center, EXT 141”. The maximum character of the footnote is 240.
  • Page 74 ALL-HS02530 Hotspot in a Printer Figure 3-2-34 Preview Redirect Login Page Code Advanced This function allow user to design login page of ALL-HS02530. Welcome Slogan Welcome The maximum allowed characters length is 80. Page Background None The page background can be none or specified color. For the background color format please views the color grid.
  • Page 75 ALL-HS02530 Hotspot in a Printer Bottom Frame. Bottom Frame is a default format for username and password input, Top Frame is allowed to be specified a URL to link. Top Frame URL Link Empty The input format can be http://www.yahoo.com. The maximum character of the URL Link is 200.
  • Page 76 ALL-HS02530 Hotspot in a Printer Logo This function allows service provider to upload the customer’s logo image file which can be shown on the standard login page and account printout of PC-connected printer. Figure 3-2-36 Logo Setting Screen Item Default...
  • Page 77 ALL-HS02530 Hotspot in a Printer Information Window This function allow service provider can decide whether they want an “Information Window” pop-up on subscriber PC when authenticate successful or not and specified text of information window. Subscriber can type “http://1.1.1.1/info” to open the information window again or enter “http://1.1.1.1/logout”...
  • Page 78 ALL-HS02530 Hotspot in a Printer Billing Type=Time to Finish Can be replenished by subscriber=Enable Figure 3-2-39 Information Window Billing Type=Accumulation Can be replenished by subscriber=Disable Figure 3-2-40 Information Window Billing Type=Accumulation Can be replenished by subscriber=Enable Figure 3-2-41 Information Window...
  • Page 79 ALL-HS02530 Hotspot in a Printer Account Printout This function allow service provider to specified text of account printout. Figure 3-2-42 Account Printout Customization Setting Screen Note: If you don’t print out QR code on the ticket, please disable “QR Code”.

  • Page 80: Portal Page

    ALL-HS02530 Hotspot in a Printer 3-2-5-5 Portal Page This feature allows redirecting subscriber’s browser to a specified portal page after successful login. Figure 3-2-43 Portal Page Setting Screen Item Default Description URL Link Empty Enter the URL Link page. The input format can be “http://www.yahoo.com”. The maximum character of the URL Link is 200.

  • Page 81: Advertisement

    This function allows the administrator to input ten different websites in the table for advertisement. And these 5 websites will display to the subscribers at random when the subscribers login in the ALL-HS02530 system. The input format can be “http://www.yahoo.com”. The maximum character of the URL Link # is 200.

  • Page 82: Walled Garden

    ALL-HS02530 Hotspot in a Printer 3-2-5-7 Walled Garden We prepare ten URL links that allows subscriber to access the specific Web pages even they didn’t have a username or password. It’s free trying and can use for advertisement. Figure 3-2-45 Walled Garden Setting Screen...

  • Page 83: Ddns

    IP associated with dynamic IP addresses. When the ISP assigns the ALL-HS02530 a new IP, the ALL-HS02530 must inform the DDNS server the change of this IP so that the server can update its IP-to-DNS entry. Once the IP-to-DNS table in the DDNS server is updated, the DNS name for your web server (i.e., xyz.dyndns.org)
  • Page 84 ALL-HS02530 Hotspot in a Printer Figure 3-2-46 DDNS Setting Screen Item Default Description Force to update every~day(s) when 1 day Enter a number in the field to set the force update WAN IP address keeps no change interval (in days).
  • Page 85 ALL-HS02530 Hotspot in a Printer N/A—DDNS Client service not installed. Update Successfully—DDNS Client service installed; service running. Update Fail—DDNS Client service installed; service not running. Service Provider Dyndns.org Select a DDNS service provider by clicking in the list (www.dyndns.org) box.
  • Page 86 ALL-HS02530 Hotspot in a Printer 3-2-5-9 Wireless Figure 3-2-47 Wireless Setting Screen...

  • Page 87: Wireless

    ALL-HS02530 Hotspot in a Printer Item Default Description General Settings Wireless Connection Enable To Enable or Disable wireless connection. Channel Select the channel ID for wireless connection. Multiple ESSID Setting Click Edit button for each of 4 ESSID setting. Figure 3-2-48 EDDID Setting Screen...
  • Page 88 2347 This value valid range is 256-2342. This setting determines the packet size at which the ALL-HS02530 issues a request to send (RTS) before sending the packet. A low RTS Threshold setting can be useful in areas where many client...

  • Page 89: System Status

    ALL-HS02530 Hotspot in a Printer 3-3 System Status Display ALL-HS02530 system basic status, including, 1. System 2. Account List 3. Account Log 4. Current User 5. DHCP Clients 6. Session List Figure 3-3-1 System Status Item Screen...

  • Page 90: System

    ALL-HS02530 Hotspot in a Printer 3-3-1 System The System Information Menu displays current system basic information including the service connection message, host name, LAN, WAN, DHCP Configuration, DNS, E-mail Redirection, SSL Certificate, network traffic Information and the system firmware version number.

  • Page 91: Account List

    ALL-HS02530 Hotspot in a Printer Figure 3-3-2 System Status Screen 3-3-2 Account List You can display a list of all the account information on this device. This table includes the username, password, usage time, time created, login time, expiration time and...
  • Page 92 ALL-HS02530 Hotspot in a Printer Figure 3-3-3 Account List Click refresh button to update the account list page. Click the column button (S/N, Status, Username, ….,etc.) to sort the column in ascending/descending order. Select the check boxes and click Delete to delete the accounts.

  • Page 93: Account Log

    ALL-HS02530 Hotspot in a Printer 3-3-3 Account Log The account log shows the accounts’ log information. Figure 3-3-4 Account Log Click Export to export the account logs to a text file format. (export.log) Click Clear Log button to remove all account log entries.

  • Page 94: Current User

    ALL-HS02530 Hotspot in a Printer 3-3-4 Current User Display the current logged-in subscribers’ status. It allow service provider to disconnect any subscribers. Figure 3-3-5 Current User List Click refresh button to update the current user list page. Click the column button (Interface, Type, Username, IP Address, …, etc.) to sort the column in ascending/descending order.

  • Page 95: Dhcp Clients

    ALL-HS02530 Hotspot in a Printer 3-3-5 DHCP Clients The DHCP client table shows the current DHCP users on the LAN. Figure 3-3-6 Current User Screen 3-3-6 Session List The remote site administrator could monitor the real time usage status of ALL-HS02530 via this page.

  • Page 96: System Tools

    ALL-HS02530 Hotspot in a Printer 3-4 System Tools This allows service provider or administrator to process Firmware upgrade, change password and backup or restore configuration. 1. Configuration 2. Firmware 3. Boot Code 4. Controller Board Firmware 5. System Account 6. SSL Certificate 7.

  • Page 97: Configuration

    ALL-HS02530 Hotspot in a Printer 3-4-1 Configuration Use the Configuration item to save, restore or reset configuration parameters of the ALL-HS02530. Figure 3-4-2 Configuration Setting Screen Item Default Description Backup Click it to save the system configuration to your computer. (export.cfg)
  • Page 98 ALL-HS02530 Hotspot in a Printer...

  • Page 99: Firmware Upgrade

    ALL-HS02530 Hotspot in a Printer 3-4-2 Firmware Upgrade The Firmware Upgrade menu loads updated firmware to be permanent in flash ROM. The download file should be a binary file from factory; otherwise the agent will not accept it. After downloading the new firmware, the agent will automatically restart it.
  • Page 100 ALL-HS02530 Hotspot in a Printer Scheduled Firmware Upgrade Scheduled Firmware Upgrade is a program that enables an automatic upgrade to the latest firmware version through the TFTP server. Figure 3-4-4 Scheduled Firmware Upgrade Setting Screen Item Default Description Disable/Enable Disables or enables the scheduled firmware upgrade function.

  • Page 101: Boot Code

    ALL-HS02530 Hotspot in a Printer unit. 3-4-3 Boot Code Figure 3-4-6 Boot Code Upgrade Setting Screen 3-4-4 Controller Board Firmware Figure 3-4-7 Controller Board Firmware Upgrade Setting Screen...

  • Page 102: System Account

    ALL-HS02530 Hotspot in a Printer 3-4-5 System Account Use the System Account screen to change the system accounts. Figure 3-4-8 System Account Setting Screen...
  • Page 103 Press Enter. Figure 3-4-9 Web Browser Location Field (Factory Default) Step 2: The ALL-HS02530 configuration main menu will appear. Enter admin as the Username and admin as the password and click Login. If you are first time setting the system, the wizard setup screen will appear.
  • Page 104 Press Enter. Figure 3-4-11 Web Browser Location Field (Factory Default) Step 2: The ALL-HS02530 configuration main menu will appear. Enter account as the Username and account as the password and click Login. Figure 3-4-12 Web-Based Accounting Manager Login Screen Step 3: After a valid user name and password have been provided, the account Generator Panel homepage will appear.
  • Page 105 Username and supervisor as the password and click Login. Figure 3-4-15 Supervisor Account Login Screen Step 3: After a valid user name and password have been provided, the ALL-HS02530 configuration homepage will appear. “WIZARD SETUP” and “ADVANCED SETUP” are...

  • Page 106: Ssl Certificate

    ALL-HS02530 Hotspot in a Printer Super Subscriber Account Start your Web Browser; a subscriber login page will appear. Enter super as the Username and super as the password and click Enter, you can use Internet now. Figure 3-4-16 Subscriber Login Page...

  • Page 107: Ping Command

    Enter the IP address or the URL link. 3-4-8 Restart If your ALL-HS02530 is not operating correctly, you can choose this option to display the restart ALL-HS02530 screen. Clicking the apply button restart the ALL-HS02530, with all of your settings remaining intact.

  • Page 108: Qr Code Service

    ALL-HS02530 Hotspot in a Printer Figure 3-4-20 Logout Screen 4 QR Code Service 4-1 QR code setting Please find Advance setting > Customization > Account Printout >QR code. If you don’t print out the QR Code on the ticket, please disable it and click Apply button.

  • Page 109: Additional Information For Qr Code Use

    If you will activate QR code service for Apple iOS 6 device and later, 1. Please find Advance setting > Security > Pass Through. 2. Choose “Enable”. 3. Add www.apple.com into PASS THROUGH list in ALL-HS02530 because iOS6 device and later is required. 4. Click Add to List button.

  • Page 110: Use Qr Code To Access The Internet

    ALL-HS02530 Hotspot in a Printer Step 2: Choose Enable Step 3: Add “www.appale.com” Step 4: Click Add to List Step 5: Choose Active Figure 4-2-1 Pass Through Setting Screen 4-3 Use QR code to access the Internet Please follow the steps to access the Internet for clients.
  • Page 111 ALL-HS02530 Hotspot in a Printer Figure 4-3-1 QR Coding Ticket 2. Connect to the ESSID(ex: ALL-HS02530 ), input WPA/WPA2 password(ex: 1234567890). Verify to connect the correct ESSID Input the WPA/WPA2 password Figure 4-3-2 Password Input Screen...
  • Page 112 ALL-HS02530 Hotspot in a Printer 3. Open up QR code APP and Scan. Scan QR code Figure 4-3-3 Scan 1 Screen 4. Some Apps may require user to click "Go to URL". Click “Go to URL” Figure 4-3-4 Scan 2 Screen...
  • Page 113 ALL-HS02530 Hotspot in a Printer 5. Client can use the Internet now. Figure 4-3-5 Scan Finish Screen...

  • Page 114: Personal Id Recognition

    Some countries or areas would ask users to show their personal identification when accessing WiFi service according to laws for the cybercrime investigation. ALL-HS02530 provides the function Personal Identification Recognition. The default is disabled. Subscribers need to activate it by the following steps.

  • Page 115: Personal Id Recognition Setting

    ALL-HS02530 Hotspot in a Printer 5-1 Personal ID Recognition Setting Step1. Active the function: Go to Advanced Setup -> System -> System. Enable the Personal ID Recognition Mode. Please refer the Chapter 3-2-5-1 System. Figure 5-1-1 System Setting...
  • Page 116 ALL-HS02530 Hotspot in a Printer Step2. The first billing profile you activate is the Personal ID Recognition selection. There is only ONE billing profile in the Personal ID Recognition mode. Please refer the Chapter 3-2-2-1 Billing to modify your first billing profile.
  • Page 117 ALL-HS02530 Hotspot in a Printer Step 4: The ALL-HS02530 configuration tools menu will appear. In the Username and Password field, type the factory default user name “account” and password “account” and click Login. Figure 5-1-4 Configuration Tools Menu Step 5: ONLY account manager can operate PIR and printout the ticket. There are 3 types for the account manager to choose, including Driver License NO., Passport No.
  • Page 118 ALL-HS02530 Hotspot in a Printer Figure 5-1-6 PIR Ticket Step 6: Click Logout and then click the Apply button to finish it. Figure 5-1-7 Logout...

  • Page 119: Appendix A Signal Connection Arrangements

    Appendix A Signal Connection Arrangements RJ-45 Ethernet Port The ALL-HS02530 RJ-45 Ethernet port can connect to any networking devices that use a standard LAN interface, such as a Hub/Switch Hub or Router. Use unshielded twisted-pair (UTP) or shield twisted-pair (STP) cable to connect the networking device to the RJ-45 Ethernet port.

  • Page 120: Appendix B Regulations/Emi Compliance

    ALL-HS02530 Hotspot in a Printer Appendix B Regulations/EMI Compliance FCC Regulatory Statement Part 15-Class B compliant device This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference, and 2.

  • Page 121: Limited Warranty

    How long the warranty is effective: The ALL-HS02530 is warranted for one year for all parts and one year for all labor from the date of the first consumer purchase. Who the warranty protects: This warranty is valid only for the first consumer purchaser.
  • Page 122 ALL-HS02530 Hotspot in a Printer Exclusion of damages: Our LIABILITY IS LIMITED TO THE COST OF REPAIR OR REPLACEMENT OF THE PRODUCT. We SHALL NOT BE LIABLE FOR: DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THE PRODUCT, DAMAGES BASED UPON INCONVENCE, LOSS...
  • Page 123 Where such specific license terms entitle you to the source code of such software, ALLNET will provide upon written request via e-mail and/or traditional paper mail the applicable GPL and LGPL source code files via CD-ROM for a nominal cost to cover shipping and media charges as allowed under the GPL and LGPL.
  • Page 124 ALL-HS02530 Hotspot in a Printer 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it.
  • Page 125 ALL-HS02530 Hotspot in a Printer this license which gives you legal permission to copy, distribute and/or modify the software. Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is...
  • Page 126 ALL-HS02530 Hotspot in a Printer You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. 2. You may modify your copy or copies of the Program or any portion of it, thus...
  • Page 127 ALL-HS02530 Hotspot in a Printer 3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:...
  • Page 128 ALL-HS02530 Hotspot in a Printer 5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License.
  • Page 129 ALL-HS02530 Hotspot in a Printer licensee cannot impose that choice. This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License. 8. If the distribution and/or use of the Program is restricted in certain countries...
  • Page 130 ALL-HS02530 Hotspot in a Printer YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION. 12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR...
  • Page 131 ALL-HS02530 Hotspot in a Printer GNU General Public License for more details. You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

  • Page 132: Allnet Gpl Code Statement

    The safety advice in the documentation accompanying the products shall be obeyed. The conformity to the above directive is indicated by the CE sign on the device. The ALLNET ALL-HS02530 conforms to the Council Directives of 2004/108/EC. This equipment meets the following conformance standards: EN60950-1:2006/A11:2009 EN62311:2008 This equipment is intended to be operated in all countries.

Table of Contents
