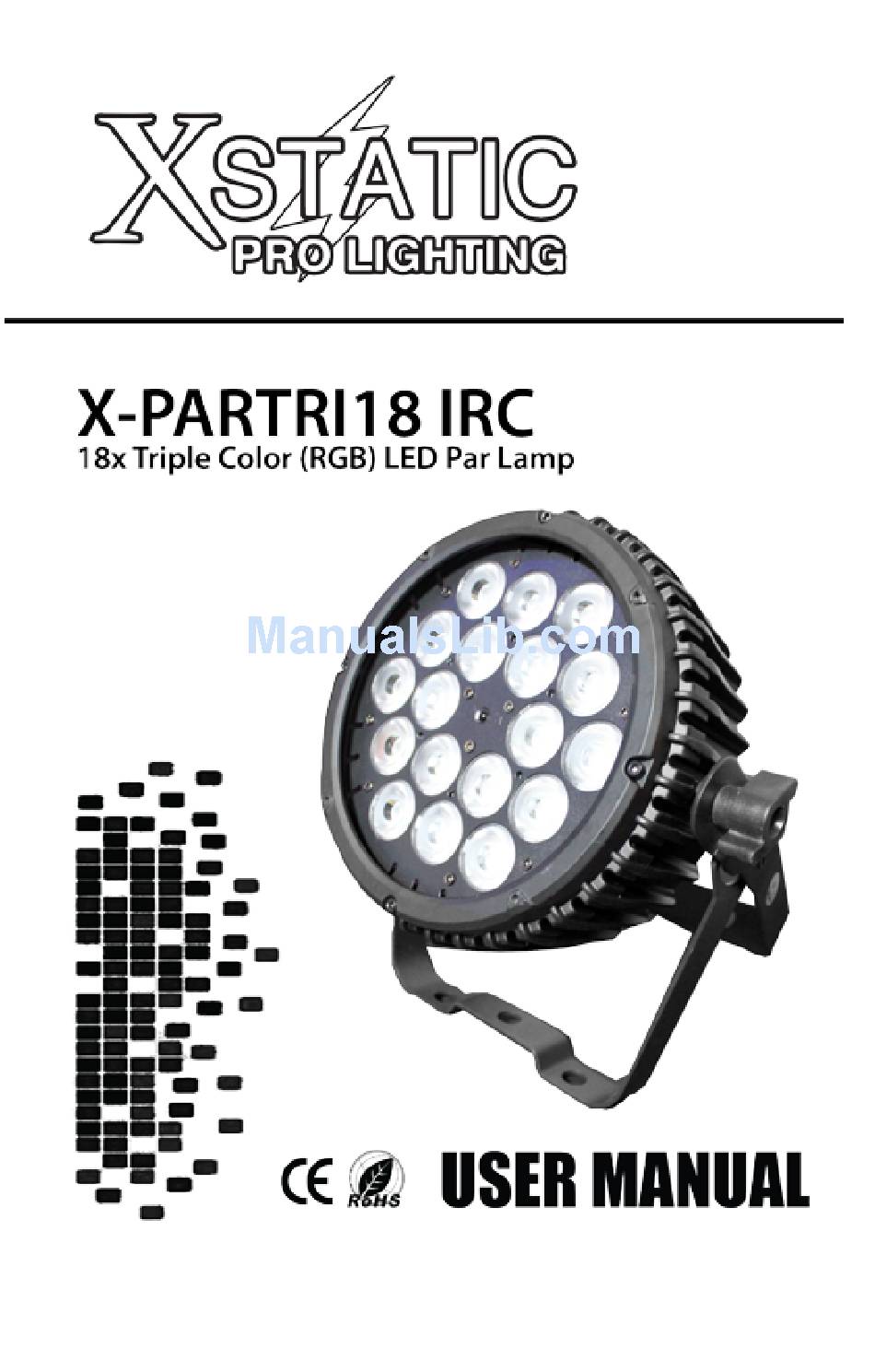

Summary of Contents for Xstatic X-PARTRI18 IRC
- Page 2 High Power Indoor PAR, 18x RGB 3W User Manual...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS: CAUTION! READ BEFORE USE! For your own safety, please read this user manual carefully before you initially power up your fixture. ● Examine packaging to ensure all parts included ● Disconnect all power and other cables prior to servicing ●... - Page 4 FEATURES: ● RGB Color Mixing ● Color Strobe Effect ● Color Mix Effect ● LED Chases (Adjustable Speeds) ● Electronic Dimming 0-100% ● Operating Modes: Sound Active, Master / Slave, or DMX Control ● DMX-512 Protocol Compatible (3, 6 & 7 DMX Channels) ●...
-
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS: ● Voltage: 100V~240V, 50Hz~60Hz ● LEDs: 18 x 3W RGB LEDs ● Power Consumption: 65W ● Weight: 2Kgs. ● Dimensions: 257 x 91 x 294mm ● Colors: RGB Color Mixing ● DMX In and Out ● Chainable power ports ●... -
Page 6: Menu Controls
MENU / CONTROLS: SETUP MENU: You can easily setup and control your X-PARTRI18 RGB LED Par from the on-board LCD screen. Using the MENU, SETUP, UP and DOWN, buttons, you will find the following options to select and modify: The Control Screen with MENU, SETUP, UP, and DOWN, and ENTER Navigation buttons. -
Page 7: Choosing Colors
MENU OPTIONS CONT’D: For setting the Operation Speed you can scroll through to the SP.0 1 highest speed at (1-100). Press SETUP again to control the Strobe Sp.fl Speed as before from f500 f599 CHOOSING COLORS: To select a Static Color, press the MODE button until you see Pr.0 1 Then use UP or DOWN buttons to choose betwen colors. -
Page 8: Dmx Mode
MENU OPTION CONT’D: 4. SOUND MODE - This menu will let you select your desired Sound Mode Setting. Press the MODE button until displays on the Menu screen. The menu SUND will display the parameters where the user can set the level of SU.00 - SU.3 1. -
Page 9: Dmx Setup
DMX SETUP... - Page 10 DMX SETUP CONT’D: Assembling a DMX Chain is as simple as connecting two more more fixtures with DMX In/Outs with the proper DMX specific 3-pin XLR-style cables. NOTE: The last or final fixture in the DMX chain MUST have a terminator plug.
- Page 11 INFRARED REMOTE FUNCTIONS:...
- Page 12 (NO DIRECT SALES, DEALERS AND DISTRIBUTORS ONLY) Please Register your product warranty on ProXDirect.com, submit your testimonials and setup photos to our website, & Tag us on your social media websites. #proxdirect...
