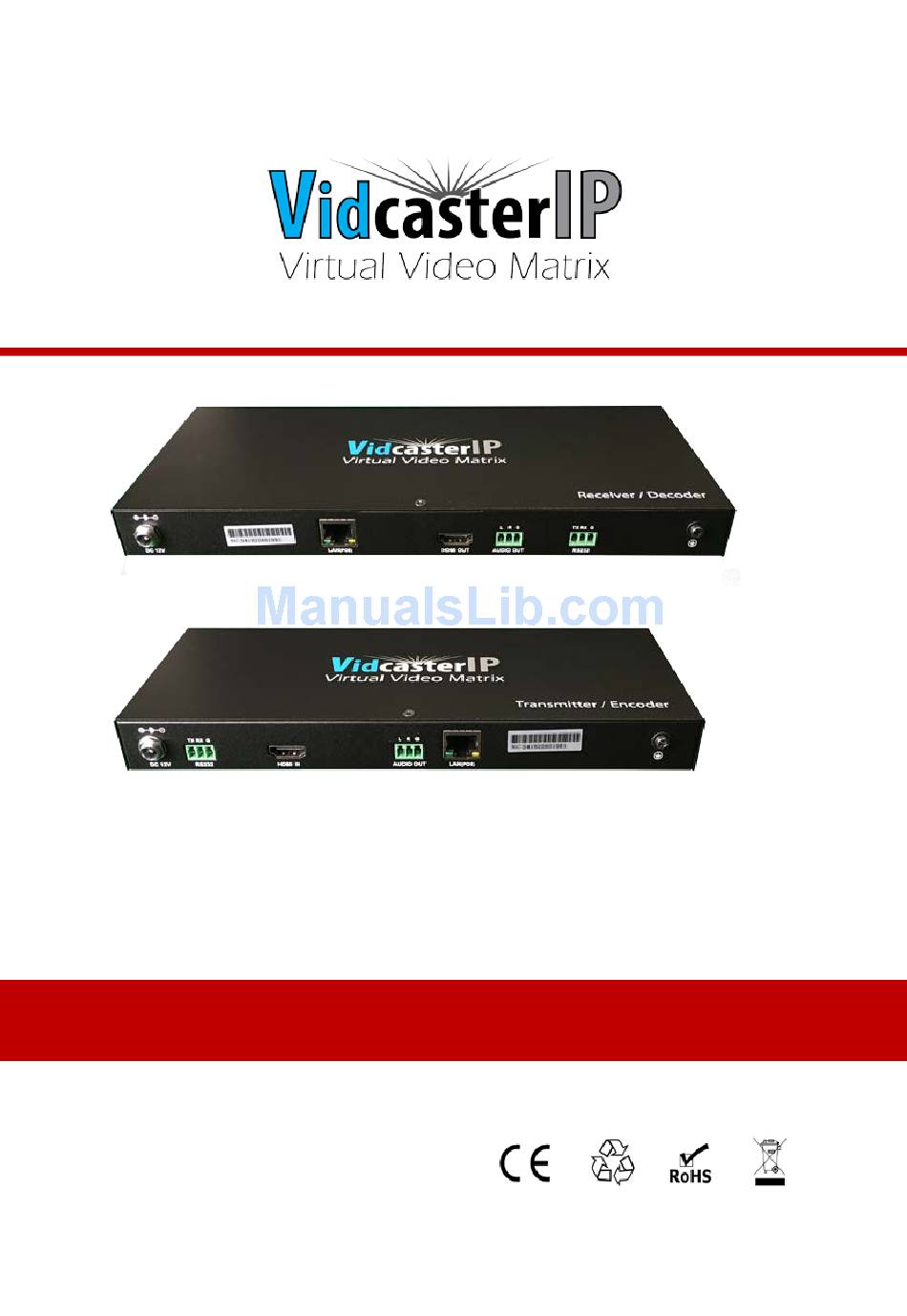

- Page 1 DT-HDVD-IPSTR-ENC / DT-HDVD-IPSTR-RX H.264 encoders/decoders ® RONIX User Manual Version: V1.0.0...
- Page 2 Important Safety Instructions 1. Do not expose this apparatus to 6. Clean this apparatus rain, moisture, dripping or only with dry cloth. splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. 7. Unplug this apparatus 2.
-
Page 3: Table Of Contents
Table of Contents Introduction ............................2 Overview ..........................2 Encoder..........................2 Decoder ........................... 3 Key Features ..........................4 Encoder..........................4 Decoder ........................... 5 Package Contents ........................7 Encoder..........................7 Decoder ........................... 7 Specifications .......................... 8 Encoder..........................8 Decoder ......................... 10 Panel Description ......................... -
Page 4: Introduction
Introduction Overview Encoder DT-HDVD-IPSTR-ENC is a live H.264 encoder which is used with H.264 decoders to deliver streaming media over IP networks, providing complete end-to-end streaming systems. It offers one HDMI input, two streaming media outputs and one stereo audio de-embedding output. -
Page 5: Decoder
Decoder DT-HDVD-IPSTR-RX is a live H.264 decoder that uses H.264 decoders to provide complete end-to-end streaming systems. It integrates one streaming media input and one HDMI output and one stereo de-embedding audio output. The decoder employs standards-based H.264/MPEG-4 AVC video decoding and supports streaming resolutions up to 1920 x 1200@60Hz. -
Page 6: Key Features
Key Features Encoder Streams HDMI signals over IP networks Supports live IP video stream encoding Use with H.264 decoders to provide complete end-to-end streaming systems Features one HDMI input, two streaming media outputs and one stereo audio de-embedding output Supports the resolutions of input signals up to 1920 x ... -
Page 7: Decoder
Supports AutoIP, zero-configuration networking (zeroconf ), a set of special technologies that automatically assign dynamic IP addresses to encoders on startup and a server-less method of choosing an IP address Supports communications protocols used on the Internet such as ... - Page 8 Supports HDCP Supports PoE to be remotely powered by compatible power source equipment, eliminating the need for a nearby power outlet Features CEC function Supports AutoIP, zero-configuration networking (zeroconf ), a set of special technologies that automatically assign dynamic IP addresses to decoders on startup and a server-less method of choosing an IP address Supports communications protocols used on the Internet such as...
-
Page 9: Package Contents
Package Contents Encoder 1 x Encoder 1 x Power Adapter (12V 1A DC) 1 x Detachable Plug 2 x Phoenix Connector (Male, 3.5 mm, 3 pins) 2 x Mounting Ear Decoder 1 x Decoder 1 x Power Adapter (12V 1A DC) ... -
Page 10: Specifications
Specifications Encoder Video Input Video Port 1 x HDMI IN Input Video Type HDMI 1.3 HDMI: 640 x 480@60Hz, 720 x 480p@60Hz, 720 x 576p@50Hz, 800 x 600@60Hz, 1280 x 720p@50Hz, 1280 x 720p@60Hz, 1024 x 768@60Hz, 1360 x 768@60Hz, 1366 x Input Video 768@60Hz, 1280 x 800@60Hz, 1440 x Resolutions... - Page 11 Latency mode) About 250 ms in average (High quality mode) Audio Input Audio Port 1 x HDMI IN Input Audio Audio embedded in HDMI input Format Output Audio Port 1 x Phoenix connector Output Audio Stereo analog line level signal Format Control Control Method...
-
Page 12: Decoder
General Case Dimensions 310 mm x 76 mm x 180 mm 12.2'' x 3.0'' x 7.1'' (W x H x D) Product 237 mm x 25 mm x 94.3 mm Dimensions 9.3'' x 1.0'' x 3.7'' (W x H x D) Weight 0.48 kg... - Page 13 Video Impendence About 79 ms in average (Low latency mode) End-to-End Time About 250 ms in average (High quality Latency mode) Audio Input Audio Port 1 x LAN Input Audio Audio embedded in streaming media input Format Output Audio 1 x Phoenix connector Port Output Audio...
- Page 14 General Human body model: ESD Protection ±8 kV (air-gap discharge) ±4 kV (contact discharge) Surge Protection Voltage: ±1 kV 310 mm x 76 mm x 180 mm Case Dimensions 12.2'' x 3.0'' x 7.1'' (W x H x D) Product 266 mm x 25 mm x 111.3 mm ...
-
Page 15: Panel Description
Panel Description Encoder Front Panel No. Indicator Status Description Encoder is powered on. POWER Indicator Encoder is powered off. Encoder is working properly. STATUS Indicator Encoder is not working properly Rear Panel Name Description Connects to a 12 V 1 A power supply. Note: We recommend that you power encoders/decoders using power adapters or a PoE switch;... - Page 16 Name Description 1 x RS232: connects to a third party device such as a camera, which can be controlled by IP configurator and IP controller on your RS232 computer. Pass-through Control Note: This is a phoenix connector (female, 3.5 mm, 3 pins). 1 x HDMI IN: connects to an HDMI video Video Input source such as a DVD player and a computer.
-
Page 17: Decoder
Decoder Front Panel Indicator Status Description Decoder is powered on. POWER Indicator Decoder is powered off. Decoder is linked to encoder and is STATUS actively outputting video. Indicator Flashing Decoder is not linked to encoder. Rear Panel Name Description Connects to a 12 V 1 A power supply. Note: We recommend that you power encoders/decoders using power adapters or a PoE switch;... - Page 18 Name Description streaming media input. Note: If you use a PoE Ethernet switch, decoders can be powered by this switch, eliminating the need for a nearby power outlet. 1 x HDMI OUT: connects to an A/V device Video Output such as an HDMI display device. 1 x AUDIO OUT: connects to an audio output device such as an amplifier and a speaker.
-
Page 19: Typical Applications
Typical Application IP Matrix You can use encoders and decoders to build a network of IP matrix. With PC configurator and IP controller, you can configure and manage this function. For more information, see the respective software user guides. www.datatronix.biz... -
Page 20: Hardware Installation
Hardware Installation Warning: Before the installation, disconnect the power supplies from all the devices. Note: If the Ethernet switch doesn’t support PoE, connect encoders and decoders to their power supplies. If the PoE switch is unable to provide enough power, connect encoders/decoders to the power adapters and ... -
Page 21: Operating The Encoders/Decoders
Operating the Encoders/Decoders For more information on how to configure and manage the streaming systems, see the user guides of PC configurator (HDMI over IP console) and IP controller. -
Page 22: Upgrading The Encoders/Decoders
Upgrading the Encoders/Decoders You can use MaintainTool to upgrade the encoders/decoders to their latest versions to obtain new features. For more information, see the user guide of MaintainTool. -
Page 23: Troubleshooting
Troubleshooting 1. The PC configurator or Maintain Tool cannot find any encoder/decoder. Check the Windows Firewall. Taking Windows 7 as an example: Click Start menu, go to Control Panel > System and Security > Windows Firewall > Allowed Programs, select Home/Work (Private) and Public for PC configurator and Maintain Tool. - Page 24 For Maintain Tool: Check the IP address and subnet mask of your computer. The computer, encoders/decoders and Ethernet switch should be on the same subnet. Therefore, set your computer's IP address as 169.254.X.X and subnet mask 255.255.0.0. For more information, see the user guide of MaintainTool.
- Page 25 your computer. For more information about the STATUS indicators, see "Front Panel" of encoder. If exceptions still exist, see the other solutions to this question. Check that the displays work properly, and that source devices have normal signals output. Check that the displays are switched to the correct source input ...
- Page 26 your computer. For more information about the STATUS indicators, see "Front Panel" of encoder. If exceptions still exist, see the other solutions to this question. Check that the A/V devices work properly. Check that the A/V devices have normal signals output. ...
-
Page 27: Warranty Terms And Conditions
Warranty Terms and Conditions DATATRONIX 1-Year Limited Warranty DATATRONIX. (the "Company") warrants to the Original Purchaser that the item purchased is free from defects in workmanship or material under normal use. This warranty starts on the date of shipment of the hardware to the Original Purchaser. During the warranty period, the Company agrees to repair or replace, at its sole option, without charge to Original Purchaser, any defective component. - Page 28 with or altering of the hardware, riot, war, invasion, act of foreign enemies, hostilities (regardless of whether war is declared), civil war, rebellion, revolution, insurrection, military or usurped power or confiscation, terrorist activities, nationalization, government sanction, blockage, embargo, labor dispute, strike, lockout or interruption or failure of electricity, air conditioning, or humidity control, internet, network, or telephone service The warranties given herein, together with any implied warranties covering the hardware, including any warranties of merchantability or fitness for a...
- Page 29 DATA-TRONIX Offices Address: 1085 Andrew Dr. Ste. A West Chester, PA 19380 Official Website: www.datatronix.biz DATA-TRONIX Technical Support (800) 688-9282 Press ‘3’ , then ‘4’ . We reserve the right to change specification or product dimensions at any time.
