NEXUSCCTV NLS User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Network Video Recorder
User manual
English
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NLS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NEXUSCCTV NLS

Summary of Contents for NEXUSCCTV NLS

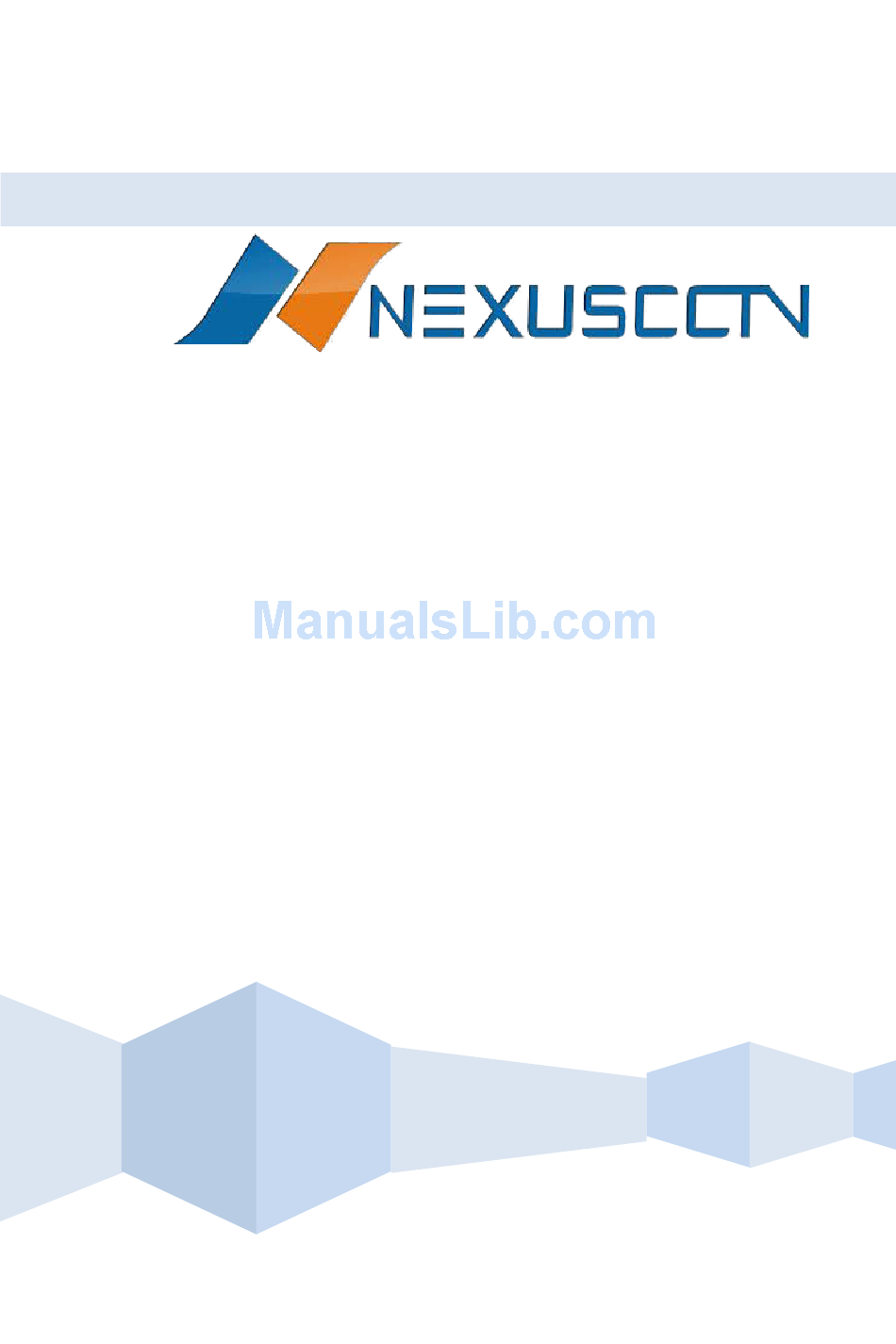

  • Page 1 Network Video Recorder User manual English...

  • Page 2: Table Of Contents

    Contents 1 Connecting NVR ................3 1.1 Hard Disk Installation ..............3 2 NVR Startup ....................5 2.1 System Initialization............... 5 2.2 Boot wizard ..................5 2.3 Preview Interface ............... 10 2.4 Quick adding function .............. 11 3 NVR Menu ....................12 3.1 Right click mouse ................

  • Page 3: Connecting Nvr

    Connecting NVR 1.1 Hard Disk Installation Hard Disk Installation: ⑴ Loosen the fixing screw on the cover, open the cover. ⑵ Align the four holes of hard disk button with hard disk mounting hole at the button of chassis. ⑶ Hold the hard disk with hand, turn over the chassis, fix the hard disk with screw at the indicated position.
  • Page 4 ⑷ After hard disk installed, turn over the chassis, fix the cover with screw. Note: 1. If user requires high performance of hard disk, we recommend the dedicated security hard disk. 2. Before replacing the hard disk, please shut off the power first and then open the case.

  • Page 5: Nvr Startup

    NVR Startup 2.1 System Initialization After connecting the device to the display, plug in the mouse, power cable and turn on the power switch on the rear panel, then start up the NVR. The system initialization interface is as shown in Figure 2-1. Figure 2-1 Notes: The insert figures in this user manual may not be the same as what you see on display.
  • Page 6 Figure 2-2 Click Next button, system goes to login interface. Then select a user name, enter the user password, select the system language. Scroll down by using the scroll wheel on the mouse for further languages in the language box, and click on the login button to login the system (the default username is admin, password is 12345).
  • Page 7 Figure 2-4 Click Next button, you can go to Network interface, You can configure the network parameters of the device. See Figure 2-5. For detailed information, please refer to chapter 3.3.3.4. Figure 2-5...
  • Page 8 Click Next button, you can go to Mode Selection interface, and you can choose Automatic network mode or Manual mode. See Figure 2-6. Figure 2-6 Click Next button, you can go to Remote Device interface, You can search for and add the IPC devices. See Figure 2-7. For detailed information, please refer to chapter 3.3.4.
  • Page 9 Figure 2-8 Click the OK button, the boot wizard is complete.

  • Page 10: Preview Interface

    2.3 Preview Interface After the system is fully booted, it will enter into the default preview interface, shown in Figure 2-9. Figure 2-9 After the device normally starts up, the default setting is to preview in multi-screen display mode. Products with different channels has different amount of split screens to display.

  • Page 11: Quick Adding Function

    2.4 Quick adding function At the preview menu, for the channel of unconnected IP Camera, you can quickly click the “+” icon to add the camera device when your mouse move to the middle of the channel menu. As shown in Figure 2-11 and 2-12. Figure 2-10 Figure 2-11 Device search: Search the IP address of the IPC client device.

  • Page 12: Nvr Menu

    NVR Menu 3.1 Right click mouse After login the system and back on the preview interface, click the right mouse button and it will pop up the Menu Options, shown in Figure 3-1. Then you can select options of the Main Menu, the Main Screen Switching, Playback, PTZ Control and System Shutdown.

  • Page 13: Ptz Setup

    Network Video Recorder NVR Menu Playback: Click into the Playback interface.(Detailed operation as  5.3.1) Remote Device: Click and enter the remote device configuration  menu.(Detailed operation as 3.5.1.1) Main Menu: Click and enter the main menu.  3.1.1 PTZ Setup In the preview channel, right click mouse, select "PTZ", the preview will switch to the corresponding channel single-screen display, and the emergence of PTZ control interface, shown in Figure 3-2:...
  • Page 14 Network Video Recorder NVR Menu Figure 3-3 Figure 3-4 Set the preset position: Turn the camera direction buttons to the  desired location, and then click , select cruise group, double-click to set the preset in the pop-preset settings interface to select the preset number, Stay time (seconds ) and cruising speed, return Patrol Setup interface and click "OK"...

  • Page 15: Image Color

    Network Video Recorder NVR Menu 3.1.2 Image Color On the preview interface, right click mouse, select the “Image Color”, the SImage Color interface is displayed, then can configure the video properties of IPC. As shown in Figure 3-5. Figure 3-5 Channel: Select the Channel number.

  • Page 16: Operate

    Network Video Recorder NVR Menu 3.3 Operate 3.3.1 Playback After entering the main menu, open the "Playback" menu or right-click to choose select "Playback" menu in the preview interface, switch to video playback interface, shown in Figure 3-7. Figure 3-7...
  • Page 17 Network Video Recorder NVR Menu Name Function Specification The red highlighted date means there is file. Otherwise, there is no file. Calendar In any play mode, click the date you wantto see, you can see the corresponding record file trace in the time bar.
  • Page 18 Network Video Recorder NVR Menu In the file list bar, you can see the start time of the video file, video type, select a video file, you can view the video of recording start time, end time and file size, as shown in Figure 3-8. Figure 3-8 In the file list box, click to choose the video file showed icon “√”, then click this icon...

  • Page 19: Shutdown

    Network Video Recorder NVR Menu 3.3.2 Shutdown Click “Shutdown” icon in the main menu, switch to interface as . Therefore, the system can be logout, reboot, and shut down, as followed Figure 3-9 shows. Figure 3-9 Logout: Logout the current user, switch to user login interface. ...

  • Page 20: Information

    Network Video Recorder NVR Menu 3.4 Information 3.4.1 Information 3.4.1.1 Stream Information Choose ”Menu → Info → System → Stream Information” in the Menu interface, the Stream Information interface is displayed, as Figure 3-10 shows. Figure 3-10...
  • Page 21 Network Video Recorder NVR Menu 3.4.1.2 Version Information Choose ”Menu → Info → System → Version Information” in the Menu interface, the Version Information interface is displayed, as Figure 3-11 shows. Figure 3-11 Users can find system version, including model number, system version,Version Date.

  • Page 22: Log

    Network Video Recorder NVR Menu 3.4.2 Log 3.4.2.1 Log Information Choose ”Menu→Info→Log” in the Menu interface, the Channel Name interface is displayed. Here is for you to view system log file, as Figure 3-12 shows. Figure 3-12 Viewing System Logs to access the logs and search for these events on one day a certain period of time.

  • Page 23: Setup

    Network Video Recorder NVR Menu 3.5 Setup 3.5.1 Camera 3.5.1.1 Camera Setup Choose ”Menu → Setup → Camera → Camera Setup” in the Menu interface, or right-click in live view mode and select Remote Device from the Shortcut Menu, the Camera Setup interface is displayed, as shown in Figure 3-13.
  • Page 24 Network Video Recorder NVR Menu Cancel: Return to last menu.  Remark: Click on the title bar icon “√”, select all the available IPC device, click again to cancel all selected. Click the “×” icon can quickly delete the device at the “Device Added” list. Click the“Manual Add”...
  • Page 25 Network Video Recorder NVR Menu 3.5.1.2 Encoding Choose ”Menu→Setup→Camera→Encode” in the Menu interface, the Encoding Parameters interface is displayed, as Figure 3-15 shows. Resolution, Frame Rate, Stream Type, Bit Rate, Sub-stream can be set under “Param” Interface. Figure 3-15 Channel: Select the channel you want. ...

  • Page 26: Network

    Network Video Recorder NVR Menu Figure 3-16 3.5.2 Network 3.5.2.1 Network Choose ”Menu→Setup→Network→IP/Port” in the Menu interface, the Channel Name interface is displayed, as Figure 3-17 shows. Figure 3-17...
  • Page 27 Network Video Recorder NVR Menu IP Address: Here you can input IP address of NVR.  DHCP: If the router allows DHCP functionality, select DHCP. The IP  Camera will obtain IP address automatically from the router. If the router does not allow for DHCP functionality, then the IP address must be obtained manually.
  • Page 28 Network Video Recorder NVR Menu DDNS Type: DDNS Types can be chosen via DDNS. ( currently the list  supports various DDNS, including ORAY DDNS, 3322 DDNS, TZO DDNS and DYNDNS DDNS. These DDNS can be multiple operated according to users need and setup. ) Enable: Enabling DDNS domain resolving function.
  • Page 29 Network Video Recorder NVR Menu SMTP server: the address of the mail server, which can be an IP address  and a domain name (domain name needs the confirmation of the correct DNS setup to be resolved correctly). SMTP Port: Port number of the mail server. ...
  • Page 30 Network Video Recorder NVR Menu Android: Download Link of P2P client for Android system.  ISO: Download Link of P2P client for Iso system.  Save: Save configured parameters value on video configuration  menu. Cancel: Return to last management menu. ...

  • Page 31: Event

    Network Video Recorder NVR Menu 3.5.3 Event 3.5.3.1 Motion Detection Choose ”Menu →Setup→Event” in the Menu interface, the Motion Detection interface is displayed, as Figure 3-22 shows. When the system detects a mobile signal reaches a preset sensitivity occurs, motion detection alarm and the linkage function will be initiated by analyzing the video image.

  • Page 32: Storage

    Network Video Recorder NVR Menu 3.5.4 Storage 3.5.4.1 Record Choose ”Menu→Setup→Storage→Recode” in the Menu interface, the Recode interface is displayed, as Figure 3-23 shows. Figure 3-23 Channel: Please select the channel number first. You can select “ all” if  you want to set for the whole channels.
  • Page 33 Network Video Recorder NVR Menu Drawing schedule record Choose the channel and the record type "record" or "motion". Draw the schedule line on the panel of the day you choose. Up to 6 periods can be configured for each day.And the time periods can’t be overlapped each other.
  • Page 34 Network Video Recorder NVR Menu 3.5.4.2 Disk Choose ”Menu→Setup→Storage→Disk” in the Menu interface, the Disk interface is displayed, as Figure 3-26 shows. Figure 3-26 If the devices have connected the HDD successfully, the HDD manage list will show the information of HDD.You have to format the HDD if the HDD is the first time to connect;...

  • Page 35: System

    Network Video Recorder NVR Menu 3.5.5 System 3.5.5.1 General 3.5.5.1.1 Device setting Choose ”Menu→Setup→System→General” in the Menu interface, the Device setting interface is displayed, as Figure 3-27 shows. Figure 3-27 Enable setup Wizard at device startup: Click the “√”, open boot wizards ...
  • Page 36 Network Video Recorder NVR Menu 3.5.5.1.2 Date Choose ”Menu → Setup → System → General → Date” in the Menu interface, the Date setting interface is displayed, as Figure 3-28 shows. Figure 3-28 Set date/time manually: When checked, manually set the machine ...
  • Page 37 Network Video Recorder NVR Menu 3.5.5.2 Display Choose ”Menu→Setup→System→Display” in the Menu interface, the Display Setup interface is displayed, could modify the display resolution and channel names, as Figure 3-29 shows. Figure 3-29 Resolution: It means the resolution of video output of NVR. Optional ...
  • Page 38 Network Video Recorder NVR Menu 3.5.5.3 User Choose ”Menu→Setup→System→User” in the Menu interface, the User Setup interface is displayed, as Figure 3-30 shows. Figure 3-30 User: List added users. “admin” is super user/administrator, and we  cannot change its privilege, but only its password. Other general users have no privilege of adding, modifying or deleting.
  • Page 39 Network Video Recorder NVR Menu 3.5.5.4 Auto Maintain Choose ”Menu → Setup → System → Auto Maintain” in the Menu interface, the Auto Maintain interface is displayed, as Figure 3-31 shows. Figure 3-31 User can themselves set the system to be automatically rebooted. Automatically rebooting system can be set in a fixed time periodically.
  • Page 40 Network Video Recorder NVR Menu 3.5.5.5 Restore Default Choose ”Menu→Setup→System→Default” in the Menu interface, the Default Setup interface is displayed, as Figure 3-32 shows. Figure 3-32 According to user selection, you can set the parameters of restore default for “General Settings”, “User manage”, “Channel configuration”, “Record Setup”...
  • Page 41 Network Video Recorder NVR Menu 3.5.5.6 Upgrade Choose ”Menu→Setup→System→Upgrade” in the Menu interface, the Upgrade Setup interface is displayed, as Figure 3-33 shows. Figure 3-33 If the device have detected upgrade files in the U disk, the related information of upgrade package (number, name, size, date) will be displayed.

  • Page 42: Web Operation

    Network Video Recorder WEB Operation WEB Operation 4.1 Active X install To make sure NVR connects to Internet successfully, open IE Browser, input required IP address, the default setting is 192.168.1.168, and then the Active X will be downloaded and installed automatically Notice: 1.For WIN 7, could have problems for backup and recording, if so, please check the Admin setting, procedure as follows: WIN7-1...

  • Page 43: Ie Login

    Net-Harddisk video recorder Appendix 4.2 IE Login After the plug-in is installed, login interface as below Figure 4-2, entering the user name and password. The default user name is admin, and the password is 12345, click the login then can remote login. Figure 4-2 4.3 IE Login Interface After logining the client sucessfully, entering live preview interface and...
  • Page 44 Net-Harddisk video recorder Appendix 1.System Menu. Including Live Video Record Setting, Local Setting and Logout. 2.Real-time Monitoring Channel. Open/Close Preview, Local Video and Photograph. Mark Specification CH1-CH16 Preview Channel. Open or close corresponding preview channel. Click the button, begin recording, the video saves in computer hard disk.

  • Page 45: Mobile App

    Net-Harddisk video recorder Appendix Mobile App 5.1 Mobile app This NVR is compatible with a mobile app named FreeIP. This app is available for download in App Store and Google Play. For more information please visit www.freeip.com More information is also available at chapter 3.5.2.4 – P2P Config.
