QUATIUS XCDCC1BK Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Dash Camera
XCDCC1BK
HOTLINE
AUSTRALIA
:1300765 663
NEW ZEALAND:0800 100 236

Advertisement

Table of Contents
loading

Summary of Contents for QUATIUS XCDCC1BK

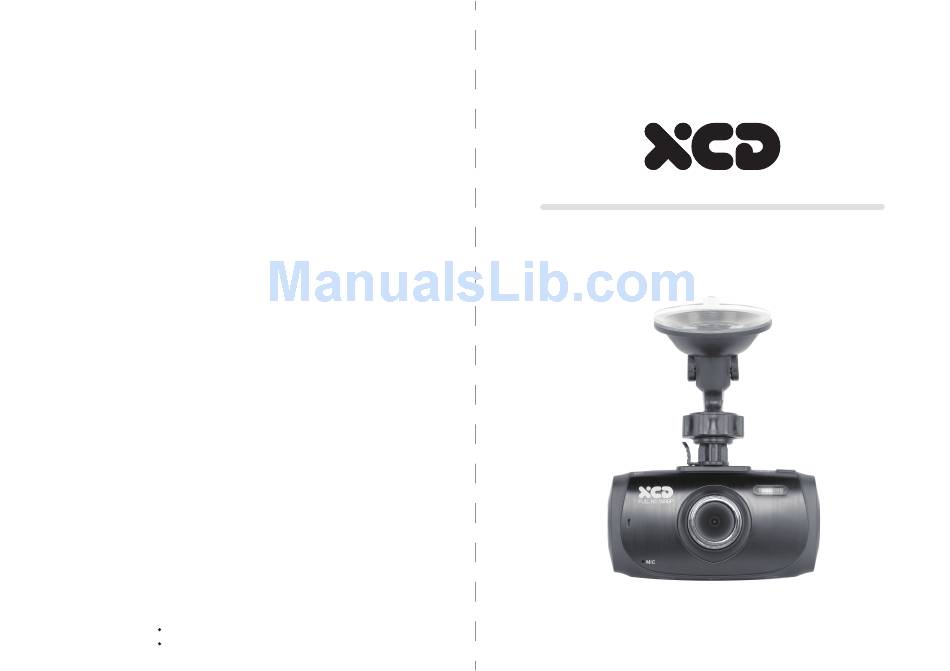

  • Page 1 Dash Camera XCDCC1BK HOTLINE AUSTRALIA :1300765 663 NEW ZEALAND:0800 100 236...

  • Page 2: Safety Information

    WELCOME Thank you for choosing this product. Please read the instruction manual carefully and keep it for future reference. SAFETY INFORMATION 1. Keep the product and the accessories away from fire, including direct sunlight. 2. The ambient temperature shouldn’t be over 60 degrees Celsius. 3.

  • Page 3: Installation

    1. Power 9. TF Card Slot 2. Mode 10. Reset 3. Menu 11. Night Vision Infrared Light 4. UP 12. Speaker 5. REC 13. Microphone 6. Down 14. Lens 7. Holder Slot 15. AV-OUT 8. Micro USB Port 16. HDMI Port INSTALLATION 1.

  • Page 4: Video (Recording) Mode

    contains all general settings of the Dash Cam. While recording you will not be able to access the Menus, press REC Button to stop recording first. 5. REC Button (5) for confirmation. In Video Recording Mode, press REC Button to start to record, press it again to stop recording.
  • Page 5 a. Ensure you’re not currently recording. If the red record indicator is flashing at the top left of the screen, press REC button to stop recording. b. Press Menu Button to access Video Settings interface. c. Press Up / Down Button to highlight which item you want to set and press REC Button to access sub-menu.
  • Page 6 STILL (PICTURES SHOOTING) MODE Still Mode is used to take still pictures Launch to take pictures: 1. Press Mode Button to Still Mode. 2. Press REC button to snap pictures. 1. Still Mode 6. Power status 2. Exposure 7. Micro SD card 3.

  • Page 7: Playback Mode

    Menu Select settings Remark Sequence Off / On Turn on Sequence; the Camera will continuously take 3 photos in a row Video every time when the shutter is triggered. Quality Fine / Normal / Sets the quality of the Economy image.

  • Page 8: Functions Instruction

    1. Playback mode 3. Current date 2. Recording date/time 4. Power status Under Playback mode, press Menu Button to access Playback Settings interface. Menu Settings Remark Delete Delete Current / Allows you to delete either Delete All the selected or all photos and video stored on the Playback inserted Micro SD Card.

  • Page 9: Device Settings

    stop recording after no movement detected in 10 seconds. Press Menu Button under video stop recording mode to Video Settings, and select Motion Detection to turn it On / Off. 4. Date / Time Set It is of significance to make the time correct for your video stream. a.

  • Page 10: Computer Connection

    5. Beep Sound: Mute control for key beeps. Select On / Off, Press REC Button to confirm. 6. Language: Set the desired system language. 7. TV Mode: Select NTSC / PAL system. 8. Frequency: 50HZ / 60 HZ according to local power supply. 9.

  • Page 11: Specification

    SPECIFICATION Lens 120 Degrees wide angle Image sensor 3.0MP Video format Video resolution FHD 1080P / HD 1080P / HD 720P / WVGA Video frame 30fps Photo format Photo resolution 12MP/10MP/8MP/5MP/3MP/2MHD/1.3M/VGA Battery Built-in Lithium polymer battery 200mAh 2.7inch Display Memory card Micro SD card Memory storage Maximum support 16GB...
