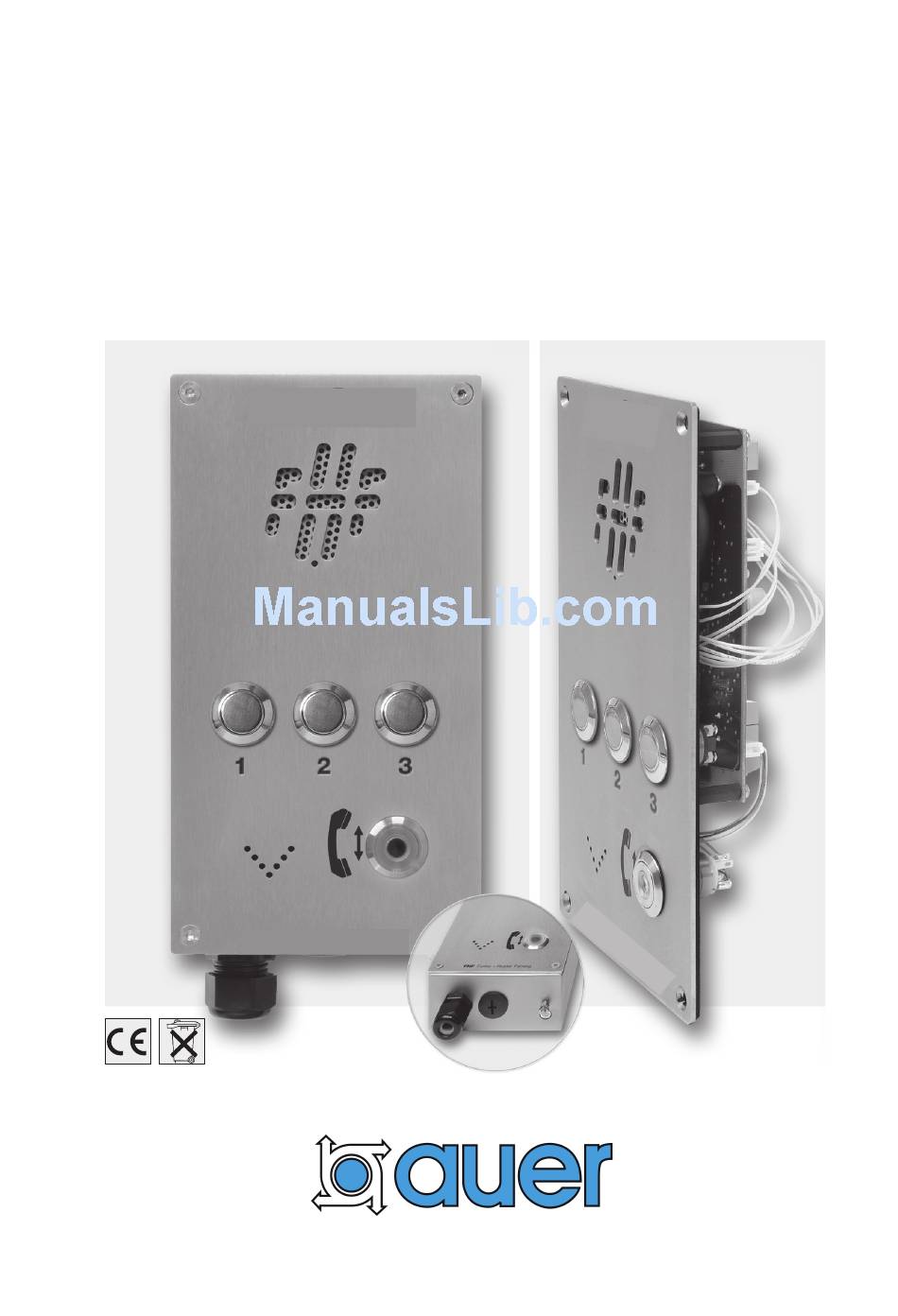

  • Page 1 Weatherproof Intercom S tation IC3P / IC3S Operating manual IC3P / IC3S 1.0_E...
  • Page 2 Before opening or dismounting the device it has to be separated from all voltage supply General Description The IC3P / IC3S is a weatherproof Intercom Station which can be operated in the analogue, public telephone network or can be connected to analogue terminals of branch exchanges.
  • Page 3 IC3S with casing Loudspeaker Microphone Loop Current Indicator Hook switch 3 / 16...
  • Page 4: Built-In Unit

    IC3P built-in unit assembly cut-out thread M4 or Ø 4.3 mm 4 / 16...
  • Page 5 Connection Opening the IC3P / IC3S To gain access to the circuit board or the tamper alarm switch, unfasten the four screws in the front panel. Attention: Before opening or dismounting the device it has to be separated from all voltage supply.
  • Page 6 Relay contact output The IC3P / IC3S board comprises a relay contact which can be activated from a remote telephone or telephone system. This relay can control for example electric door entry mechanism, signaling and other electrical devices. The voltage at the relay...
  • Page 7: Operation

    (*32xx* (2 s)). The loop current indicator light will go out and the intercom station will go back to standby. Receiving a Call When the IC3P /IC3S station rings, press the on/off button. The loop current indicator light goes on, glowing continuously. Conduct your conversation.
  • Page 8 Programming The Intercom Station IntellyCom 3T is designed to be programmed remotely over the telephone line. Programming is carried out using sequences keyed from a telephone, when connected to the IntellyCom 3T to be programmed. Remote programming codes are split into two classes Class 0 and Class 1 which are distinguished by different enclosing characters;...
  • Page 9 *101disablebusy* Set up option "Disable in case of busy tone" disablebusy=0 Disable in case of busy tone activated disablebusy=1 Disable in case of busy tone deactivated Delivery condition: disablebusy=0 Disable in case of busy tone activated *102ringback* Set up option "Ring back schema" ringback=0 Ring back schema 2 ringback=1 Ring back schema 24 ringback=2 Ring back schema 246...
  • Page 10 *142duplex_profile* Set up duplex profile of voice communication duplex_profile=0-4 (full duplex -semi-duplex) Delivery condition: duplex_profile=0 full - duplex Remark: In case of inappropriate electrical and/or acoustic installation conditions co-coupling effects (whistler) may occur. In those cases modify the regulation of the profile in to the higher values (semi-duplex).
  • Page 11 3000accesscode Access Code accesscode=0000-9999 except: 0600, 0990 and actual relaycode Factory setting: accesscode=1234 32t_button_pressed_ Duration for which button must be pressed before_onhook continuously for clear down to take place t_button_pressed_ before_onhook=05-99 *0.1 seconds Factory setting: t_button_pressed_ before_onhook=20 = 2 seconds 5000phone_id Program Intercom Station ID phone_id=0-9999...
  • Page 12 Direct dialing button 3 programm the linked storage button and determine the partner number e.g. 103. *2015* set time limit e.g. 15 s, to determine, how long IC3P / IC3S shall wait, if the user touches a direct dialing button and that the called partner accepts the call.
  • Page 13 Example: #1234# Receive programming authorization. *1100* Set ring/signal counter to the value “00”, to define automatic call acceptance after the first signal. To Define Automatic Call Acceptance after “n” Rings You can define this call acceptance scenario by setting the programmed ring/signal counter *11xx* (3) to the desired value within a range of 1 - 98.
  • Page 14 You start a call or receive a call and the communication is more or less immediately disabled. This problem may occur, if the IC3P / IC3S or set of your interlocutor is installed in a noisy environment. If those ambient noises hit the busy tone schema of the IC3P / IC3S, it considers the connection as disabled by the interlocutor and switches off.
  • Page 15 Connection information Input terminal voltage 24 V to 66 V from the telephone connection Power supply current 28 mA to 100 mA Call signal voltage 35 V to 90 V (23…54 Hz) Larger 5.5 kW at 25 Hz and 30…90 V Call signal impedance Larger 4.0 kW at 50 Hz and 30…90 V Dual-tone multi-frequency signalling (DTMF)
  • Page 16 S ubject to alterations or errors Perfektastr. 102 · A-1230 Wien Telefon 0043 1 813 82 20 · Telefax 0043 1 815 99 54 http://www.auer-signal.com · e-mail: o ce@auer-signal.com...
