Fuzion FZ09 User Manual

Built-in mpeg-4 dvr 9ch and 16ch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
UX User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FZ09 and is the answer not in the manual?

Questions and answers

Summary of Contents for Fuzion FZ09

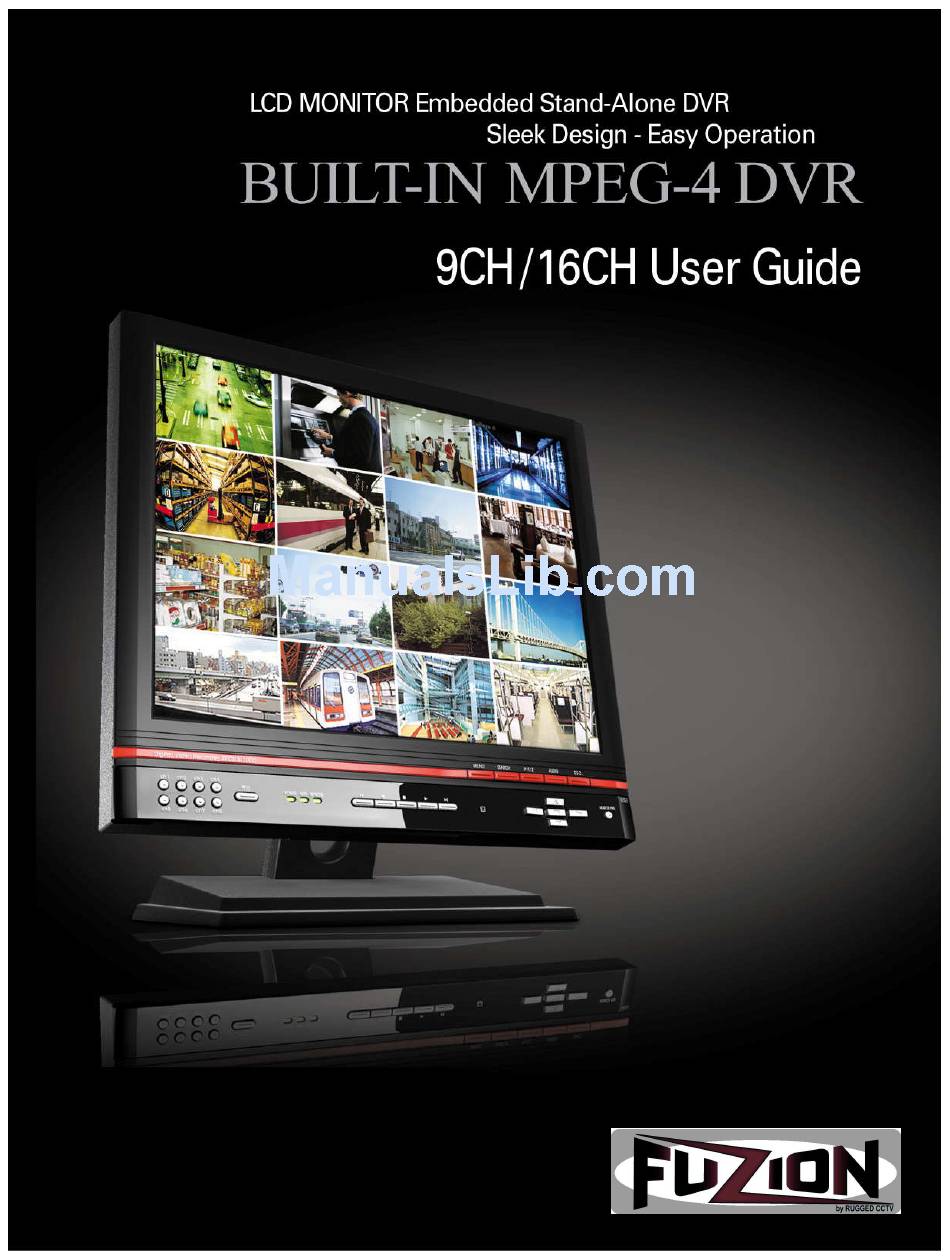

  • Page 1 UX User Guide...

  • Page 2: Table Of Contents

    FuZion User Manual Contents Contents Contents Before you install ………………………………………………………………………………………… 4 Notice for Installation …………………………………………………………………………………… 5 Notice ……………………………………………………………………………………………………… 6 SPECIFICATION ………………………………………………………………………………………… 11 Package Contents ……………………………………………………………………………………… 13 System Configuration …………………………………………………………………………………… 14 Remote Controller ……………………………………………………………………………………… 16 ……………………………………………………………………………………………………… 17 USB MEMORY ………………………………………………………………………………………… 18 1.
  • Page 3 FuZion User Manual 3. Archiving Video Into USB Memory Stick …………………………………………………………… 43 3-1. Still Image& Video Recording …………………………………………………………………43 3-2. Video & Still Image Back-up through USB ………………………………………………… 44 4. Firmware Upgrade …………………………………………………………………………………… 46 5. Network Client ………………………………………………………………………………………… 47 5-1.Setup ………………………………………………………………………………………… 47 5-2.

  • Page 4: Before You Install

    FuZion User Manual Before you install Before you install Before you install This Manual is for DVR System users. It is mainly composed of DVR System Design, Name, Connection with Related equipment such as Pan/Tilt Control, System Program configuration. ☞ Note: We do not take any responsibility of damages resulted from the non- standardized goods and failures to follow the manual instructions.

  • Page 5: Notice For Installation

    FuZion User Manual Notice for installation Notice for installation Notice for installation All of below notices should be verified before installation and operation. ☞ Do not install DVR at moist, dusty and black dirt place. ☞ Do not expose the system to Heaters and a direct ray of light ☞...

  • Page 6: Notice

    FuZion User Manual Warning/Caution Warning/Caution Warning/Caution The following describes safety warnings and cautions to protect users and prevent Property losses. Please thoroughly read the bellow before operating the system. Warnings and Cautions If the user is not aware of this...
  • Page 7 FuZion User Manual Warning Do not disassemble, repair, or remodel the Install the system in a cool place without direct sunlight, and keep the temperature properly. system by yourself because a high voltage is running in the system. Avoid candle light and heat-generating devices like a heater.
  • Page 8 FuZion User Manual Warning When the system battery is dead, replace the If the HDD passes its service life, image data battery with the same type battery or an stored in the HDD may not be recoverable. If equivalent one specified by the manufacturer.
  • Page 9 FuZion User Manual Caution Do not install the system in a place with strong Install the system in a place with an appropriate magnetism, frequencies, or impact, nor near moisture level and the temperature. electric devices such as radios and TV sets.
  • Page 10 FuZion User Manual Caution The outlet must be grounded. Strong impact or vibration may case a system breakdown. • Install the system in a place without severe vibration. If there is strange sound or smell, unplug the Avoid direct sunlight or an heating power cord immediately and contact the service apparatus.

  • Page 11: Specification

    FuZion User Manual SPECIFICATION SPECIFICATION SPECIFICATION ITEM FZ09/FZ16 Channel 9ch/16ch composite 1.0Vp-p, 75 Ohm Input Level Signal Format NTSC/PAL Input Video Video Loss Check Monitor Output 1ch VGA Output Signal Format Input & Output 4ch Line Input & 1ch Line Output...
  • Page 12 FuZion User Manual ITEM FZ09/FZ16 Interface EIDE/ATA133 Type Internal Capacity of 250GB 1HDD Max HDD Number Network NaFS : Own developed & Designed for never broken by any File system Power failure USB 2.0 Still Image & AVI Memory stick Backup &...

  • Page 13: Package Contents

    FuZion User Manual Package Contents Package Contents Package Contents Please check the below listed contents prior to installation! If there is missing content, Please contact your original seller ! Power Cable DC 12V ADAPTOR MANUAL CLIENT SOFTWARE CD Video Cable...

  • Page 14: System Configuration

    FuZion User Manual Configuration Configuration Configuration Camera CH Monitor And CH Power Division System Direction Playback Buttons Selection Remote button Control MENU/SEARCH/PTZ/AUDIO/ESC Connector Button Camera in 9ch & 16ch Alarm out 4ch ……… Alarm in 4ch DC12V RS232 Audio in 4ch...
  • Page 15 FuZion User Manual PTZ Diagram RS422 RS485 Switches Switches TX + TX+/RX + TX - TX-/RX - #2 ON #2 OFF RX + RX - Sensor Diagram Sensor #1 GROUND GROUND Sensor #2 Sensor #3 Sensor #4 Alarm Connection Alarm #1...

  • Page 16: Remote Controller

    FuZion User Manual Remote Controller Remote Controller Remote Controller Button Functions POWER Power On/Off DISPLAY Display Mode F/REW Play Backward by 60 Sec PLAY Playback F/ADV Play Forward by 60 Sec FREEZE/CAP Freeze and Still Image Recording Play Forward up to 32 Times...

  • Page 17: Hdd

    FuZion User Manual BRAND CAPACITY BUFFER INTEERFACE 80GB 7200RPM E-IDE Hitachi 160GB 7200RPM E-IDE 250GB 7200RPM E-IDE 80GB 7200RPM E-IDE Maxtor 160GB 7200RPM E-IDE 250GB 7200RPM E-IDE 80GB 7200RPM E-IDE Samsung 160GB 7200RPM E-IDE 80GB 7200RPM E-IDE Western Digital 160GB...

  • Page 18: Usb Memory

    FuZion User Manual USB MEMORY USB MEMORY USB MEMORY Maker Model Name Speed Capacity Note TRANSCEND JF Series 1.0/2.0 Up to 4GB PRETEC Tiny Series 1.0/2.0 Up to 4GB Absolline Zibn2.0 Series 1.0/2.0 Up to 4GB Xtick Series 1.0/2.0 Up to 4GB...

  • Page 19: Dvr Setup

    FuZion User Manual DVR Setup DVR Setup DVR Setup 1. DVR Setup Change the default setup for your application. 1-1. Setup Press “1111” (Default Password) with pushing “CH1” Button four times to enter into Main Menu. [Picture 1-1] Configuration Menu ☞...
  • Page 20 FuZion User Manual SETUP LIVE SEQUENCE SEQ-DWELL TIME OSD CONTRAST CHANNEL DISPLAY BRIGHTNESS CONTRAST SATURATION RECORD RESOLUTION CHANNEL FRAME RATE QUALITY RECORDING MOTION ZONE MOTION SENSITIVITY SENSOR RECORDING PRE RECORD POST EVENT RECORD AUDIO SCHEDULE DEVICE ALARM-OUT ALARM OUT SENSOR IN...

  • Page 21: Live Mode Setup

    FuZion User Manual 1-2. Live Mode Setup Set the values for live display. Navigate through the menu items with pressing the UP or DOWN buttons. The values of the menu item may be changed with pressing the LEFT or RIGHT buttons.

  • Page 22: Recording Setup

    FuZion User Manual 1-3. Recording Setup Set the values for recording video. Navigate through menu items by pressing the UP or DOWN buttons. User can change the value of the menu item by pressing the LEFT or RIGHT buttons. [Picture1-3] Recording setup screen...

  • Page 23: Motion Detection Setup

    FuZion User Manual 1-3-1. Motion Detection Setup By selecting Partial Zone in the Motion Zone menu, user can set-up the motion sensing zones in the screen. Move around each rectangular zone using 4 direction key buttons and press SEL button to include the rectangular region as part of the motion sensing zone.
  • Page 24 FuZion User Manual Buttons Description Go Down Go Left Exit from the Schedule Menu [Table1-3-2] Buttons for schedule Recording [Picture1-3-2] Schedule recording setup...

  • Page 25: Device Setup

    FuZion User Manual 1-4. Device Setup Set the values for device setting. Navigate through menu items by pressing the UP or DOWN buttons. User can change the value of the menu item by pressing the LEFT or RIGHT buttons. [Picture1-4] Device setup screen...

  • Page 26: Alarm Output

    FuZion User Manual 1-4-1. Alarm Output Item Description ALARM OUT Select an alarm output number (No.1~4 Selectable) SENSOR IN Select a sensor input (No.1~4) MOTION ON Select a motion sensor (No.1~4) VIDEO LOSS ON Select a video loss channel (No.1~4) ALARM DURATION Setup a alarm duration.

  • Page 27: Camera Control L

    FuZion User Manual 1-4-2. Camera Control This is to control a camera through RS-485 Port. Select channel No for camera control. Select a type of camera and setup speed and camera ID [Picture1-4-2] Camera Control 1-4-3. PTZ Control Select “PTZ” button on front panel of DVR after completion of Camera Setup.
  • Page 28 FuZion User Manual [Picture1-4-3] PTZ Control Item Description PAN/TILT Up and Down button for Tilt and Left/Right button for Pan ZOOM/FOCUS Up and Down button for Zoom and Left/Right button for Focus INITIALIZE To initialize the camera setting [Table 1-4-3] PTZ Control Button...

  • Page 29: Spot Output

    FuZion User Manual 1-4-4. SPOT Output This page explains functions of SPOT output. [Picture 1-4-4] SPOT Output Item Description SPOT TYPE Select type of SPOT (Full or 4Screen) SPOT ON EVENT Setup spot on Event SPOT EVENT DWELL Setup SPOT Event Dwell Time...

  • Page 30: System Setup

    FuZion User Manual 1-5. System Setup Setup Name. Information, Date of System. [Picture1-5] System Setup Item Description DVR ID Make a name of DVR with UP/DOWN/LEFT/RIGHT Buttons DESCRIPTION System Information (Version, HDD Capacity, IP Address, MAC Address) LANGUAGE Select a language...
  • Page 31 FuZion User Manual [Picture1-5-1] ID Setup [Picture1-5-2] System Information [Picture1-5-3] Summer Time Setup [Picture1-5-4] Date/Time Setup...

  • Page 32: Security Setup

    FuZion User Manual 1-6. Security Setup In this menu, password and security parameters can be inputted. Navigate through the menu items by pressing the UP or DOWN buttons. User can change the value of the menu items by pressing the LEFT or RIGHT buttons.

  • Page 33: Network Setup

    FuZion User Manual 1-7. Network Setup Network parameters can be inputted in this screen. These parameters are used for remote clients who are connected to the DVR over the network. [Picture1-7] Network Setup Item Description Port Port Number (Default : 5445)

  • Page 34: Port

    FuZion User Manual Item Description DDNS Setup is used to get Domain Address after DDNS Server registration. When “DDNS” is turned on, DDNS Server Name is displayed for Domain Registration. DDNS Sever Name : “ddns.umbddns.com  Factory Default DDNS Domain Name is used for Network Connection . (IP Address Available) And, Bar Code number on the back side of system must be registered.

  • Page 35: Network

    FuZion User Manual 1-7-2. Network Type Select a type of Network This is used for Network Connection through Static IP, DMZ configuration of Router or Port Forwarding. Network Configuration 1. Static IP (Refer to Network Manager) 2. ADSL Connection through Router With setting up “DMZ”...
  • Page 36 FuZion User Manual Item Description The user ID for ADSL connection PASSWORD The password for ADSL connection [Table1-7-3] ADSL DDNS MAC Address granted to each system (12 digit number or Mac address in system information) must be registered to DDNS Server to get a domain address.

  • Page 37: Recording Device Setup

    FuZion User Manual 1-8. Recording Device User can set recording mode in the hard disk drive or initiate format of the hard disk driver. [Picture1-8] Recording Device Item Description OVERWRITE Overwrite existing material when hard disk drive is full. FORMAT...

  • Page 38: Save Setup

    FuZion User Manual 1-9. Save Setup Save the changed Setup Menu If Save Setup is not selected, the changed setup doesn’t record after system rebooting [Picture1-8] Save Setup...

  • Page 39: Live Search

    FuZion User Manual Live Search Live Search Live Search 2. Live Search Live Screen 2-1. Show Live Images by Cameras and information of each channel, HDD Capacity and Recording [Picture2-1] Live Screen Icon Description Continuous recording in progress Manual recording in progress...

  • Page 40: Search Mode

    FuZion User Manual Button Description SETUP Launch the SETUP menu. Enable/disable the automatic sequential display in full or quad mode. The channel display in quad mode is followed by the settings in the setup menu. PLAY/PAUSE Launch the SEARCH window.
  • Page 41 FuZion User Manual Event Search 1.Select PLAY/PAUSE button and a date for search. 2. Push “SEL” Button 3. Below search menu shows 4. Recording type (A : All of Recording Data Search, M : Motion Recording Data Search, S : Sensor Recording Data Search, R : Manual Recording Data Search, C : Continuous Recording Data Search 5.

  • Page 42: Playback Mode

    FuZion User Manual 2-3. Playback Picture [2-3] shows all channels of playback images. “ESC” Button goes back to the previous screen. [Picture2-3] Live Picture Button Description Return to the previous menu screen or exit from the setup menu Press to rewind video at 1x, 2x, 4x, 8x speed.

  • Page 43: Archiving Video Into Usb Memory Stick

    FuZion User Manual Archiving Video Into Archiving Video Into USB Memory Stick USB Memory Stick 3. Archiving Video Into USB Memory Stick To archive a still image or video to a USB storage device, user must first capture a still image or video to a hard disk drive.

  • Page 44: Video & Still Image Back-Up Through Usb

    FuZion User Manual 3-2. Video & Still Image Back-up through USB Connect USB memory stick to USB port Press “ARCHIVE” button to select a date on the calendar. Select a red colored date including recorded data with “SEL” button. [Picture3-2] Still Image Search After selecting data for USB Backup, Year/Month/Date/Time shows on the screen.
  • Page 45 FuZion User Manual CD-RW Recording USB Recording Video for backup is recorded as AVI File. If your PC fails to play backup data, please install a codec pro gram. http://www.divx.com/divx/download/...

  • Page 46: Firmware Upgrade

    FuZion User Manual Upgrading Firmware Upgrading Firmware Upgrading Firmware 4. Upgrading Firmware It is possible to upgrade Firmware through USB. Make “upgrade” folder in Memory stick and put a new firmware. (app9.bin(9CH Firmware), app16.bin(16CH Firmware)) 1. Press [SETUP] button and input a password. (Default P/W “1111”.) 2.

  • Page 47: Network Client

    FuZion User Manual Network Client Network Client Network Client 5. Network Client The DVR provides a live remote monitoring feature. Remote monitoring requires installation of a software client program on your PC. A LAN connection using the RJ45 connector on the rear panel is mandatory for remote connection.

  • Page 48: Minimum Pc Requirements For Net Client Software

    FuZion User Manual 5-2. Minimum PC requirements Minimum Recommended Intel Pentium Ⅲ Intel Pentium Ⅳ 500Mhz 2Ghz Memory 128MB 256MB 16MB 64MB Resolution 1024x768 1024x768 Disk space 10MB 10MB Windows 2000 Windows 2000, Professional, XP Network 10/100Base T 10/100Base T Others Direct X 8.1...

  • Page 49: Main Screen

    FuZion User Manual 5-4-1. Main Screen 5-4-2. Main Control Button Button Description Displays the current date and time. Click this icon to connect to the DVR Menu Screen IP Address : Input DVR IP address or domain address Port No : Input port # - default is 5445 Protocol : Select a normal TCP protocol Password : Input DVR P/W –...
  • Page 50 FuZion User Manual Click this icon to search for recorded videos. Click this icon to see live video. Press this button to lock the program Press this button to disarm the security. Once you click the lock or unlock icon, this pop up window appears. You need to remember the pass word and enter the pass word again when you try to operate the client software.
  • Page 51 FuZion User Manual Click this icon to enter setup configuration of client software. Click this icon to exit from the operations of client software. Alarm indicators for each channel. Full screen Quad screen 9 Split screen 16 Split screen Click this icon for Sequential display of each channel in full screen mode.

  • Page 52: Search Mode

    FuZion User Manual 5-4-3. Search Mode Press Search Button to show below window. 5-4-4. Search Control Button Button Description Displays the recording time of the selected data by adjusting of scale in the middle of the bottom of the main user interface.
  • Page 53 FuZion User Manual Save Path : Appoint the folder for saving File : Appoint a name of file for saving. File Format : Appoint a file format for saving. (BMP or JPG selectable) Click this icon to set the beginning time for backup of the recorded video in AVI format –...
  • Page 54 FuZion User Manual Click to advance 1 frame. Quad screen 9 Split screen 16 Split screen Left/Right Button is to search every 1 hour data. Middle of button is to change the selected one hour to 60 minutes. Shows the capacity and fullness of HDD.

  • Page 55: System Setup

    FuZion User Manual 5-5. System Setup Press to enter into Setup Menu. 5-5-1. General Security Option This option is to protect any unauthorized approach with P/W Setup. Password Setup Menu Save Path Select a folder to save each setting. Miscellaneous Automatic reconnection Menu This option connects with network automatically on Network delay or disconnection.

  • Page 56: Site

    FuZion User Manual 5-5-2. Site User can change a name of each site. 5-5-3. Event This saves each event to the appointed file.

  • Page 57: Record

    FuZion User Manual Event search This shows a log history of a specified date and time. 5-5-4. Record This is to set a record option of each channel. (This is not DVR recording option but client program recording option. Always  Continuous Recording, Event  Motion or Sensor Recording, Auto Record ...
  • Page 58 FuZion User Manual This recording option indicates a current status of recording setup of DVR. Disk You can select the local disk to use and the amount of disk space you want to allow the program to use for recording. You can also select the option to overwrite data or...

  • Page 59: Video

    FuZion User Manual 5-5-5. Video This page is to match colors of client program. (This is supported depending on an installed video card in personal computer.) 5-5-6. About “About” provides network client version information.
