Summary of Contents for JAUNT ONE

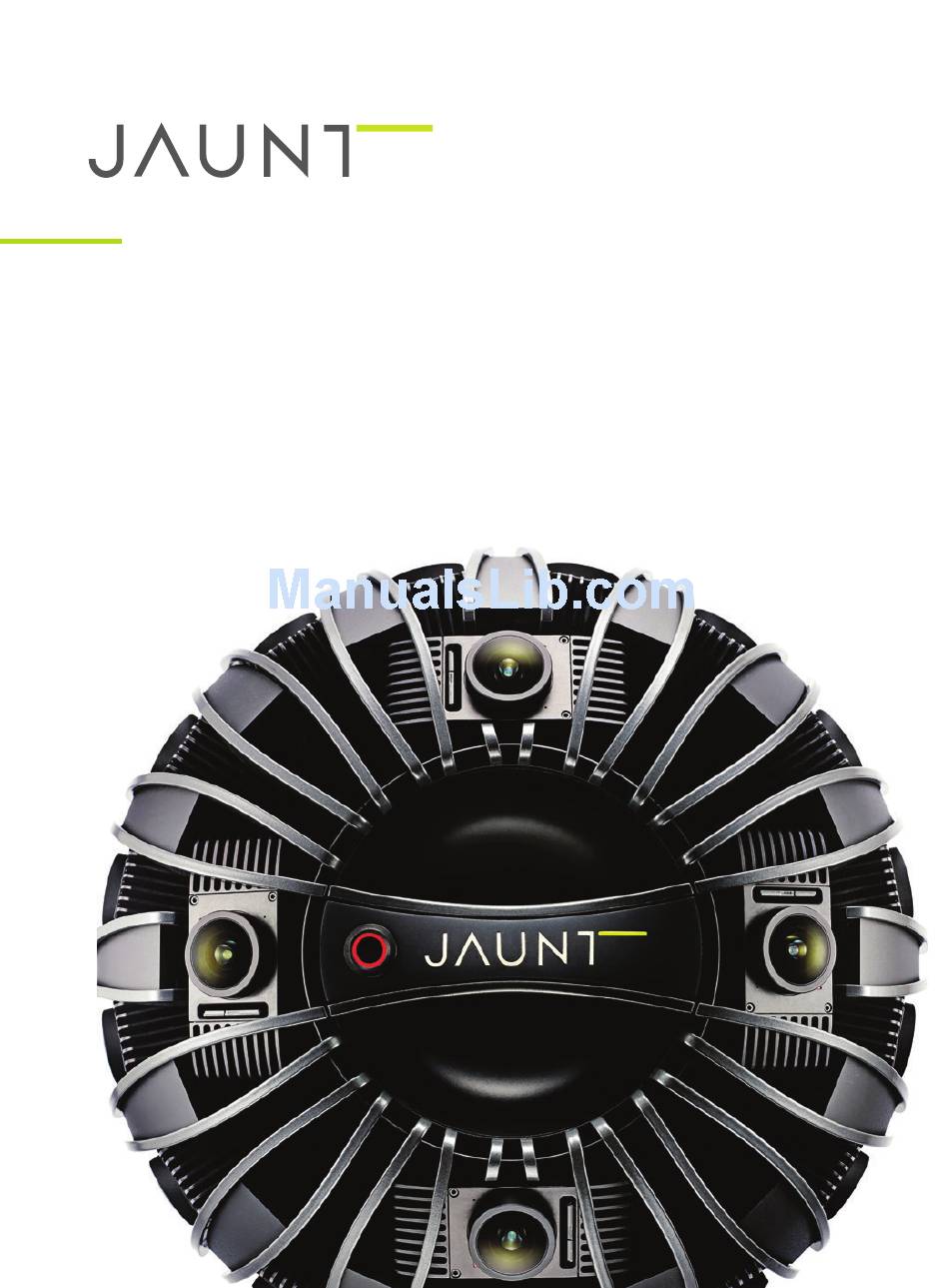

- Page 1 O N E U S E R G U I D E COPYRIGHT 2016, JAUNT INC. UPDATED SEPTEMBER 27, 2016...
-
Page 2: Table Of Contents
Removing/Replacing Lens Caps ...............8 Inserting/Ejecting SD Cards ................8 Connecting Power....................9 Power On/Off.....................9 Record Start/Stop....................9 Default Capture Settings................10 Connecting USB....................10 Connecting Accessories..................10 Wired Remote Trigger ..................11 Reviewing Data....................11 Camera Module Numbering................12 Status......................12 Troubleshooting..................13 Specifications....................14 Functional......................14 Mechanical......................15 Regulatory Compliance ................16 COPYRIGHT 2016, JAUNT INC. -
Page 3: Getting Started
Power connector Lens cap Camera module for use with Jaunt ONE 16 equatorial, 4 top, 4 bottom 24 caps, one for each module power cable only Lens - glass optical element Microphone 24 microphones, one for each module Accessory port... -
Page 4: Case Layout
USB Cable and Windscreen Tascam Audio Recorder Camera Battery Plate/Cable Flashlight Anton Bauer Battery Charger Mic Cable Set Camera Battery Packs Microphone (2) Anton Bauer Digital 150 Gold Mount (1) Anton Bauer Digital 90 Gold Mount COPYRIGHT 2016, JAUNT INC. -
Page 5: Handling
Only transport Jaunt ONE in an approved transport case. Creating Your First Recording Refer to the Jaunt ONE Step By Step Tutorial for details on creating your first recording. For best practices refer to the Jaunt Cinematic VR Field Guide: A Guide to Best Practices for Shooting 360°. -
Page 6: Compatibility
CO MPATIB ILITY Power Jaunt ONE can be powered by standard cinema batteries or via a custom AC adapter. Always use the supplied Jaunt ONE power cable to power the camera. The following batteries/power supplies have been tested and are fully supported for use with Jaunt ONE: Battery •... -
Page 7: Data
SD cards that can support high data rates. The following SD cards have been tested and are fully supported for use with Jaunt ONE. Take care not to mix and match different SD card sizes or brands. Only use cards listed below: SanDisk Extreme PRO SD UHS-I Card, 32GB (est. -
Page 8: Usage
Eject the SD card by pushing inward on the card until it clicks and disengages. Do not attempt to directly remove the card without first pushing inward to disengage it. Remove the card and store in the supplied card case. COPYRIGHT 2016, JAUNT INC. -
Page 9: Connecting Power
LEDs will turn red to indicate that the camera is now recording. To stop recording, press the record button on the handle. The record button LED and the camera module LEDs will turn green to indicate the camera has stopped recording. COPYRIGHT 2016, JAUNT INC. -
Page 10: Default Capture Settings
Default Capture Settings The following are the default capture settings. These settings can be adjusted by connecting a computer to the camera and using the Jaunt ONE Controller application. Additional information can be found in the Jaunt ONE Controller documentation. -
Page 11: Wired Remote Trigger
C001 is the chapter number. Large video files will be chaptered after the video reaches 4GB in size. Note that the .mov file on the SD card will need the Jaunt ONE LUT (look-up table) applied in order for colors to appear accurate. Visit support.jauntvr.com for further details on color and the LUT workflow. -
Page 12: Camera Module Numbering
The LED status indicators on each camera module indicate various states of operation. The following is a table of status conditions. When in doubt, connect the camera to a computer running Jaunt ONE Controller to view detailed information about camera status. -
Page 13: Troubleshooting
Status LEDs continue flashing green after boot Verify that SD cards have been fully inserted in all modules. Connect Jaunt ONE Controller to review warnings & errors. Eject and re-insert all SD cards. Check write-protect switch on SD cards is in the “unlocked” position. -
Page 14: Specifications
Automatic or manual control (using Jaunt ONE Controller) Exposure Automatic or manual control (using Jaunt ONE Controller) White Balance USB 2.0 interface for control using Jaunt ONE Controller Remote Control Accessory port for interface with external accessories Jaunt ONE Controller Available for Mac OS X 10.11 El Capitan... -
Page 15: Mechanical
O N E SP ECI FIC AT IONS Mechanical COPYRIGHT 2016, JAUNT INC. -
Page 16: Regulatory Compliance
Conforms to UL Standard 60950-1 Certified to CSA Standard C22.2 No. 60950-1 Federal Communications Commission (USA) Trade Name: Jaunt ONE Model Name: J1-24G This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 17 O N E COPYRIGHT © JAUNT...
