Dignsys CFMBOX User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

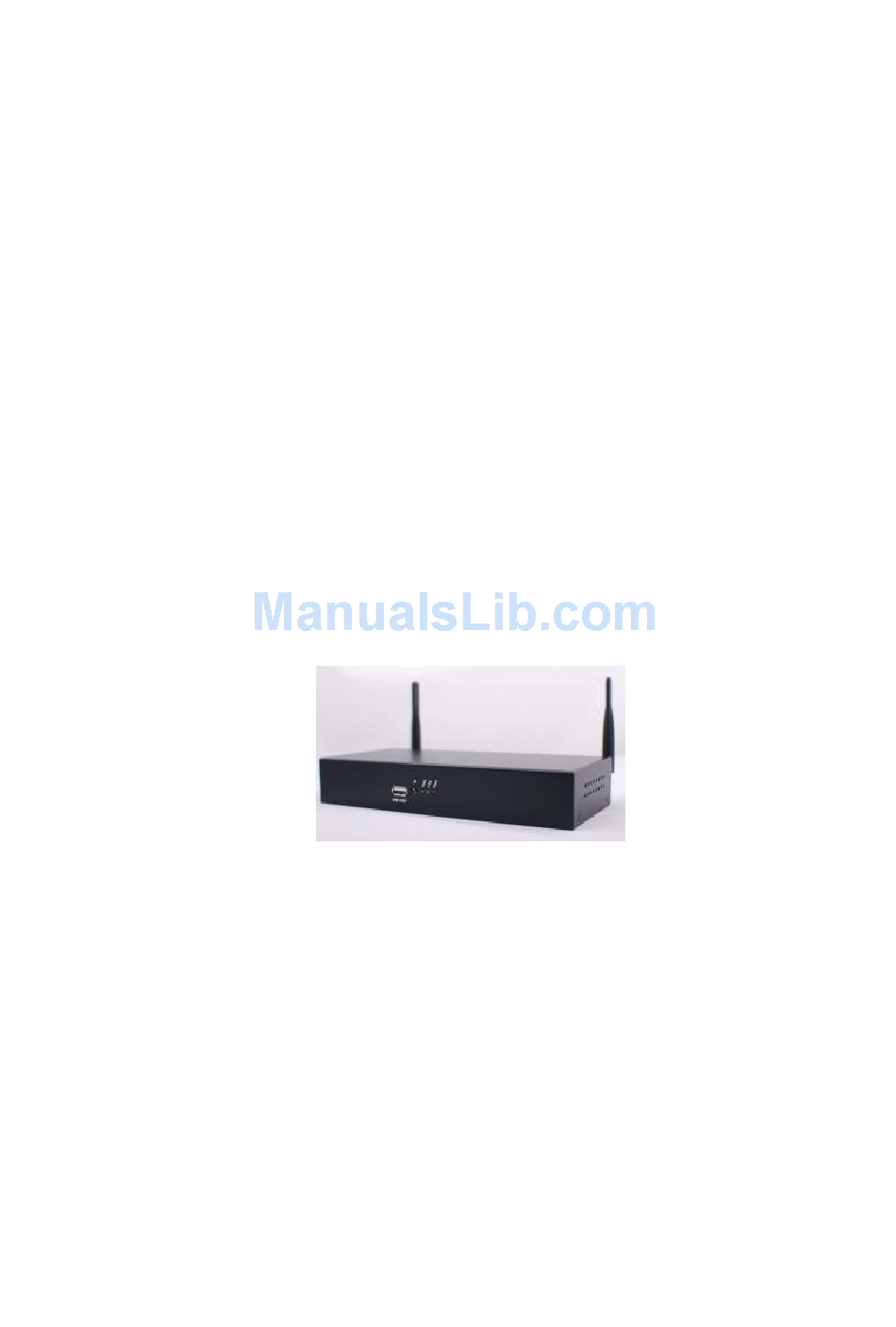

CFMBOX
User's Guide
Rev 1.0
CFMBOX, Full-HD networked digital signage player is perfect digital sign and
information display solution with proven stability & reliability in worldwide.
DIGNSYS Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFMBOX and is the answer not in the manual?

Questions and answers

Summary of Contents for Dignsys CFMBOX

  • Page 1 CFMBOX User’s Guide Rev 1.0 CFMBOX, Full-HD networked digital signage player is perfect digital sign and information display solution with proven stability & reliability in worldwide. DIGNSYS Inc.
  • Page 2 DIGNSYS reserves the right to make changes in its products or product specifications with the intent to improve function or design at any time and without notice and is not required to update this documentation to reflect such changes.

  • Page 3: Table Of Contents

    [ Index ] 1. Introduction..................... 5 Notation ....................5 Operation Type ..... 오류! 책갈피가 정의되어 있지 않습니다. Stand-alone display ..오류! 책갈피가 정의되어 있지 않습니다. 1.2.1 Real-time streaming with local server PC오류! 책갈피가 정의되어 있지 않습니다 1.2.2 Wide area advertising with internet server오류! 책갈피가 정의되어 있지 않습니다 1.2.3 Operation Mode .................
  • Page 4 3.1.2 Audio Configuration ..............40 Network Server .................. 41 Real-time streaming with local server PC오류! 책갈피가 정의되어 있지 않습니다 3.2.1 3.2.2 Internet WEB server ..............44 Wired Network Connection ..............45 Wireless Network Connection ............46 Screen Setting ................... 48 3.5.1 Operating Mode Configuration ..........

  • Page 5: Introduction

    A “note” provides supplementary information. Note Naming Conventions CFMBOX is networked HD digital signage player. It can play high quality advertisement media contents such as photo and movie. CFMBOX CFMBOX offers wide range of solutions to meet the requirements of digital signage and information display with simple, stable &...
  • Page 6 Intranet CFMBOX can connect to WEB server on the intranet, and play the advertising contents after download the contents to the internal storage Local network can be connected through wired LAN or wireless LAN.
  • Page 7 038 : DS206-FT PRODUCT CODE Box style example) NDS-038 : Box product with DS206FT board(CFMBOX) All-in-one style : The post fix number of NDP is stand for the size of LCD panel. example) NDP23-037 : 23 inch product with DS3006E board...
  • Page 8 CFMBOX User’s Guide Product Specification CFMBOX include hardware and software. User can use the system without additional software installation procedure. 1.2.1 Hardware Specification FEATURE DESCRIPTION REMARK EM8621, SigmaDesign FLASH 16MB Software inside Memory SDRAM 64MB Internal CF 4GB 8GB, 16GB available...
  • Page 9 CFMBOX User’s Guide Expansion module make CFMBOX to powerful and provide additional feature to CFMBOX. MODULE DESCRIPTION WiFi Module 802.11 b/g, Mini PCI type, include antenna Media player control DCU (Device Control Unit) Support standard industrial DVD control protocol User interface : configurable button, motion sensor...
  • Page 10 CFMBOX User’s Guide 1.2.2 Software Specification FEATURE DESCRIPTION uClinux Simple looping display Networking options Operation Type Interactive control Multiple synchronous Up to MPEG1, MPEG2 1920x1080p30 Movie Up to MPEG4 AVI, Xvid, Divx 1280x720p30 Video Up to WMV9 1280x720p30, 1440x1040p24 Photo...
  • Page 11 CFMBOX User’s Guide Here is more detail codec information for photo. CODEC RESOLUTION FEATURE CONTAINER Support baseline only JPEG Up to 4096x4096 do not support progressive Here is more detail codec information for audio. CODEC MPEG1 Layer 1 and 2...

  • Page 12: Operation Type

    The contents and playlist must be stored to CF memory card inside before play. The media contents and playlist can be update with network or USB memory stick. If CFMBOX use with network then user can put media content and playlist to computer/server on the network, then CFMBOX download automatically.
  • Page 13 The contents and playlist must be stored on the internal CF memory card. The media contents and playlist can be update with network or USB memory stick. If CFMBOX use with network then user can put media content and playlist to computer/server on the network, then CFMBOX download automatically. If we use USB memory stick, then the contents can be copy to CF memory card by manually or automatically.
  • Page 14 1.3.2 Kiosk style interactive control display Interactive control feature make CFMBOX to operate as interactivity straightforward without implement or provision any exotic software. Button, motion sensor and touch is possible device to control interactive display. Interactive display support menu mode, repeat mode, standby mode and continue mode display operation.
  • Page 15 CFMBOX User’s Guide Installation example on the department store ① Play advertisement video continuously. ② Display floor information when press “floor information” button. ③ Play advertisement video continuously again. ④ Display store information when press “store information” button. ⑤ Play advertisement video continuously again.
  • Page 16 The player operation is same with standard type, but the status monitoring feature will be enabled to communicate with server and each CFMBOX is registered to management software to manage and monitoring. The advanced DSP manager is used for status monitoring and managing CFMBOX in this network management type. Feature •...
  • Page 17 Chained office, restaurant, market, hospital, museum, …. 1.3.4 Multiple synchronous display Create a unique wall of linked and synchronized displays. CFMBOX synchronize using LAN or WiFi network connection. Simple script assign one CFMBOX unit as a“ Master”and the others as“ Slave”.

  • Page 18: Operation Mode

    CFMBOX User’s Guide Operation Mode Operation mode is classified by how CFMBOX works after power-up. Auto play mode start play advertising contents automatically after power-up. Manual mode show main menu after power- up and user select play item by remote controller button.

  • Page 19: System Requrement

    - WEB server - DSP manager Notice The DSP manager is not essential. CFMBOX can use network feature without any additional software. The DSP manager allow user to handle playlist and media contents more easily, remote management and status monitoring the CFMBOX.

  • Page 20: Storage

    Do not allow to use the other file system. • Caution • CFMBOX play media content on USB memory stick, but it can make trouble. CFMBOX recommend to copy from USB memory stick to internal CFMBOX before • play the media contents.

  • Page 21: Product Components

    CFMBOX User’s Guide Product Components CFMBOX is used for play advertising contents at TV or LCD display. This product include status LED, IR receiver, USB port on the front, RS232 port for interactive control, VGA & HDMI video output, Stereo &...
  • Page 22 CFMBOX User’s Guide Rear View Stereo Audio and CVBS WiFi Antenna RS232 SPDIF Optical HDMI DC Power Input Power Switch LAN RJ45...

  • Page 23: Remote Control

    CFMBOX User’s Guide Remote Control 2. AUTO 1. POWER 3. #1, FILE INFO 4. #2, CAPTION ON/OFF 5. #3, CAPTION SYNC 6. #4, ZOOM 7. #5 9. #7 8. #6, SCR SIZE 10. #8 11. #9 12. #0 14. V.MODE 13.
  • Page 24 CFMBOX User’s Guide Item No Button Name Browser Play Time POWER Power On/Off Power On/Off AUTO Start Auto Play #1, FILE INFO Display file info #2, CAPTION ON/OFF Caption On/Off #3, CAPTION SYNC Caption Sync. #4, ZOOM Zoom the screen...
  • Page 25 HDMI, S-Video and YPbPr order. User must configure video resolution after find video output port. User must wait 3 second at least to change new video output mode. The S-Video and YPbPr do not have external output port on CFMBOX, this is implement on the inside of CFMBOX for future use.

  • Page 26: Manual Navigation Browser

    Manual navigation browser is displayed after boot at manual mode or press STOP button at auto play mode. CFMBOX have for navigation icons 1. Play Movie Go to movie navigation browser. User can select folder, file and play the movie.

  • Page 27: System Installation

    Dynamic DSP manager is recommend for intranet environment or USB memory stick. Advanced DSP manager is recommend for wide area internet connection. 7. CFMBOX start play media contents by press AUTO button when manually update from USB memory stick. CFMBOX start automatically after remove USB memory stick when...
  • Page 28 2.1.2 Kiosk style interactive control display Interactive control feature make CFMBOX to operate as interactivity straightforward without implement or provision any exotic software. Button, motion sensor and touch is possible device to control interactive display. Interactive display support menu mode, repeat mode, standby mode and continue mode display operation.
  • Page 29 Dynamic DSP manager is recommend for intranet environment or USB memory stick. Advanced DSP manager is recommend for wide area internet connection. 8. CFMBOX start play media contents by press AUTO button when manually update from USB memory stick. CFMBOX start automatically after remove USB memory stick when use command.txt for automatic update.
  • Page 30 Media contents and playlist are download automatically from server to CF memory card inside before play. CFMBOX play media contents on CF memory card as follow playlist. The player operation is same with standard type, but the status monitoring feature will be enabled to communicate with server and each CFMBOX is registered to management software to manage and monitoring.
  • Page 31 5. CFMBOX will start automatically after power up. 6. Setup display, audio, networking and network server information as required. One CFMBOX must be to set “master” and the others CFMBOX to set “Slave” by use DSPCONFIG file. 7. If system work conjunction with kiosk style interactive feature, then install and connect DCU to “Master”.
  • Page 32 CFMBOX User’s Guide Additional Information Setting - Adjust video output port & resolution Refer to 3.1 Video & Audio of this manual. - Network connection Refer to 3.3 Wired Network Connection and 3.4 Wireless Network Connection - Handling playlist file Refer to 2.2.1 Handling Play list of this manual.

  • Page 33: Handling Play List And Remote Command

    Handling play list and remote command 2.2.1 Handling play list CFMBOX handling advertising contents by use playlist.txt file on root of storage device. Play list file list-up the all files to play at the station and time, week and week-time scheduling information too.
  • Page 34 - Default play list List-up the file that playing without scheduling. If no schedule is specified CFMBOX play the file in default play list. Default play list do not have any week or time directive.
  • Page 35 BGM, or transition effects. 2.2.2 Multi-Zone Layout Display(MLD) CFMBOX support free Multi-Zone Layout Display (MLD). User can display various style of screen layout with this free MLD function. MLD requires two files, “format.txt” and “playlist.txt”. This two files must be stored in internal storage device or in the Internet server folder.

  • Page 36: Handling Remote Command

    704, and Y length is 704. Video or photo can be displayed in this display position. Caution A display position of MLD should be within 1024x768 resolution boundary. It is different from video output resolution of CFMBOX. If the video output resolution is 1920x1080, 1024x768 size is enlarged to 1920x1080 size. Caution Media type “V”...
  • Page 37 After schedule changes Support Command - “updateall” It just works in case of USB memory. CFMBOX deletes all files and folders in the internal storage, and copy all files and folder from USB memory to internal storage. Internal storage: USB memory:...

  • Page 38: Dspconfig Command

    Reference Using DSPCONFIG command, we can setup CFMBOX and use advanced functions such as configuration of off-day, on-day, log, live, multi-sync. Please refer to DSPCONFIG manual for more detail information.

  • Page 39: System Configuration

    CFMBOX User’s Guide 3. System Configuration User can configure the system at the Setup navigation browser(setup page). User can go to Setup page by press setup icon on the main navigation browser or press SETUP button of remote controller. If your system are playing photo or movie, press STOP button prior to configure the system.

  • Page 40: Video Configuration

    HD HDMI : 480p, 720p, 1080i, 1080p, 800x600, 1024x768, 1280x1024, 1366x768, 1400x1050, 1680x1050, 1920x1200 Default Setting - Video output : VGA, 1280x1024. 3.1.2 Audio Configuration CFMBOX supports stereo and surround output. Surround output means 5.2 channels optical or SPDIF interface. Default audio output is stereo.

  • Page 41: Network Server

    CFMBOX User’s Guide Network Server The network server and interactive setting value can be configured on SERVER menu. The network server IP address, remote server polder and connection port are required for server connection. The interactive setting require for serial and network configuration for interactive control.
  • Page 42 CFMBOX User’s Guide Delete Cancel [Figure] Virtual Keyboard for change IP address ¨ Server Folder The folder name is used on internet server connection. User can change folder name by use virtual keyboard. 1 2 3 4 5 6 7 8 9 0...
  • Page 43 Internet server environment. ¨ Interactive Setting This configurations are used for control CFMBOX and DCU connection for interactive operation of CFMBOX. DCU(Device Control Unit) is addition control module for communication between human an machine with button, motion sensor.

  • Page 44: Real-Time Streaming With Local Server Pc오류! 책갈피가 정의되어 있지 않습니다 Internet Web Server

    Install Media server The Media server can install as following steps. 1. Install Media server The media server installation is different in different management software. CFMBOX support dynamic and advanced DSP management software. Please refer to each manual for more detail.

  • Page 45: Wired Network Connection

    ¨ IP Address CFMBOX support dynamic and static IP configuration. If user configure to static IP configuration(Fixed), user must set IP address, subnet mask and gateway by virtual keyboard. Dynamic IP configuration(Auto) don’t need any more configuration.

  • Page 46: Wireless Network Connection

    CFMBOX User’s Guide ¨ MAC Address This field shows MAC address of CFMBOX. Default Setting - IP address assign : Auto - DNS Server : Auto Wireless Network Connection The wireless network can be configured by select WLAN menu. Following picture show the wireless network configuration window.
  • Page 47 CFMBOX User’s Guide Setting the wireless LAN information such as ESSID, channel number and security. Mode Select wireless LAN working mode. NETCION-DSP support Managed and Ad- hoc mode operation. SSID Wireless network name Channel Channel number of wireless network WEP Key Support, WEP Key Configure to WEP key support.

  • Page 48: Screen Setting

    CFMBOX User’s Guide Screen Setting On the Screen Setting menu user can configure system operating mode, slide effect and caption. Following picture shows screen setting window. In this window, user can restart auto run by select Auto Run Restart items at end of menu.

  • Page 49: Slide Effect

    3.5.2 Slide Effect Slide effect is configured at Slide Effect menu of Screen Setting on Setup page. CFMBOX give slide effect Random, Crossfade, Rightward, Leftward, Upward, Increase and Decrease way. User can select slide effect Transition Time as second order too.
  • Page 50 CFMBOX User’s Guide Handling Message Caption File Message caption file supports text format and BMP format. In case of text format, the file name is message_xxxx.txt (for example, message_sunday.txt and message_0900.txt). It can be created by text editor, such as Notepad on Windows XP.

  • Page 51: Auto Scaling

    CFMBOX User’s Guide 3.5.4 Auto Scaling Auto scaling fits the movie to video output resolution. If auto scaling is disabled, the actual video image ratio is displayed on the screen. If auto scaling is enabled, the video image is displayed on full screen. Auto scaling is enabled as a default.

  • Page 52: Time

    CFMBOX User’s Guide Time On the TIME menu user can configure current time, NTP server, time zone and system on/off time. 3.6.1 Setup current time User can setup current time by manually or get it from NTP server. The time setting method will be selected with Cur.

  • Page 53: Display Current Time

    CFMBOX User’s Guide 3.6.3 Display current time CFMBOX can display current time on the screen. User can select display location left-top, left- bottom, right-top or right-bottom. Caution Don’t make overlap with message caption. If the time display and message is overlapped, the message can be broken.

  • Page 54: Advanced Setup

    CFMBOX User’s Guide Advanced Setup On the Advaned Setup menu user can configure screen saver enable or disable, file sort, OSD message on/off, language and software upgrade. 3.7.1 Screen Saver User can set screen saver. Screen saver work after 5,6,7,8, or 10 minute from no use of system.

  • Page 55: Language Support

    CFMBOX User’s Guide 3.7.4 Language support CFMBOX support Korean, English, Chinese and Japanese language. The default firmware support Korean and English. CFMBOX need to update firmware for Chinese or Japanese language support. System will restart automatically after change language. 3.7.5 Font Size This menu set the size of font for message and clock display.

  • Page 56: Cf/Ide Management

    CFMBOX User’s Guide 3.7.8 CF/IDE Management Erase All : This menu deletes all files and folders from the internal storage. Format : This menu format the internet storage to the FAT32 file system. 3.7.9 USB Memory Copies files from USB memory to internal storage.

  • Page 57: Dsp Mode

    DSP Mode There are 4 kinds of product type, standard type, interactive type, network managed type and multi-synchronous type in CFMBOX. After firmware version 2.42, Interactive type and Multi Synchronous type are merged to Standard type. Standby, Repeat, Menu, and Continue mode are operating modes of the Interactive type.

  • Page 58: Manual Mode Operation

    The menus on menu bar have following purpose. SERVER : select the folder of server PC at real-time streaming. CFMBOX do not support now. HDD : select inside CF memory card...

  • Page 59: Play Picture

    CFMBOX User’s Guide USB1, USB2 : select the USB memory PREV LIST : show the previous page of file list NEXT LIST : show the next page of file list PLAY ALL : play all contents on file list window...

  • Page 60: Play Music

    CFMBOX User’s Guide Play Music User can go to movie navigation browser by select Music icon on the main navigation browser or press AUDIO hot button of remote controller. All of buttons are used as same functionality with movie navigation browser.

  • Page 61: Faq

    User must use same size picture with screen size. If user use 1366x768 screen size at 42 inch LCD display, the 1366x768 sized picture have best quality. User can change picture size by use some tool. CFMBOX don’t provide such kind of tool. 2. How can I set Wireless LAN ? If you have Wireless LAN access point, you can set operating mode to managed, and set ESSID, channel number too.

  • Page 62: Appendix A. Trees Of Setup Page

    CFMBOX User’s Guide Appendix A. Trees of Setup Page Level 1 Level 2 Level 3 Default Brightness Contrast Saturation Video Output VGA 1280x1024 C/S-Video, C/YPbPr, C/RGB HD YPbPr 480p, 720p, 1080i, 1080p 640x480, 800x600,1024x768, 1280x768, 1280x1024, Video/Audio 1366x768, 1400x1050, 1440x900, 1680x1050,...
  • Page 63 CFMBOX User’s Guide Level 1 Level 2 Level 3 Default IP Address Auto, Fixed Auto DNS server Auto, Fixed Auto Network Status Connected, Disconnected PING Test Wireless LAN Support Enable, Disable Disable Managed mode Mode, ESSID, Channel, Wireless LAN Setting...
  • Page 64 CFMBOX User’s Guide Level 1 Level 2 Level 3 Default Current Time Time Setting User Input, NTP User Input NTP Server setting bora.net UTC Setting UTC +9 Time Display Disable, LT, RT, LB, RB Disable Red, Orange, Yellow, Green, Time Color...
  • Page 65 CFMBOX User’s Guide Appendix B. Reference Manual Manual Description DSPConfig Manual Explain DSPCONFIG command Interactive Manual The manual for interactive operation Multi Synchronous Type Manual The manual for multi-synchronization operation Playlist Manual Explain about playlist and multi-zone Dynamic edition management software installation...
  • Page 66 CFMBOX User’s Guide CFMBOX User’s Guide Manual, Revision 1.0 Publication Number: DS-1007-03 DIGNSYS Inc. 14F, Digital Empire Bldg., B-1408, Yeongtong-dong, Yeongtong-gu, Suwon, Gyeonggi-do, 443-813, Korea TEL: +82-31-303-5720 FAX: +82-31-303-5722 URL: http://www.dignsys.com...
