Connects2 adaptiv Fitting & User Instructions

Citroen and peugeot with 7" oem touchscreen

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

WWW.ADAPTIV-MULTIMEDIA.COM

Table of Contents

Need help?

Do you have a question about the adaptiv and is the answer not in the manual?

Questions and answers

Summary of Contents for Connects2 adaptiv

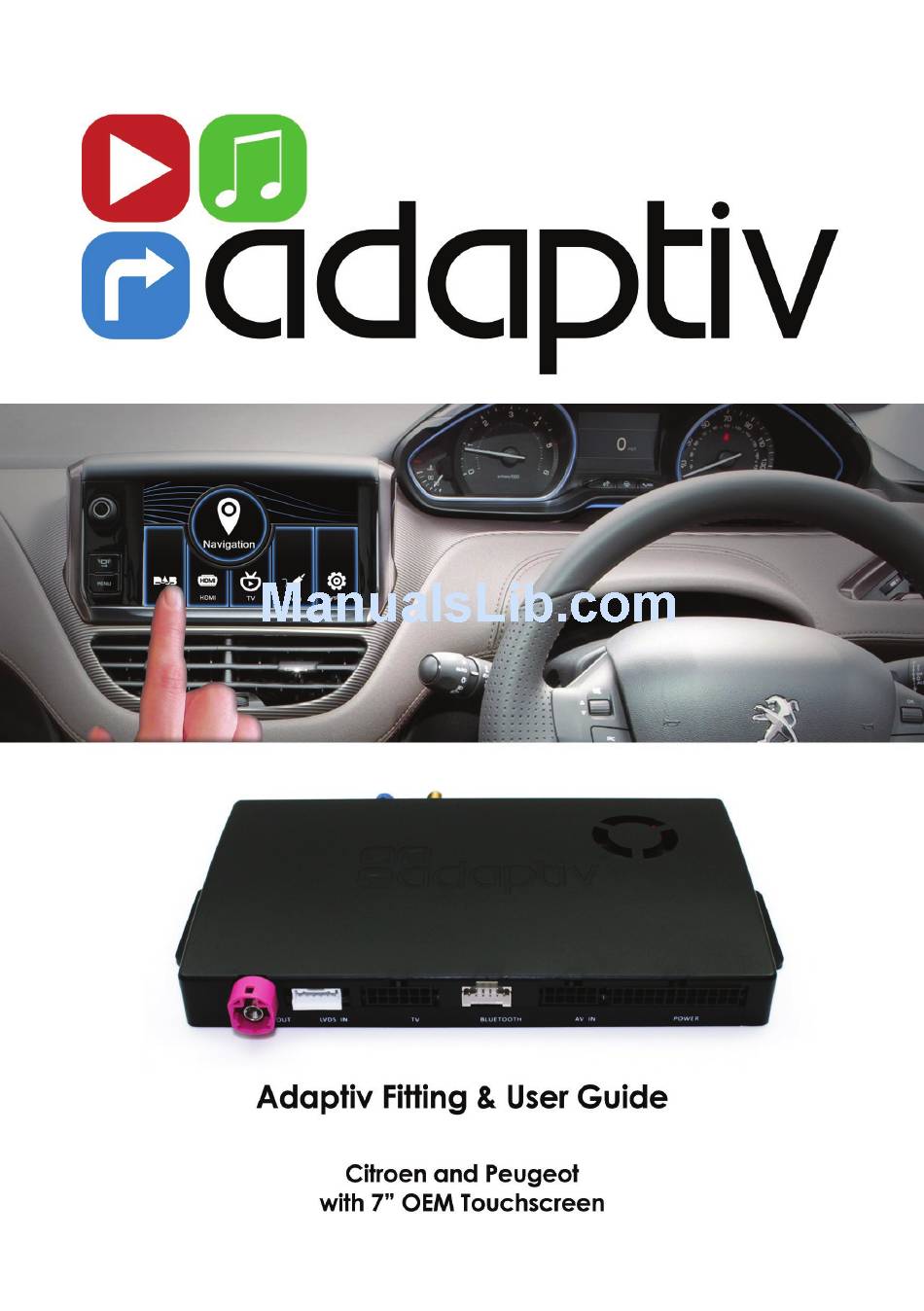

Page 1 WWW.ADAPTIV-MULTIMEDIA.COM...
Page 2: Table Of Contents
CONTENTS Contents About Connection Diagram Quick Start Guide System Sound Settings Navigation HDMI AV In USB/SD File Transfer Info/Update Technical Specifications PEUGEOT/CITROEN PLATFORM...
Page 3: About
ABOUT Adaptiv Adaptiv is a new brand from Connects2, which allows extensive multimedia and navigation upgrades to the OEM screen. The plug and play, all in one interface adds Navigation, USB/SD, AV In and an input for an aftermarket reverse camera. Optional modules allow the ability to add DAB Digital Radio (ADV-DAB), HDMI (ADV-HDMI) and DVBT TV (ADV-DVBT).
Page 4: Connection Diagram
CONNECTION DIAGRAM PEUGEOT/CITROEN PLATFORM...
Page 5 2. Disconnect Pink LVDS connector (B) from the rear of the OEM head unit. 3. Connect this Pink LVDS to the Pink “LVDS OUT” on the Adaptiv interface. 4. Connect the LVDS cable supplied (C) into the Pink LVDS IN on the OEM head unit, connect the other end of this cable to “LVDS IN”...
Page 6: Quick Start Guide
1. Before using your Adaptiv product, please ensure that the Aux in option is selected on your OEM head unit. This allows the Adaptiv product to use the Aux In source for its wide range of multimedia inputs. 2. There are two ways in which the Adaptiv product is activated, depending upon which type of OEM head unit is fitted in your vehicle.
Page 7 QUICK START GUIDE 4. Scroll down to Language and select the required language. 5. Scroll up and select Media In and ensure Adaptiv is selected from the drop down menu. WWW.ADAPTIV-MULTIMEDIA.COM...
Page 8: System
Media In This allows the user to switch between Adaptiv and Car as an audio source. When using Adaptiv, ensure that Adaptiv is selected from the drop down list. Should you wish to use an OEM audio source, select Car.
Page 9 SYSTEM Language Allows the user to change language of the Adaptiv interface. The interface is set by default to English. Video Input Change the Brightness/Contrast of the picture for AV Map Data Update This allows access to update the Navigation SD card software.
Page 10: Sound Settings
SOUND SETTINGS The sound settings menu allows the user to set the volume level of an audio source independantly. When switching the source, the volume level will be automatically adjusted to the user defined level. If the level slider controller is in the 0 position the volume that is set by the master volume control.
Page 11: Navigation
Before Use To use the Navigation there must be an SD-Card inserted into the Navi slot of the Adaptiv interface. The GPS antenna must also be connected and located in a suitable location. Navigation uses iGO Primo software. Please see the iGO Primo user manual for full details on operating the navigation feature.
Page 12: Dab
Before Use Please ensure the optional ADV-DAB module is connected to the Adaptiv interface and that the DAB antenna is connected. Note that the dipswitch on the ADV-DAB module should be in the On position. This outputs 5V power to the DAB antenna.
Page 13 The station name will then be shown within the preset icon. It is possible to store 10 presets. Station Presets display Station List display Radio station info display WWW.ADAPTIV-MULTIMEDIA.COM...
Page 14: Hdmi
Exit HDMI Touch anywhere on the OEM head unit display to exit HDMI mode. This will return to the Adaptiv main menu. Alternatively push the Menu button on the OEM head unit. PEUGEOT/CITROEN PLATFORM...
Page 15 DVBT TV Before Use Please ensure the optional ADV-DVBT module is connected to the Adaptiv interface and the DVBT antennas are connected. Selecting TV Press the TV icon on the Adaptiv homescreen. Scanning When TV is first selected, you must scan in order to find available TV stations.
Page 16 DVBT TV Exit TV Push the Menu button on the OEM head unit or the back arrow at the top right side of the display. PEUGEOT/CITROEN PLATFORM...
Page 17: Av In
(Aux L, Aux R and Video). Control is from the connected device. Selecting AV In Press the AV In icon on the Adaptiv homescreen. Exit AV In Push the Menu button on the OEM head unit or the back arrow at the top right side of the display.
Page 18: Usb/Sd
- APE - WMV - MP4 - MKV - OGM Selecting USB/SD Ensure that a USB or SD card is inserted into the Adaptiv interface. Press the USB icon or the SD icon on the Adaptiv homescreen. USB/SD Playback USB/SD Playback display...
Page 19 USB/SD Key to Icons Previous track Next track Play / Pause Press once to repeat the song Repeat Press twice to repeat/loop. Shuffle Press this to shuffle and play tracks at random. Play list Back to main menu WWW.ADAPTIV-MULTIMEDIA.COM...
Page 20 USB/SD Open music files on USB/SD media Open movie files on USB/SD media Open image files on USB/SD media Open all files on the USB/SD media (Folder Structure) PEUGEOT/CITROEN PLATFORM...
Page 21 USB & SD CARD OPERATION Movie playback Key to Icons - Movie playback Previous track Next track Play / Pause Stop Fast forward Back to previous menu Back to main menu Images - Menu WWW.ADAPTIV-MULTIMEDIA.COM...
Page 22 USB & SD CARD OPERATION Images which are saved on the SD-Card or USB device can be displayed on the Adaptiv unit startup screen. Any supported image format can be used. To do this, press on the icon in the bottom left corner, as shown in the picture above.
Page 23 If you want to delete the startup image, press the memory button as shown above. A red symbol appears to confirm the image was deleted as the start screen. Folder Structure Menu Select a folder. If the folder has a sub-folder this can also be selected from this page. WWW.ADAPTIV-MULTIMEDIA.COM...
Page 24: File Transfer
SD Card. Selecting File Transfer Press the File icon on the Adaptiv homescreen. Files can be copied to/from an SD card which is inserted in the ‘Media SD’ slot and also a USB memory stick inserted into ‘Multimedia’...
Page 25 FILE TRANSFER Key to Icons Copy File Paste File Choose all files Delete selected file Back to previous menu Back to main menu WWW.ADAPTIV-MULTIMEDIA.COM...
Page 26: Info/Update
Connects2 for support. Should your unit require a software update, please ensure the USB key with the update file is inserted into the Adaptiv interface ‘Multimedia’ USB slot, or alternatively the USB input on the HDMI module can be used.
Page 27: Technical Specifications
400 x 240 / 800 x 480 Inputs Video Input 1 x RCA (AV) 1 x Rear Camera (V) 1 x HDMI (Optional ADV-HDMI) 1 x DAB (ADV-DAB) 1 x TV (ADV-DVBT) 1 x Multimedia 1 x Navigation 1 x Multimedia WWW.ADAPTIV-MULTIMEDIA.COM...
Page 28 PEUGEOT/CITROEN PLATFORM...
