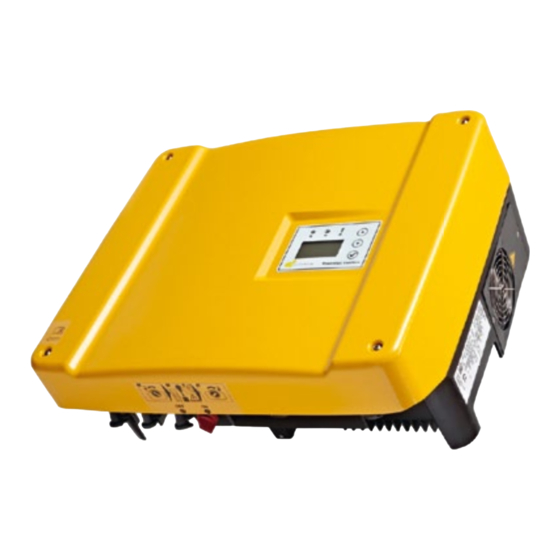

Summary of Contents for Centrosolar Powerstocc ExcellentSeries
- Page 1 ® Powerstocc Excellent PS DC Storage Short Manual ■ www.centrosolar.com...
-
Page 2: Eu Declaration Of Conformity
Application of the CE marking in accordance with Appendix III, Section B:2013 Stresemannstr. 163, D-22769 Hamburg Tel. +49 (0)40 391065-0 CENTROSOLAR AG – 2013-07-01 hereby declares that the inverter Powerstocc DC Storage to which this declara tion refers, conforms to the following guidelines and standards. Dr. Johannes Kneip Dipl.-Ing. -
Page 3: Proper Use
Proper use The Powerstocc DC Storage converts DC current into AC current. Exclusion of liability The current can be used for the following: Any use that differs from or goes beyond the stated intended purpose is con- sidered inappropriate. The manufacturer accepts no liability for any damage for consumption resulting from this. -
Page 4: Type Plate
Type plate Scope of delivery Name and address of manufacturer CENTROSOLAR AG Device type Item number Stresemannstr. 163 22769 Hamburg MPP control range Customer Support: Maximum input voltage DC +49 (0)831 / 540 214 66 Maximum DC input current XXXXXXXXXXXXX... - Page 5 Selecting the installation side NOTE Observe the following instructions, or else warranty claims will be restricted. Select stable installation location. Protect from rain and water. No plasterboard or wooden walls. Prevent access by children. Protect from direct sunlight. Required cooling space is 200 mm vertical and Select non-flammable installation location.
-
Page 6: Installation
To lift the inverter Installation Cooling space Mounting spaces Lift here! max.10° Lift here! Powerstocc DC Storage... - Page 7 Connecting AC and DC side LEbENSGEFAHR DuRCH STROMSCHLAG! ОпаснОст за живОта пОради тОкОв удар. Wechselrichter spannungsfrei schalten. изключвайте инвертора от напрежението. RiSk OF DEATH DuE TO ELECTRiCAL SHOCk! LivSFARA På GRuND Av ELEkTRiSk STöT! De-energise the inverter. koppla växelriktaren spänningsfri. DANGER DE MORT PAR éLECTROCuTiON ! zAGROżENiE żyCiA PRzEz PORAżENiE PRąDEM! Mettre l’onduleur hors tension.
- Page 8 Connecting AC and DC side Country-specific installation Connecting AC side Connecting main cable with sealing cap 3 Nm Connecting DC side Second ground connection...
- Page 9 Option: Connecting DC1 & DC2 in parallel Data transfer Communicationboard II DSL or LAN NOTE When using the parallel connection this feature must be acti- vated under the menue Settings >> Hardware settings >> String connection >> Parallel connection.
-
Page 10: Gsm Modem
Analogue modem GSM modem NOTE before installing a modem, read the user manual. -
Page 11: Commissioning The Inverter
Commissioning the inverter Selecting the country of use 5 Nm Select Country setting Austria Enter NOTE Country setting DE may only be used with inverters installed in Pv plants connected to the grid before 31.12.2011. (No displacement φ factor cos preset.) - Page 12 Selecting the country of use Menu overview, DC and AC DC menu Settings menu AC menu Select country Country setting Enter battery menu Own consumption menu Austria DC menu DC input 1 (U,I,P) DC input 2 (U,I,P) AC menu Phase 1 (U,I,P) Select YES Country setting Phase 2 (U,I,P)
-
Page 13: Settings Menu
Settings menu Basic settings Language Select language Inverter name Entering the name Date / time Set date / Set time of day Hardware settings String connection Paralell connection Battery settings Battery charge time Start time / End time Communication Network settings 1 Auto IP Network settings 2 IP address / Subnet mask... - Page 14 Menu Battery Menu Consumption Daily own consumption Own consumption (Wh) Battery status 1 Charging status (%) Own consumptions rate (%) Voltage (V) Autonomy degree (%) Charging (A) (Charge/Discharge) Own consumption (Wh) Total own consumption Battery status 2 Temperature (C°) Own consumptions rate (%) Charge cycles Autonomy degree (%) Current build.
-
Page 15: Technical Data
Technical data Powerstocc DC Storage unit Powerstocc DC Storage unit input side (DC) Output side (AC) Inverter type Powerstocc DC Storage Rated output, cos j = 1 (P ac,r Max. output apparent power, cos φ, adj Max. PV power Recommended PV power 4 - 11 Rated output current 14,5... - Page 16 Powerstocc DC Storage unit Powerstocc DC Storage unit System data System data Topology: without galvanic separation - Electronic disconnection device integrated transformerless Height Internal protection according to IEC 60529 IP 55 Width Protection class according to IEC 62103 Depth Overvoltage category according to IEC 60664-1 Weight Input side (PV-generator) Max.
-
Page 17: Service Hotline
Service Hotline Sunshine is our business. Germany +49 761 47 74 42 22 and other countries Centrosolar AG is one of the leading providers of solar technology in Germany. The Hamburg-based company distributes photovoltaic France +33 1 6138 4117 Belgium, Luxembourg modules ‘Made in Germany’, which are produced in the company’s...
