Summary of Contents for Sintron VD-200M
-

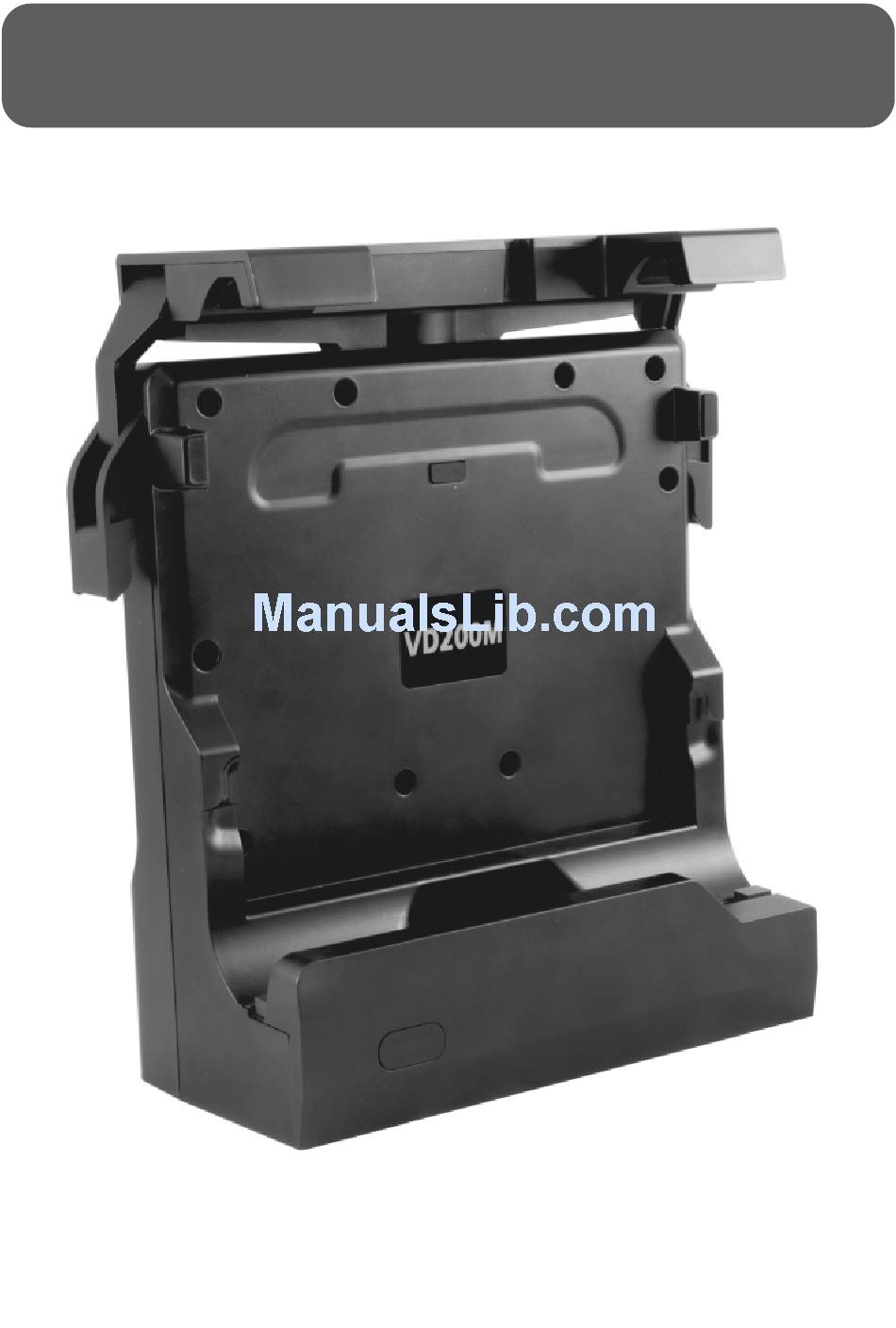

Page 1: Quick Start Guide
QUICK START GUIDE VD200M... - Page 2 Installing Vehicle Docking Overlook of Vehicle Docking Front side: Hook Lever Latch Alignment Post Docking Connector Connection Indicator Back side: Key Lock Comparment Door VESA Mount Screw Holes x4 To install optional (100x100mm) module. Option 1: GP03 For more information, please check spec table on page5.
- Page 3 I/O Ports Define: VD200M To be the GPS antenna Connector when GP03 is installed. *Default is no function. USB A Typex4 VGA Out RJ45 RS232x2 Power Reserved Antenna Connector *Defaultis no function. Getting Start: 1. Flip levers upward on both sides 2.
- Page 4 3. Push tablet forwards and make sure tablet is well connected and fixed with latches. 4. Press down levers on both sides at the same time. 5. Check connection indicator to make sure tablet is in the right position.
- Page 5 Connecting Power Cord With Cigar Lighter Plug 1. Connect power plug with DC-IN jack. 2. Insert cigar lighter adapter into car lighter. DC-INJack Cigar Lighter Adapter Connecting Power Cord With ACC Plug 1. Connect power plug with DC-IN jack. 2. Connect the other side of ACC cord with car accumulator DC-IN Jack...
- Page 6 Secure tablet with key lock Spec 229.5mm 200.0 mm 97mm I/OInterface 4xUSB 2.0 type A, 1xEthemet, 2x RS232, 1x VGA, 1x DC-IN Mounting 75mm x 75mm and 100mm x 100mm VESA mount supported SystemScrewHoles (* Mount is not included.) OutputPower 19V @ 1.57A Max., total output 30W Input Power 9VDC to 32VDC...
