CashTester BC 241
M
Manual
CashTester – Amwit Security – Hanzeweg 10 – 3771 NG Barneveld / The Netherlands
www.cashtester.com
tel. +31 (0)88 6288255
fax: +31 (0)88 6288265
subject to technical modifications ● more information on www.cashtester.com ● Version 20/2009
Advertisement
Related Manuals for CashTester BC 241
Summary of Contents for CashTester BC 241

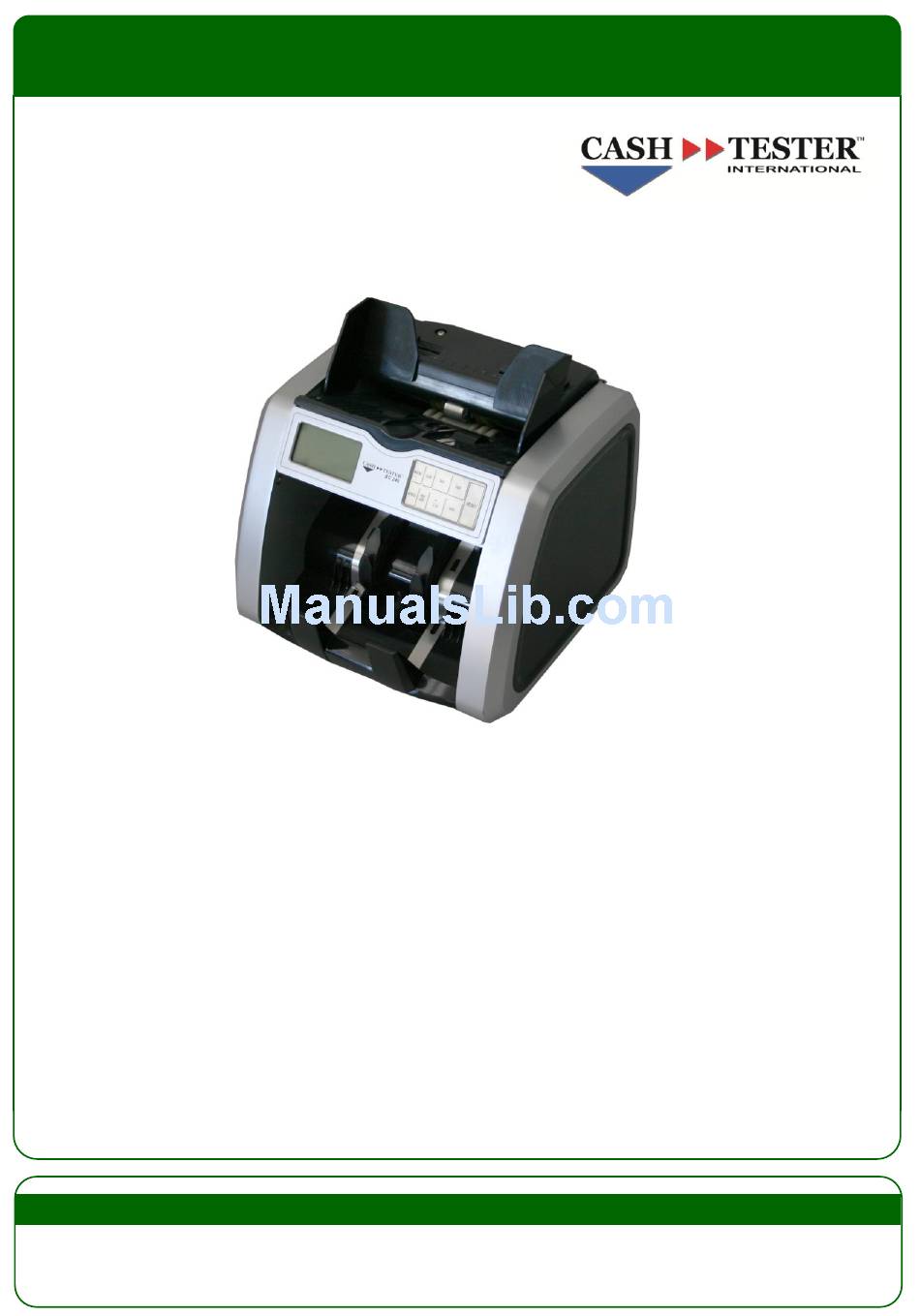

- Page 1 CashTester BC 241 Manual CashTester – Amwit Security – Hanzeweg 10 – 3771 NG Barneveld / The Netherlands www.cashtester.com tel. +31 (0)88 6288255 fax: +31 (0)88 6288265 subject to technical modifications ● more information on www.cashtester.com ● Version 20/2009...
- Page 2 CashTester BC 241 Instruction manual General 1.1. Introduction 1.2. Safety instructions 1.3. Unit design 1.4. Start-up procedure Settings and functions 2.1. Set functions 2.2. Set counting mode 2.3. Set-up adjustments Troubleshooting and maintenance 3.1. Description of error messages 3.2. Care and maintenance 3.3.
- Page 3 CashTester BC 241 1.1. Introduction Thank you for purchasing one of our products: we hope this CashTester banknote value counter simplifies your daily work with banknotes and makes it easier to recognize counterfeit money. Following we provide all major information regarding this unit. In case of further questions do not hesitate to contact us.

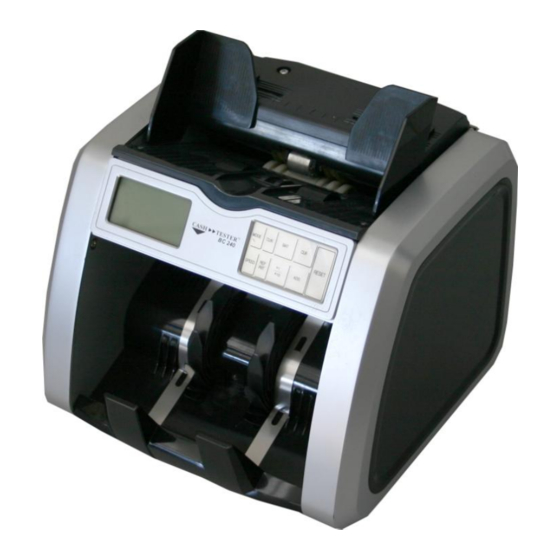

- Page 4 CashTester BC 241 1.3. Unit design Front view Banknote limiter/feeder Hopper / Hopper Sensor Carrying handle Display Touch screen display (see below) Banknote transport wheel Stacker Sensor Stacker Rear view Hand wheel to adjust banknote pressure 10. RJ-11 port for printer 11.
- Page 5 1.4. Start-up procedure 1. Connect the power cable to the BC 241. 2. Connect the main power cable to a wall outlet and switch the BC 241 on. 3. The machine automatically starts in mixed value mode. 4. Place the banknotes flush stacked on two sides in the middle of the feeder and adjust the two banknote limiters close to the stack of notes for the best counting results.
- Page 6 Press “C” button to reset the batch value to zero and batch counting stops. Counting speed The BC 241 has 3 different counting speeds that can be changed by pressing the SPEED button. Addition function enabled For heavily used banknotes we advise you NOT to use...
- Page 7 CashTester BC 241 2.2. Set counting mode The BC 241 is: 1. a batch counter (sorted counting) 2. a value counter for mixed Euro banknotes 3. counter for other notes and documents (Free-Count-Modus) You can toggle between the 3 counting modes by pressing the MODE button.
- Page 8 CashTester BC 241 2.3. Counting small banknotes The banknote guide rails allows counting of small banknotes as well. Place the banknotes in the centre of the feeder and move the two guides against the stack. Troubleshooting and maintenance 3.1. Description of alerts and error messages...
- Page 9 CashTester BC 241 Error codes (technical problem): Error message Cause of error Troubleshooting Ensure that the machine cover is closed UV sensor properly and no light can enter. Remove the banknotes and clean the Hopper sensor hopper sensor Remove the banknotes and clean the...
- Page 10 CashTester International GmbH and authorized dealers. Cleaning the BC 241 The BC 241 has to be regularly cleaned of dust and other contamination, which are partly getting into the unit during operation; they contaminate the sensors and prevent optimal counting and checking of banknotes.
- Page 11 CashTester accessories for the Banknote counter; third party products will void your warranty. 3.4. Service If you are experiencing problems with your CashTester banknote counter BC 241 that cannot be solved with this instruction manual, please contact your distributor. If your distributor don’t serve you in the way you may normally expect please contact us by e-mail and describe the problem: we will contact you or your distributor a.s.a.p.
