ISO SPEAKER CONNECTION
RED
RCA LINE OUT
Front Right
W HITE
RCA LINE OUT
RCA LINE OUT
Rear Left
Front Left
WHITE
RCA LINE OUT
ANTENNA JACK
RED
Rear Right
CONNECTOR A:
1. N/A
2. N/A
3. N/A
4. YELLOW- MEMORY + 12V
5. BLUE- AUTO ANTENNA B+
6. N/A
7. RED- POWER B+
8. BLACK- GROUND
Product Specification
ISO SOCKET SKETCH
SOCKET ISO
CONNECTOR B:
1. (GREEN) REAR RIGHT SPEAKER (+)
2. (GREEN BLACK) REAR RIGHT SPEAKER (-)
3. (WHITE) FRONT RIGHT SPEAKER (+)
4. (WHITE BLACK) FRONT RIGHT SPEAKER (-)
5. (GREY) FRONT LEFT SPEAKER (+)
6. (GREY BLACK) FRONT LEFT SPEAKER (-)
7. (PURPLE) REAR LEFT SPEAKER (+)
8. (PURPLE BLACK) REAR LEFT SPEAKER (-)
4x45 Watt
Model No.: CA-2789BT
Instructions manual
Car HiFi system with A2DP
Bluetooth, MP3/WMA Player,
FM with RDS
* A2DP Bluetooth Car Audio Player, FM with RDS
EXCLUSIVE IMPORTER IN GREECE:
Amiridis – Savidis S.A.
th
87A, 17
November str. – P.C. 55535 – Pylaia, Thessaloniki, Greece.
Tel: +302310944944, Fax: +302310944940
www.amiridis-savvidis.gr
Advertisement
Table of Contents
Related Manuals for F&U CA-2789BT
Summary of Contents for F&U CA-2789BT

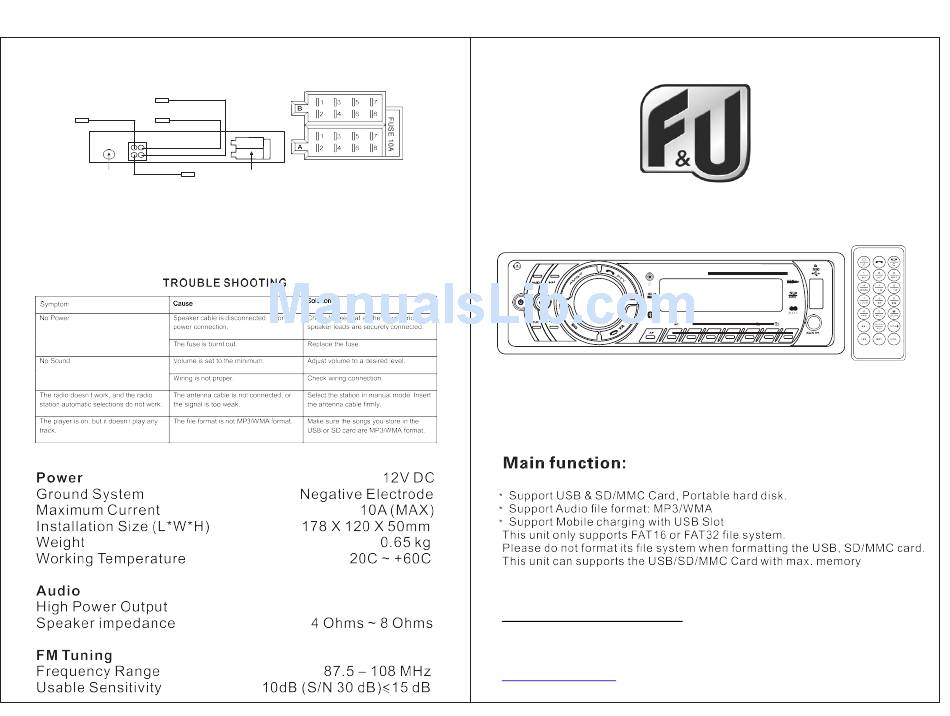

- Page 1 SOCKET ISO CONNECTOR B: CONNECTOR A: 1. (GREEN) REAR RIGHT SPEAKER (+) 1. N/A Model No.: CA-2789BT 2. (GREEN BLACK) REAR RIGHT SPEAKER (-) 2. N/A 3. (WHITE) FRONT RIGHT SPEAKER (+) 3. N/A 4. (WHITE BLACK) FRONT RIGHT SPEAKER (-) 4.
- Page 2 Key Function: 13. 6/+10 Button/ Button In MP3 mode, press this button to fast forward 10 songs at one time. Back Cabinet Press and hold to forward to next folder. 14. LCD Display Display the clock and other selected functions. 15.
- Page 3 Basic control: 1. Power switch/Mute 1) Press PWR button to turn on the unit. Press again to turn off the unit. 2. Mode button 1) Plug in USB/SD/MMC Card...
- Page 4 3) Time display and setting 1) Time display By unit - Rotate the rotary knob until the time shows on the display. By remote control - Time will be displayed after slightly press the CLK button. 2) Time setting By unit - After the time is shown on the display, press the rotary knob slightly, then the time will be blinking on the display, rotate the rotary knob to set the hour;...
- Page 5 3) Auto Stations Searching Press BAND for awhile, it will search for the strongest signal stations and store them automatically. 4) Play Memory Stations Press 1-6 buttons to choose the strongest from the unit storing stations manually. Press 1-6 buttons to store the tuned stations into 1-6 buttons. 5) TA Function Press TA for awhile to turn TA function on, TA icon is on.
