Page 1 - Noun: Something outstanding or unique of its kind User Doo-zy manual Ver 1A Pat Pending 1016779-9 Register your Doozy at doo-zy.co.uk Copyright Switch-Ed 2011...
Page 2: Table Of Contents
Index Hello! The Doo-zy is easy to use. This manual will guide Quick Start you through. Jump to page 10 Introduction List of contents Introduction Unique features Doo-zy tour How it works Batteries and charging Select Button Programs and functions...
Page 3 Doo-zy should always be used under supervision and especially with children and users with special needs! Doo-zy is designed for use indoors only and must not be used in wet and humid areas. Switch Output & Programs How programs affect the output...
Page 4: List Of Contents
List of Contents Thank you for purchasing the Switch-Ed Doo-zy. Please check the contents of the package and ensure you have all the parts listed below. Your switch comes with a one year warranty from date of purchase. A copy of our guarantee and warranty is listed at the rear of this booklet.
Page 5: Introduction
External devices and toys Doo-zy allows you to connect an external switch fitted with a 3.5 mm jack plug so functions and programs can be used with a favourite switch. A reward device such as a toy can also be connected using a 3.5 mm jack lead.
Page 6: Unique Features
Doo-zy to learn infrared codes from household equipment such as TVs . This effectively turns Doo-zy into a remote control to operate a wide range of equipment. Optional IR receiver gives wire free operation with non infrared equipment if required.
Page 7: Doozy Tour

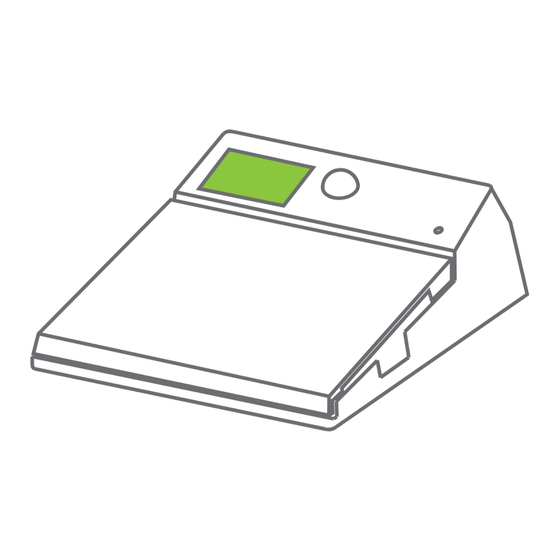

Doozy Tour Front view program Magic display Playback record Illuminated switch Graphic card slot Rear view Infrared Line/Mic in Receiver socket Infrared Transmitter Power Supply Socket Switch Input The select is the most Switch important thing to Output remember! This also doubles as the on and off button.
Page 8: How It Works
Doo-zy & how it works Doo-zy uses micro technology to operate external devices but how the switch pad reacts and interacts with the users and devices depends on how the built in programs and functions are set. Below is a schematic that may make it a little easier to understand.
Page 9: Batteries And Charging
Battery Replacement – See page 28. Charging Doo-zy is supplied with a world wide power supply charger. It can be used with a range of voltages from 110-240V. A range of four plugs are supplied for different areas of the world.
Page 10: Select Button
The select button is the most important button to remember as it allows access to almost all of the functions and sub menus of Doo-zy! When using the select button the LED display will inform you which menu you are in.
Page 11: Select Button And Function Menu
Select button & function menu Every time the select button is pressed a new menu is displayed Page guide - This is the selection we make to record Page 10 a sound & 14 - Speaker volume adjustment Page 11 - This option decides how the Doozy output reacts when the switch pad is Page 17...
Page 12: Loc Special Function
We have a special function that is not chosen with the select button, this is the LOC function. This locks all of the three buttons that are used at the rear of the Doo-zy. When locked none of the buttons will operate and LOC will be indicated in the display.
Page 13: Turning On And Off
Using Doo-zy Turning on and off Press the select button and hold for three seconds. A decimal point will scroll across the display and then will be displayed, it is now ready to use. If you want to turn off the switch at any time press and hold the select for more than 3 seconds until shows in the display.
Page 14: Volume Control
Note: Switch output is used to connect external devices such as toys. The Doo-zy uses internal pre-set programs to make the switch output perform complex or simple tasks that involve the recorded sound. These are changed in the menu. For more information go to page 17.
Page 15: Eye Function
On initial start up the eye takes a few seconds to self test the internal electronics it also waits 5 seconds between triggers to stop repetition. Note: The eye will not operate the Doo-zy when in Direct, Latch and Opposite mode. Vibration function Vibration is used to give tactile feedback when the switch pad is pressed, it pulses to give maximum effect.
Page 16: Display Function
Display function Display refers to the seven segment LED display on the front panel. It is factory set to count down in seconds unless disabled in the DIS menu. To disable the display press the select button until the display shows DIS Use the arrow buttons to select off Press the select button...
Page 17: Record With Mp3 Player Or External Microphone
You will immediately hear the sound coming out of the Doo-zy speaker although the music will not be recorded. This is different to the way Doo-zy records with the built in microphone - you have 15 seconds to start recording before the record option is cancelled.
Page 18: Infrared Remote Control Learner
When the code is copied the display will show SET Now point the rear of the switch towards the device. Doo-zy will now control the ON function of the TV. You may wish to record a message that says TV when the switch is pressed.
Page 19: Wireless Infrared Function
Wireless Infrared transmitter function * For use with the optional IR receiver Doo-zy has a built-in infrared transmitter which can send switch output information to the optional IR receiver. The switch should have a clear line of sight to the receiver.
Page 20 Switch output & programs We need to understand how the switch output works. We are only dealing with one of the two options at the moment and that is the 3.5 mm Jack socket output on the rear. We shall start by explaining how the in-built programs affect the switch output. The best way to do this is to have the switch nearby and connect a toy to the output jack socket and watch what happens! This is where you connect items such as...
Page 21 Direct output Step 1:- Record a sound. If you have forgotten how to go to page 10. Step 2 :- Scroll to the menu using the select button and use the arrow buttons to select DIR press the select button to accept and SET is shown in the display.
Page 22 Timed output Step 1 :- Scroll to the menu using the select button and use the arrow buttons to select TI press the select button to accept and SET is shown in the display. We have now selected the timed output. Step 2 :- Record a sound.
Page 23 Latch output Step 1 :- Scroll to the menu using the select button and use the arrow buttons to select LAT . Press the select button to accept and SET is shown in the display. We have now selected the LAT or Latch output. Step 2 :- Record a sound.
Page 24 Sequence output Sequence allows you to record a series of messages in sequence and plays back in the same sequence and on the final message activates the output. Record as many as you wish for as long as you wish. The example here assumes that the on board microphone is being used to record.
Page 25 Recorded Message Last Message Switch pad press Output to device Record Time IN A NUTSHELL :- PLAYS THE SEQUENCE BACK IN ORDER RECORDED AND THE SWITCH OUTPUT WILL OPERATE ON THE LAST RECORDED MESSAGE R3.
Page 26 Opposite output Strictly speaking the opposite does not control the output it merely changes how the switch pad interacts with the output. In fact the output is inverted and the switch pad operates the opposite way to normal with the output becoming active only when the switch is released.
Page 27 Timed out output Timed out allows you to record a message and when the message is finished it immediately activates the output. Step 1 :- Record a sound. If you have forgotten how to go to page 10. Step 2 :- Scroll to the out menu using the select button and use the arrow buttons...
Page 28 Attachments & Mounting Positioning your switch In most cases the best position to use your switch is a flat surface. Doo-zy is fitted with non-slip rubber feet for maximum grip. Fitting the low profile pad For users with poor motor movement who may not be able to raise a hand sufficiently to operate the switch pad, a low profile pad clips to the front of the switch pad and lowers the pad to 10mm above a work surface and makes it easier to use.
Page 29 Graphic card slot A graphic card slot is provided. The maximum size paper that can be used is 125mm x 64mm. The switch pad LEDs illuminate the pad. Cradle switch bracket Magic Eye Beam The switch can be wall mounted. Ideal height above floor level 160cm.
Page 30 Mounting points for adjustable arm Doo-zy has mounting points for the industry standard adjustable arm. The switch can be fixed in almost any position and whilst forming a stable base it can also be easily uncoupled to be used anywhere.
Page 31 Refit the battery cover. Doo-zy switch will charge fully over a 5 hour period, therefore we recommend this when the battery pack has been replaced.
Page 32 110 – 240 vac – 12vdc @ 500 ma with a 2.1 mm dc plug centre pin hot. Weight :- 80 grams Doo-zy Batteries :- Custom battery pack nickel metal hydride (NiMH) @ 3.6 Volt 1800 mA Standby mode battery life :- 200 hours Recharge time :- 6.5 hours...
Page 33 Question - I have strange and not recognised image in the LED display and the switch is acting very strange? Answer - Doo-zy is a computer and can hang up or crash, this would be a good example. To correct this we would have to perform a hard reset or boot. On the underside of the Doo-zy we have a hard reset button.
Page 34 Complies with the requirements of :- EN 62115:2005 Electrical Toy safety CE/EN 61000-6-3:2007 – EMC RoHS RoHS Manufactured in China on behalf of :- Jakmax ltd trading as Switch-ed www.switch-ed.co.uk 00 44 ( 0 ) 845 299 65 66 enquiries@switch-ed.co.uk Wilsden, Bradford, BD15 0LX.
Page 35 Consumer Warranty We strongly suggest you register your Doo-zy so we can keep you informed of any firmware issues and updates by going to our web site www.doo-zy.co.uk This warranty covers Doo-zy, its hardware, accessories along with its power supply and its embedded software now together referred to as the product.
