Summary of Contents for ArtFox Matrix 360

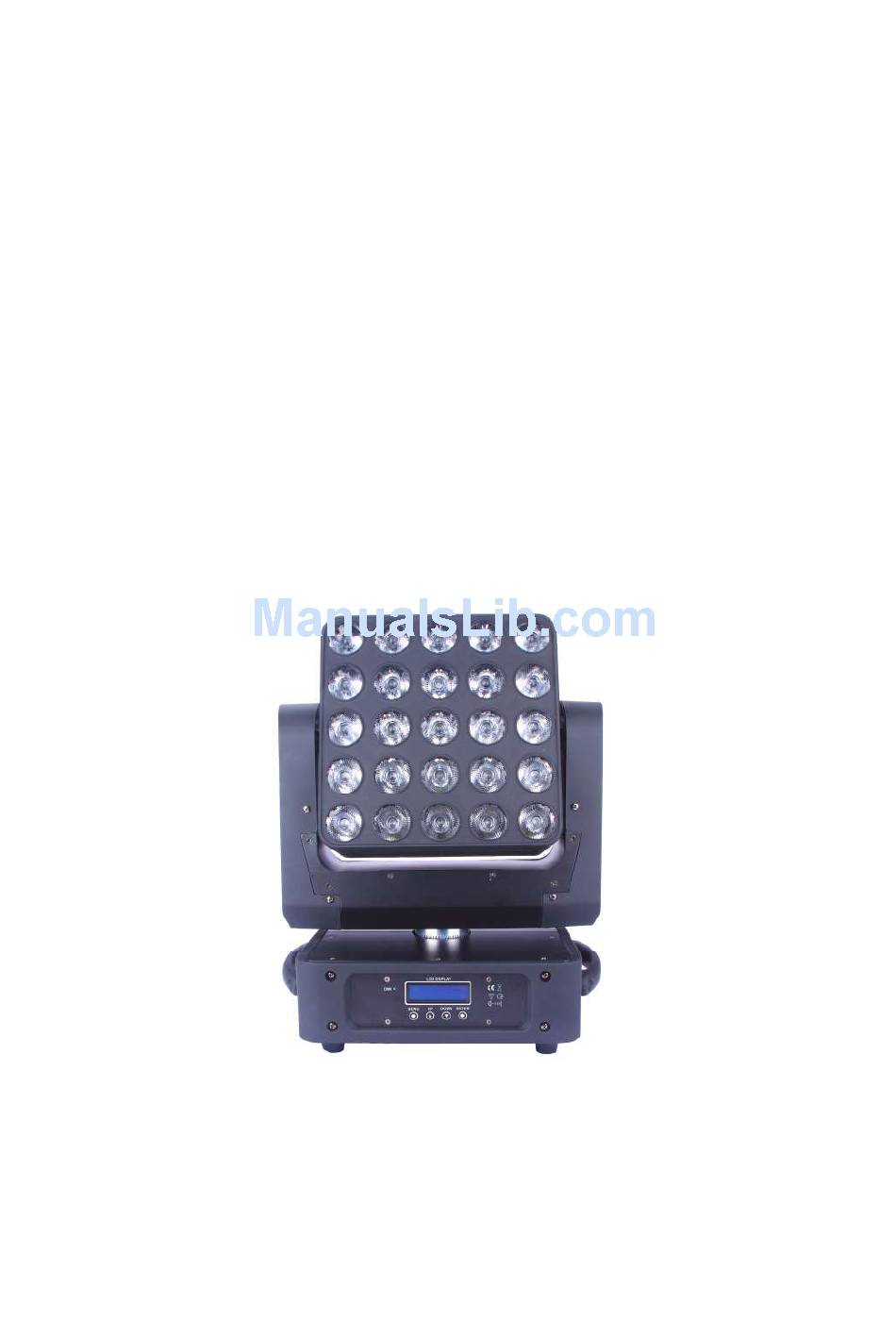

- Page 1 Matrix 360 Please read this manual before using the detailed...
- Page 2 1． Graphic section： A．Function keys B．Plus keys C．Minus key D．enter keys E ． LED Display window Instructions: Press the function key A will cycle out of eight different functional effects, digital tube in which the first two digits represent the current function (see Menu). After two figures represent the kinds of functions are located.
- Page 3 Color Blue Blue color selection, (000-255) Speed B, C key to modify the color values Color White White color selection, (000-255) Speed B, C key to modify the color values Slave Slave 25Eye Slave Restore Factory Restore factory settings Yes ? 3．DMX512 16 Channel Description fuction...
- Page 4 Channel 14 G Dimming G Dimming, linear dimming, from dark to light Channel 15 B Dimming B Dimming, linear dimming, from dark to light Channel 16 W Dimming W Dimming, linear dimming, from dark to light 4．DMX512 37 Channel Description Function Instruction X Motor...
- Page 5 4．DMX512 112 Channel Description fuction Instruction X Motor 0-255 Channel 1 Y Motor 0-255 Channel 2 X Fine tuning（16Bit） 0-255 Channel 3 Y Fine tuning（16Bit） 0-255 Channel 4 0--4: None; 0-255 Channel 5 5--130: X Story (from slow to fast); 131--255: X reversal (from fast to slow);...
- Page 6 Channel 20 W2 Dimming W2 Dimming, linear dimming, from dark to light 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 。 Channel W25 Dimming W25 Dimming, linear dimming, from dark to light 5.
