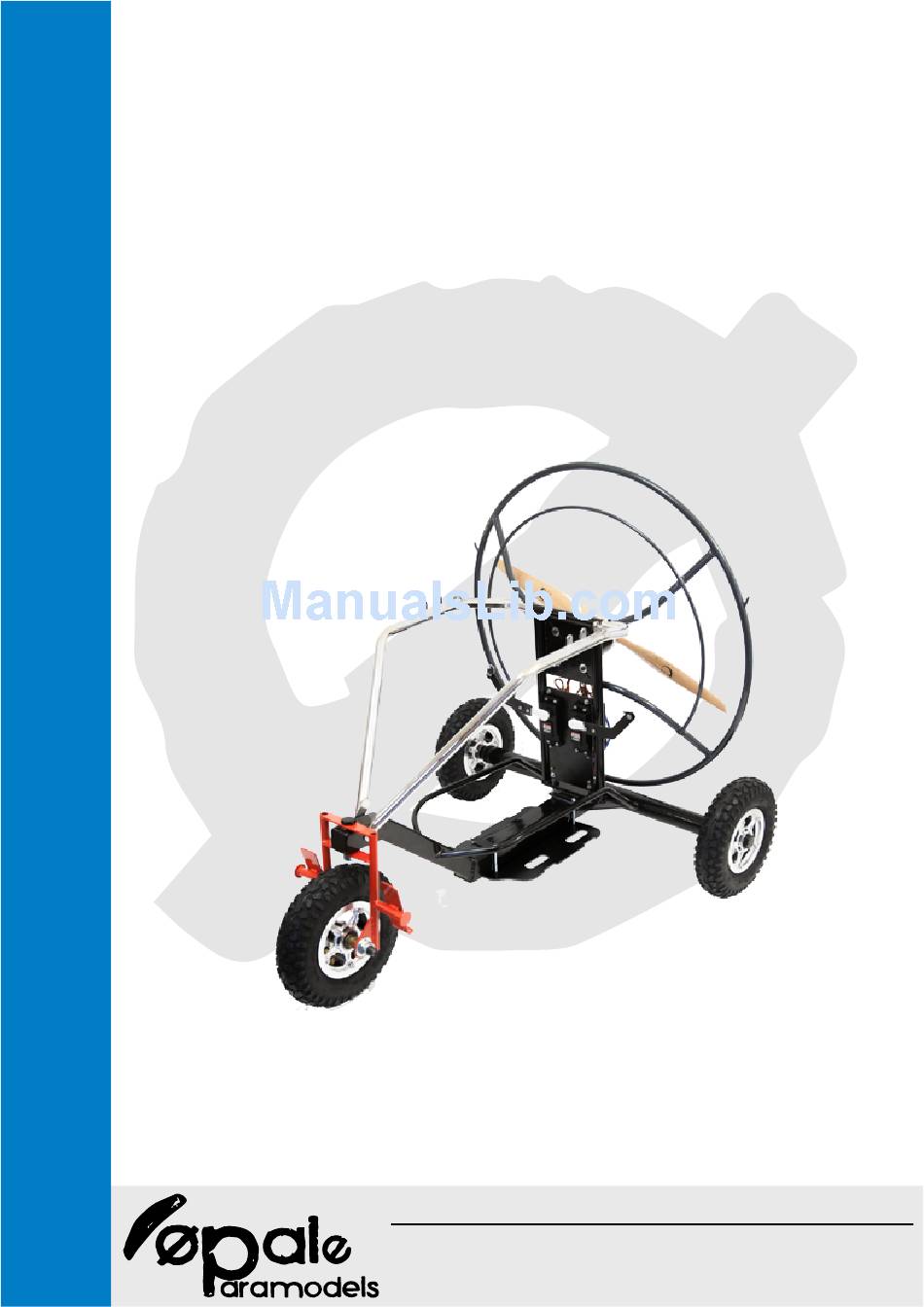

2016
User's manual
v2.0
Trike XL
Thanks for reading this manual before first use.
O p a l e - P a r a m o d e l s . c o m
Opale Aero System SARL - 23 rue de la Motte
62250 MARQUISE - France
contact@opale-paramodels.com +33(0)981 144 387

Advertisement

loading
Need help?

Need help?

Do you have a question about the Trike XL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Opale-Parmo Trike XL

  • Page 1 2016 User’s manual v2.0 Trike XL Thanks for reading this manual before first use. O p a l e - P a r a m o d e l s . c o m Opale Aero System SARL - 23 rue de la Motte 62250 MARQUISE - France contact@opale-paramodels.com +33(0)981 144 387...
  • Page 2 FAQ Questions/Answers Warranty The Trike XL is guaranteed against any manufacturing defect. If, while using, the pilot cut or damage a bridle, tear any part of the wing,repair and replacement of dam- aged parts are not taken in account by the warranty and the user will be charged for it.
  • Page 3 Backpack composition Specifications Dimensions: 77x60x65cm Minimum mass in order of flight : 12kg Maximum mass in order of flight : 22kg Matérials: Stelle/ Glassfiber with Epoxy resin. Painting: Chrome / Epoxy Wheels: Wheel rim with tire and inner tube, rotatably mounted on the wheel Servomotors : 24kg.cm under 6v Motorization: Recommended power from 2000 to 3000W Propeller : 19 inches maximum...
  • Page 4 Assembly Battery holder installation on the central girder. Use 4xCHC M4-50 + 4xM4 nut-lockings. By the mean of a cutter, remove the painting that is in the surface of the trike. Position the front fork. This one must accomodate without any difficulty. If not, remove by mean of a cutter the painting that is at the other extremity of the passage of the axis.
  • Page 5 Mount the front wheel with the help of the axis and the spacers included. Fix the 2 servomotors on the platinum by mean of 8xCHC M3-12 with nut-lockings and silent-blocks. Install the top part with the help of 2x Hexagonal Head screws M4-12 and nut-lockings.
  • Page 6 Position the two side bars on the axis and fix them by mean of 2x CHC M3-20 and nut-lockings. Fix the front part of the two side bars by mean of a CHC M4-40 and a nut-locking. Tighten firmly the two screws located at the bottom of the holder.
  • Page 7 Mount the strap containing inox ring by mean of a CHC M3-10, a ring and a nut-locking. Then, fix the arm on the rudder bar of the servomotor by mean of 2x CHC M3-8 . Power the two servomotors and position them into neutral position (signal 0).
  • Page 8 Connect the motor to the controller. Position the inox buckles on the side bars. Inox buckles position is determined according to the position of the center of gravity. If while main- taining the backpack with the inox buckles, rear wheels are higher than front wheel, you will have to move forward the inox buckles.
  • Page 9 Servos and brakes settings Use the two brake bridle. Pass the first before the fixa- tion screw of the side bar, as indicated on the picture, by performing a head of lark. Tighten the set firmly. The brake bridle must slide in the ring fixed at the extremity of the arm.
  • Page 10 If using the mixer for RC paramodels (ref OP16782) ,the rudder bars must be in high position while the depth stick is in neutral position. Depth stick directed to the bottom, the two arms completely go down. Aileron stick to the left, left servomotor go down in maximal low position.
  • Page 11 Mounting of the pilot Tom (optional) This kit ,allowing to install the pilot Tom on the Trike XL, contents: - 1 x plate - 4 x elastics - 4 x plastic clamps - 1 x harware kit Remove the lower pocket of the harness. Insert the plate into the pocket dedicated to that purpose underneath the harness.
  • Page 12 Place the plate on the frame. With 2 plastic clamps, fix the first side of the plate. Tighten it firmly. Do the same operation on the opposit side. Place the pilot’s feet on the rudders of the front fork. Hold them with an elastic as shown on the picture. Remove the screw on the shroud and replace it with a M3-25 included with this kit.
  • Page 13 The brakes of the wing can be connected to the pilot or kept on the Trike XL servos. In the case where the brake lines are used with the pilot, it is possible to remove the servos on the Trike.
  • Page 14 F.A.Q. Questions / Answers My RC paramotor seems not to move forward very fast. How to remedy this problem?’ If your model advance a little bit, or if it even stays on-the-spot, it is because your model is too light. In that case, you have to land and increase the weight with additional ballast or batteries until you obtain a 5 to 10 km/h with regard to the ground.
  • Page 15 F.A.Q. Questions / Réponses Is it possible for the RC paramotor wing to take away some material for shooting/FPV? Until which mass? Each wing has a maximal takeaway capacity. Check the model total weight and compare it with the wing’s take- away capacity.
