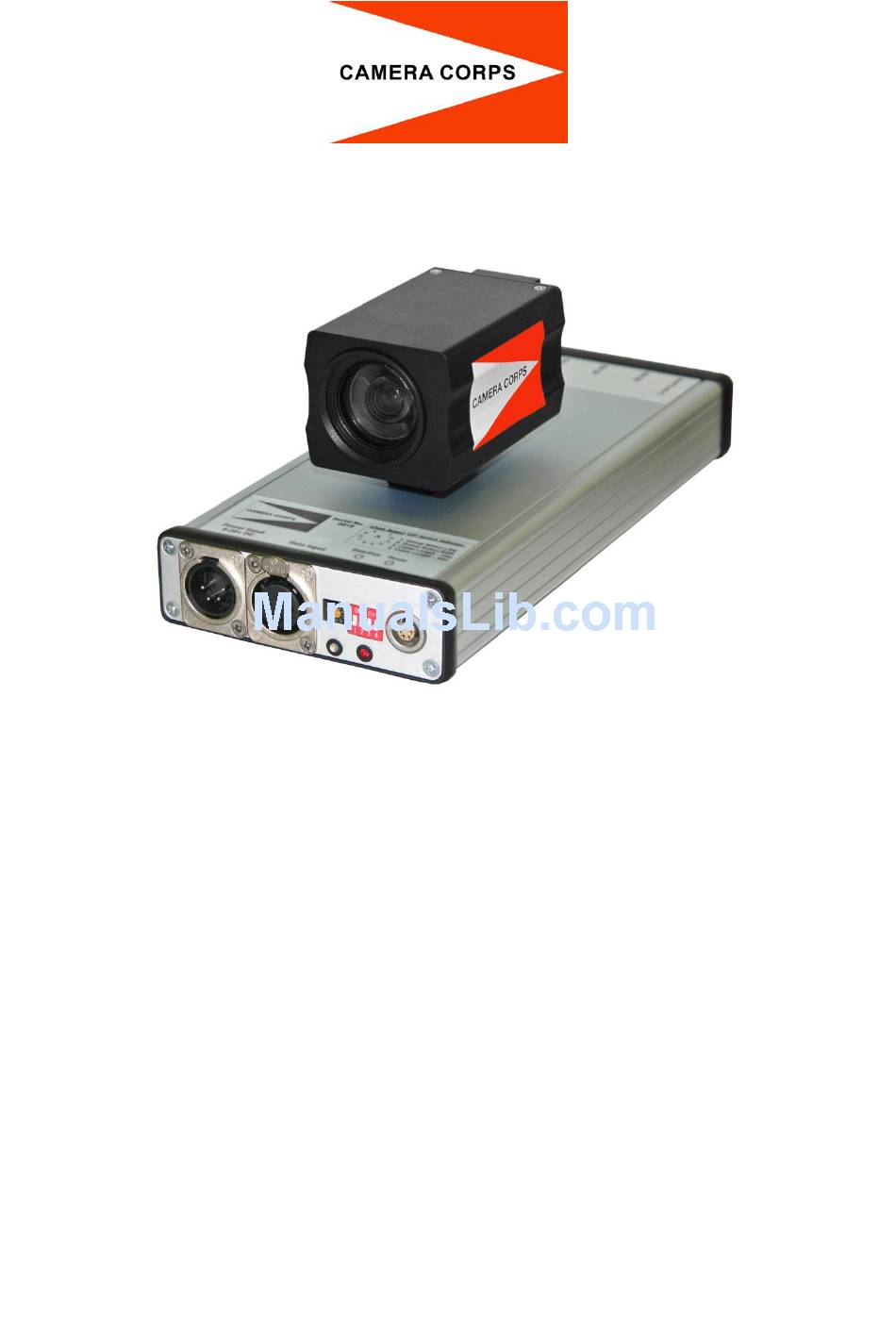

- Page 1 SD-HD MiniZoom Camera Operation Manual...
- Page 2 Changing the Camera Format The SD-HD MiniZoom can operate in both SD and HD modes at 50hz or 59.94 hz. Both 720p and 1080i formats are available in HD. In PAL or NTSC, SD modes both 4x3 and 16x9 aspect ratios can be selected.
- Page 3 SD-HD MiniZoom – Operation Manual Remove power from the unit and set the rotary channel select switch and DIP switches back to their normal required settings. Next time power is applied to the Interface unit the camera will have the new format.
- Page 4 SD-HD MiniZoom – Operation Manual Component Video Output Version 6 Interfaces have an additional 9 way ‘D’ Male connector on the side of the box. This provides a component video output when HD modes are selected, or an S-Video and output when SD modes are selected.
- Page 5 Note that the RCP panel should be selected to ‘Sony’ camera make, and ‘Q-Ball’ or ‘Q-Ball IR’ camera type to control the SD-HD Minizoom camera. (Note that all SD-HD Minizooms are now IR capable). For the older style RCP’s select ‘CC HDZ’ as the camera type.
- Page 6 SD-HD MiniZoom – Operation Manual Universal RCP Panel - Master Set-up Menus This main menu select screen can be reached at any time by Sony Q-Ball IR repeated presses of the top left menu button. Channel 1 ID 1 Note that if a ‘menu’ or ‘function’ button is illuminated it will Menu Selection perform some action.
- Page 7 SD-HD MiniZoom – Operation Manual Camera Corps SD-HD MiniZoom Camera RCP Panel (old style) Menus Gain Col Gam Shu Cam Re- Cue tst Rem P&T Iris type set Red Grn Sw2 Mode Zoom Focus Detail Gamma Iris Gain AWCMode Chroma...
