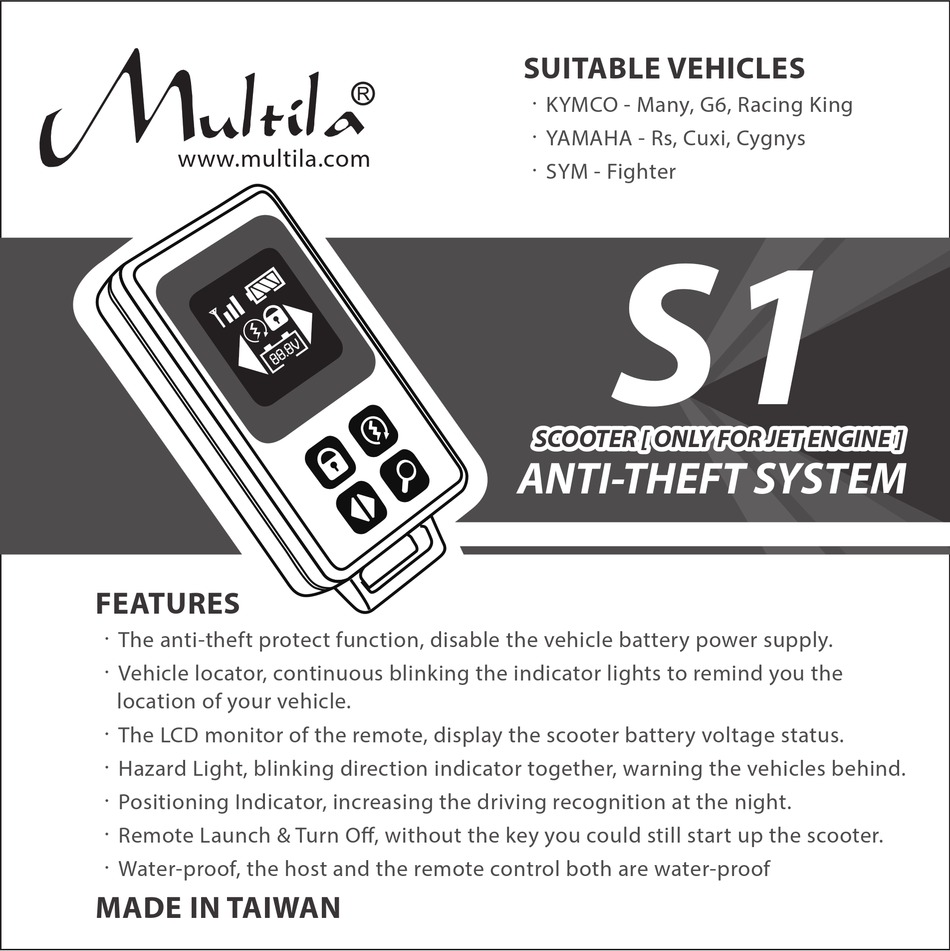

功能特點
FEATURES
．The anti-theft protect function, disable the vehicle battery power supply.
．本防盜器的防盜保護功能採用直接切斷機車電瓶供電的方式.
．Vehicle locator, continuous blinking the indicator lights to remind you the
．尋車功能, 您的愛車會以閃爍警示燈的方式提醒您的愛車位置.
location of your vehicle.
．遙控器的LCD上顯示目前機車電瓶的電壓值.
．The LCD monitor of the remote, display the scooter battery voltage status.
．故障警示系統, 左右方向燈一起閃爍, 提醒後方車輛注意.
．Hazard Light, blinking direction indicator together, warning the vehicles behind.
．定位燈系統, 左右方向燈同時恆亮, 增加夜間行車辨識度.
．Positioning Indicator, increasing the driving recognition at the night.
．遠端發動系統, 不需攜帶鑰匙即可遠端發動您的愛車.
．Remote Launch & Turn O , without the key you could still start up the scooter.
．防潑水保護, 主機及遙控器皆具防撥水功能.
．Water-proof, the host and the remote control both are water-proof
台灣製造
MADE IN TAIWAN
適用車種
SUITABLE VEHICLES
．KYMCO - Many, G6, Racing King
．KYMCO - Many, G6, Racing King
．YAMAHA - Rs, Cuxi, Cygnys
．YAMAHA - Rs, Cuxi, Cygnys
．SYM - Fighter
．SYM - Fighter
SCOOTER [ ONLY FOR JET ENGINE ]
SCOOTER [ ONLY FOR JET ENGINE ]
ANTI-THEFT SYSTEM
電子防盜系統
Advertisement
Summary of Contents for Multila S1
- Page 1 SUITABLE VEHICLES ．KYMCO - Many, G6, Racing King ．KYMCO - Many, G6, Racing King ．YAMAHA - Rs, Cuxi, Cygnys ．YAMAHA - Rs, Cuxi, Cygnys www.multila.com www.multila.com ．SYM - Fighter ．SYM - Fighter SCOOTER [ ONLY FOR JET ENGINE ] SCOOTER [ ONLY FOR JET ENGINE ] ANTI-THEFT SYSTEM 電子防盜系統...
- Page 2 ．S1 Anti-Theft Host X 1 ．S1電子防盜器主機 X 1 S1電子防盜遙控器 S1 Anti-Theft Host ．S1 Anti-Theft Remote Control X 1 ．S1電子防盜遙控器 X 1 ．Modular Wire X 1 ．模組化線材 X 1 [ 每種品牌對應其專屬模組規格 ] [ Every brand has its own spec of modular wire ] ．使用者安裝手冊...
-
Page 3: Installation Step
安裝步驟 Installation Step Only For The Jet Engine Scooter 噴射車種專用... - Page 4 請參閱您的機車使用手冊或維修手冊! 步驟 Refer to the motorbike user manual or repair manual! STEP . 1 拆下機車前方車殼. Remove the front cover of the scooter. Use the screwdriver and hex wrench socket 使用螺絲起子及內六角T型套筒 to release the front cover screws, 扭開車殼螺絲並移除前方車殼 then remove the scooter front cover.
- Page 5 步驟 防盜器的模組化線材接頭解釋, 請先參閱您的維修手冊, Anti-theft modular wire connectors explanation. STEP . 2 找出您的主要開關及方向燈開關或儀表板接頭位置. Please refer to the motorbike user manual or repair manual! Find out the location of the main switch connector, indicator connector or dashboard connector. 方向燈接頭 請將防盜器主機與模組化線材防盜器接頭互相連接 儀表板接頭 Please plug the anti-theft host Indicator Connector with the modular wire connector Dashboard Connector...
- Page 6 將位於機車上相關的接頭拔開. 步驟 Unplug those relative connectors inside the scooter. STEP . 3 [ 主要開關接頭, 方向燈接頭或是儀表板接頭 ] [ Main Switch Connector, Indicator connector or Dashboard connector.] Dashboard Connector 儀表板接頭 方向燈接頭 Indicator Connector 主要開關 Main Switch 在拔開接頭時, 請勿拉扯電線來做拔開動作. Please do not pull the wire to unplug the connector. The correct way is hold and pull the connector out.
- Page 7 步驟 . 3-1 模組化線材上主要開關的公接頭接到機車上主要開關的母接頭, Plug the main switch male connector in the modular wire into the STEP . 3-1 模組化線材上主要開關的母接頭接到機車上主要開關的公接頭. main switch female connector in the scooter. 模組線方向燈或儀表板的公接頭接到機車方向燈或儀表板的母接頭, Plug the main switch female connector in the modular wire into the 模組線方向燈或儀表板的母接頭接到機車方向燈或儀表板的公接頭.
- Page 8 步驟 . 3-2 YAMAHA車系, 需將防盜器線組啟動線 [ 藍白色 ] 連接至機車的 YAMAHA brand scooter, Need to connect an extra starting wire STEP . 3-2 啟動線 [ 藍白色 ]. [ Blue and White color ] from the modular wire to the scooter. * 請注意該步驟只適用於YAMAHA車系. Attention this step only for the YAMAHA brand scooter.
-
Page 9: Remote Control
請先測試遙控器所有功能是否正常. 步驟 Please test the anti-theft remote control of all functions & buttons are STEP . 5 working correctly. 訊號強度 使用說明 Instructions For Use 無訊號時, 防盜器將無法操作. Signal Distance 距離太遠或是訊號干擾太多 Remote control with power-saving sleep Controller will not be controled when there are no signal. 遙控器具有睡眠省電功能, function, press any key to wake up the *Distance too far or Too much signal interference... - Page 10 將前方車殼安裝回到機車上並將螺絲扭緊. 步驟 Please put the scooter front cover back to the scooter and tighten the STEP . 6 screws with screwdriver and hex wrench socket . 使用螺絲起子及內六角T型套筒 Use the screwdriver and hex wrench socket 將前方車殼螺絲扭緊 tighten the scooter front cover screws.
-
Page 11: Transmission Distance
產品規格 TRANSMISSION DISTANCE ．Approx 30m [ Open Space ] ．傳輸距離約30公尺(空曠地直線距離) ．2.4GHz Wireless ．2.4GHz更遠更快的傳輸速度及更少的訊號干擾 ．Water Proof, prolong the life cycle of both the host and remote control ．防水設計延長及保護裝置的使用壽命 適用車種 SUITABLE VEHICLES ．KYMCO - Many, G6, Racing King ．KYMCO - Many, G6, Racing King ．YAMAHA - Rs, Cuxi, Cygnys ．YAMAHA - Rs, Cuxi, Cygnys ．SYM - Fighter... - Page 12 It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal. 文茗實業有限公司 Multi-Function Co., Ltd. 新北市五股區中興路一段八號六樓之11 TEL: +886-2-89769591 FAX: +886-2-89769592 TEL: +886-2-89769591 FAX: +886-2-89769592 www.multila.com.tw www.multila.com...
