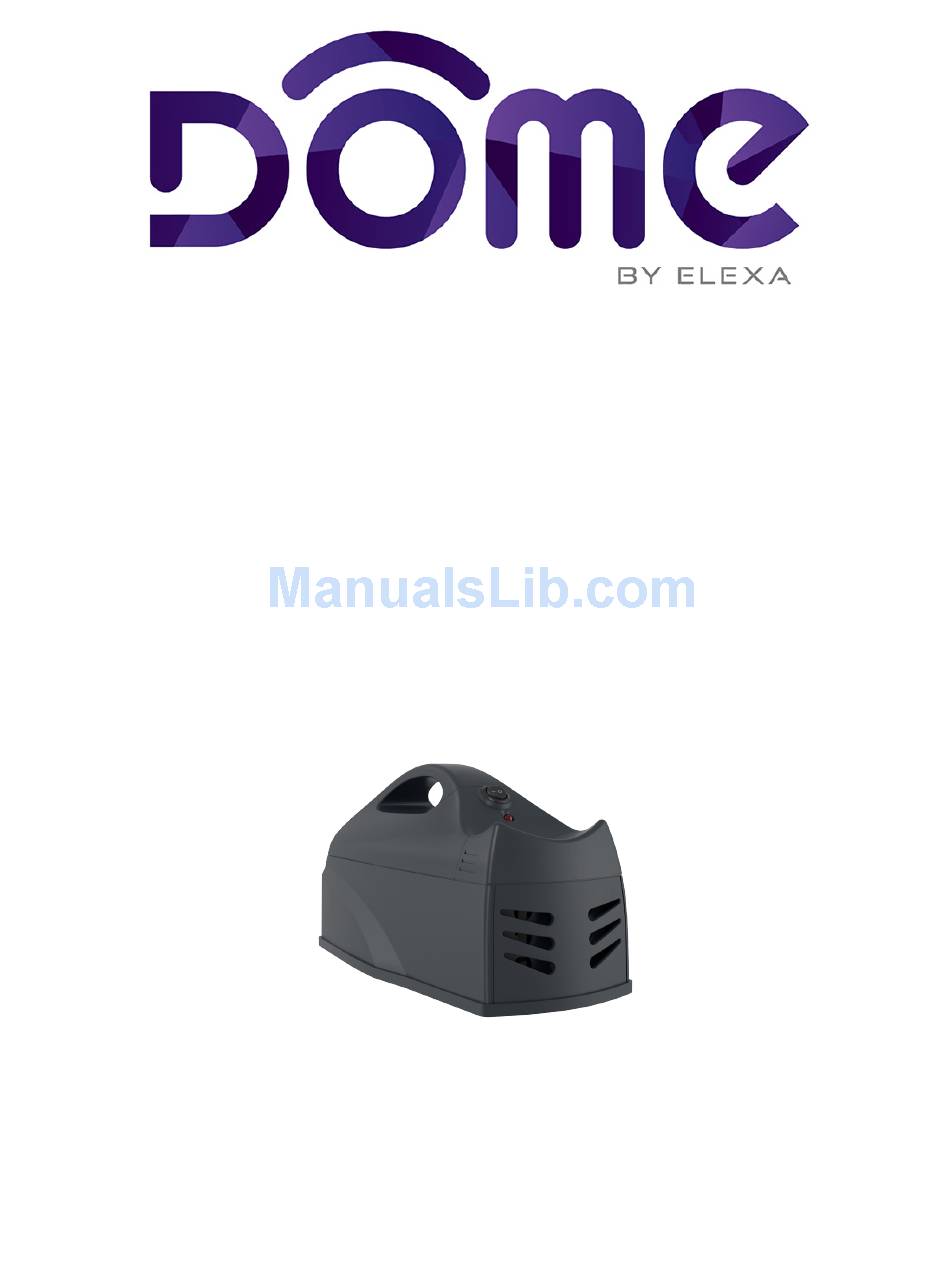

Page 1: User Manual
Always Connected. Always Covered. Mouser DMMZ1 User Manual...
Page 2: Preface
Preface As this is the full User Manual, a working knowledge of Z-Wave automation terminology and concepts will be assumed. If you are a basic user, please visit www.domeha.com for instructions. This manual will provide in-depth technical information about the Mouser, especially in regards to its compliance to the Z-Wave standard (such as compatible Command Classes, Association Group ca- pabilities, special features, and other information) that will help you maximize the utility of this product in your system.
Page 3: Table Of Contents
Table of Contents Preface ..........................2 Description & Features ..................... 4 Specifications ........................5 Physical Characteristics ....................6 Inclusion & Exclusion ......................7 Factory Reset & Misc. Functions ..................8 Physical Installation ......................9 LED Behavior ........................10 Button Behavior ....................... 11 Compatible Command Classes ..................
Page 4: Description & Features
Description & Features The Dome Mouser is a battery powered Z-Wave Plus enabled mousetrap that works by electrocution and is designed to be humane and painless to the ro- dent. After a mouse is caught, the Mouser will send a Z-Wave signal to its con- troller to notify the user, and will not retrigger until the trap is reset.
Page 5: Specifications
Elexa Consumer Products, Inc. (”ECP”) warrants to the orig- 1153 Timber Dr., Elgin, IL 60123 inal retail purchaser (”Purchaser”) that the DOME Siren (the ECP will repair or replace the defective parts and return them “Product”) will be free of defects in materials or workman- at ECP’s cost by a shipping method selected by ECP.
Page 6: Physical Characteristics
Physical Characteristics The names used in Figures 1 & 2 will be used throughout this manual. Please refer to this page as needed. TOP COVER BATTERY COMPARTMENT ARM/DISARM BUTTON LED INDICATOR MAIN BODY CONNECT BUTTON Figure 1 - Parts of the Mouser BAIT HOLDER Figure 2 - Removing the BAIT HOLDER Mouser Advanced User Manual...
Page 7: Inclusion & Exclusion
Inclusion & Exclusion Inclusion Follow the instructions for your Z-Wave Certified controller to enter inclusion mode. When prompted by the controller: 1. Bring the Mouser to within 10’ of your Z-Wave controller for the inclusion process. After successful pairing, the device can be brought to the de- sired location.
Page 8: Factory Reset & Misc. Functions
Factory Reset & Misc. Functions Resetting the Mouser If needed, the Mouser can be reset locally by following these steps. Only do this when your Z-Wave controller is disconnected or otherwise unreachable. Beware that resetting your device will disconnect it from the system: 1.
Page 9: Physical Installation
Physical Installation How to Use—Baiting the Trap 1. Lift the BAIT HOLDER from the Mouser. 2. Add bait - dry foods (like peanuts) leave less mess. 3. Replace the BAIT HOLDER. How to Use—Setting the Trap 1. Bait the Mouser. 2.
Page 10: Led Behavior
LED Behavior Color Behavior This happens when… Blink 5 times in 5 seconds …the Mouser was just powered on, but is not yet (slow) included in a system. Blink 5 times in 2.5 …the CONNECT BUTTON is pressed 3 times quickly seconds (medium) (regardless of inclusion status.) Blink 5 times in 1.5...
Page 11: Button Behavior
Button Behavior Action Condition Result Press and hold Device sends a wake up notification to its Mouser Already Included in CONNECT BUTTON controller, awaits further instructions, and blinks System the LED Indicator once for 2 seconds Mouser Already Included in Device sends node info to Group 1 System Mouser Already Included,...
Page 12: Compatible Command Classes
Compatible Command Classes Command Class Notes Device Reset Locally V1 (5A) Powerlevel V1 (73) Association Group Information V1 (59) Battery V1(80) Returned Value: 01 06 00 0C 07 0C 07 Z-Wave Plus Version: 01 Role Type: 06 (Slave Sleeping Reporting) Z-Wave Plus Info V2 (5E) Node Type: 00 (Z-Wave Plus Node)
Page 13 Command Class Notes The Mouser sends a Notification Report when the trap is triggered, reset, armed, and disarmed. It primarily uses the Pest Control Notifica- tion Type, but also sends a Home Security, Motion Detected (Unknown Location) Report when the trap is triggered and a Home Security, Event Inactive when the trap is reset to ensure compatibility with all Z-Wave Controllers.
Page 14: Configuration" Command Class Parameters
“Configuration” Command Class Parameters Configuration parameters are sent using a standard syntax to ensure interopera- bility between all manufacturers’ products. All values are represented using the hexadecimal number system. Typical syntax is as shown below. Note that the value sent must be the exact size, in bytes, as accepted by the setting.
Page 15 Param Default Size Name Available Settings Setting This parameter enables or disables the indicator LED alarm when the trap is tripped. (LED Alarm Disabled) Enable/Disable LED Alarm (LED Alarm (LED Alarm Enabeled) Enabeled) This parameter sets the amount of time the LED Indicator blinks after the trap is tripped. (LED Alarm (LED Alarm Blinks Until Trap is Cleared) LED Alarm Duration...
Page 16: Troubleshooting
120' - 150' range doesn’t take into account walls, furniture, and other obstacles. To boost your Z-Wave network coverage, add a few non-battery powered Z-Wave devices between the controller and the furthest device, like the Dome On/Off Plug or Water Main Shut-Off. You can even purchase dedicated Z-Wave extenders from 3rd party manufacturers.
Page 17: Warranty & Support
If you believe the product is defective, has a missing or broken 1153 Timber Dr., Elgin, IL 60123 part or are having difficulty with it please contact Dome as list- ed above for a quick and efficient solution to the problem.
