ESVI MH30A User Manual

Mini high speed dome camera

Advertisement

Quick Links

Mini High Speed Dome Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MH30A and is the answer not in the manual?

Questions and answers

Summary of Contents for ESVI MH30A

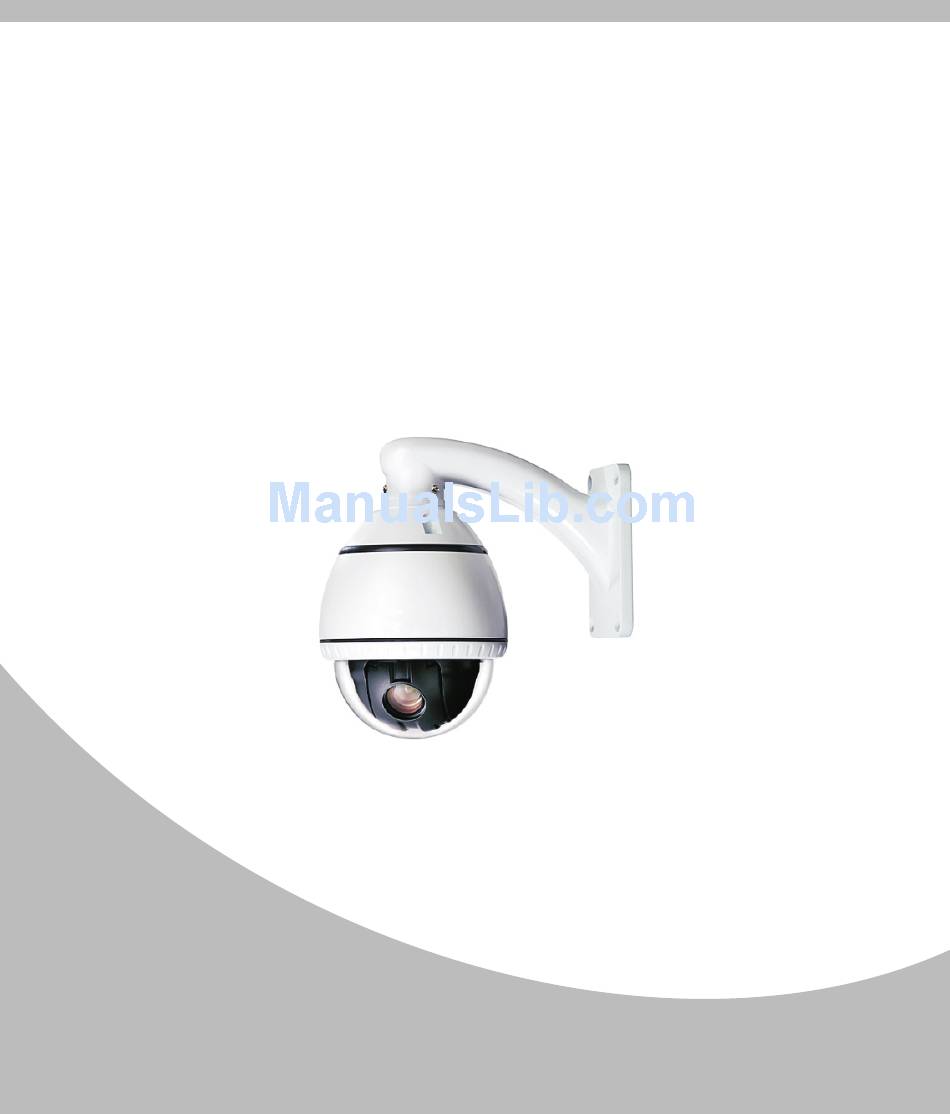

  • Page 1 Mini High Speed Dome Camera User Manual...
  • Page 3: Table Of Contents

    Contents 1. Introduction Features……………………………………………………………………… ..Specifications………………………………………………………………..2. Installation Installation and connection…………………………………………………... 5 DIP Switch Setup……………………………………………......6 3. Operation Check points when power up………………………………………………… 8 Control……………………………………………………………....10 Camera and Lens control…………………………………………………….. 10 4. How to use OSD Menu Basic operation of main menu……………………………………………….. 11 Main Menu Introduction……………………………………………………...
  • Page 4: Introduction Features

    1. Introduction 1.1 Features ※ Camera Specifications: CCD Sensor: 1/4″ Interline Transfer CCD. Zoom Magnification: 10X Optical zoom, 10X Digital zoom. Day & Night function : The camera is configured to switch to the black and white mode automatically under low light conditions and at night with mechanical IR Cut filter for clear images.
  • Page 5 4 Patterns with 100 commands can be recorded and executed. This enables the camera to track a surveillance trajectory as closely as possible. 360° continuous scan. 360° intermittent scan. The camera will have seconds stop during each 90°turning. Auto scan : this enables to move the camera to execute the certain scan when no- operation for a long time.
  • Page 6: Specifications

    1.2 Specifications Video Signal System NTSC 1/4〞Interline Transfer CCD Max. Pixels 811(H) x 508(V) 795(H) x 596(V) Horizontal Resolution 500TV Line(Color), 570 TV Line(B/W) S/N Ratio 50dB(AGC off) Zoom X10 Optical Zoom, X10 Digital Zoom Focal Length F1.8, f=3.8~38mm Min. illumination 0.7Lux(Color),0.02Lux(B/W), F1.8, 50 IRE Camera Day &...
  • Page 7: Installation

    2. Installation 2.1 Installation and Connection 2.1.1. Wall Mount (1) Connect Camera Plug the terminals into the bottom of the main unit, then, fix the main unit with screws supplier. power 485 data cable BNC Video (2) Bracket Installation Use the screws provided to secure the wall mount to the wall. 2.1.2.Ceiling Mount (1) Fix the main unit on the bracket.
  • Page 8: Dip Switch Setup

    (2)Install ceiling mount bracket on the ceiling using screws provided. 2.1.3 Cabling Connector Interface DC 12V 485A Red 485B Black BNC Video 2.2 DIP Switch Setup Before you install the camera, you should set the DIP switches to configure the camera ID, Baud rate, and communication protocol.
  • Page 9: Communication Protocol And Baud Rate Setup

    2.2.1 Camera ID Setup The range of ID is 0~255. Factory default of Camera ID is 1. ID number of camera is set using binary number. The number from 1~8 present 1, 2, 4, 8, 16, 32, 64, 128. For example, switch 1, 3, 5, 7 to “ON” position, the corresponding ID should be 1+4+16+64=85.
  • Page 10: Operation

    Select the appropriate protocol with DIP switch combination. Switch State Protocol Pin No PELCO-P PELCO-D Protocol Auto Reserved 9600 OFF OFF 2400 Baud rate 4800 OFF ON 9600 3.Operation 3.1 Check points before operation Before power is connected, please check the cables carefully. The camera ID of the controller must be identical to that of the camera to be controlled.
  • Page 11: Reserved Preset

    3.2.1 Preset function pre-check Check how to operate preset , Scan, Auto Pan and Pattern function with controller or DVR in advance to operate camera function using them.(refer to your System keyboard Manual) If controller or DVR has no pattern button or function , use shortcut keys with preset numbers.
  • Page 12: Camera And Lens Control

    3.3 Camera Lens control 3.3.1 Zoom Adjust the lens distance to enlarge or downsize the image for best effect or wide- angle effect. Using “ZOOM IN / TELE” key to enlarge the images. Using “ZOOM OUT/ WIDE” key to downsize the images. 3.3.2 Focus Adjust definition of the object of scene Press “Focus Far”...
  • Page 13: Basic Operation Of Main Menu

    4.1 Basic operation of Main menu Go <Preset 95> to enter into main menu. Using “Iris open” and “Iris close” to confirm or exit main menu. Using “UP/DOWN” keys or joystick to move cursor to sub-menu, press “Iris open” to enter into menu.
  • Page 14: System Information

    <SYSTEM INFORMATION>:Shows system information. <ADDR SETTING>:Select and setup Soft/Hard address. <MOTION>:Setup for motion related settings. <PATTERNS>:Setup for Patterns. <CAMERA>:Configure Camera related functions and data. <CRUISE SETTING>:Setup presets scan. <DISPLAY SETUP>:Enable / Disable of OSD display on main screen. <RESTORE FACTORY DEFAULT>:Restore factory settings. <REBOOT SYSTEM>:Reboot the system.
  • Page 15: Addr Setting

    4.2.2 Address Setting ADDR SETTING ADDR TYPE HARD ADDR SOFT ADDR HARD BACK EXIT ADDR TYPE:Choose the address type (Hard/Soft Add), when you choose soft type, the user can setup the address by remote access. ADDR SOFT:setup soft address . Press UP/DOWN” keys of your controller and setup the camera ID from 0~254.
  • Page 16 Motion setup is to setup preset and packing action function. SET FRAME SCAN:setup the LEFT/RIGHT extreme position between two presets. POWER UP :This function enables to resume the last action executed before power down. NONE : No action. CRUISE: Cruise action between presets position. AUTO SCAN: 360°continious scan.
  • Page 17 Set Frame Scan FRAME SCAN SET SCAN POSITION CLEAR FRAME SCAN BACK EXIT SET SCAN POSITION:Set up scan range between two positions (Left/Right extreme position). CLEAR FRAME SCAN:Deletes frame scan. 1. Set Scan Position (1) Move the cursor to <Set Scan Position> and enter below interface. SET FFRAME SCAN LEFT LIMIT POSITION IRIS OPEN TO CONTINUE...
  • Page 18: Patterns

    SET FFRAME SCAN RIGHT LIMIT POSITION IRIS OPEN TO CONTINUE 2. Clear Frame Scan CLEAR FFRAME SCAN IRIS OPEN TO CONTINUE Move the cursor to “Clear Frame Scan” to enter, the press “Iris Open” to delete the extreme positions. 4.2.4 Patterns PATTERNS PATTERN NUMBER PROGRAM PATTERN...
  • Page 19: Camera

    1.Pattern Number (1)Move the cursor to “PATTERN NUMBER” by using direction keys and select pattern number, then press “Iris OPEN” to confirm. 2. Program Pattern (1)Move the cursor to “Program Pattern” by using direction keys or joystick of your controller and press “IRIS OPEN” to enter below interface. PROGRAM PATTERN USE THE JOYSTICK OR KEYBOARD TO MOVE THE...
  • Page 20 Main Menu Camera label White Balance Auto Auto Detection Focus Exposure Additional Menu Back Exit Notice: Up/Down keys for option, “Left/Right” keys for details, “Iris Open” “ ” for sub-menu. 1.Camera Label setup:press “Iris Open” to enter sub-menu and edit camera lable. Camera Label ABCDEFGHIJKLMNO PQRSTUVWXYZabcd...
  • Page 21 2. White Balance setup WB Mode: Auto Trace / Manual / Auto 2.1 Auto Trace : Indoor/Outdoor, The camera can automatically adjust ambient light from 1800K~10500K(Indoor :3000~10,500K; Outdoor:1,800~10,500K,)to ensure the most nature image effect. Auto Trace WB Auto Trace WB mode Outdoor Exit 2.2 Manual: Close auto WB, adjust Red and Blue level manually.
  • Page 22 Red adjust range: 0~100 Blue adjust range: 0~100 2.3 Auto BW : This mode is the most accurate and reliable for most places. 3. Backlight Compensation setup Backlight High/Middle/Low/Off 4.Motion Detection setup Match the Alarm sensor input to one of preset positions. If an external sensor is activated, camera will move to corresponding preset position when this item is predefined.
  • Page 23 5.Focus Setup Focus Mode Auto Zoom trace mode Zoom trace speed Fast Digital Zoom Show Zoom Initial Zoom Position Lens Initialization Exit 1.Mode:Auto, Manual, One-off Auto focus. Press “Iris Open” to enter sub-menu. One-off auto focus: Once the image zoom changes, the camera will automatically focus and fix the status till the image change again.
  • Page 24 Setup Zoom Zoom in Zoom out Back : press “SET” key Using the direction keys to enlarge or downsize, press “ Iris/Open” key to back. (2) One-off Auto focus and Manual focus Adjustment: Setup Zoom Zoom in Zoom out Near Back : press “SET”...
  • Page 25 Digital Zoom Digital Zoom Exit 5.Show zoom: On / Off. 6.Initial zoom position:Using direction keys to move the cursor to “On”, then press “Iris Open” to set up. Initial Zoom Position Initial Zoom Position Exit Zoom range: X1~X10 7. Lens Initialization: press “Iris open/Set” key to initialize the lens. 8.
  • Page 26 Shutter mode : Flicker / Manual / Auto The shutter speed of Anti-flash is 1/100(NTSC),1/120(PAL) Manual mode setting (PAL): 2X、4X、6X、8X、10X、12X、14X、16X、24X、32X、 64X、128X、1/120000、1/60000、1/30000、1/10000、/ 1/7000、1/5000、1/2500、 1/1600、1/1000、1/700、1/500、1/250、1/100、1/50. Manual shutter Shutter 1/50 Exit Notice: Auto shutter setting only for manual iris mode. AGC: High / Middle/ Low / Off. Enhances image brightness automatically in case that luminance level of image signal is too low.
  • Page 27 Sens-up Sens up Exit 9 .Additional menu: Additional menu User setup Privacy zone mask Day & Night Auto 1 Sync. system Internal Image adjustment EXIT ( 1 )User preset setup: On / Off User Preset User preset number No 1 User preset mode Save Clear...
  • Page 28 User preset mode Focus Exposure Other Exit Focus: Using direction keys to “Focus” and press “Iris/Open” key to set up. Focus Mode Auto Zoom trace mode Zoom trace speed Fast Digital zoom Show zoom Exit Other:refer to below details. Other Camera Type Auto trace BW Motion Detection Off...
  • Page 29 (2) Privacy mask Privacy mask Group selection Area selection Zone mode Color 50…|..………. 50…|..………. Bottom 104….…|……. Left 50…|.………. Right 98….……|…. Exit Group selection:1~ 8 Area selection: 1~4 zone / group Zone mode: On / Off Color: color, range of privacy zone is 0~100. Top: ordinate position on the top of zone.
  • Page 30: Cruise Setting

    (4) Synchronous mode: internal, unchangeable. (5) Image adjustment. Image adjustment Freeze Horizontal flip Vertical flip Sharpness 50….…|……. Exit Freeze : Camera starts freezing the image of start point , as soon as camera stops at preset end point, camera starts display live images. Horizontal flip : image will flip 180°...
  • Page 31: Display Setup

    CRUISE DWELL TIME<SECS> PRESET LIST 1 ON 0 OFF 1234567890 PRESET 1101111111 [1-10] BACK EXIT Auto cruise : set up preset scan route. <Dwell Time (Sec)>: preset cruise dwell time, range:1~250 Sec. <Preset List>: 3 pages.30 presets. <1234567890>:preset position in the preset list. <110111 1111>:1 means the preset position corresponding to above preset list is elected to cruise list;...
  • Page 32: Reboot System

    4.2.9 Reboot System> Move cursor to <Reboot System > and press “Iris /Open” to reboot the system. Easy to change the Soft/Hard address by remote and no need to power off. 4.2.10 Exit: Move cursor to <Exit> and press “Iris /Open” to exit the OSD menu. 5.Trouble Shooting Troubles Reason...
  • Page 33: Safety Information

    6.Safety Information 1. Transportation Do not force, shake and marinate during transportation, storage and installation. 2. Installation Please handle with care, do not press the camera and its' parts when you install, do not connect before you install the cover. 3.
