Summary of Contents for Reverse Tap V20

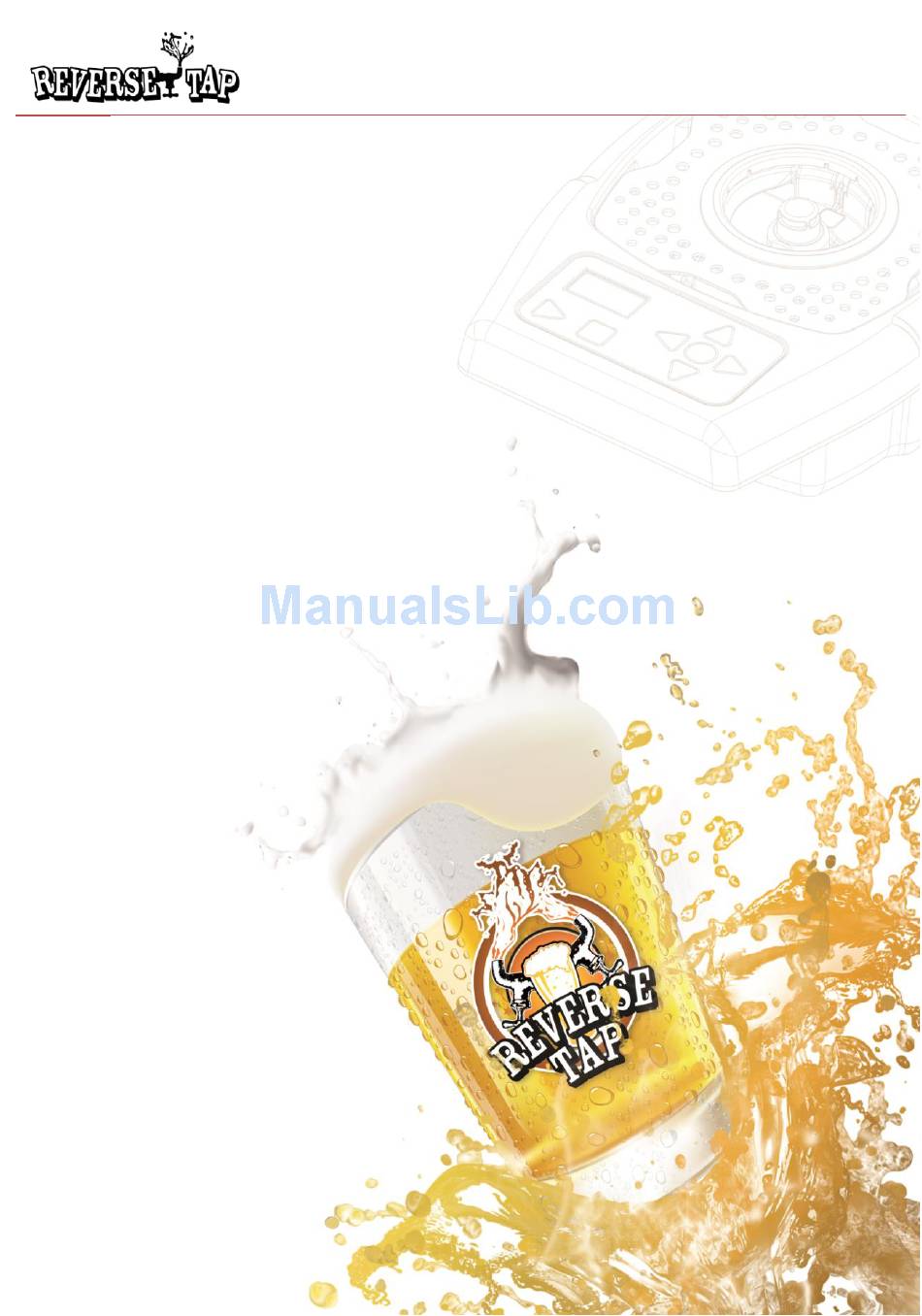

- Page 1 User Manual Reverse Tap V20...
-
Page 2: Table Of Contents
Preparation Cautions -------------------------------------------------- Name of each part---------------------------------------- 4 Cautions for installation---------------------------------- Operation Checklist before use-------------------------------------- Button and displays--------------------------------------- 7 How to use dispenser ------------------------------------ 8 Miscellaneous Whole Structure ----------------------------------------- 15 Cleaning -------------------------------------------------- 16 Errors handling-------------------------------------------- 17 Product specification------------------------------------- 19... -
Page 3: T Cautions
Warning Power - Do not use damaged power plug and cord - Do not touch power plug by wet hands - Otherwise there might be risk by electrical shock and fire For installation - Make sure to close all valves before installation - Otherwise, high pressure in gas or beverage container may cause injury - Install product on horizontal and smooth floor Cleaning... -
Page 4: B Name Of Each Part
Front side Menu Setting LCD Start Setting value Mode Setting Stop movement Outlet Cup sensor Gripper plate Nozzle... -
Page 5: E Cautions For Installation
Check list before installation Pipe passage in installation table is required Three piping holes are required Ø20mm 35 mm Ø65mm Selection of installation location - Make sure that floor is plat and even - Make sure to check that floor is able to withstand weight of the product - Make sure that electrical connection is available - It’s required that piping is easy and there is little moisture for installation location... -
Page 6: Checklist Before Use
Beverage is not discharged Make sure to check KEG and CO2 gas valve before use If valve is locked, then beverage is not discharged. Make sure to check residual beverage in KEG before use If beverage is insufficient, beverage is not discharged. ... -
Page 7: C Button And Displays
■ Display and function switches 1. Capacity It displays capacity of currently set cup: Large /Medium / Small on OLED 2. Power OFF By pressing ‘STOP’ button for more than 2 seconds in waiting mode, power is turned off along with long beep sound 3. -
Page 8: N How To Use Dispenser
■ Configuring the default display 1. Amount of discharge (Figure) In usual status, there is no figure. But if a cup entered, outer shape appears and if beer starts to be poured then internal level is rising up. 2. Displaying accumulated amount If beer in Keg is completely consumed, then amount of sold beer is displayed and if residual of beer is less than 10%, warning is displayed to prevent bubble of beer from being burst out. - Page 9 ■ Standby mode • When a cup is recognized, amount of discharge is displayed in percent instead of set value When beer is discharged, bar is rising displaying amount in percent ■ Mode Selection Auto / Manual Mode Size Mode Bubble Mode Sales count Mode LED Lamp Mode...
- Page 10 ■ How to set mode AUTO By pressing button for more than 2 seconds, display is switched into screen change mode Initial mode is AUTO/MANUAL mode If you want to change set value in mode screen, then push button, then value is blinking ...
- Page 11 ■ Capacity change mode Amount of discharge is set by Large / Medium / Small. But it can be tuned by tiny amount for each set SMALL 5.8 sec 362.5 CC By pushing left and right button select capacity change mode, then currently set mode is displayed .
- Page 12 ■ Bubble Mode If number is ‘+’, this span is operated forward whereas ‘0’ indicates non-operation Bubble +1 0.1 sec Setting -> -2 0.5 sec 0.5 sec 0.2sec 0.5 sec 0.2sec 0.5 sec ④ ⑤ ⑥ ③ ⑦ ① 5.5 sec Cup recognition Valve Valve...
- Page 13 ■ Changing LED illumination LED Lamp Mode 1 By pushing left and right button and select display mode for sold beer, then currently selected mode is displayed. By pushing button, machine is ready to change mode along with beep sound. By pushing button, mode is changed.
- Page 14 ■ Changing KEG capacity This enables to set amount of discharge and capacity of KEG KEG ALARM 0.1 SEC : 6.25 CC ALARM : 18000 CC By pushing left and right button, select illumination change mode, then currently set mode is displayed.
-
Page 15: Whole Structure
■ Whole Structure Reversetap ■ Tools ② Wrenches ③ + , Driver ① Drill (if necessary) ⑥ Lighter or torch ④ Multi scissors ⑤ Knife... -
Page 16: Cleaning
How to clean the product Auxiliary parts for dispenser Clean them by water and neutral detergent Clean beverage pipes or replace them regularly (once every 6 month) How to disassemble the product for cleaning Grab top cover by both hands and unplug it by lifting it up. ... -
Page 17: Errors Handling
Symptom Checks Treatment Is power switch off? Turn power switch On Beverage is not discharged Is adapter power Plug adapter power again unplugged? Is KEG valve locked? Open valve of KEG Is CO2 gas valve locked? Open CO2 gas valve Is flow rate regulator Open flow rate regulator locked? - Page 18 Symptom Checks Treatment Beverage is not cool Is cooler properly operated? Make sure to check power of cooler Is cooling water insufficient? Refill cooling water up to a level where coil is soaked Is agitating motor Request A/S malfunctioned? Is temperature of KEG high? Keep KEG under a chilled area There is a strange...
-
Page 19: Product Specification
Default Setting Value Default setting value are as below Parameter Default Setting Min Remark Small Cup On Time Medium Cup On Time Large Cup On Time 11.3 Bubble Count Bubble Generation Time Total Cups 50000 Total sales amount / EA Daily Cup 5000 Daily sales amount / EA... - Page 20 ompany Information Customer Center eversetap HQ Technical support www.reversetap.kr...
