Summary of Contents for Symcod TermiCom XPe 15 inch

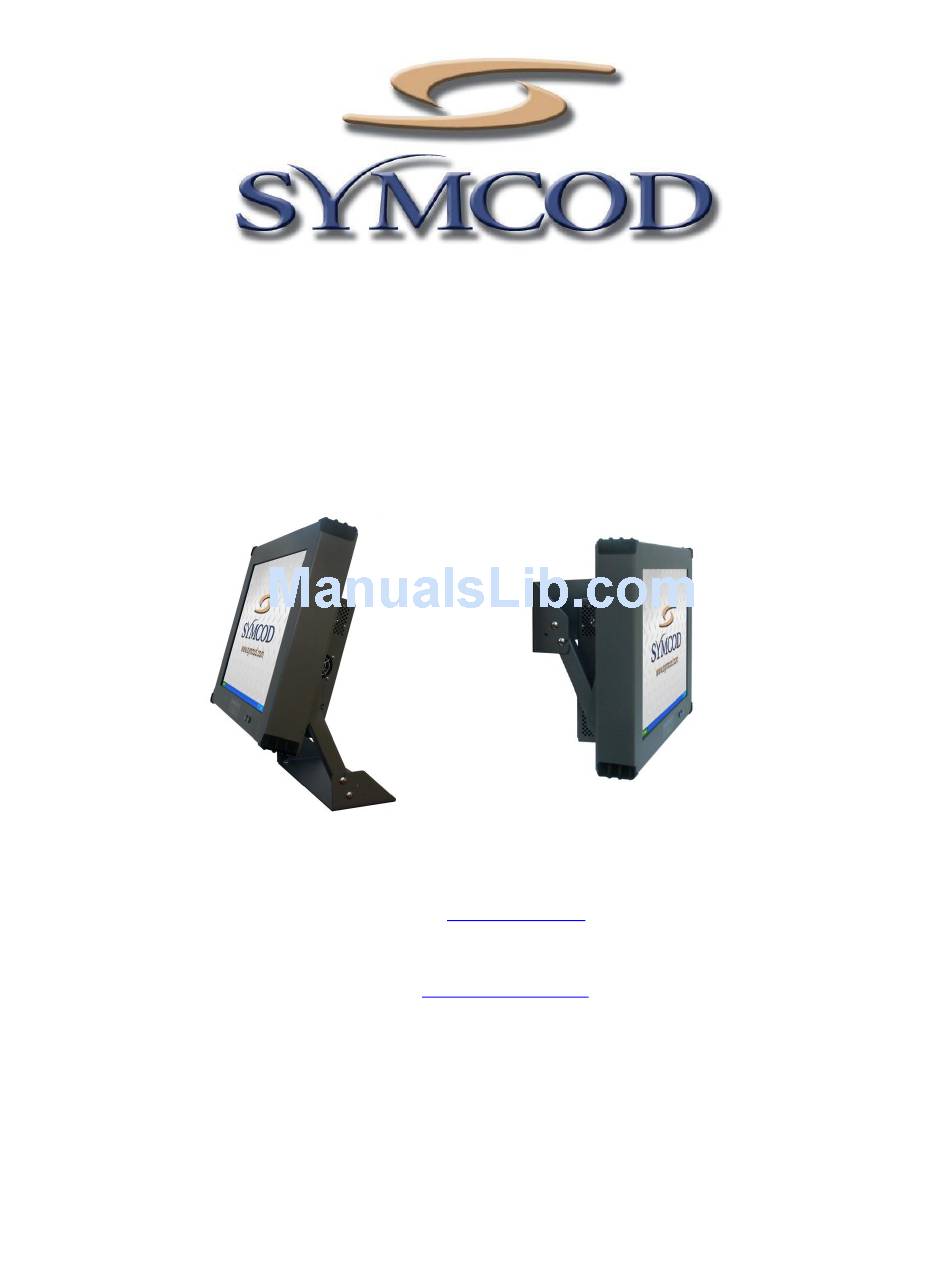

- Page 1 TermiCom XPe 15” and 19” User Manual Documentation Version: 26-09-2012 WEB site: www.symcod.com E-mail: support@symcod.com...
- Page 2 TermiCom XPe WWW.SYMCOD.COM Warranty Warning Disclaimer The material on this document* is Symcod warrants its products to be free intended for end user, distributor and/or from defects material reseller use. Although downloading and workmanship during one year from the printing documents is allowed, Symcod purchase date.
-
Page 3: Read Me First
( ). WARNING: Safety and reliability SYMCOD Inc will not be responsible for the use of this equipment for other purpose then data collection. This equipment is designed and intended for an industrial and commercial use only. The... -
Page 4: Table Of Contents
TermiCom XPe WWW.SYMCOD.COM Content TermiCom XPe ....................5 Main characteristics ..................6 Environmental specifications ................6 Power ......................9 Options description ..................9 Using modes....................10 Desktop or wall mount, side view ............. 10 Desktop, back view ................... 10 How to install your TermiCom XPE ............11 Detailed Specifications ................. -
Page 5: Termicom Xpe
TermiCom XPe WWW.SYMCOD.COM TermiCom XPe TermiCom XPE is microcomputer specifically designed for dusty industrial environment without watering. The casing of the XPe is made of aluminum witch give it is lightness and resistance. Basic TermiCom XPe is provided with a Atom 1,6 GHZ, a 15" tactile color screen (LCD TFT resistive) and with a solid aluminum stand which allows desktop or wall mount installation in a few minutes. -
Page 6: Main Characteristics
TermiCom XPe WWW.SYMCOD.COM Main characteristics TermiCom XPe 15” Windows Color operating touch Stockage Comm. screen system Memory Inputs / Outputs # Product 004-01863B-2200 004-01863B-3200 004-01865-3200 004-01866-3200 O = Available Option Recommended for environments with very abrasive dust, screen covered with a fine layer of tempered glass, allows operation with deep scratches. - Page 7 TermiCom XPe WWW.SYMCOD.COM Main characteristics TermiCom XPe 19” Windows Color operating touch Stockage Comm. screen system Memory Inputs / Outputs # Product 004-01891-2200 004-01891-3200 004-01896-3200 004-01895-3200 O = Available Option Recommended for environments with very abrasive dust, screen covered with a fine layer of tempered glass, allows operation with deep scratches.
- Page 8 TermiCom XPe WWW.SYMCOD.COM Desktop and wall mount position (in inches) for the 15” and 19”...
-
Page 9: Power
TermiCom XPe WWW.SYMCOD.COM Power TermiCom XPe is powered through an external 12 VDC power supply which connects to a 120/240VAC power network. (Power cable and power supply are provided with the unit) WARNING: powering Before installation, please turn off powering source. Plug the unit only when the installation is completed. -
Page 10: Using Modes
TermiCom XPe WWW.SYMCOD.COM Using modes Desktop or wall mount, side view Side view Side view Wall mount version Desktop version Desktop, back view Back view Back view With Wifi option... -
Page 11: How To Install Your Termicom Xpe
TermiCom XPe WWW.SYMCOD.COM How to install your TermiCom XPE The support provided with TermiCom XPE permit to install the unit on a wall or on a table. Once fixed, the angle of TermiCom XPE can be easily adapted to the needs of each user, no need to do a new... -
Page 12: Mounting Holes
TermiCom XPe WWW.SYMCOD.COM Mounting variants The TermiCom XPe is always sent with its support installed at the bottom of the unit and in Wall mount position. However, it is possible to change the location and position of the support to respond to different needs. - Page 13 TermiCom XPe WWW.SYMCOD.COM TermiCom XPe 19" Mounting Holes...
-
Page 14: Detailed Specifications
TermiCom XPe WWW.SYMCOD.COM Detailed Specifications TermiCom XPE is provided with several ports allowing the connection of various types of peripherals according to needs, for example: printers, electronic scales, bar code scanners, sensors… The default orientation of the connectors is downwards but it is also possible to have them upwards if specified on order. -
Page 15: Termicom Xpe Configuration
TermiCom XPe WWW.SYMCOD.COM TermiCom XPE configuration Operating system Figure 4 Service pack version The basic operating system of TermiCom XPE is Windows XP Embedded which is a reduced version of Windows XP Professional. To check the version of the service pack of your Windows XPe, please refer to your system properties (Start/setting/Control panel/system/general - figure 4). - Page 16 If it is the case, please address an email request to support@symcod.com . A Symcod technician will be able to help you to identify the missing component. Starting with "Safe Mode" In certain cases, it can be necessary to start Windows in "Safe Mode". To do so, let the computer start normally and type “MSCONFIG”...
-
Page 17: Recommendations
I saw the LED lights but there is improvement, sent a request including the serial number and the detailed no screen display description of the problem to technical support at support@symcod.com. "DLL missing", error Extract a DLL file from another computer working with Windows 2000 or displayed at software or XP. -
Page 18: Accessories & Options
TermiCom XPe WWW.SYMCOD.COM Accessories & options Figure 5 1- Tool balancer Figure 6 2- Powerscan scanner SKT silicone keyboard Sealed rigid casing # product Description OPT-802XPE RF option, 802.11b, 5.5 dBi antenna 504-00048B Power supply for TermiCom XPe (for replacement, one cable provided) -
Page 19: Dictionnary
Phone: 1-800-203-9421, 1-819-751-0095 Fax: 819-751-1292 Return Merchandise Authorisation (RMA) All return request must be authorized by SYMCOD Inc. To do so please refer to the following: http://www.symcod.com/rma You will receive a formal confirmation number (# RMA) The RMA number must be printed on each box.
