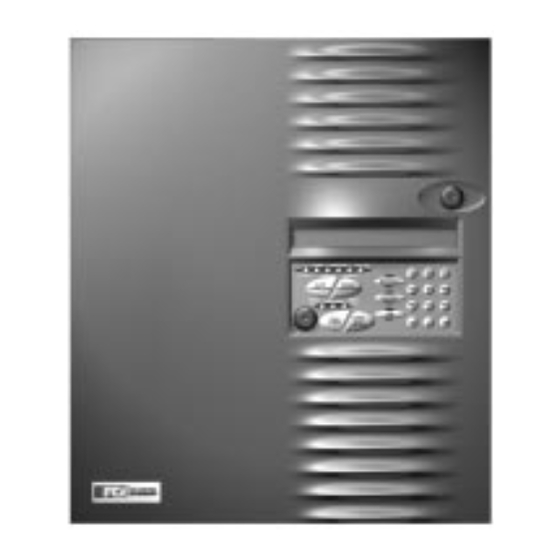

FCI 7100 SERIES Installation & Operating Manual

Fire alarm control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Copyright © 1998
All Rights Reserved
Published in U.S.A.
301 2nd Ave. Waltham, MA 02451-1133 USA TEL: (781) 487-0088 FAX: (781) 370-4132
Technical Manuals Online! - http://www.tech-man.com
7100 SERIES
FIRE ALARM CONTROL
INSTALLATION/OPERATING MANUAL
Part Number: 9000-0447
Version 1.4

Advertisement

Table of Contents
loading

Summary of Contents for FCI 7100 SERIES

  • Page 1 7100 SERIES FIRE ALARM CONTROL INSTALLATION/OPERATING MANUAL Copyright © 1998 Part Number: 9000-0447 All Rights Reserved Version 1.4 Published in U.S.A. 301 2nd Ave. Waltham, MA 02451-1133 USA TEL: (781) 487-0088 FAX: (781) 370-4132 Technical Manuals Online! - http://www.tech-man.com...
  • Page 2 Technical Manuals Online! - http://www.tech-man.com...

  • Page 3: Important Information

    A copy of these instructions is included with each product and is available from the manufacturer. This equipment is Listed by various listing agencies for use in fire alarm systems. Use only components which are compatible with the FCI system. The installation MUST be in accordance with the instructions in this manual. THEREFORE: •...
  • Page 4 We do not recommend the use of overhead or outside aerial wiring due to the increased susceptibility to nearby lightning strikes. Consult with the FCI Technical Support Department if any problems are anticipated or encountered.

  • Page 5: Limitations Of Fire Alarm Systems

    FCI reserves the right to change hardware and/or software design, which may subsequently affect the contents of this manual. FCI assumes no responsibility for any errors that may appear in this manual. Neither this manual nor any part of it may be reproduced without the advance written permission of Fire Control Instruments, Inc.
  • Page 6 • Smoke detectors cannot be expected to provide adequate warning of fires caused by arson, children playing with matches (especially within bedrooms), smoking in bed, violent explosions (caused by escaping gas, improper storage of flammable materials, etc.). • Heat detectors do not sense particles of combustion and are designed to alarm only when heat on their sensors increase at a predetermined rate or reaches a predetermined level.
  • Page 7 9000-0447 5 of 43 Technical Manuals Online! - http://www.tech-man.com...

  • Page 8: Table Of Contents

    TABLE OF CONTENTS Page IMPORTANT INFORMATION......................1 1.0 System Overview ........................9 1.1 Description..........................9 1.2 Features ..........................9 1.2.1 Standard Features ......................9 1.2.2 Optional Features ......................9 1.3 Control and Indicators......................10 1.3.1 Switch Controls ........................10 1.3.2 LED Indicators........................10 1.3.3 Audible Sounder.........................10 1.4 Optional Modules........................10 1.4.1 Digital Alarm Communicator Transmitter (DACT) ...............10 1.4.2 Class A Option Module (CAOM) ..................10 1.4.3 Municipal Circuit Option Module (MCOM)................10...
  • Page 9 6.0 Power Up Procedure .........................40 6.1 General ..........................40 6.2 To set the system time ......................40 6.3 Automatic Configuration ......................40 Appendix 7100 Series Device Types and Functions ..................41 Typical 7100/DRBC-1 Hookup .......................42 Power Limited/non-power limited Wiring Connections ..............43 9000-0447 7 of 43...
  • Page 10 JMP1 8 of 43 9000-0447 Technical Manuals Online! - http://www.tech-man.com...

  • Page 11: System Overview

    The FCI 7100 is a multiprocessor-based analog/addressable fire alarm control panel, designed for commer- cial, industrial and institutional fire alarm applications. It is available with one or two signaling line circuits. The 7100 Series Fire Alarm Control is Listed by Underwriters Laboratories Standard UL 864. It is suitable for the following signaling services: •...

  • Page 12: Control And Indicators

    1.3 Control and Indicators 1.3.1 Switch Controls • Alarm Acknowledge • Trouble Acknowledge • Signal Silence • System Reset/Lamp test • Programming buttons – Menu/Back – Back Space/Edit – • 12 button keypad 1.3.2 LED Indicators • • AC Power On (green) Ground Fault (yellow)

  • Page 13: Printer Transient Module (Ptrm)

    Alarm Dry Contacts (TB2) Form “C” Rated 2 amp. @ 30 VDC Transfer Relay Control (TB2) To transmit loss of AC power or brown out to FCI Model DRBC-1 charger. Power limited Unsupervised Signaling Line Circuits (TB3) One (1) or two (2) Class “B”, Style 4 circuits...
  • Page 14 24 VDC power, system (TB4) Unregulated Resettable and non-resettable 1.0 amp. max. each circuit, 1.0 amp. max. combined Unsupervised Battery Connection (TB7) Supervised 24 VDC nominal Max. battery size 31 AH Non-power limited 0.6 A max. battery charge current The RS-232 port, consists of an RJ11 connector which provides a standard serial port for connection to a Listed output device for supplementary type service.

  • Page 15: Installation

    2.0 Installation 2.1 General The 7100 is shipped unassembled. The shipping carton contains an installation drawing, backbox, Basic System Module (BSM), power transformer and door. 1) Refer to the System Assembly Drawing, P/N 9000-0457. 2) The BSM module consists of a main operating board with pluggable terminal strips, an 80-character LCD display and programming keypad.

  • Page 16: Power

    Table 1a - LEDs, Jumpers Designation Description Comments LEDs LED25 Yellow Line 1 Trouble LED26 Yellow Line 2 Trouble Jumpers Not used OUT to disable battery IN - No Local Phone Line 1 IN - No Local Phone Line 2 Connection to keypad JMP1 Cut for 240 VAC input operation...
  • Page 17 Multiply Line G by 1.2 — enter (Total ampere/hours required*) NOTE: * Use next size battery with capacity greater than required. (Use only FCI Model B-1.9R, B-6R, B-7R, B-17R, or B-31R batteries) ** 24 hrs for NFPA 72 protected premises or Central Station signaling, 60 hrs for Auxiliary or Remote Supervising Station Fire alarm Systems.

  • Page 18: Notification Appliance Circuits

    3.3 Notification Appliance Circuits The 7100 provides two (2) 24 VDC Class B, Style Y notification appliance circuits. Class A, Style Z operation is accomplished by adding the Class A Option (CAOM) Module. For use with any UL Listed notification appliance having a nominal operating voltage of 24 VDC.
  • Page 19 9000-0447 17 of 43 Technical Manuals Online! - http://www.tech-man.com...

  • Page 20: Analog Sensors

    The 7100 accommodates only FCI approved, U.L. Listed, Factory Mutual Approved analog sensors and bases. See FCI Publication, P/N 9000-0427 for a list of approved sensors and bases. Each signaling line circuit can accommodate 99 sensor address points, using Address numbers 01 to 99.

  • Page 21: Printer Transient Module (Ptrm)

    Table 3 Optional Module Wiring Connections CAOM Module Designation Description Comments TB1-1 NAC1 NAC Circuit 1, Class A return (+) TB1-2 NAC1 NAC Circuit 1, Class A return ( - ) TB1-3 NAC2 NAC Circuit 2, Class A return (+) TB1-4 NAC2 NAC Circuit 2, Class A return ( - )
  • Page 22 3.11 Central Station Reporting UL Listed receivers compatible with the 7100 are listed in Table 4 below: Table 4 Manufacturer Receiver Model Formats Silent Knight Model 9000† SIA-8 SIA-20 SK4/2 3/1 14 3/1 23 Silent Knight Model 9800/9500 SIA-8 SIA-20 SK4/2 3/1 14 3/1 23...

  • Page 23: Central Station Reporting

    3.12 7100-D DACT Event Reporting Codes The 7100-D DACT event reporting codes are shown in Table 6 below: Table 5 - 7100-D DACT Event Reporting Codes Event Contact ID Fire Alarm (Smoke or Manual Station) FA GGT 1 110 00 GGT Trouble (Smoke or Manual Station) FT GGT 1 373 00 GGT...

  • Page 24: Digital Communicator

    The LCD-7100 is flush or surface mounted on a standard three-gang electrical box. The 7100 Series control can accommodate up to five (5) remote LCD-7100 annunciators which may be located up to 4,000 feet away from the main control panel. See the chart below for resistance limitations of the connecting circuit.

  • Page 25: Continued 4.0 Programming/Operating

    4.0 Programming/Operation Instructions 4.1 LED Indicators Table 6 Designation Description Comments AC Power On (green) Lights to indicate presence of 120/240 VAC input. Alarm (red) Lights when system is in alarm, flashes until alarm is acknowledged Supervisory (yellow) Lights when supervisory condition exists, flashes until trouble acknowledge is performed System Trouble (yellow)

  • Page 26: Panel Switches

    4.2 Switches Table 7 Designation Comments Alarm Acknowledge Silences the panel audible sounder. This must be pressed once for each Alarm condition present in the system. Trouble Acknowledge Silences the panel audible sounder. This must be pressed once for each Trouble or Supervisory condition present in the system.

  • Page 27: System Programming

    5.0 System Programming 7100 System programming can be performed either by front panel program- ming as shown below or via portable computer and the FCI Field Configura- MENU STRUCTURE tion Program. See the FCP Software Training Guide, P/N 9000-0456. 5.1 MAIN Menu selections MAIN CONFIG.
  • Page 28 Main [GAIN ] Type password for level 3: Any selection [ACCESS] 000000 keypad: enters password (shows as “XXX...” on display) (Only opens if adequate access has not OK: if password is valid for desired level (or higher), opens already been obtained) access, logs the event, and continues to next menu.

  • Page 29: Config. Menu Selections

    5.2 CONFIG. Menu Selections CONFIG. AUTO is the selection used to either initialize the system or update it. GLOBAL is the key feature to the simplicity of programming. Most system as well as individual SLC device programming can be accomplished here. AUTO INPUTS allow the user to insert point-to-point address information...
  • Page 30 7100 Series Menu System Menu Tree Display and Selections Main [MAIN] 1:Config 2:Walk/Drill 3:I/O 4:Clock 5:View 6:Log 7:Info 1: Opens System Config Menu (PW-L4 required) 2: Opens Walk Test / Drill Menu (PW-L1 required) 3: Opens I/O Control Menu (PW-L2 required)
  • Page 31 Main [SET ] 1:Verification 2:Sensitivity Config [DEFAULTS] 3:PAS 4:Multilevel Global 1: Opens Set Default Verify Options menu. Device defaults 2: Opens Set Default Sensitivity Menu. 3: Opens Set PAS Parameters menu. 4: Opens Set Multilevel Parameters menu. Main [DFLT ] 1:Dflt Ion,Photo Verify (None) Global [VERIFY] 2:Dflt Manual Sta Verify (None) ConfigDevice defaults...
  • Page 32 Main [CODED] 1:Set Day Alarm (MT60) Config Config [PATTS] to select condition Global <>: selects response condition from: Day Alarm, Night Alarm, Codes Action, Supervisory, Tornado. 1: Scrolls through coded pattern selections: MT60, MT120, Temporal, CA Code, Coded 4s. Main [L,AAA] FLR1 Lobby Config...
  • Page 33 Main [SELECT] Loop,Address: 1,001 Config [DEVICE] Key in or use <,> Inputs or Outputs # keys: enters loop & address (restriction: Address 200) ——————— or ——————- < >: Scrolls up or down to next available device. Main OK: Accepts address, opens Configure Input Device Menu, Configure Output Device Menu, Control Output Menu, or Control or Ena/Dis Enable/Disable Device Menu, as appropriate.
  • Page 34 Main [CONFIG] 1:Type 2:General Resp 3:Groups Config [L,AAA ] 5:Location 6:View 7:Copy L,AAA Outputs 1: Opens Set Output Type Menu. Select 2: Opens Assign Output To Group(s) Menu. 3,4: Unused. 5: Opens Set SLC Device Location Menu. 6: Displays all settings for this device. 7: Copies settings of the specified device (last output modified).
  • Page 35 Main [CONFG] 0:Options 1:Line1 2:Line2 Config [DACT] 3:Account1 4:Account 2 DACT 0: Opens DACT Options menu. 1: Opens Phone Line Options menu for Line 1. (opens only if DACT is installed) 2: Opens Phone Line Options menu for Line 2. 3: Opens Account Options menu for Account 1.

  • Page 36: Walk/Drill Menu Selections

    5.3 WALK / DRILL Menu Selection Drill ON/OFF Is a simple ON or OFF selection. ON will activate the NACs, while OFF will deactivate them. Audible Test Is a simple ON or OFF selection for an audible walk test. The NACs will sound twice for a trouble, 3 times for a supervisory signal and 4 times for an alarm.
  • Page 37 Main [Walk/] 1:Drill (OFF) 2:Audbl Test (OFF) Walk/Drill [DRILL] 3:Silent Test (OFF) 1: Toggles Fire Drill ON/OFF. 2: Toggles Audible Walk Test ON/OFF. 3: Toggles Silent Walk Test ON/OFF. Main [I/O ] 1: Output On/Off [CTRL] 2: Enable/Disable Device 1: Opens Select Device to Control menu. 2: Opens Select Device to Enable menu.

  • Page 38: Clock Menu Selections

    5.5 CLOCK Menu Selection Time is set in 24 hour notation. It is set with hours then minutes “HHMM”. Date is set as month, date and year “MMDDYY”. Night Hours sets the Day/Night programming. If no time is set here the system will always remain in the Day mode.
  • Page 39 Main [SET ] 1:Time 2:Date 3:Night Clock [CLOCK] 4:Weekend 5:Holidays 1: Opens Set Time menu. 2: Opens Set Date menu. 3: Opens Set Night Hours menu. 4: Opens Set Weekend Days menu. 5: Opens Set Holiday Schedule menu. Main [SET ] 13:44 (1:44 PM) Clock [TIME] Type HHMM (24-hour notation) Time...

  • Page 40: Log Menu Selections

    5.6 LOG Menu Selection Display Log Opens the System Display to all events in the buffer memory. Print Log Sends the entire buffer memory to the RS-232 port. Clear Log (Hard reset) will eliminate all events stored in the buffer memory. Sensitivity Report Will send sensor sensitivity information to the RS-232 port.
  • Page 41 Main [VIEW] 1:Display Log 2:Print Log [LOG ] 3:Clear Log 4:Sens. Report 1: Opens Show Events menu. 2: Opens Print Log menu. 3: Prompts for OK; if accepted, clears the event log and resets the panel. 4: Initiates a sensor sensitivity printout. Main (Display shows a log entry) Show Events...

  • Page 42: Power Up Procedure

    6.0 Power Up Procedure 6.1. General Ensure that all cables and optional modules (if any) are installed and secured per the installation instructions. DO NOT install any field wiring at this time. Connect the End of Line devices to the notification appliance and municipal (if installed) circuits.

  • Page 43: 7100 Series Device Types And Functions

    7100 Series Device Types and Functions 9000-0447 41 of 43 Technical Manuals Online! - http://www.tech-man.com...

  • Page 44: Typical 7100/Drbc-1 Hookup

    Typical Wiring - DRBC-1 to 7100 42 of 43 9000-0447 Technical Manuals Online! - http://www.tech-man.com...

  • Page 45: Power Limited/Non-Power Limited Wiring Connections

    Knockouts for Non Power-Limited wiring. This includes 120/240 VAC, Batteries (if remote from enclosure, DACT (optional) and Municipal (optional) Wiring. All Power-Limited Wiring Municipal Circuit Reverse Polarity Application. Power- Limited Municipal Circuit - Local Energy Master Box/Releasing 120/240 VAC wiring. Application, Route under PCB.
