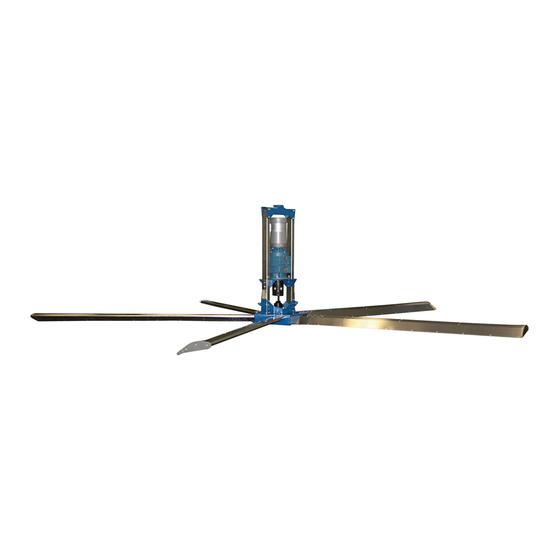

- Page 1 HIGH-5 High Volume Ceiling Fan Installation Manual Blythewood, SC 29016 · 800.768.3985 · www.pattersonfan.com...
- Page 2 Addendum High-5 Installation Instructions (Mechanical Only) Please Note: This document is meant to be used in conjunction with the Installation Instruction drawings that accompany this unit. Rev 3, Page 4...
-
Page 3: Maintenance
5 Fan Blades 1 Fan Assembly 1 Mounting Bracket 4 Turnbuckles ¼” Bolts, nuts, washers, and clamps of various sizes (see High-5 Installation Instruction drawings for types and quantities) FAN SAFETY COMPONENTS PROVIDED Assembly safety cable (1) Guy wires (4) - Page 4 Gearbox – Periodic maintenance will ensure your fan remains operational for its intended life. While Patterson recommends that the end-user annually checks and changes the gearbox oil, failure to do so will not void any warranties. Oil type used is Chevron® Delo Gear ESI 85W-140.
-
Page 5: Step 1: Install Mounting Hardware
INSTALLATION PROCEDURES – KEY POINTS Step 1: Install Mounting Hardware Reference: Page 11 and Page 16 of the High-5 Installation Instructions A) It is important to attach the mounting hardware separately from the fan assembly. B) Attach the mounting hardware as shown on page 11 of the Installation Instructions. -
Page 6: Step 4: Install Guy Wires
12, view A of the Installation Instructions. Tighten the saddle clamps securely using a ½” socket. Step 4: Install Guy Wires References: Page 12 and Page 17 of the High-5 Installation Instructions For maximum stability, the angle formed between the guy wire and the ceiling should be Note: than 45 degrees. - Page 7 Step 5: Install Fan Blades Reference: Page 13 and Pages 18, 19, & 20 of the High-5 Installation Instructions A) Care should be taken when installing the blades to ensure they are not bent or damaged, as this may affect fan performance.
- Page 8 C) Repeat steps A – B for the remaining 4 safety plates. Recheck all bolts for tightness. Step 7: Install Blade Safety Cable Reference: Page 12, View C of the High-5 Installation Instructions Note: This step is mandatory. Failure to install the blade safety cable may void the manufacturer’s warranty.
- Page 9 DESCRIPTION NUMÉRO P-24872 NUMBER 202469 FAN HVLS INSTALLATION SUPPORT (PRE-ASSEMBLED) 201839 FAN HVLS INST SUPPORT TOP PLATE H-BEAM FROM BUILDING 202047 FAN HVLS INST SUPPORT BEAM SHIM 203809 HEX BOLT 1/2-13 NC X 2 1/4" LG Z/P GR 8 203408 WASHER 1/2 GR8 110667 NYLON INSERT LOCKNUT 1/2-13 Z/P GR 5...
- Page 10 NUMÉRO P-24872 INSTALLATION OF THE FRAME SAFETY CABLE (#202164): DESCRIPTION NUMBER 165710 CABLE 3/32'', 7X7, 13 FT LG THE WIRE ROPE PASSES OVER THE H-BEAM AND THRU 202837 187108 (4x) THE HOLES IN THE VERTICAL TUBES. 202163 CABLE 3/32'', 7X7, 8 FT LG SADDLE CLIPS #187108 SHOULD BE INSTALLED WITH 110665 202164...
- Page 11 NUMÉRO P-24872 PART 202674 NOTE 4 NUMBER DESCRIPTION NUMBER 203584 203410 201972 201895 FAN HVLS 24' BLADE ASSY (SET #201259) NOTE 10 203584 202361 FAN HVLS 20' BLADE ASSY (SET #202359) 203410 202294 FAN HVLS 18' BLADE ASSY (SET #202360) (2x) 201988 FAN HVLS 5/8-11X3:1/2'' BLADE BOLT...
- Page 12 -GEAR BOX OIL: CHEVRON DELO GEAR ESI 85W-140 REPLACED TO AVOID GREASE LEAK -FILL TO OIL LEVEL PORT - PATTERSON RECOMMENDS CHECKING AND CHANGING OIL ANNUALLY. HOWEVER, FAILURE TO DO SO DOES NOT VOID THE WARRANTY. -HUB GREASE: MOBIL UNIREX EP2 RÉVISION / REVISION...
- Page 13 -GEAR BOX OIL: CHEVRON DELO GEAR ESI 85W-140 REPLACED TO AVOID GREASE LEAK -FILL TO OIL LEVEL PORT - PATTERSON RECOMMENDS CHECKING AND CHANGING OIL ANNUALLY. HOWEVER, FAILURE TO DO SO DOES NOT VOID THE WARRANTY. -HUB GREASE: MOBIL UNIREX EP2 RÉVISION / REVISION...
- Page 14 PART NUMÉRO P-24872 ITEM NO DESCRIPTION NUMBER NUMBER 201845 FAN HVLS INST SUPPORT WELDMENT 201836 FAN HVLS INST SUPPORT TUBE ON CROSS MEMBER 202047 FAN HVLS INST SUPPORT BEAM SHIM 201839 FAN HVLS INST SUPPORT TOP PLATE 201838 FAN HVLS INST SUPPORT SWIVEL TUBE WELDMENT 148080 OILITE FLANGED BUSHING 203809...
- Page 15 NUMÉRO P-24872 ITEM NO. PART NUMBER DESCRIPTION NUMBER 202164 CABLE 1/4", 7X19, 10 FT LG 202163 CABLE 3/32'', 7X7, 8 FT LG 165710 CABLE 3/32'', 7X7, 13 FT LG 149003 CABLE THIMBLE 3/32 202837 QUICK LINK 3/16" 171791 3/32 SADDLE CLIP ZINC PLATED 187108 1/4 SADDLE CLIP ZINC PLATED 201971...
- Page 16 PART NUMÉRO ITEM NO. DESCRIPTION P-24872 NUMBER NUMBER 201895 FAN HVLS BLADE 24' ASSY (WITH WINGLET) 201863 FAN HVLS BLADE SHAFT SUPPORT 201965 FAN HVLS BLADE WINGLET (SPARE PART) 201864 FAN HVLS BLADE SAFETY PLATE 201988 FAN HVLS 5/8-11X3:1/2'' BLADE BOLT 200153 BELLEVILLE SPRING LOCK WASHER 5/8"...
- Page 17 NUMÉRO ITEM NO. PART NUMBER DESCRIPTION P-24872 NUMBER 202361 FAN HVLS BLADE 20' ASSY (WITH WINGLET) 201863 FAN HVLS BLADE SHAFT SUPPORT 201965 FAN HVLS BLADE WINGLET 201864 FAN HVLS BLADE SAFETY PLATE 201988 FAN HVLS 5/8-11X3:1/2'' BLADE BOLT 200153 BELLEVILLE SPRING LOCK WASHER 5/8"...
- Page 18 NUMÉRO ITEM NO. PART NUMBER DESCRIPTION P-24872 NUMBER 202294 FAN HVLS BLADE 18' ASSY (WITH WINGLET) 201863 FAN HVLS BLADE SHAFT SUPPORT 201965 FAN HVLS BLADE WINGLET (SPARE PART) 201864 FAN HVLS BLADE SAFETY PLATE 201988 FAN HVLS 5/8-11X3:1/2'' BLADE BOLT 200153 BELLEVILLE SPRING LOCK WASHER 5/8"...
