Summary of Contents for bergmann Sindre

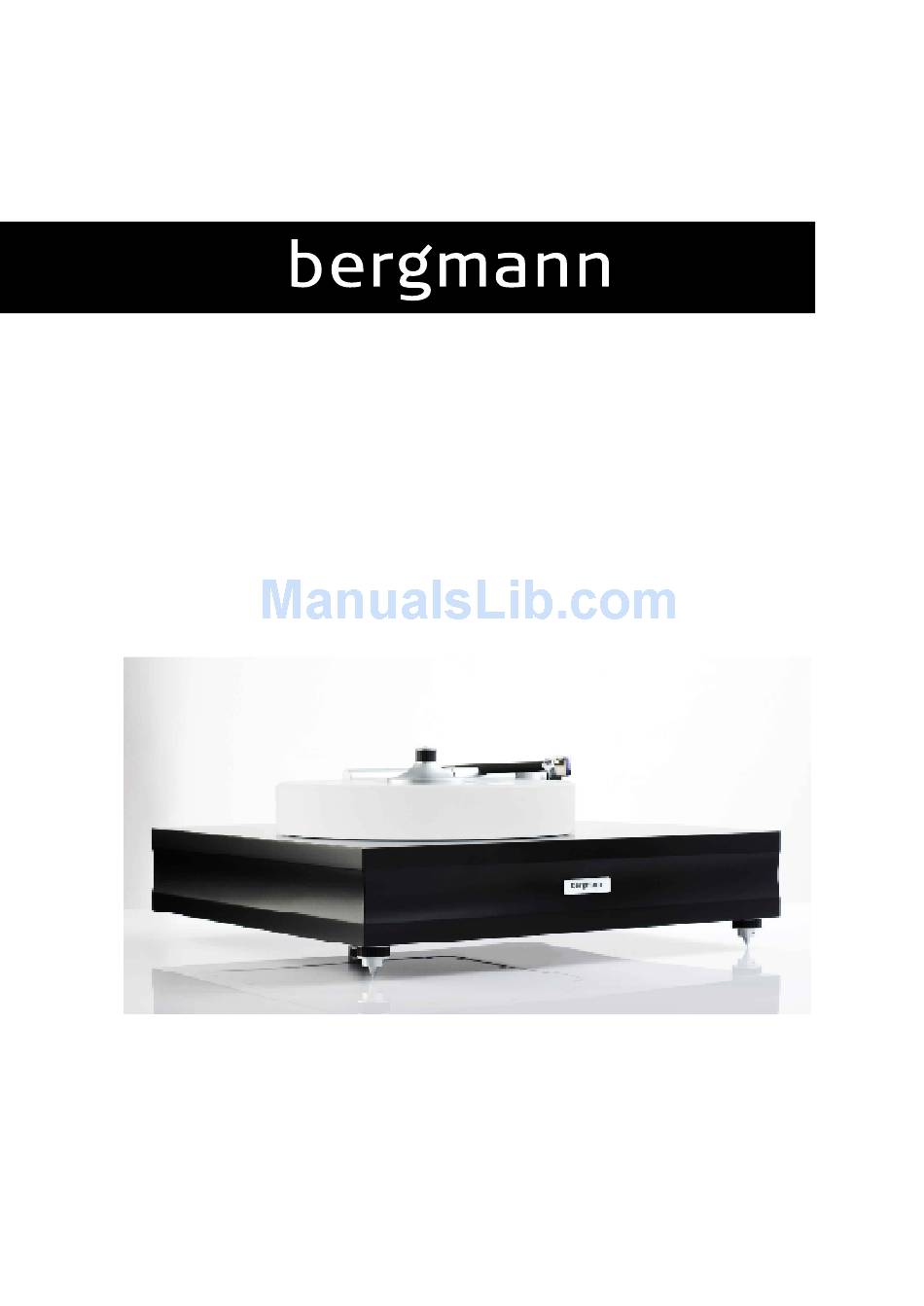

- Page 1 Model Sindre Manual...
- Page 2 From generation to generation the Nordic Mythology has told about the Dwarf, who possessed craftmanship unrivalled by any other beings. The Dwarf Sindre was the legendary blacksmith, who forged Mjolner the hammer of Thor, God of Thunder. Thor could hure Mjolner at the taget, whereupon it returnrd to the Gods hand of its...
- Page 3 Read this before handling the turntable! An analogue playback system is a sensitive piece of precission mechanics, and must be handled as so. Read the instruvtion carefully before set up and operating the turntable. Allways keep the right side up when handling the turntable. Follow the instruction manual step by step, to get the best result.
- Page 4 Turntable sliding pipe armtube armlift air pipe input right channel input PSU air input input left channel airflow adjustment valve, arm airflow adjustment valve, platter Airsupply on/off condens bowl air output condens drain 33/45 on/off speed finetuning Page 4...
- Page 5 Setup Manual. 1. Attach the spikes under the turntable, Pic. 1. and Pic. 2. Pic. 1. Pic. 2. 2. Place the turntable on the rack. For an easy adjustment of the tonearm (Page 6), ensure free access to the 2 screws underneath the turntable, holding the tonearm.
- Page 6 4. Remove the subplatter, Pic. 6. Important> Do not cause any scratches or marks to the bearing/airbearing. Even a small scratch can cause a noisy bearing. Add oil to the bearing, approximately half full, Pic. 7. Place the subplatter on top of the airbearing, and let it sink. Remove the subplatter again, Pic. 8. If the oil is pressed out of the bearing, the amount of oil is correct.
- Page 7 7. Place platter on top of the subplatter, Pic. 18. Pic. 18. 8. As the platter is slightly concave, the spirit level must be placed as shown on Pic. 19. Adjust the turntable in level, Pic. 20. Thighten the spikes, Pic. 21 Screw Pic.
-
Page 8: Tonearm Adjustment
Tonearm adjustment. The tonearm can be move forward and backward on the plinth. Simply untighten the two screws holding the tonearm, undreneath the turntable, Pic. 27. The two screws (underneath turntable), must be untighten sufficiently to avoid scratches on the plint, when the tonearm is being moved! Furthermore, the tonearm can be adjusted in the horizontal plan, independent of the plinth. - Page 9 14. Connect the PSU by the connector, on the turntable backpanel, Pic. 35. Connect the powercord to the PSU, and finally connect the powercord to the outlet. connector Pic. 35. 15. Switch on the airsupply, and start the platter. If you hear any noise from the bearing, a gentle airflow adjustment is required.
-
Page 10: Playing Records
To ensure an airbearing turntable/tonearm to work perfect, there are some important parameters that is vital to succeed. On the Bergmann turntables and tonearms the parameters are as follows: The platter: 1. The platter must be in level, as every other turntables. -
Page 11: Maintenance
Maintenance Turntable It is recommende to check the adjustmens yearly. If necessary, finetune. Check the amount of oil in the bearing yearly. Clean carefully with a soft cloth wriged in mild soapy water. Airsupply The filter/condens bowl at the back of the airsupply, must be drained from condens. Simply untighten the blue screw in buttom of the filter/condensbowl, and let the condens flow out. - Page 12 Registered Trademark Handmade in Denmark www.bergmannaudio.com...
