MT-7071 LCD Cable Length Toner & Probe Kit
INSTRUCTION
MT-7071 Transmitter/Remote Unit：
1. RJ45 (8 pin) connectors: Used for cable mapping and verifying cable status of RJ45 (8 pin) LAN cable with
remote unit; with tone generator for wire tracing; for measuring cable length to open without remote unit.
Caution! Do not plug in live wire that over 5mA, AC 60V /DC 48V to RJ45 (8 pin) jack.
2. RJ11(6 pin) Connectors：Used for cable mapping and verifying cable status of RJ11 (6P/6C/4C/2C) phone cable
with remote unit; with tone generator for wire tracing; for measuring cable length to open without remote unit. Use
alligator clip patch cord for cable mapping, cable length measuring and verifying cable status of single conductor
cable or two conductor cable.
Caution! Do not plug in live wire having over 5mA, AC 125V/DC 100V to RJ11 (6 pin) jack.
3. BNC Connectors：Used for cable mapping and verifying cable status of BNC Coax cable with remote unite; with
tone generator for wire tracing; for measuring cable length to open without remote unit. Use adaptor for testing RF
cable (such as F、RCA、TNC、M connectors).
Caution! Do not plug in live wire having over 5mA, AC 125V/DC 100V to BNC (2pin) connector.
4. LCD Display：For indicating function and display test result.
5. Battery low indicator: When the battery is lower than DC 7.0V, LCD will show flash 「 」icon. Please replace
battery.
6. 「
」Function enter push button：Press this button to enter the function.
7. 「
」Function up push button：Press this button to move up arrow cursor on LCD to choose function or
increase 0.1 meters / feet / yards of calibration parameters.
8. 「
」Power ON/OFF push button：Press this button to power on, push again for power off.
9. 「
」Function return push button：Press this button to return to previous menu.
10. 「
」Function down push button：Press this button to move down arrow cursor on LCD to choose function or
reduce 0.1 meters / feet / yards of calibration parameters.
11. Battery cover.
4
6
7
Getting Started Guide
1
2
3
5
9
ENTER
RETURN
8
UP
DOWN
LCD CABLE LENGTH
10
TONER & PROBE
MT-7071
T R AN SMI T TER

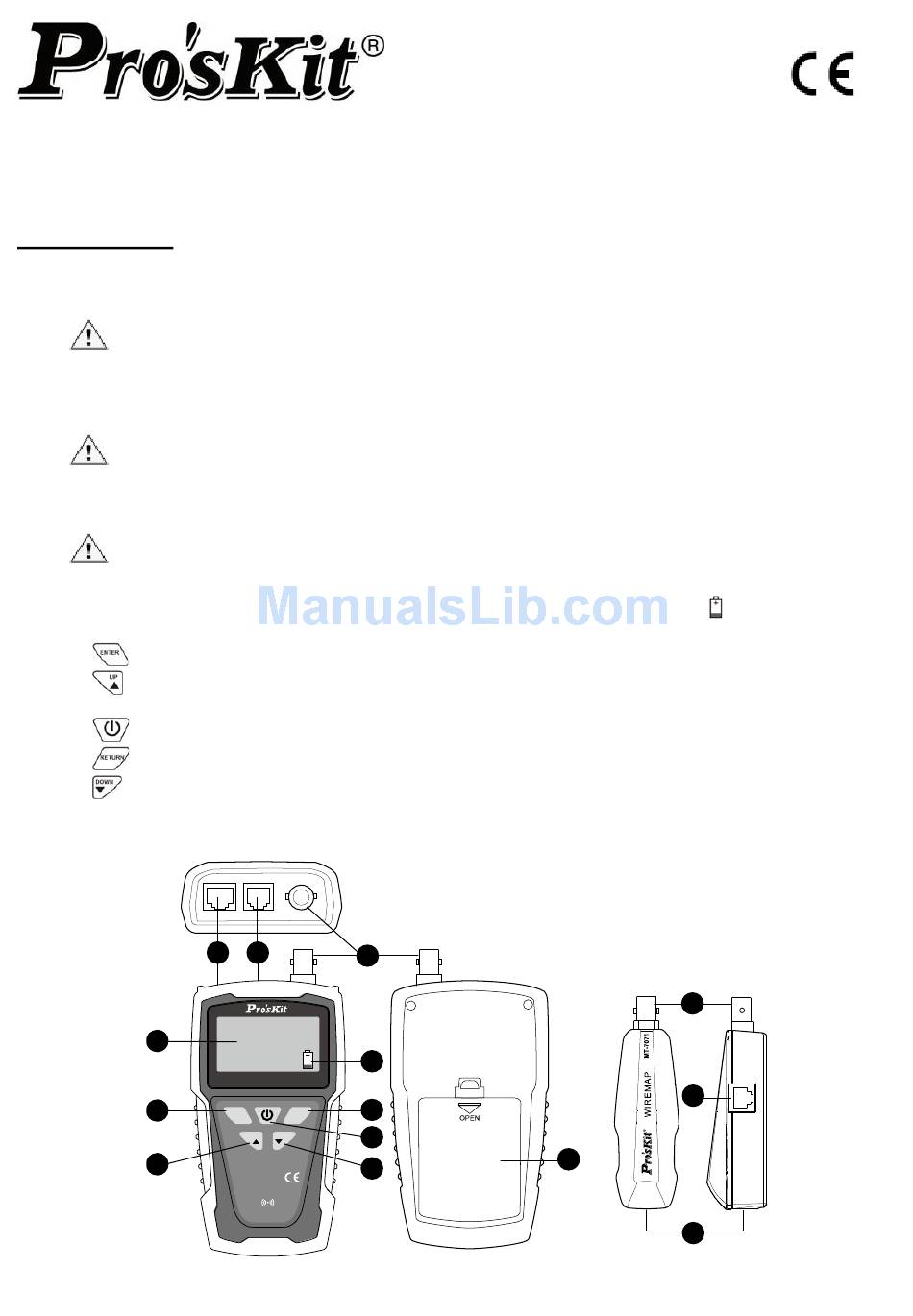

Figure 1 MT-7071 Transmitter / Remote Unit
11
1
3
2
1
