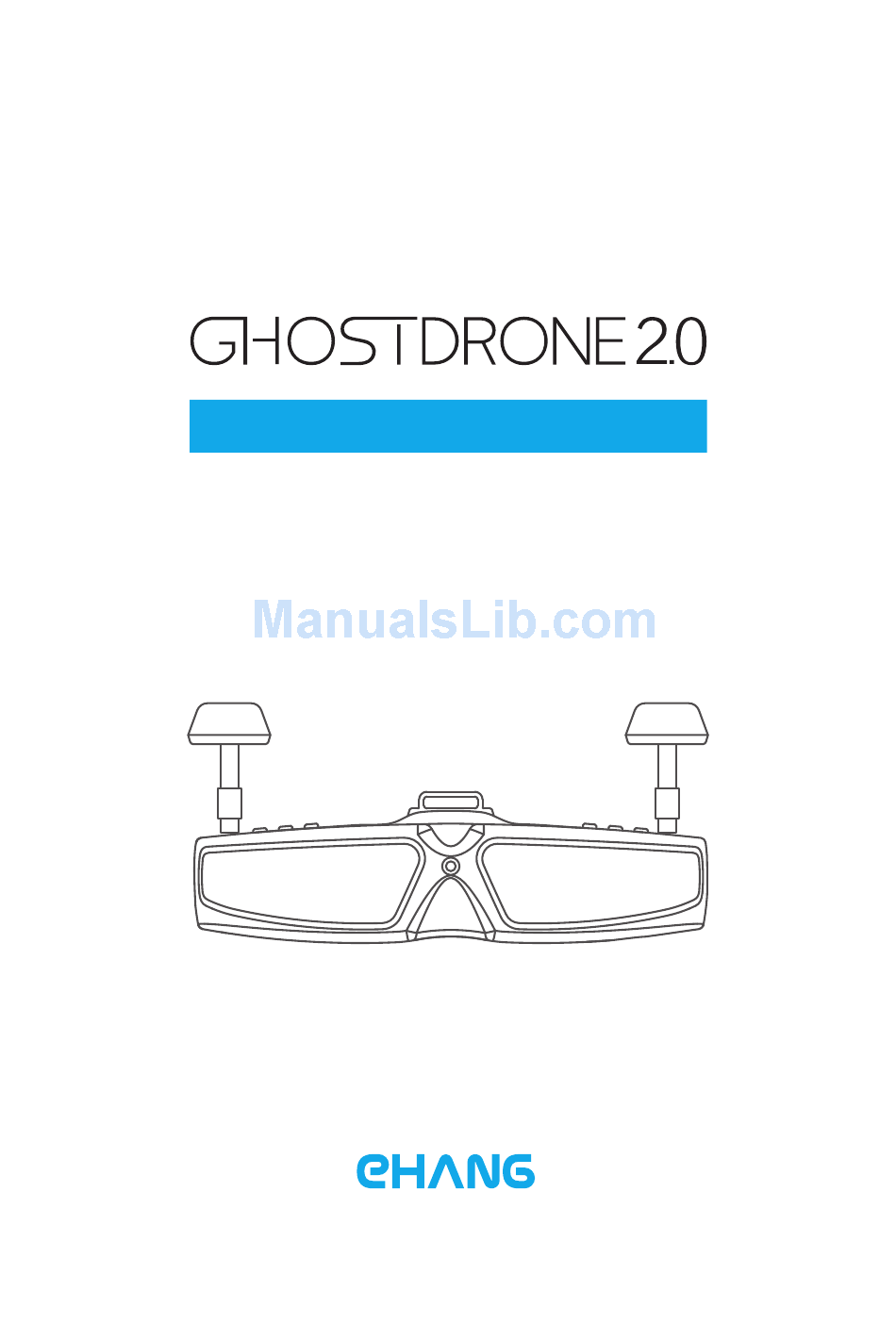

- Page 1 VR GOGGLES OPERATING MANUAL GHOSTDRONE 2.0 created by EHang, Inc.
- Page 2 Disclaimer Before using EHang VR goggles, please read the operating manual carefully and familiarize yourself with the operations, warnings and applications. Please avoid improperly installing antennas, using non-propri- etary charger or gimbal. EHang shall not bear any liability or responsibility of the damage of the VR...
-
Page 3: Packing List
Introduction The Ehang VR goggles feature data and real-time video transmission functions. While wearing the goggles, users can easily see real-time videos through head tracking system as well as adjusting pitch angles of the camera which is attached on GHOSTDRONE 2.0. - Page 4 Diagram ⑧ ① ② ⑨ ③ ⑩ MENU VIEW SWITCH VISION DATA POWER ④ CHANNEL SEARCH 5.8G 2.4G ⑤ ⑥ ⑦ Above ① Menu ⑤ Vision Signal ⑨ Channel Search ② ⑥ ⑩ Data Signal ON/OFF ③ Down ⑦ Power Indicator 2.4G Antenna Interface ④...
-
Page 5: Specifications
Battery Life about 60 min Charging the Goggles Please use the Ehang USB cable for charging. It takes about 3 hours to fully charge the goggles. When charging through a USB adapter, the required input current is 500 mA or higher. - Page 6 Charging the VR goggles with Ehang power adapter Note: VR goggles can also be charged with Ehang power adapter for GHOST Drone 2.0. The VR goggles and smart flight battery can also be charged with the power adapter at the same time.
- Page 7 1. Install 5.8GHz antenna and 2.4GHz antenna to the corresponding antenna interfaces; 2.4G antenna 5.8G antenna 2. Press and hold the power button to turn the VR goggles on. Power indicator displays solid red. Data signal indicator flashes blue. Press and hold MENU...
- Page 8 Note: If the image is not clear enough, press CHANNEL SEARCH button to search again for a clearer image. There are 32 channels on the VR goggles and the first channel to pop up might not be the best so keep searching.
- Page 9 Goggles 7. Put on the VR goggles looking up or down. 8. Press and hold the power button to turn off the VR goggles if not in use. Note: 1. Press the VIEW SWITCH button to switch from video transmission mode to front camera mode.
-
Page 10: Menu Settings
Menu Settings The parameters in the menu have been correctly set to the general settings before delivery. Adjust only when necessary. When turning the goggles on, press the MENU button to enter the menu. Then press “+” or “-”button to move up or down to choose the parameter for adjustment. - Page 11 Head Tracking Angle 1.±45° Goggle head tracking range ±45°, gimbal is more sensitive to head track. 45° 30° Look up 45° 45° 90° Look down 45°...
- Page 12 2.±90° Goggle head tracking range ±90°, gimbal is less sensitive to head track. 90° 30° Look up 90° 90° 90° Look down 90°...
- Page 13 Power off/ Switch to Front Camera Legend High Frequency Flash Low Frequency Flash Solid Note: DATA indication light for the Android version VR goggles shows the Bluetooth connection status; DATA indication light for the iOS version VR goggles shows the Wi-Fi connection status.
-
Page 14: Storage Instructions
(spotter) to be present within line of sight watching the GHOSTDRONE at all times when using EHang VR goggles. 3. Those who have eye diseases are not suggested to use the VR goggles. 4. It is suggested not to wear the VR goggles for over 90 minutes. -
Page 15: Warranty
Warranty Strict quality control will be conducted before delivery of your VR goggles. Please read the manual and get familiar with the operation before use. A 6-month warranty is guaranteed for problems not caused by user’s improper use. Removal of the products manufacturing label will be regarded as waiver of warranty. - Page 16 © E H a n g , I n c . 2 0 1 6 w w w . e h a n g . c o m...
