DAITEM SH710AX Installation Manual

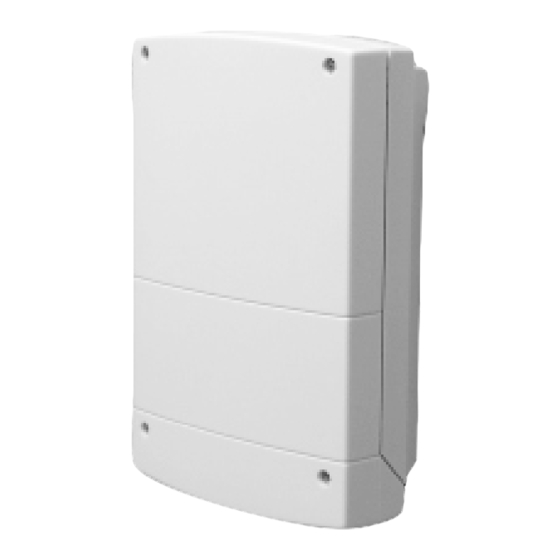

8-channel relay interface
Hide thumbs
Table of Contents

Advertisement

Quick Links

Upgraded for e-Nova applications

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SH710AX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DAITEM SH710AX

Summary of Contents for DAITEM SH710AX

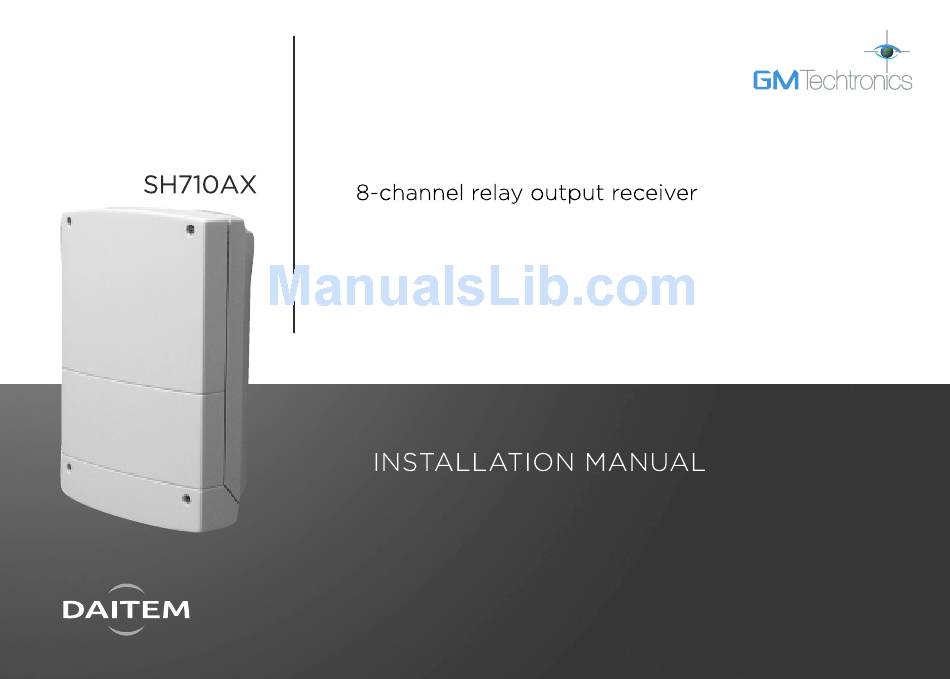

  • Page 1 Upgraded for e-Nova applications...

  • Page 2: Table Of Contents

    1. Introduction Contents 1. Introduction ..................138 The SH710AX 8-channel relay output receiver acts as a control 2. Preparation ..................140 and interface unit between the Daitem alarm system and other 2.1 Tooling required................140 electrical devices. 2.2 Power supply .................. 140 It is fitted with:...

  • Page 3: Setting The Parameters Of A Receiver Recognised

    (loop enabled IMPORTANT: the two only if wired on power-up) terminals are connected Outputs 3 to 8 6 low power outputs • toggle switch SH710AX • ON/OFF mode A1250A04823 SH710AX Coller sur certif A1250A04823 NO C NC NO C NC •...
  • Page 4 If you are adding to an SH710AX A1250A04823 existing system, use the SH710AX guarantee sticker provided with Coller sur certif...
  • Page 5 (10 V DC min/ the LED lights up 15 V DC max) to green for 2 s. terminal blocks 1 and 2. The receiver SH710AX beeps and the LED A1250A04823 lights up green SH710AX A1250A04823 for 2 s.
  • Page 6 Open the control panel cover and proceed as follows: “beep, disarmed, “beep” “beeep” “beep, device X” control panel” SH710AX A1250A04823 10 s max. Briefly press the receiver Press and hold the The receiver issues a The control panel issues “test”...
  • Page 7 A maximum of 16 products (remote controls, detectors, etc.) can be programmed for direct recognition by the receiver. The channel and operating mode must then be allocated to the output concerned (see 4.2 Setting the parameters of a receiver recognised by another product). “beep” “beeep” SH710AX A1250A04823 10 s max. The receiver issues Briefly press the receiver...

  • Page 8: By A Control Panel

    • All parameter-setting must be performed using TwinLoad ® software available in the Daitem installers section at www.daitem.co.uk. When the receiver has been programmed for recognition by a control panel, the outputs are factory programmed to operate as follows:...
  • Page 9 (from 1 to 8) Operating mode • 1: disabled • 6: 10 s timer (1) For operating the Daitem gate control system of an automatic or semi-automatic gate • 2: On/Off • 7: 90 s timer (opening of one side only).
  • Page 10 1. Proceed as follows using the control panel keypad: receiver n° 1 Output used: 2 All alarms channel Timer: 90 s 2. Wire as shown: Output 2 SH710AX A1250A04823 SH710AX Coller sur certif A1250A04823 NO C NC NO C NC...
  • Page 11 Continuous alarm system arming (output 1) information and confirmed intrusion (output 4) are required. The SH710AX receiver is powered via the Bandit system. 1. Output 1 is factory programmed for Disarming/Total arming. If this is not the case, proceed as follows using the control panel keypad: receiver n°...
  • Page 12 2. Wire as shown: Output 1 SH710AX A1250A04823 SH710AX Coller sur certif A1250A04823 NO C NC NO C NC 230 V mains supply with protection 3. For programming the Bandit, refer to the system manual.

  • Page 13: Setting The Parameters Of A Receiver Recognised By Another Product

    • 10: 30 min timer (1) For operating the Daitem gate control system of an automatic or semi-automatic gate (opening of one side only). (2) For operating the Daitem gate control system of an automatic or semi-automatic gate (opening of both sides).
  • Page 14 On/Off mode device switched on device switched off 1. Proceed as follows: “beeep” “beeep” about about 10 s about 10 s SH710AX SH710AX SH710AX SH710AX SH710AX A1250A04823 A1250A04823 A1250A04823 A1250A04823 A1250A04823 To start the Press the “test”...
  • Page 15 2. Wire as follows: Output 2 SH710AX A1250A04823 SH710AX Coller sur certif NO C NC NO C NC A1250A04823 12 V DC supply 230 V mains supply with protection 4.3 Operating mode change indication A beep can be issued to indicate each change in system operating status.

  • Page 16: Receiver Activation When The Pstn Line Or Gsm

    4.4 Radio link validation in installation mode This function is for validating the radio link test in installation mode on 1 of the 2 radio bands. To switch to 2 radio bands, enter: receiver n° 0: validation on 1 of the 2 bands (factory) 1: validation on the 2 bands 4.5 Receiver activation when the PSTN line or GSM connection is cut Commands are only taken into account if a PSTN line or GSM cut message has first been sent by the control panel or dialler.

  • Page 17: Deleting Parameter-Setting

    4.8 Deleting parameter-setting 4.8.1 Deleting the parameter settings of the receiver recognised by a control panel The factory parameter settings of an output are restored using the control panel keypad. With the control panel in installation mode, use the keypad to enter: receiver n°...
  • Page 18 “beep, test, device X” than 5 s. The LED message: lights up. SH710AX A1250A04823 5.2.2 Testing other products 1. Press and hold: 2. Check that the corresponding programmed • the detector “test” button output responds to the receiver.

  • Page 19: Fixing The Device In Place

    5.3 Fixing the device in place 1. Loosen the locking screw 2. Mark the 3 fixing points and drill the holes using an on the fixing bracket and appropriately sized drill bit. remove the bracket. Pozidriv 2 3. Remove the washer, insert it and fix the bracket in place using suitable 4.
  • Page 20 5. In compliance with the following drilling requirements, drill a hole for the anti- removal magnet using a suitable 8 mm diameter drill bit. Hole: 8 mm Ø x 34 mm 6. A. Remove the anti-removal magnet drilling template using a flat-headed screwdriver. 7.
  • Page 21 8. Lock the base using the locking 9. A. To insert the cables (10 mm Ø max), remove screw. The LED will stop flashing the grommets and use a cross-headed red indicating that the anti- screwdriver to put a hole in them big removal magnet has been enough to accommodate the wire properly positioned.
  • Page 22 IMPORTANT • Disconnect the 230 V mains supply and the 12 V supply before doing any work on the electrical network. Electrical • All wires must be connected with the power off and in line with applicable electrical standards. shock hazard Disconnect and then reconnect power to the receiver once the connections have been made.

  • Page 23: Switching To User Mode

    12. Close the cover 11. Position the cable clamps and tighten the cables and tighten enough to prevent them from moving when pulled the 4 screws. (the cable clamp and screws are in the bag of accessories supplied). Do not remove the Pozidriv 2 Pozidriv 2 cable clamps.

  • Page 24: Fault Indications

    8. Maintenance 8.1 Fault indications The control panel supervises and identifies the receiver. It The power fault is also indicated locally by the receiver as it monitors the state of: issues 3 short beeps. • the power supply, Example: if the receiver/control panel radio link is lost, the •...
  • Page 25 • The lithium battery pack must be replaced with the same type of pack with the same technical characteristics, i.e. 2 x (3.6 V – 17 Ah). • We advise you to use the DAITEM MPU01X battery available in the catalogue in order to guarantee individual safety and equipment reliability.

  • Page 26: Daitem Guarantee And Extension Conditions

    DAITEM offers a technical telephone helpline. For all technical questions, or before Unit 17 Paxcroft Farm returning any product, contact DAITEM technical support, who will inform you of the Hilperton - Trowbridge - Wiltshire best procedure to follow for the particular case.

  • Page 27: Technical Data

    10. Technical data Technical characteristics SH710AX receiver Max number of receivers per installation 1 recognition-programming and parameter-setting test button Button 1 dual-coloured LED for programming and positioning the anti-removal magnet 6 low power outputs • voltage-free dry contacts • 1 A/30 V breaking capacity •...
  • Page 28 Non-binding document, subject to modification without notice. To obtain advice when installing your system or before returning equipment, please contact the Daitem technical support team (see telephone number at the back of the alarm system installation manual) or check the web site at: www.daitem.co.uk...
