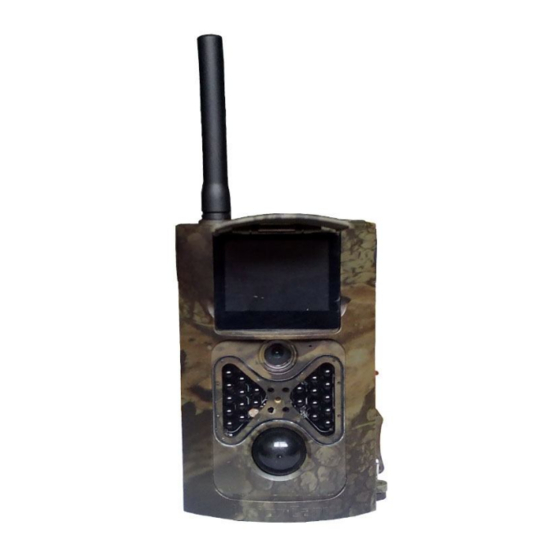

- Page 1 12MP 3G GPRS MMS SMS Control Scouting Trail Camera...
-
Page 2: Table Of Contents
1. Introduction......................1 1.1 Application......................1 1.2 Power Supply......................1 1.3 Caution........................1 1.4 Key Features......................1 2. Whole View and Details of Camera.................3 2.1 Front View of Camera...................3 2.2 Right Side View of Camera...................3 2.3 Back View of Camera....................3 2.4 Bottom View of Camera..................4 2.5 Remoter.........................4 2.6 Screen Information Display..................6 2.7 Settings Menu.......................6... -
Page 3: Introduction
1. Introduction Thank you for choosing one of our highly qualified 3g sms control Scouting Trail Camera. This 12MP HD digital camera was totally R&D by our diligent and smart engineers based on feedbacks and requirements from customers globally. 1.1 Application This digital camera is an ideal product for housing security, warehouse surveillance, and monitoring wild animals with its camouflage appearance and nice shape. - Page 4 Adjustable PIR sensitivity; HIGH, MID, LOW Impressive quick trigger time: 0.7s Multi-shot pictures; 1,3,6,9 Adjustable delay between motions; 1/5/10/30 seconds/minutes Adjustable video length: 10/30/60/90 seconds With 8 AA alkaline batteries, the longest standby time is up to 6 months Available operation temperature: -20℃ to 60℃ With specified Timer, camera can be programmed to work only during preset time period every day Stamp of date, time, temperature and moon phase on every picture...
-
Page 5: Whole View And Details Of Camera
2. Whole View and Details of Camera 2.1 Front View of Camera 2.2 Right Side View of Camera 2.3 Back View of Camera... -
Page 6: Bottom View Of Camera
2.4 Bottom View of Camera 2.5 Remoter The infrared remoter is an input device of the camera and is primarily used for customer settings. Its maximum remote distance is 9 meters. - Page 7 Note: Press the punctuation “*” for laser pointer. Note: 1. Press OK directly, the camera will take picture or video directly. 2. Press Right directly, the picture or video recorded can be viewed 3. Viewing picture, press up or down 4.
-
Page 8: Screen Information Display
2.6 Screen Information Display Note: To active its MMS or SMTP function, the camera should find signal and SIM card. 2.7 Settings Menu There are five parts setting of the camera... -
Page 9: Quick Operation
3. Quick Operation 3.1 Load Battery 3.2 Insert TF Card Note: To active its MMS or SMTP function, pls save setting file Parameter.dat by MMSCONFIG to TF card. -
Page 10: Power On
3.3 Power on Slide Power Witch from OFF to Test or On position, the camera powers 3.3.1 TEST In this mode, the screen lights up. User can do the operations by remoter: a. Setting Camera Menu, including photo, video and system b. -
Page 11: Video Menu
Description: Menu Content Description Resolution 12MP, 8MP, 5MP Photo size Interval 1/5/10/30 sec/min Waiting time from the last taking Multi 1/3/6/9 Number of photos taken every time 100,200,400 The camera exposure level To change 12MP to 5MP Resolution, the remoter operations are: Note: 1. - Page 12 Menu Content Description Resolution 1080P, 720P, WVGA, QVGA Video size Video Length 10S, 30S, 60S, 90S The time length of video Voice On, Off If On, Video sound is recorded To change 1080P to 720P Resolution, the remoter operations are: Note: 1.
-
Page 13: System Menu
3.4.3 System Menu Menu Content Description Mode Camera, video, camera&video Taking picture, video, picture and video Language English, Francais, Deutsch Camera Menu language and so on TV Mode NTSC, PAL TV play mode Date/Time 31-07-2014 15:49:40 Date-Month-Year Hour:Minute:Second Password ON/OFF ON, OFF Password of entering camera Password... - Page 14 Note: 1. Language, Distance, TV Mode, Format and Default setting operations are same. 2. In Date/Time, Timer and Password setting: a. Press to select number Press to enter into next menu 3. After select Default, the setting is:...
- Page 15 Setting Default Items Mode Camera Camera, Video, Camera&Video Resolution (Camera) 12M, 8M, 5M Delay 1 Seconds 1-30 Seconds, 1-30 Minute Multi Single Single, 3, 6, 9 Pictures 100, 200, 400 Resolution (Video) 1080P 1080P, 720P, WVGA, QVGA Video Length 10s, 30s, 60s, 90s Date/Time Same as last time YY/MM/DD, MM/DD/YY, DD/MM/YY Adjust...
-
Page 16: Mms Menu
3.4.4 MMS Menu... -
Page 17: Smtp Menu
3.4.4 SMTP Menu... -
Page 18: Mmsconfig Setting
4. MMSCONFIG Setting 1 Load CD into the computer 2 Run MMSCONFIG.exe file from MMSCONFIG folder 3 Fix Photo, Video and System Menu Setting Note: After setting menu by remoter, user can skip it. 4 Fix MMS Setting A. Auto MMS Mode: In Auto MMS Mode, there is configured information for selection a. - Page 19 B. Manual MMS Mode: If there is no configured information for selection, pls choose Manual MMS Mode. Firstly, User need to contact SIM card operator to get APN, Account, Password, MMSC, IP and Port information. Then a. Add phone number for receiving photos b.
- Page 20 a. Choose Country b. Choose Operator c. Choose Type of email d. Add sending email address on the left e. Add sending email address password on the left f. Add receiving email address on the right B. Manual SMTP Mode: If there is no configured information for selection, pls choose Manual SMTP Mode.
- Page 21 b. Add sending email address password on the left c. Add receiving email address on the right 6 Save Parameter.dat to TF card...
-
Page 22: Sms Control
5. SMS Control There are 2 ways for using: 1. Send sms code directly 2. Install phone application, select function command The SMS codes are: Code Function Meaning *530* Camera Start Start Working *531* Camera Sleep Stop Working Camera takes a picture, then sends it *500* Capture to configured phone or email Capture and get... -
Page 23: Firmware Upgrade
6. Firmware Upgrade This camera is equipped with an automatic upgrade function for you. Upgrading is needed only when an improved firmware is available. The operations are as following: 1. Unzip the update file 2. Copy the FW18NA.bin to TF card. 3. -
Page 24: Specification
7. Specification Image Sensor 12 Mega Pixels Color CMOS Memory TF Card to 32GB Lens F=3.1; FOV=60 ° Size 145mm * 80mm * 55 mm IR Filter Full Automatic IR Filter TFT Display Screen 2.0 inch Black Invisible 940nm PIR Distance High/Normal/Low PIR Sensor Sight Angle 120 Degrees... -
Page 25: Packing List
8. Packing List...
